XMF38 Inductive Linear Displacement Sensor

XMF38 Inductive Linear Displacement Sensor
XMF38 Inductive Linear Displacement Sensor

work principle

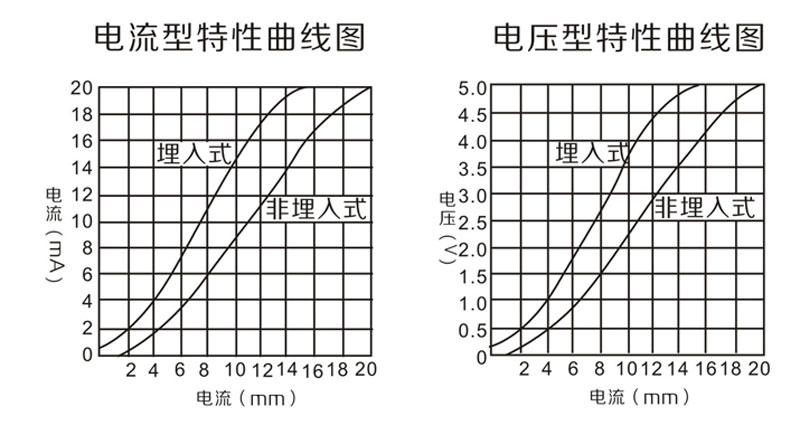

  • Inductive proximity switch with analog quantity output has the similar work principle with general inductive proximity switch. The energy of oscillator syst-em decreases when a metal object approaches the inductive side. The energy decrease degree indic ates the distance between the metal object and thesensor. The energy consumption is transformed into measuring sign inan additional device and magnified through linear treatment.(Fig.5)
  • Provide astandard analog signal at output terminal(0···5V or 4-20mA···)

Installation and connection
