Working area adjusting(windows teach or single point teach)by teach in button suitable for all models for all models for a fast coming into work. Multifunction LED indicator: output state,teach-in,NO/NC configuration. Plastic housing,IP67 protection degree. It is easy to detect transparent objects.

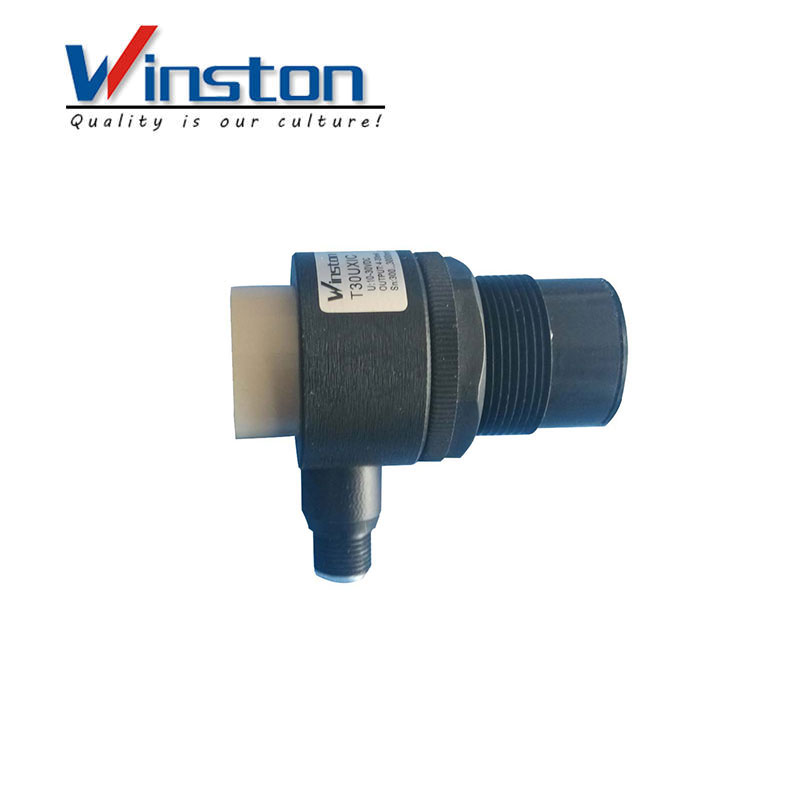

T30UX Ultrasonic Sensor

*Only standard 2 m cable models are listed. For 9 m cable, add suffix W/30 to the model number (example, T30UXDA W/30). QD Models: For a 4-pin Euro-style integral QD, add suffix Q8 to the model number (example, T30UXDAQ8). For a 4-pin 150 mm.

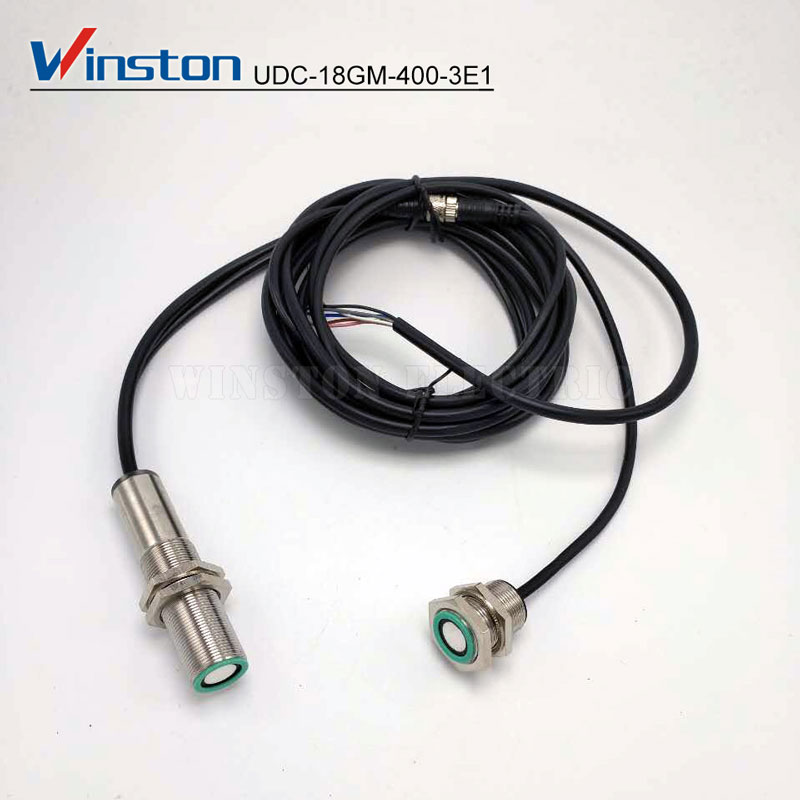

UDC-18GM-400-3E1 Double Sheet Sensor

The ultrasonic double sheet monitor is used for double sheet detection in all situations in which the automatic distinction between double and single sheets is required in order to protect machines or avoid waste production.

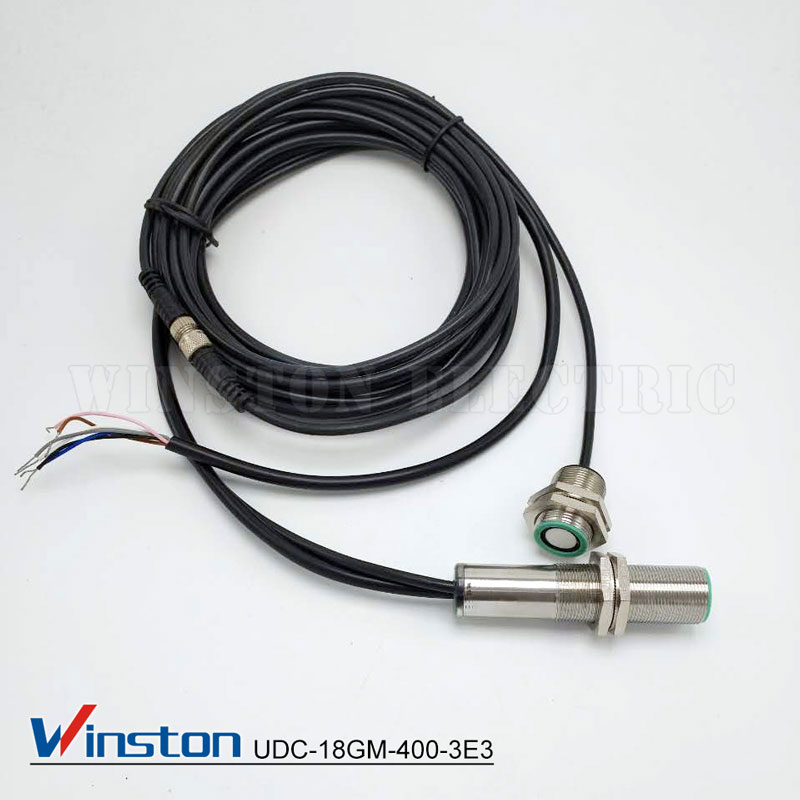

UDC-18GM-400-3E3 Double Sheet Sensor

UB400-12GM-U-V1 Ultrasonic Sensor

Technical ParametersUB400-12GM-U-V1Technical dataSensing distance30…400mmAdjustment range50…400mmUnusable area0…30mmStandard target plate100mm×100mmTransducer frequencyAbout 310kHzResponse dela

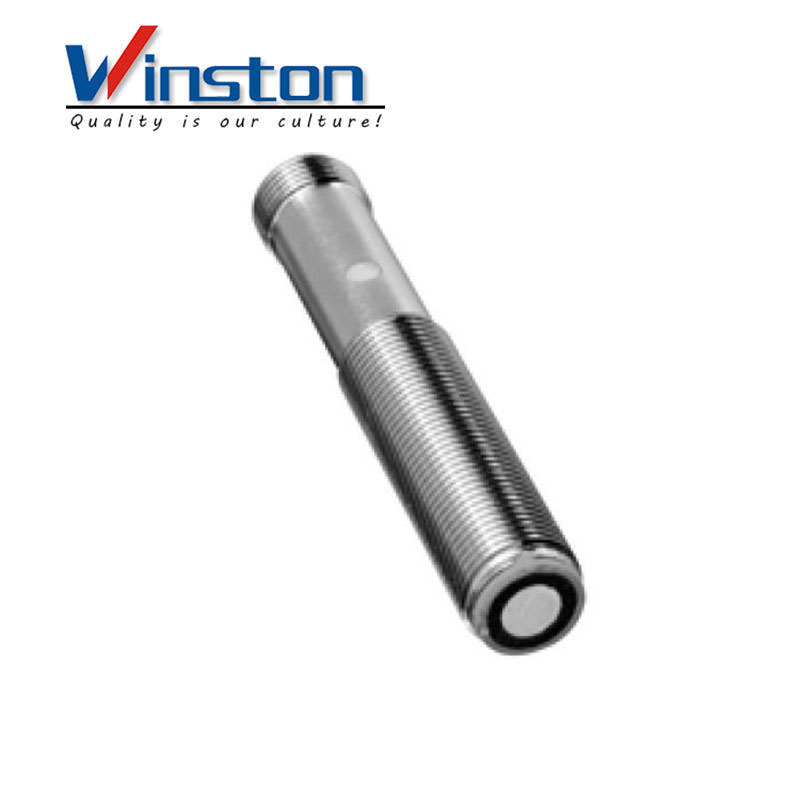

UB400-12GM-E4-V1 Ultrasonic Sensor

The ultrasonic sensor features a switch output with two teachable switching points. These are set by applying the supply voltage - UB or + UB to the TEACH-IN input. The supply voltage must be applied to the TEACH-IN input for at least 1 s.

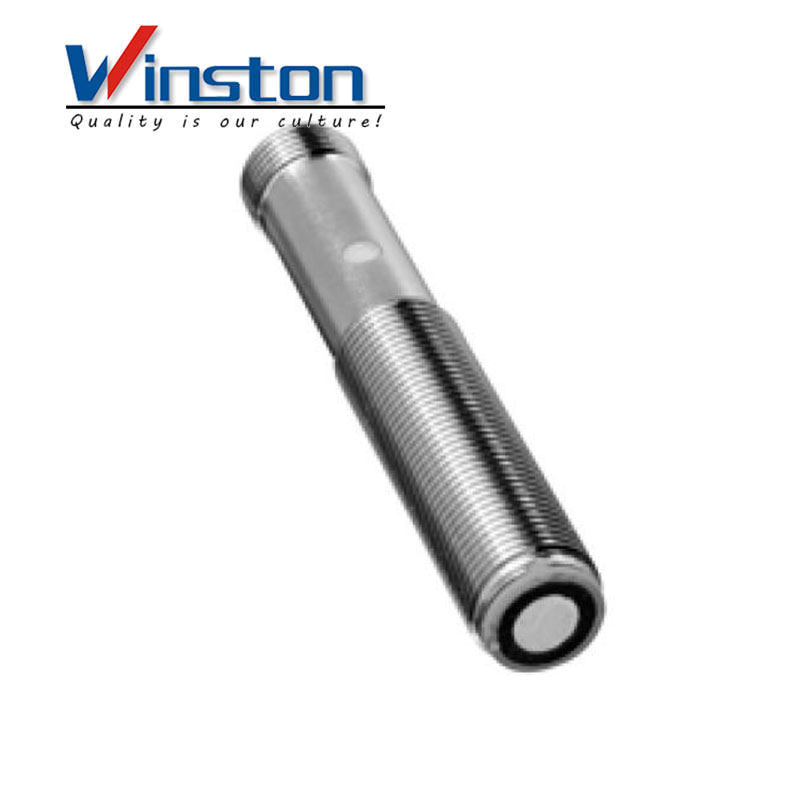

UB400-12GM-E5-V1 Ultrasonic Sensor

UB500-18GM-U-V1 Ultrasonic Sensor

Technical ParametersUB500-18GM-U-V1Technical dataSensing distance30…500mmAdjustment range50…500mmUnusable area0…30mmStandard target plate100mm×100mmTransducer frequencyAbout 380kHzResponse dela

UB500-18GM-E5-V1 Ultrasonic Sensor

Technical ParametersUB500-18GM-E5-V1Technical dataSensing distance30…500mmAdjustment range50…500mmUnusable area0…30mmStandard target plate100mm×100mmTransducer frequencyAbout 380kHzResponse delayAbout

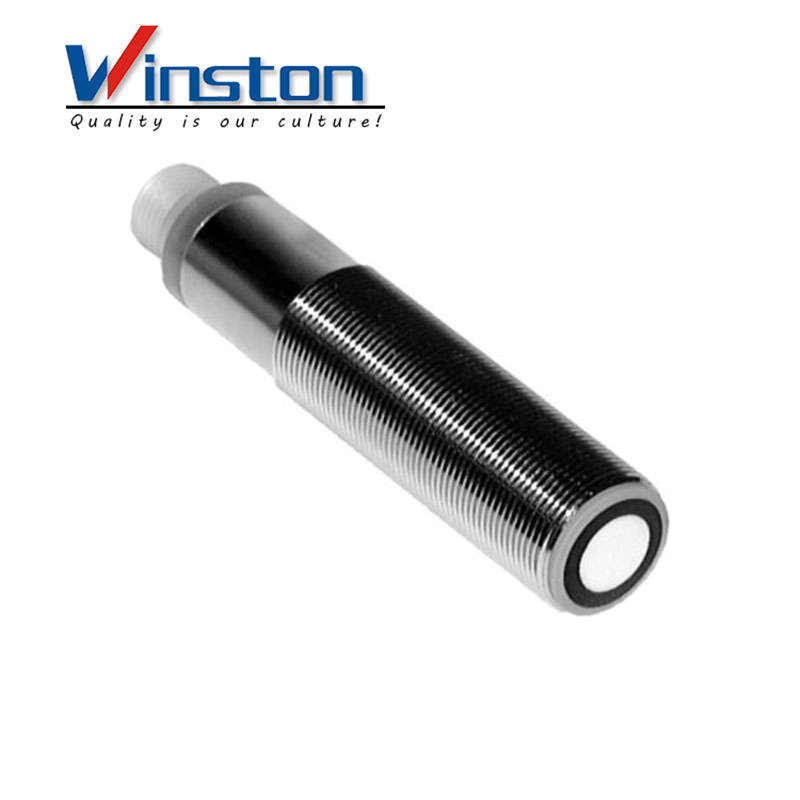

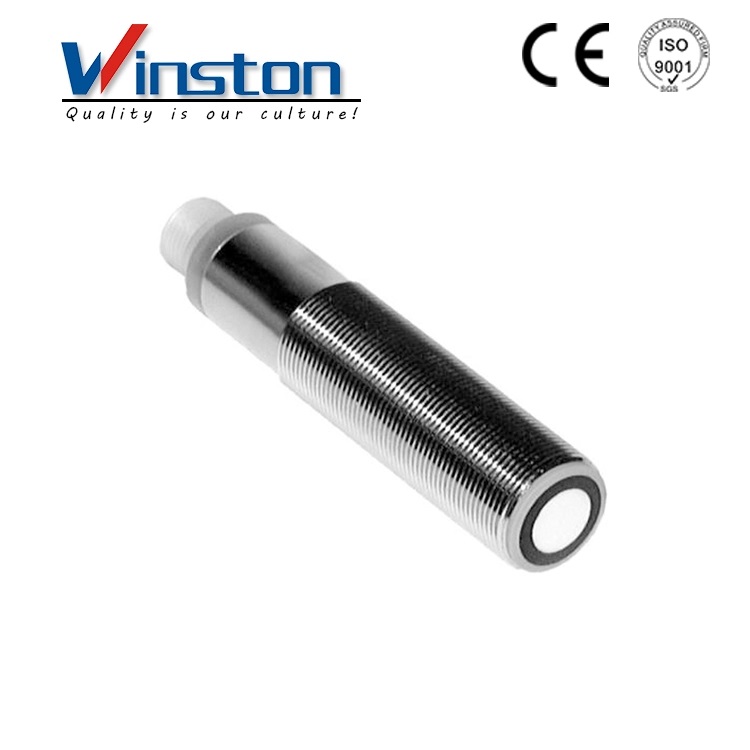

UB500-18GM75-U-V1 Ultrasonic Sensor

The sensor can be synchronised by the external application of a square wave voltage. A synchronisation pulse at the synchronisation input starts a measuring cycle. The pulse must have a duration greater than 100 μs.

UB800-18GM-E5-V1 Ultrasonic sensor

The ultrasonic sensor produces a data carrier utilizing very high frequencies that are outside the human’s audible range. The time it takes for that ultrasonic wave to pass between the sensor and the object is the value for the distance or the position.

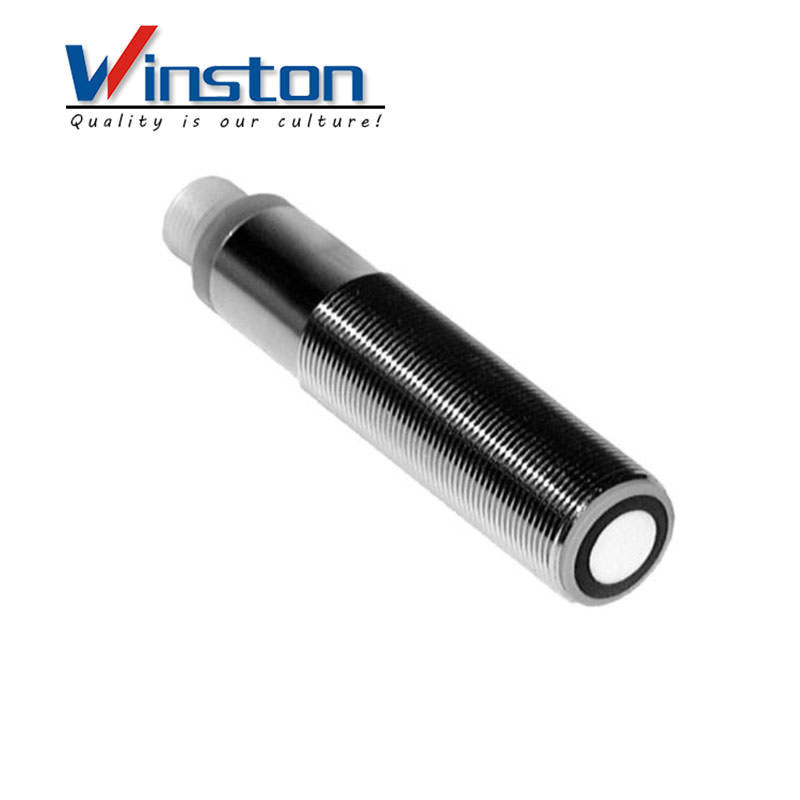

UB1000-18GM-E4-V1 Ultrasonic Sensor
