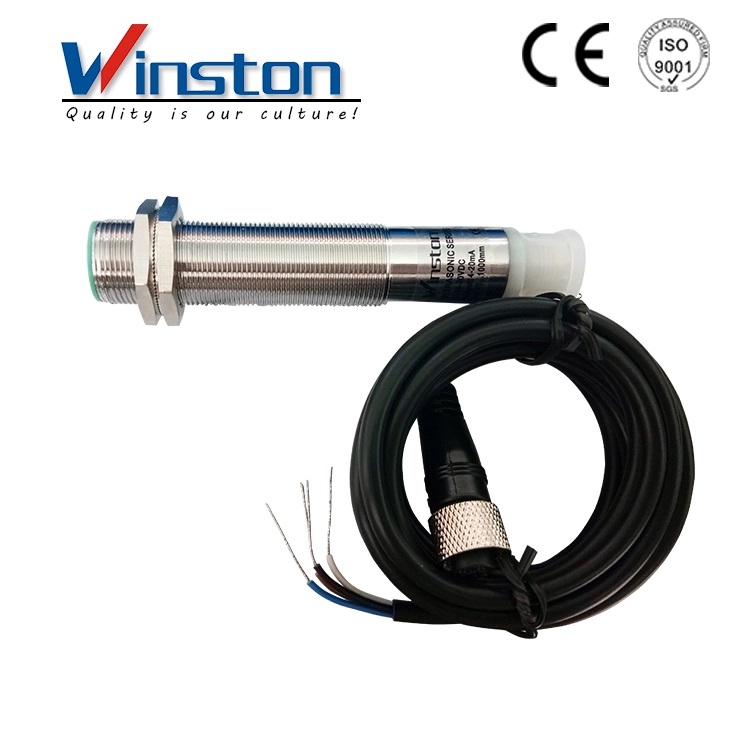

UB800-18GM-E5-V1 Ultrasonic sensor

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

Brife introduction of ultrasonic sensor

Ultrasonic sensors present the ideal solution for non-contact position and distance measurement in all industrial areas where environmental conditions such as dust, smoke or steam may affect the sensors. Objects consisting of a variety of materials can be detected to within millimeters regardless of color or shape.

The ultrasonic sensor produces a data carrier utilizing very high frequencies that are outside the human’s audible range. The time it takes for that ultrasonic wave to pass between the sensor and the object is the value for the distance or the position.

Ultrasonic sensors have proven their reliability and precision in many industries and applications, including:

lumber and furniture
construction materials and equipment
farming equipment
level control applications

data

General Specifications

Sensing distance: 50…800mm

Adjustment range: 70…800mm

Unusable area: 0…50mm

Standard target plate: 100mm×100mm

Transducer frequency: About 255 kHz

Response delay: About 100ms

Indicators/Operating means

LED green Power on

LED yellow indication of the switching state

Flashing:program function object detected

LED red permanently red: Error
Red,flashing:program function,object not detected

Electrical specifications

Operating voltage 10…30VDC,ripple10%ss

No-load supply current: ≤20mA

Input

Input type 1 program input
Operating distance 1: -U_B ... +1 V, operating distance 2: +6 V ... +U_B
input impedance: > 4,7 kΩ program pulse: ≥ 1 s

Output

Output type : 1 switch output E5, PNP NO/NC, programmable

Rated operational current 200mA,Short circuit/overload protected

Default setting switch point A1:70mm Switch point A2:800mm

Repeat accuracy : ±0.1% of full-scale value

Voltage drop ≤ 3 V

switching frequency ≤ 4Hz

Range hysteresis 1% of the set operating distance

Temperature influence: ±1.5% of full-scale value

Ambient conditions

Ambient temperature: -25…70°C(-13 ... 158 °F)

Storage temperature: -40…85°C(-40 ... 185 °F)

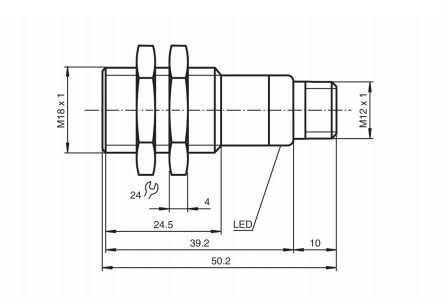

Mechanical specifications

Protection grade: IP67

Connection: V1 Connector M12x1,4-PIN

Material

Housing: brass,nickel-plated

Transducer epoxy resin/hollow glass sphere mixture;

Polyurethane foam

Weight 60g

Electrical Connection

Pinout
