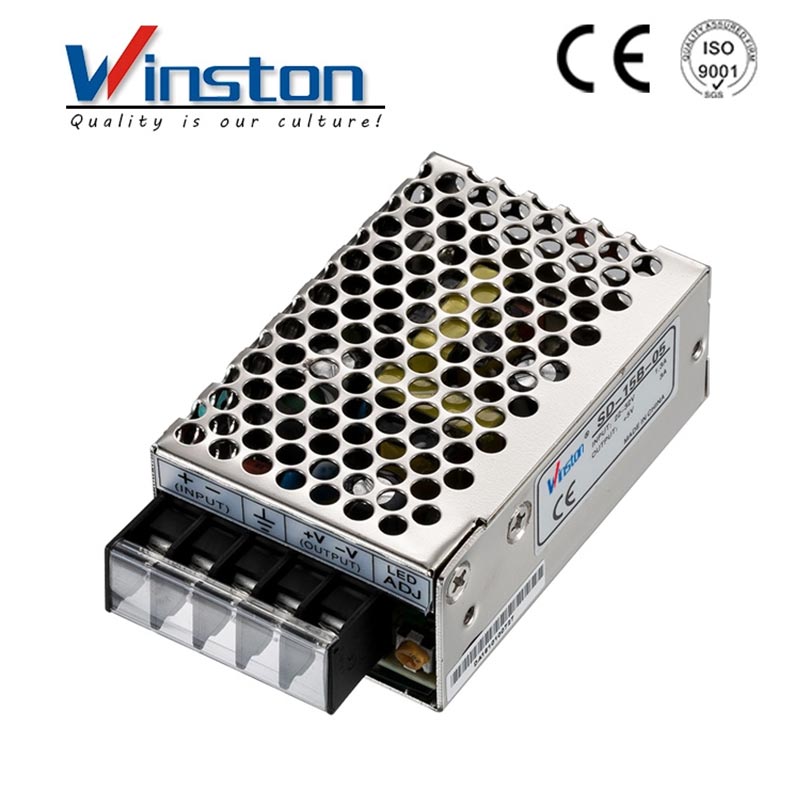

Winston SD-15W 15W single output wide inoput range dc to dc converter

SD-15W 15W Single Output DC-DC Converter

ModelSD-15A-5SD-15B-5SD-15C-5SD-15A-12SD-15B-12SD-15C-12SD-15A-24SD-15B-24SD-15C-24DC Voltage 5V12V24VRated Current3A1.25A0.625ACurrent Range0 ~ 3A0 ~ 1.25A0 ~ 0.625ARated Power15W15W15WRipple & Noise

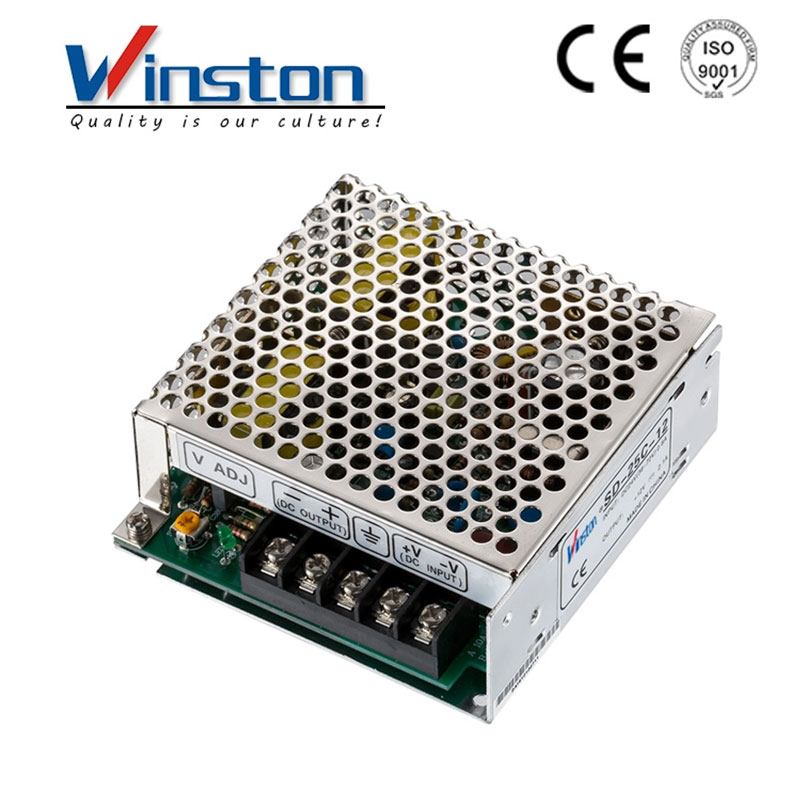

Winston SD-25W 25W dc to dc 9.2vdc to 72 vdc input single output smps

SD-25 25W Single Output DC-DC Converter

ModelSD-25A-5SD-25B-5SD-25C-5SD-25A-12SD-25B-12SD-15C-12SD-25A-24SD-25B-24SD-25C-24DC Voltage 5V12V24VRated Current5A2.1A1.1ACurrent Range0 - 5A0 - 2.1A0 - 1.1ARated Power25W25W25WWave & Noise100mVp-p

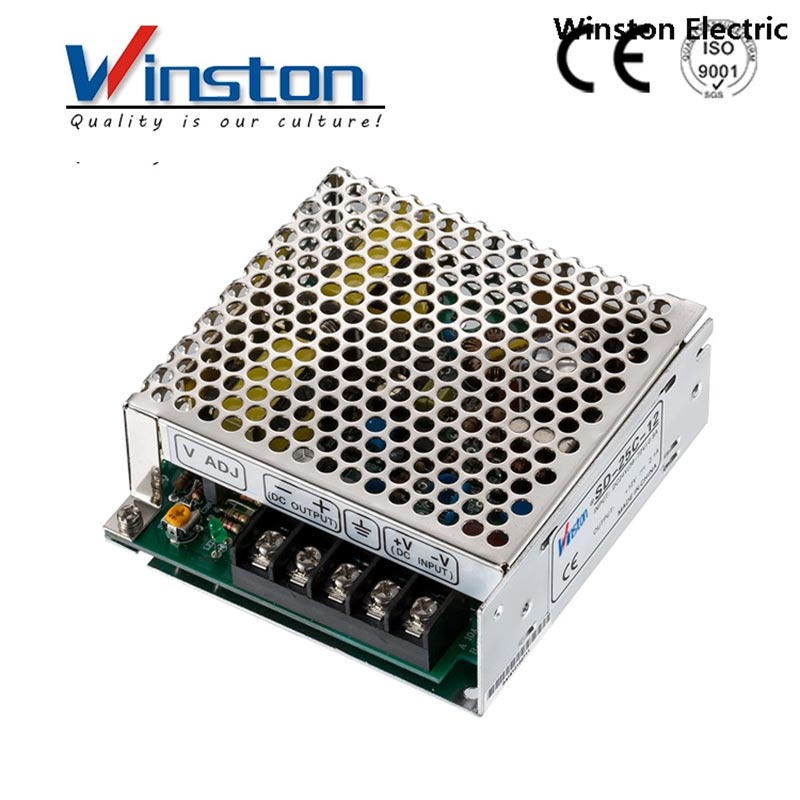

SD-25 25W DC-DC Converter

Wide input range; Protections: Short circuit / Overload / Over voltage; 1500VAC I/O isolation; Built-in EMI filter, low ripple noise; 100% full load burn-in test; Fixed switching frequency at 83KHz; Low cost High reliability; 2 years warranty

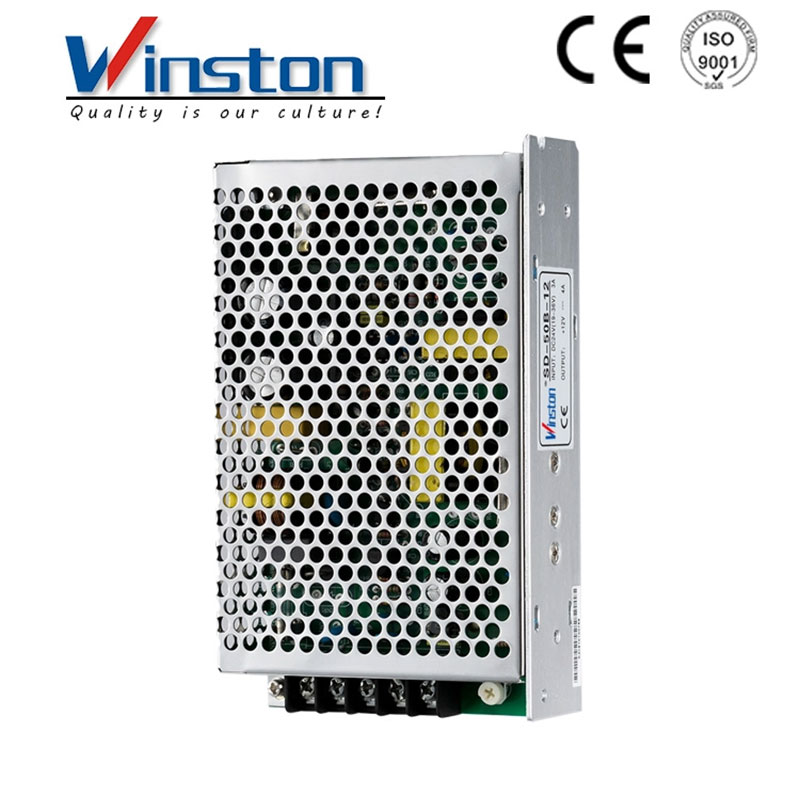

Winston SD-50W DC / DC converter 9-72vdc in single 50w standand power supply

SD-50W 50W Single Output DC-DCConverter

ModelSD-50A-5SD-50B-5SD-50C-5SD-50A-12SD-50B-12SD-50C-12SD-50A-24SD-50B-24SD-50C-24DC Voltage 5V12V24VRated Current10A4.2A2.1ACurrent Range0 - 10A0 - 4.2A0 - 2.1ARated Power50W50W50WWave & Noise 100mV

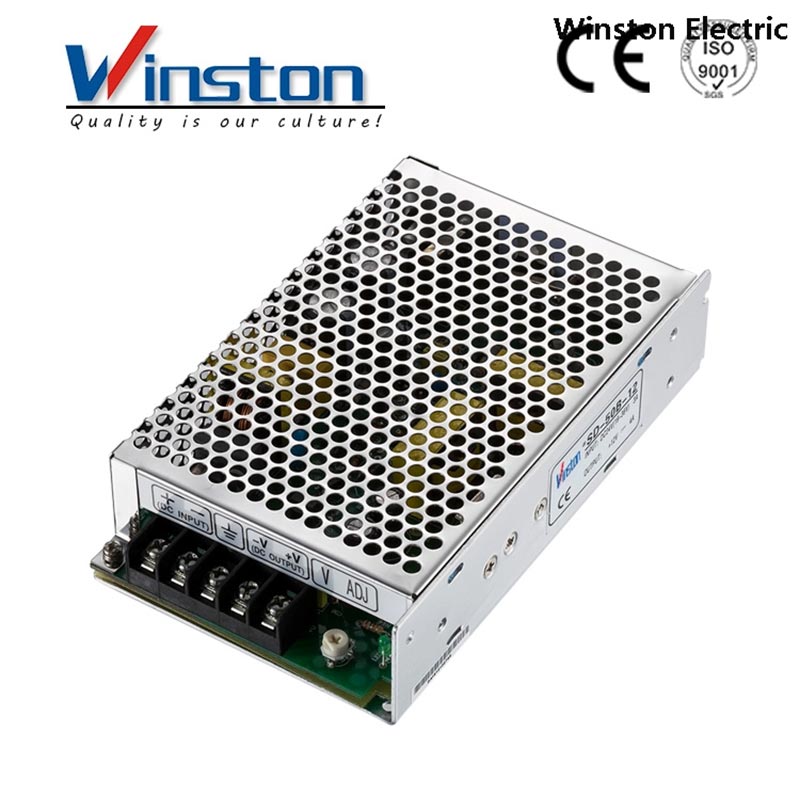

SD-50 50W Single output DC-DC Converter

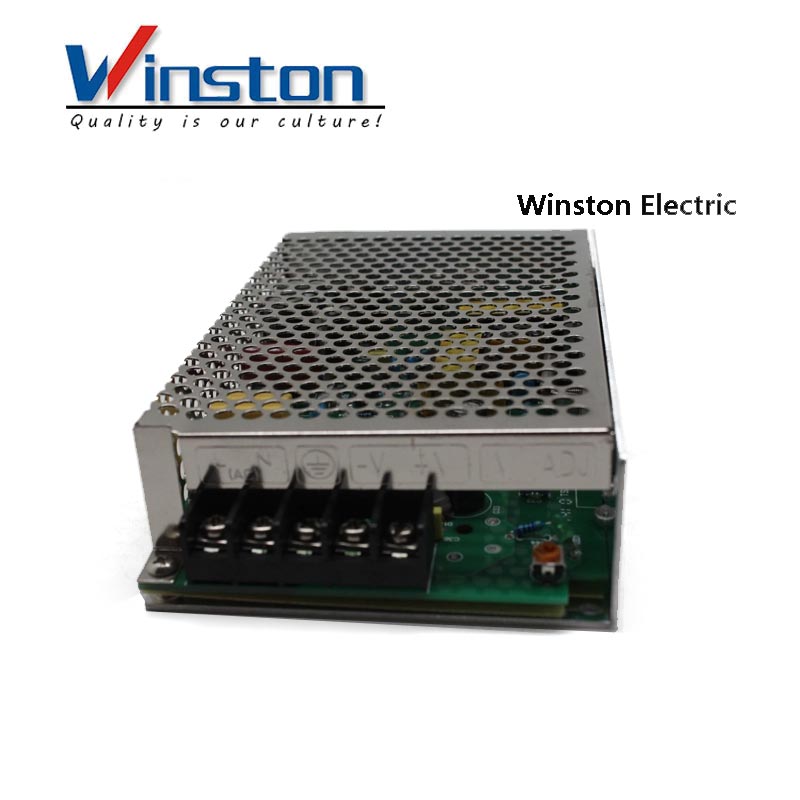

Winston SD-60W 60w 9-114vdc in single 50w 5v 12v 24v dc to dc converter

SD-60 60WSingle Output DC-DC Converter

ModelSD-60A-5SD-60B-5SD-60C-5SD-60D-5SD-60A-12SD-60B-12SD-60C-12SD-60D-12SD-60A-24SD-60B-24SD-60C-24SD-60D-24DC Voltage5V12V24VRated Current12A5A2.5ACurrent Range0 ~ 12A0 ~ 5A0 ~ 2.5ARated Power60

SD-60 60W Single output DC-DC Converter

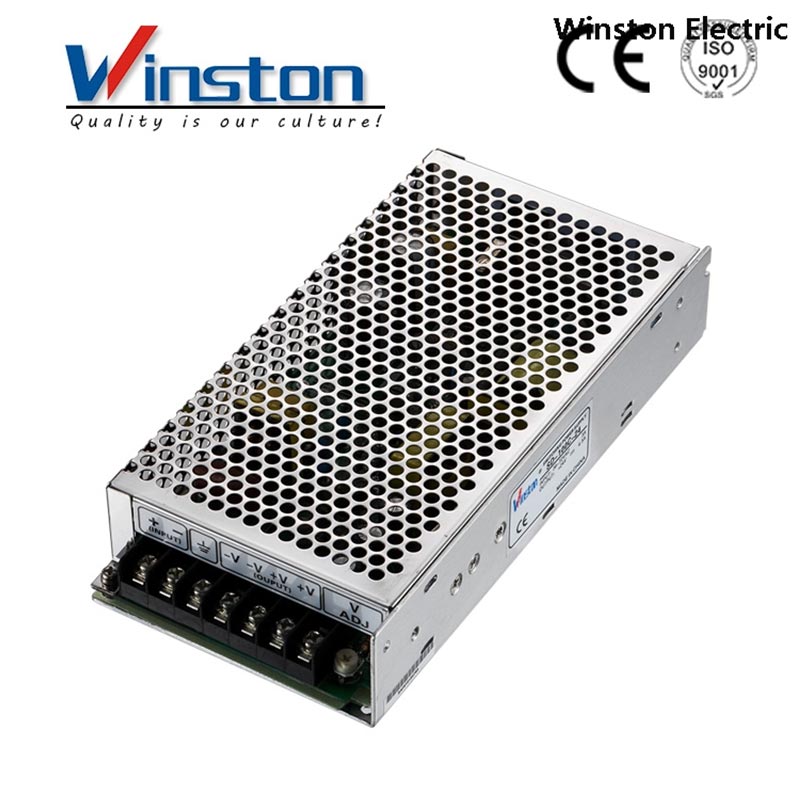

SD-100 100W Single output DC-DC Converter

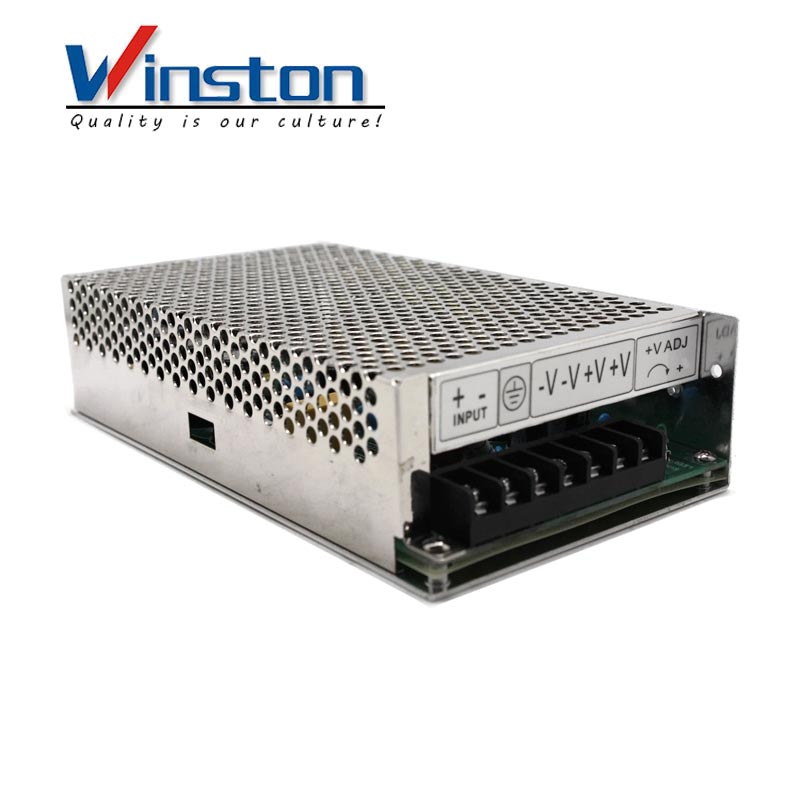

SD-150 150W Single output DC-DC Converter

Wide input range; Protections: Short circuit / Overload / Over voltage; 1500VAC I/O isolation; Built-in EMI filter, low ripple noise; 100% full load burn-in test; 24V and 48V input voltage design refer to LVD; Low cost,High reliability; 2 years warranty

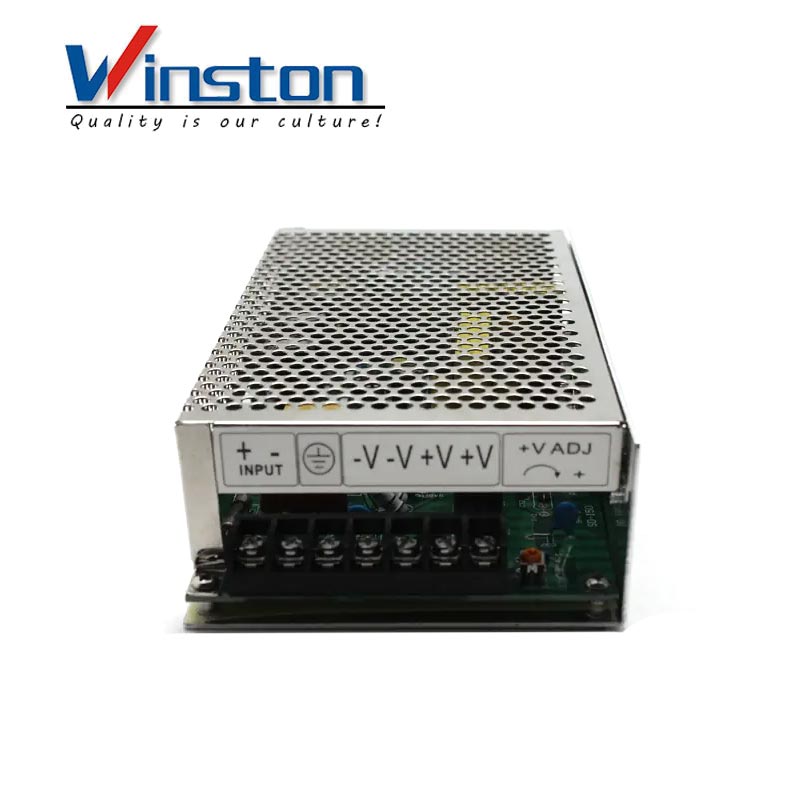

SD-200 200W Single output DC-DC Converter

Wide input range; Protections: Short circuit / Overload / Over voltage / Over temperature; 1500VAC I/O isolation; Cooling by free air convection; 100% full load burn-in test; 24V and 48V input voltage design refer to LVD; 2 years warranty

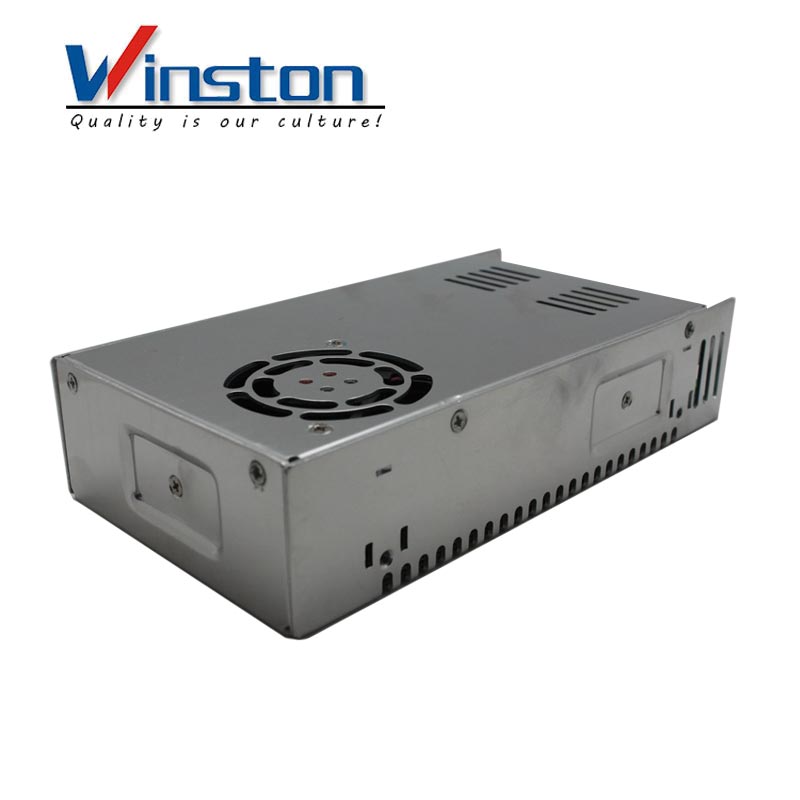

SD-350 350W Single output DC-DC Converter

Wide input range; Protections: Short circuit / Overload / Over voltage / Over temperature; 1500VAC I/O isolation Forced air cooling by built-in DC Fan; 100% full load burn-in test; 24V (B) and 48V(C) input voltage design refer to LVD

SD-120 150W Single output DC-DC Converter

SD-120 120W Single output DC-DC Converter

Features:2:1 wide input rangeProtections: Short circuit / Overload / Over voltage1500VAC I/O isolationBuilt-in EMI filter, low ripple noise100% full load burn-in testFixed switching frequency at 83 KH
