SD-150 150W Single output DC-DC Converter

SD-150 150W Single output DC-DC Converter

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote
SD-150 150W Single output DC-DC Converter
  • Wide input range
  • Protections: Short circuit / Overload / Over voltage
  • 1500VAC I/O isolation
  • Built-in EMI filter, low ripple noise
  • 100% full load burn-in test
  • 24V and 48V input voltage design refer to LVD
  • Low cost,High reliability
  • 3 years warranty



OUTPUT
Model SD-150A-5 SD-150B-5 SD-150C-5 SD-150B-12 SD-150C-12  SD-150D-12 SD-150B-24  SD-150C-24 SD-150D-24
DC Voltage 5V  12V 24V
Rated Current 30A 12.5A 6.3A
Current Range 0-30A 0 ~ 12.5A 0 ~ 6.3A
Rated Power 150W 150W 151.2W
Ripple & Noise 120mVp-p 120mVp-p  150mVp-p
Voltage Adj. Range 4.5~5.5VDC 11 ~ 16VDC 23 ~ 30VDC
Voltage Tolerance ±1.0% ±1.0% ±1.0%
Line Regulation  ±0.5% ±0.5% ±0.3%
Load Regulation ±0.5% ±0.5% ±0.3%
Setup, Rise Time 2s, 50ms at full load
Hold Up Time 24ms(only D mode) at full load

INPUT
Voltage Range A:9.2~18VDC B:19 ~ 36VDC   C:36 ~ 72VDC   D:72 ~144VDC or 85 ~ 132VAC
Efficiency 70% 73% 76% 75% 77% 79% 77% 80% 82%
Inrush Current D: 22.5A/96VDC
Leakage Current <0.75mA / 120VAC (SD-150D)

PROTECTION
Over Load 105 ~ 135% rated output power
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over Voltage 16.8V ~ 20V/10% LOAD 31.5 ~ 37.5V/10% LOAD
Protection type: Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

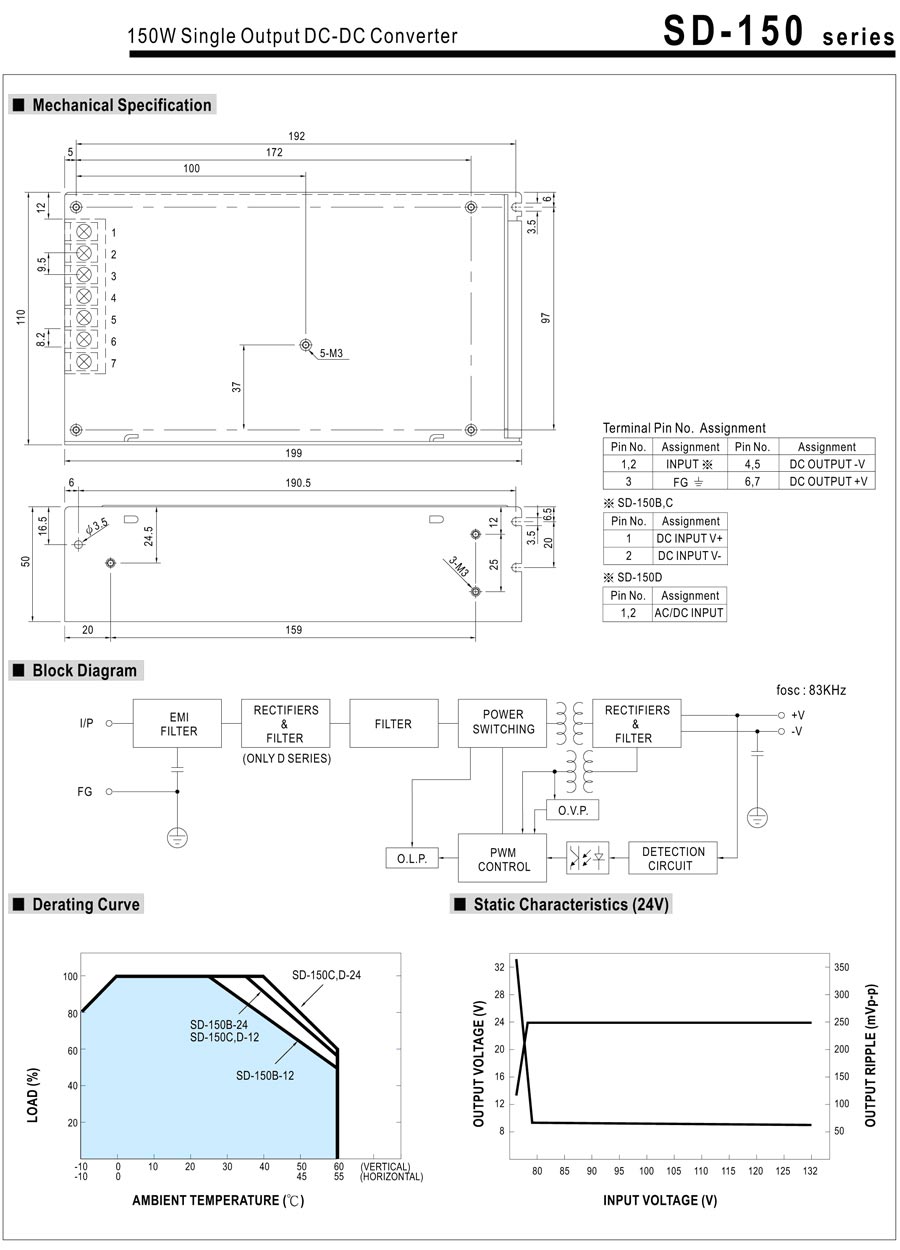

Working Temp. -10 ~ +60℃ (Refer to “Derating Curve”)
Working Humidity 20 ~ 90% RH non-condensing
Storage Temp., Humidity -20 ~ +85℃, 10 ~ 95% RH
Temp. Coefficient ±0.03%/℃ (0 ~ 50℃)
Vibration 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC
Safety Standards IEC60950-1 CB approved by TUV (for D type only)
Withstand Voltage I/P-O/P: 1.5KVAC   I/P-FG: 1.5KVAC   O/P-FG: 0.5KVAC
Isolation Resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH
EMC Emission Compliance to EN55022 (CISPR22) Class B
EMC Immunity Compliance to EN61000-4-2,3,4,6,8, light industry level, criteria A

OTHERS
Dimension 199*110*50mm (L*W*H)
Weight 0.86Kg
Packing 16pcs/14.5Kg/0.95CUFT
