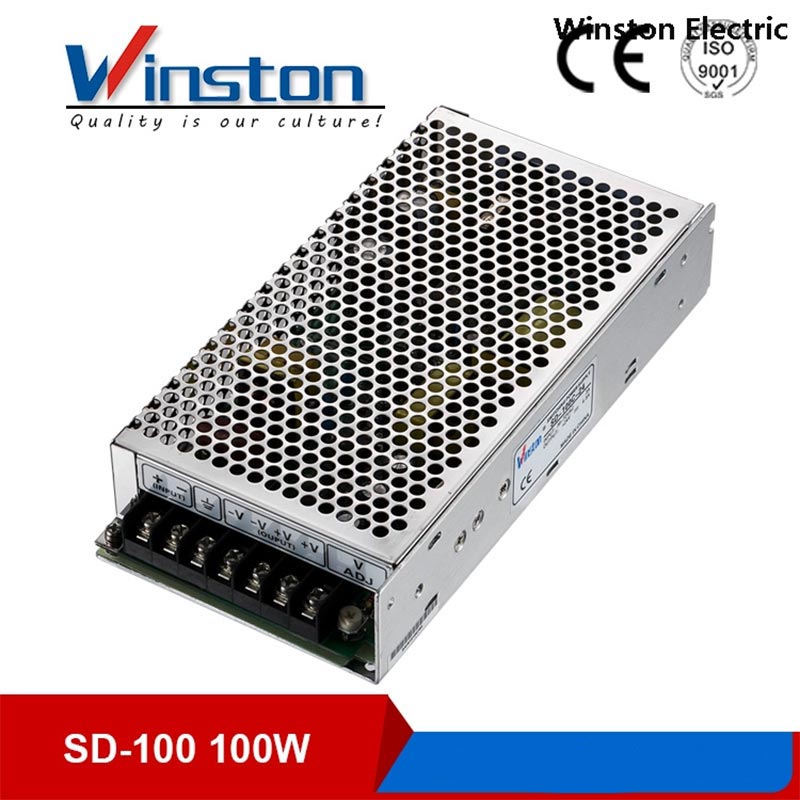

Wide input range
Protections: Short circuit / Overload / Over voltage
1500VAC I/O isolation
Built-in EMI filter, low ripple noise
100% full load burn-in test
Fixed switching frequency at 83 KHz
24V and 48V input voltage design refer to LVD
Low cost High reliability
3 years warranty

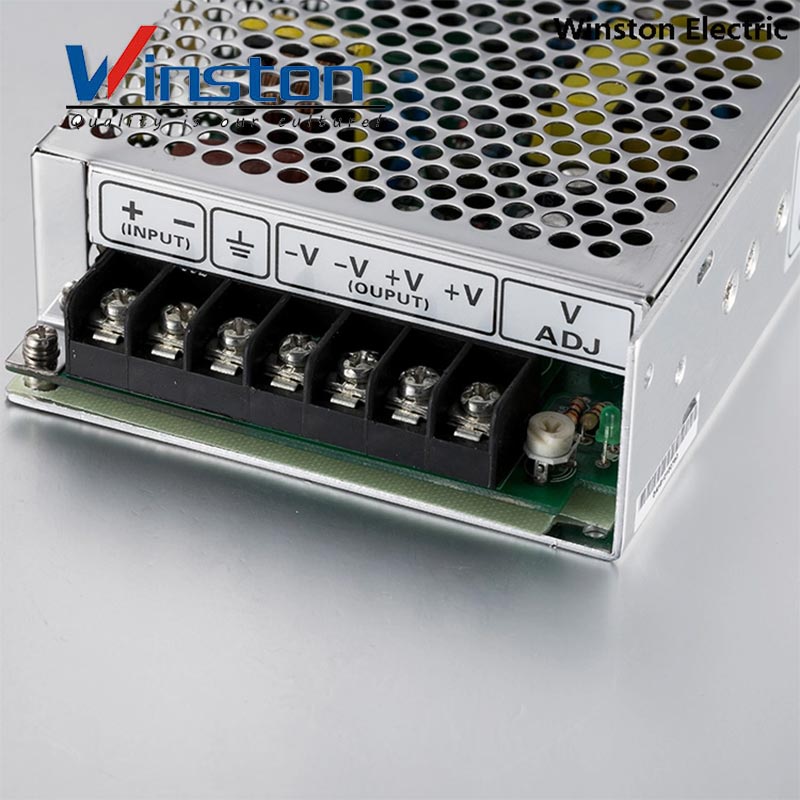

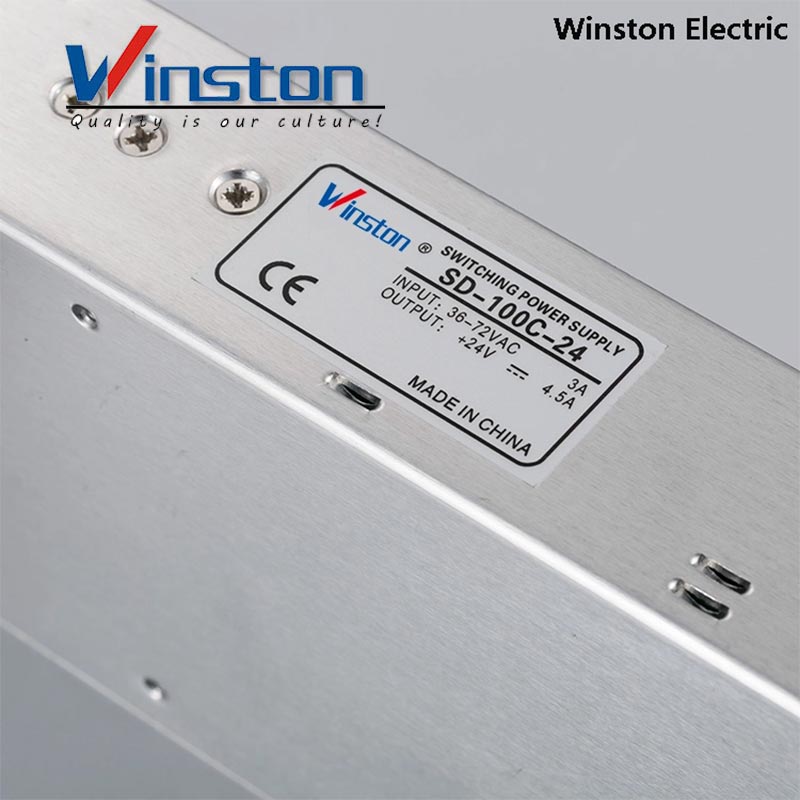

| OUTPUT | |||||||||||||||
| Model | SD-100A-5 | SD-100C-5 | SD-100D-5 | SD-100B-12 | SD-100C-12 | SD-100D-12 | SD-100B-24 | SD-100C-24 | SD-100D-24 | SD-100B-48 | SD-100C-48 | SD-100D-48 | |||
| DC Voltage | 5V | 12V | 24V | 48V | |||||||||||
| Rated Current | 20A | 8.5A | 4.2A | 2.1A | |||||||||||
| Current Range | 0~20A | 0~8.5A | 0~4.2A | 0-2.1A | |||||||||||
| Rated Power | 100W | 102W | 100.8W | 100.8W | |||||||||||
| Ripple & Noise | 100mVp-p | 120mVp-p | 150mVp-p | 150mVp-p | |||||||||||
| Voltage Adj. Range | 4.5~5.5VDC | 11~16VDC | 23~30VDC | 43.2-52.8VDC | |||||||||||
| Voltage Tolerance | ±2.0% | ±1.0% | ±1.0% | ±1.0% | |||||||||||
| Line Regulation | ±0.5% | ±0.3% | ±0.2% | ±0.2% | |||||||||||
| Load Regulation | ±0.5% | ±0.3% | ±0.2% | ±0.2% | |||||||||||
| Setup, Rise Time | 2s,50ms(only D mode) at full load | ||||||||||||||
| Hold Up Time | 20ms(only D mode) at full load | ||||||||||||||
| INPUT | |||||||||||||||
| Voltage Range | A：9.2~18VDC B:19~36VDC C:36~72VDC D:72~144VDC or 85~132VAC | ||||||||||||||
| Efficiency | 74% | 75% | 76% | 75% | 77% | 80% | 78% | 81% | 83% | 78% | 81% | 83% | |||
| DC Current | 4.8A/24V | 2.4A/48V | 1.8A/96V | 4.8A/24V | 2.4A/48V | 1.8A/96V | 4.8A/24V | 2.4A/48V | 1.8A/96V | 4.8A/24V | 2.4A/48V | 1.8A/96V | |||
| Inrush Current | D:18A/96VDC | ||||||||||||||
| Leakage Current | <0.75mA/120VAC(SD-100D) | ||||||||||||||
| PROTECTION | |||||||||||||||
| Over Load | 105~135% rated output power | ||||||||||||||
| Protection type: Hiccup mode,recovers automatically after fault condition is removed | |||||||||||||||
| Over Voltage | 5.75~6.75V/10%load | 16.8~20V/10%load | 31.5~37.5V/10%load | 60.2-79.2/10%load | |||||||||||
| Protection type:Hiccup mode,recovers automatically after fault condition is removed | |||||||||||||||
| ENVIRONMENT | |||||||||||||||
| Working Temp. | -10~+60℃ (Refer to “Derating Curve”) | ||||||||||||||
| Working Humidity | 20~90%RH non-condensing | ||||||||||||||
| Storage Temp.,Humidity | -20~+85℃,10~95%RH | ||||||||||||||
| Temp.Coefficient | ±0.03%/℃ (0~50℃) | ||||||||||||||
| Vibration | 10~500Hz,2G 10min./1cycle,60min.each along X, Y, Z axes | ||||||||||||||
| SAFETY &EMC | |||||||||||||||
| Safety Standards | IEC60950-1CB approved by TUV(for D type only) | ||||||||||||||
| Withstand Voltage | I/P-O/P:1.5KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC | ||||||||||||||
| Isolation Resistance | I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC /25℃ /70%RH | ||||||||||||||
| EMC Emission | Compliance to EN55022(CISPR22) Class B | ||||||||||||||
| EMC Immunity | Compliance to EN61000-4-2,3,4,6,8,light industry level,criteria A | ||||||||||||||
| OTHERS | |||||||||||||||
| Dimension | 199*98*38mm(L*W*H) | ||||||||||||||
| Weight | 0.55Kg | ||||||||||||||
| Packing | 30pcs/16.5Kg | ||||||||||||||
