Modular Contactor

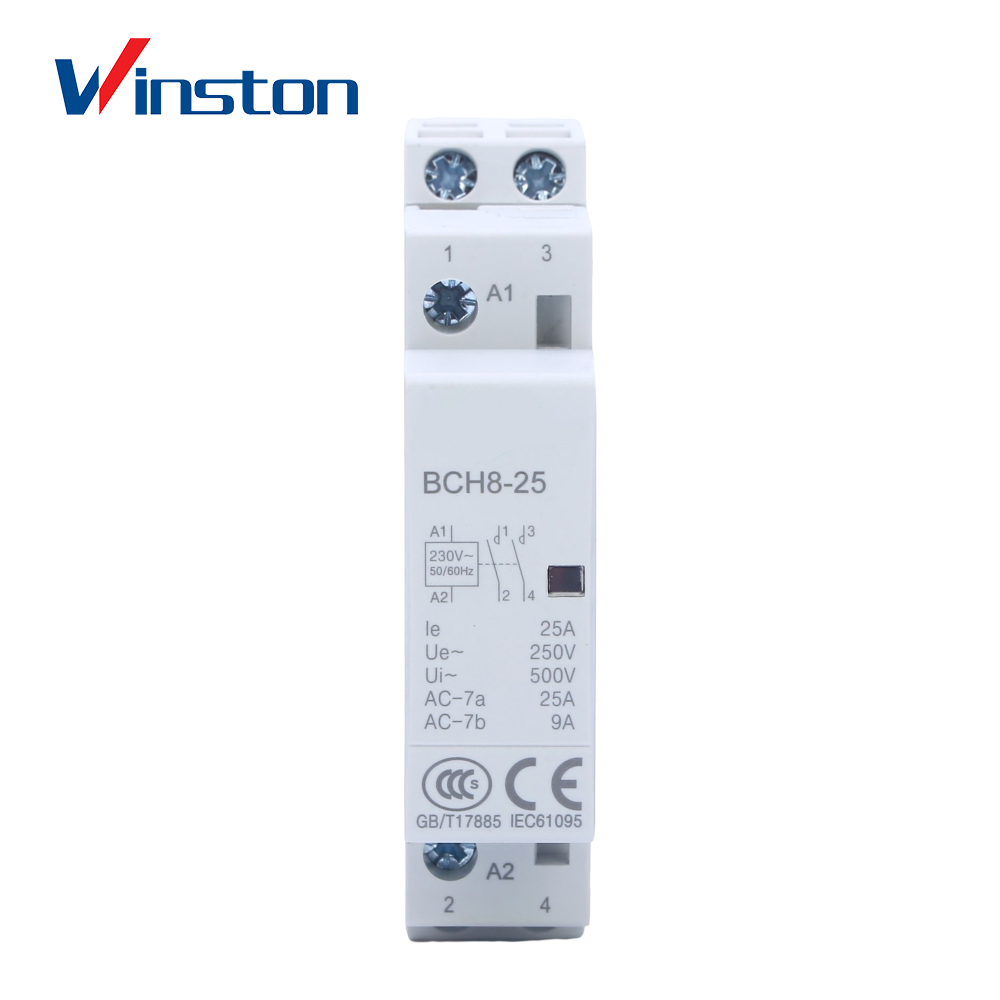

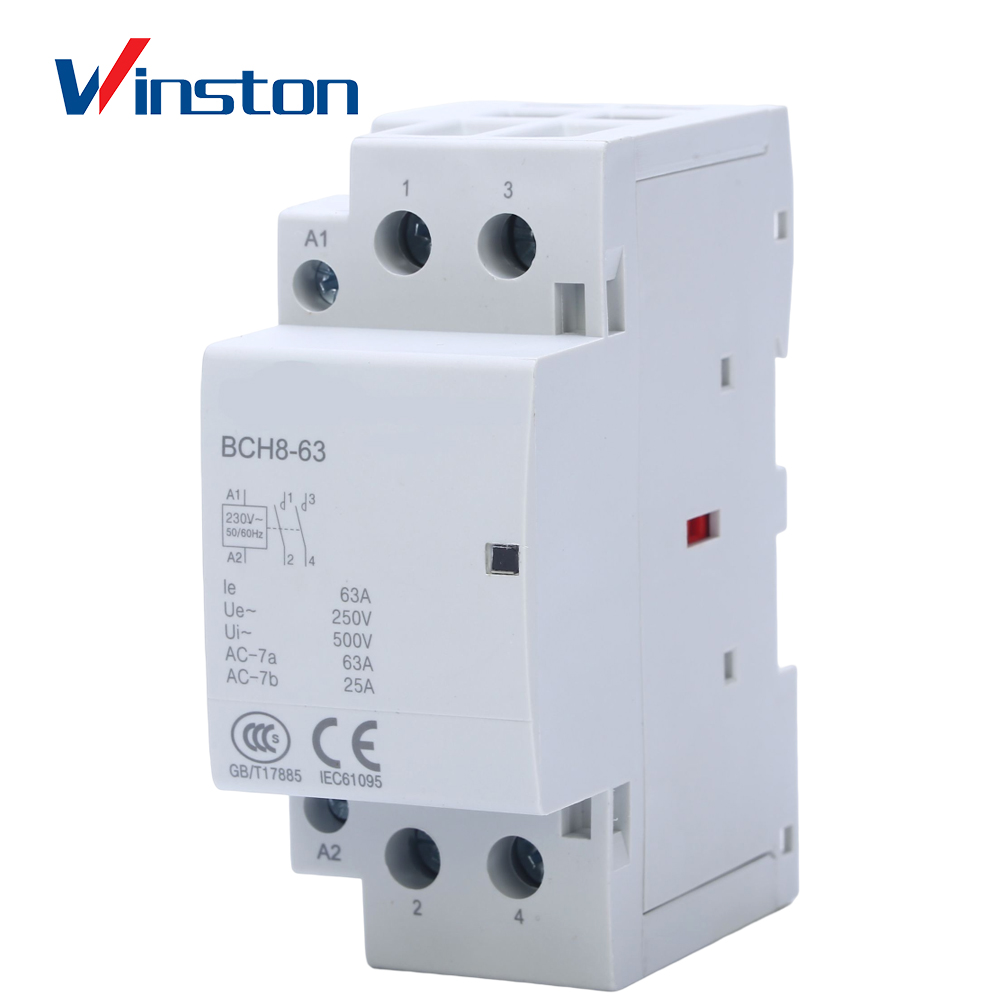

BCH8 series contactor (hereinafter referred to as contactor) is mainly suitable for AC 50Hz(or 60Hz), rated working voltage to 400V rated working current to 125A circuit, Controlling low and micro-inductive loads of household appliances and similar uses; It can also be used to control the load of household motors, and the control power should be reduced accordingly.

BCH8 series contactor (hereinafter referred to as contactor) is mainly suitable for AC 50Hz(or 60Hz), rated working voltage to 400V rated working current to 125A circuit, Controlling low and micro-inductive loads of household appliances and similar uses; It can also be used to control the load of household motors, and the control power should be reduced accordingly.

The 16A-63A monopole contactor is an AC contactor with a width of only 18mm. The product uses M5 wiring screws with a maximum wiring capacity of 25mm2. The product uses hidden coil terminal design, with larger and safer electrical clearance

The 16A-63A monopole contactor is an AC contactor with a width of only 18mm. The product uses M5 wiring screws with a maximum wiring capacity of 25mm2. The product uses hidden coil terminal design, with larger and safer electrical clearance

Power circuit:Voltage Rating(Ue) 1P, 2P: 250VAC / 3P, 4P: 400VAC, Endurance (O-C), Electrical: 100000 cycles; Maximum number of switching operation a day: 100, Additional characteristics: Insulation voltage(Ui): 500VAC

Power circuit: Voltage Rating(Ue) 1P, 2P: 250VAC/3P, 4P: 400VAC; Endurance(O-C): Electrical: 100000 cycles; Maximum number of switching operation a day: 100; Additional characteristics: Insulation voltage(Ui): 500VAC; Pollution degree: 2; Rated impulse withstand voltage(Uimp): 2.5kV(4 kV for 12/24/48V AC)
