Products Description

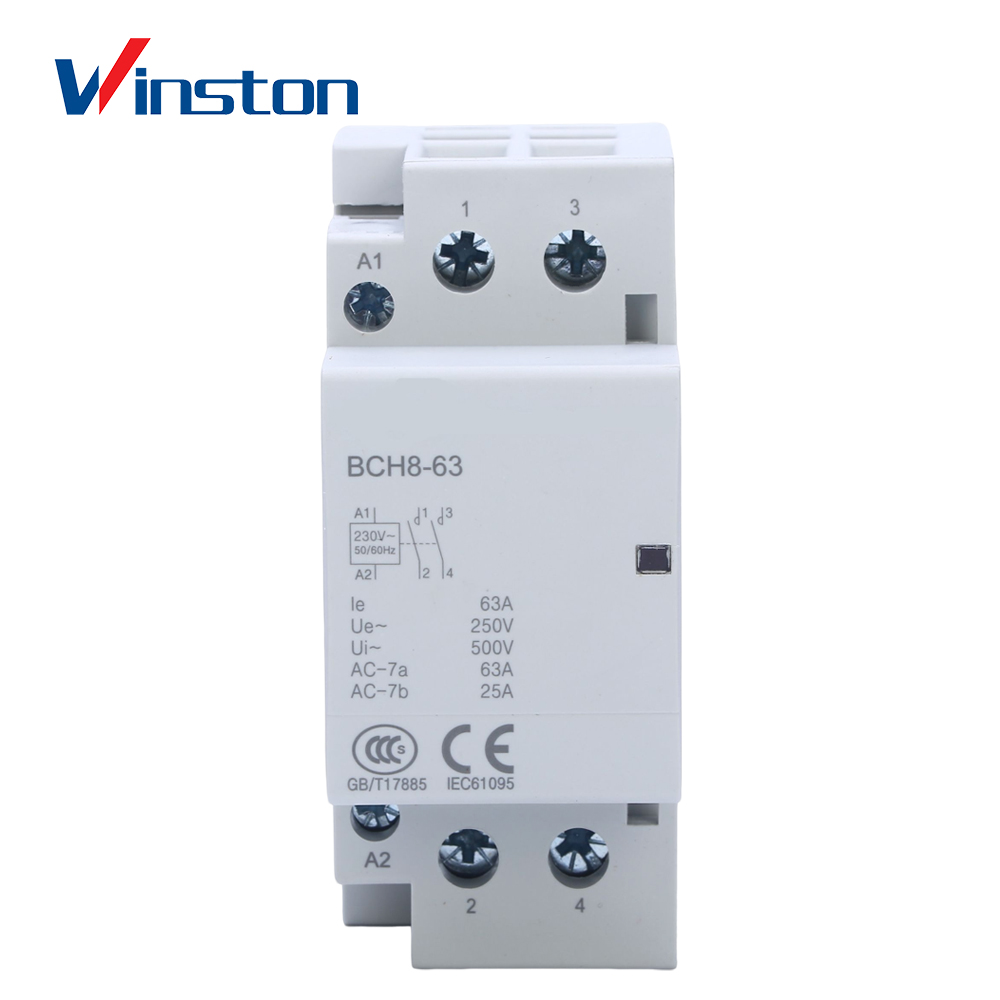

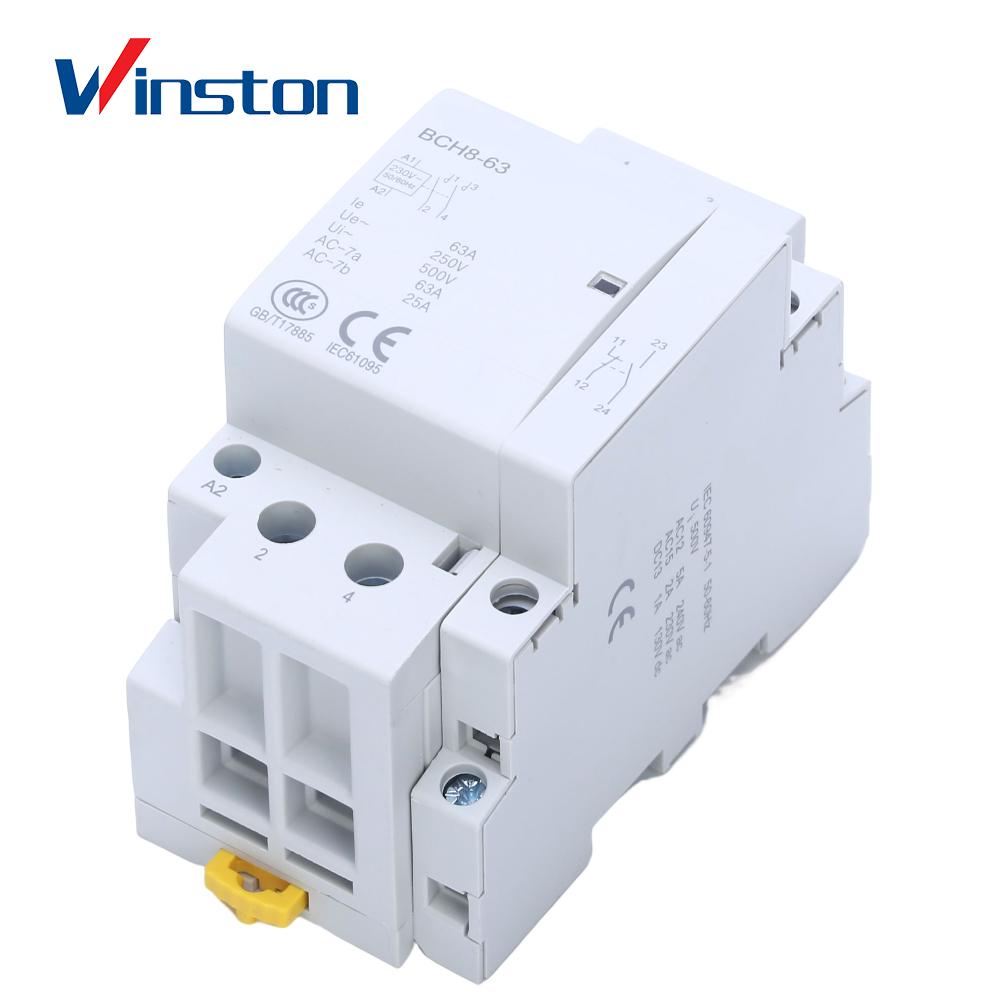

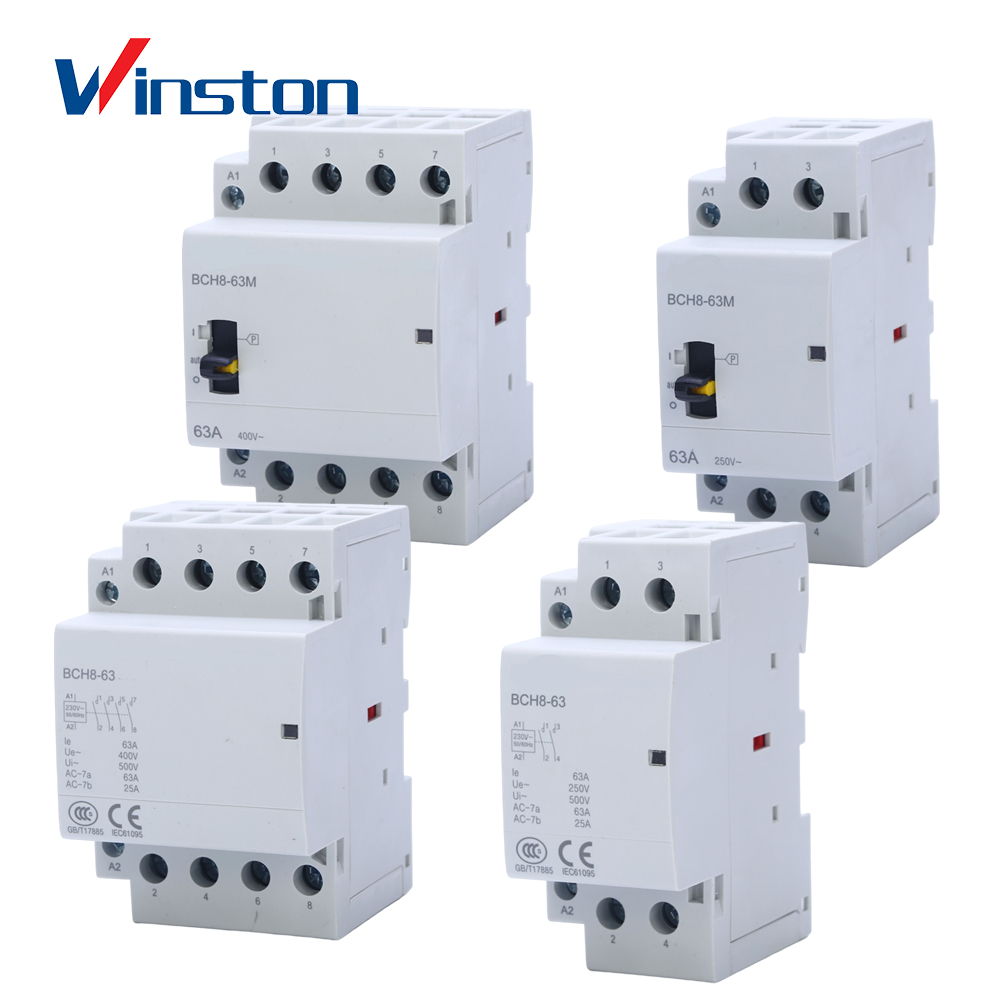

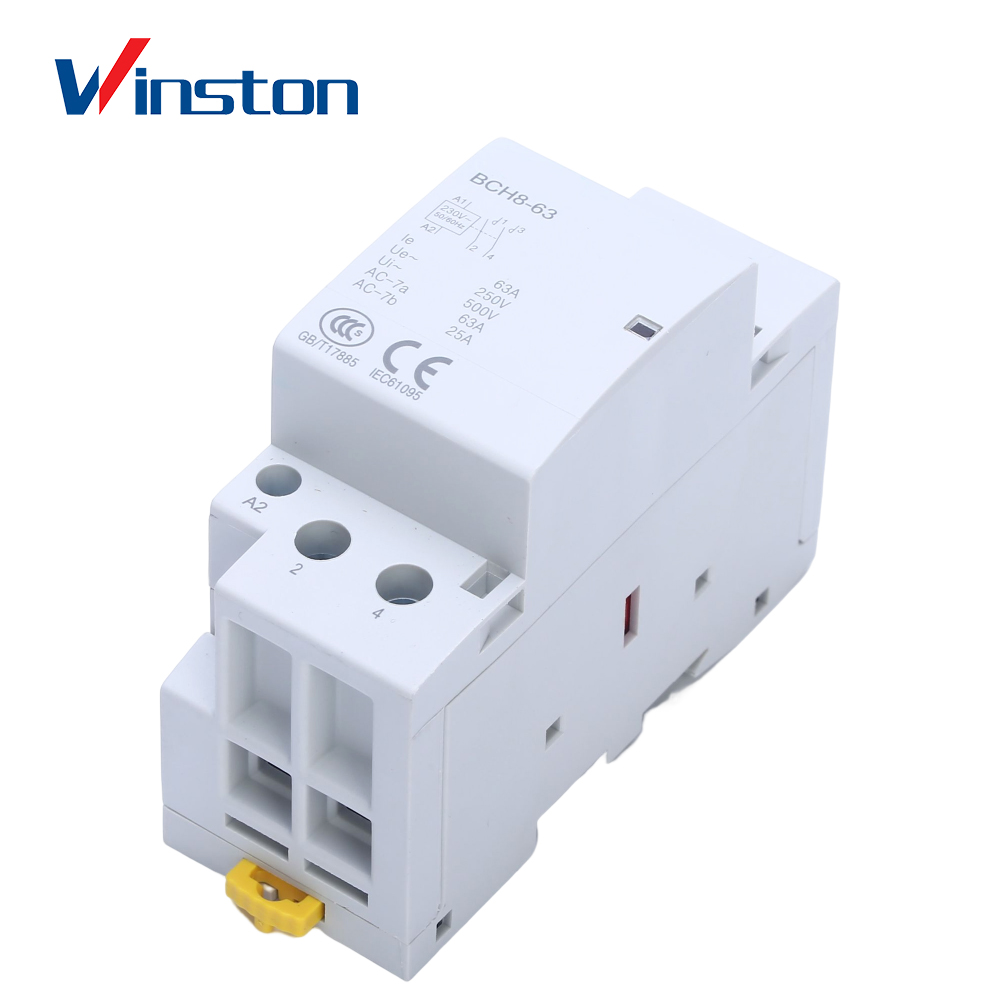

BCH8 series contactor (hereinafter referred to as contactor) is mainly suitable for AC 50Hz(or 60Hz), rated working voltage to 400V rated working current to 125A circuit, Controlling low and micro-inductive loads of household appliances and similar uses; It can also be used to control the load of household motors, and the control power should be reduced accordingly.
The products are used in homes, hotels, apartments and other places to achieve automation function, applied in the mass production of household electrical products.
The contactor complies with GB/T 17885, GB/T14048.4, IEC/EN 61095, IEC/EN 60947-4-1 standards
Accessories comply with GB/T 14048.5 and IEC/EN 60947-5-1 standards
Features
Ultra wide voltage DC contactor
Current: 16A-32A
DC10-24V ultra wide voltage
18mm, more energy saving, smaller size, more silent patent new products
Multiple use categories
It can be used in AC-1, AC-3, AC-7a, AC-7b, etc
|
Main circuit |
||
|
Rated voltage（Ue） |
1P，2P |
250V AC |
|
3P，4P |
400V AC |
|
|
Frequency |
50/60Hz |
|
|
Mechanical life |
1 million times |
|
|
Electrical life |
100，000 times |
|
|
Maximum number of switching operations per day |
100 |
|
|
Insulation voltage（Ui） |
500 V AC |
|
|
Pollution level |
2 |
|
|
Rated impulse tolerance voltage（Uimp） |
2.5kV(4kV @ 12/24/48VAC) |
|
|
Protection grade (IEC 60529) |
Contactor body |
IP20 |
|
Installed in the distribution box |
IP40 |
|
|
Operating temperature |
-5℃~+60℃ |
|
|
Storage temperature |
-40℃~+70℃ |
|
|
Resistance to humidity and heat (IEC 60068.1) |
Class 2 (95% relative humidity at 55℃) |
|
|
ELSV(Ultra Low Safety Voltage) is compliant with 12/24/48VAC versions |
||
|
Product control meets the requirements of SELV(safe ultra-low voltage) |
||
|
(1) When the contactor is installed in the distribution box, spacers must be assembled on both sides to facilitate heat dissipation. |
||
