BMC7 2P 4P AC Contactor

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

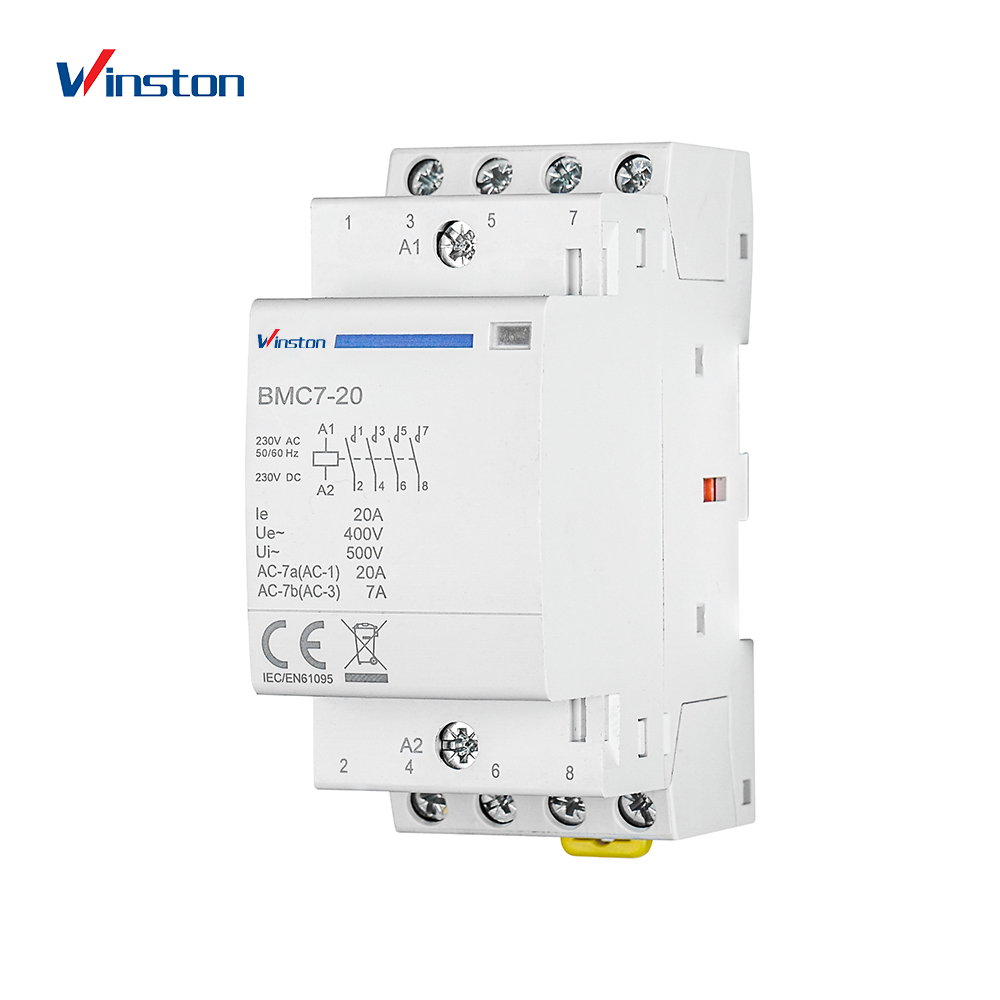

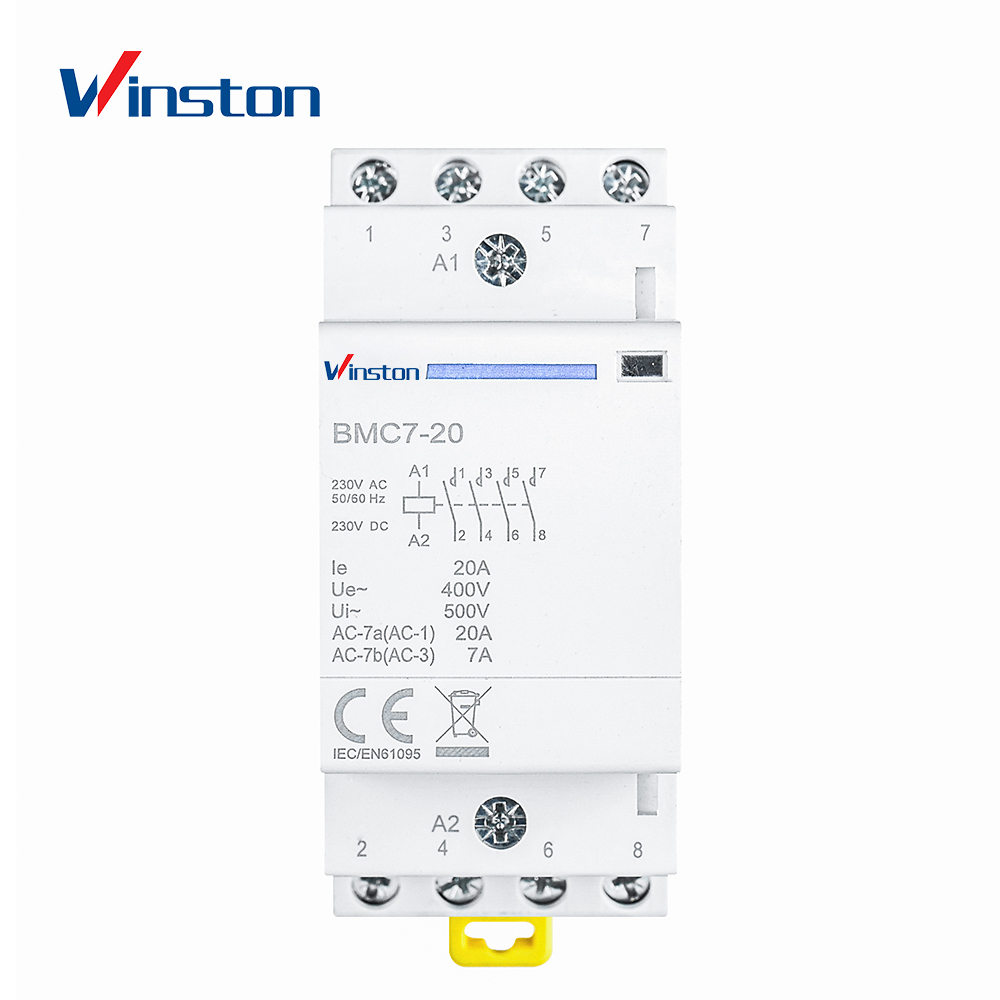

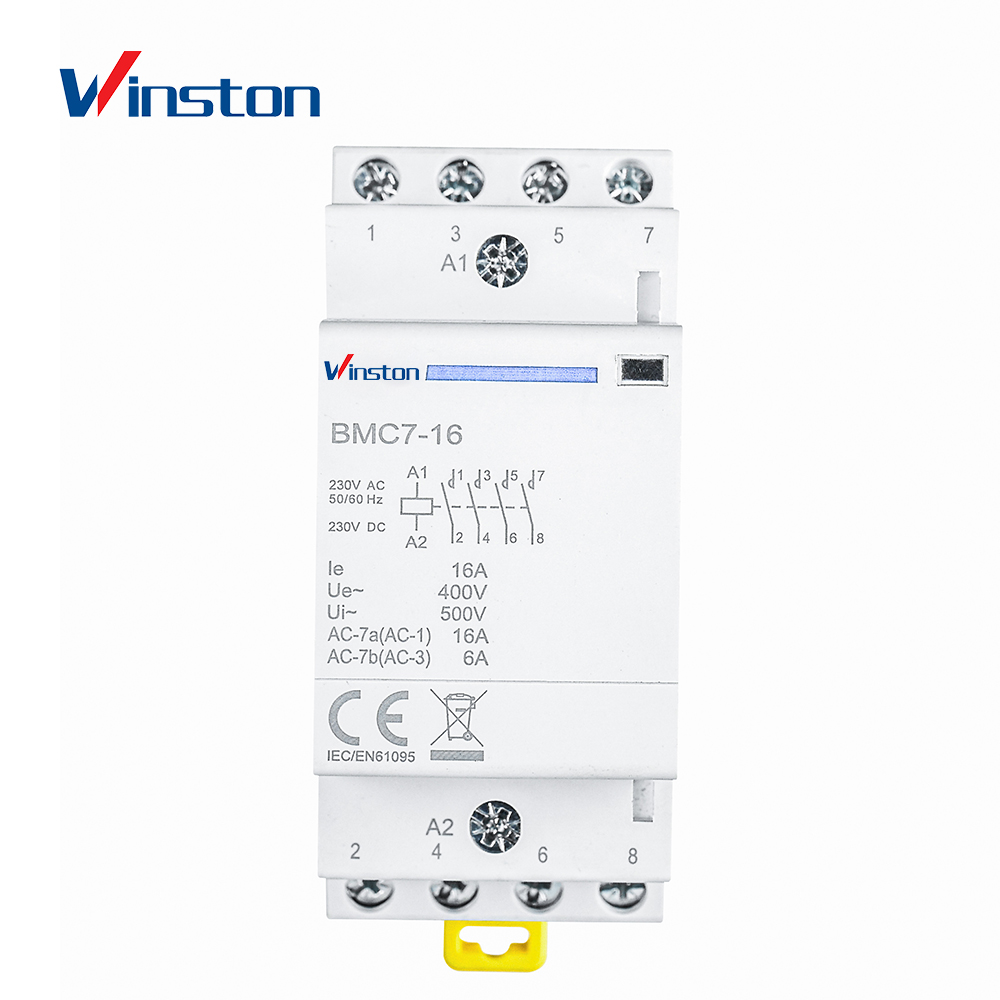

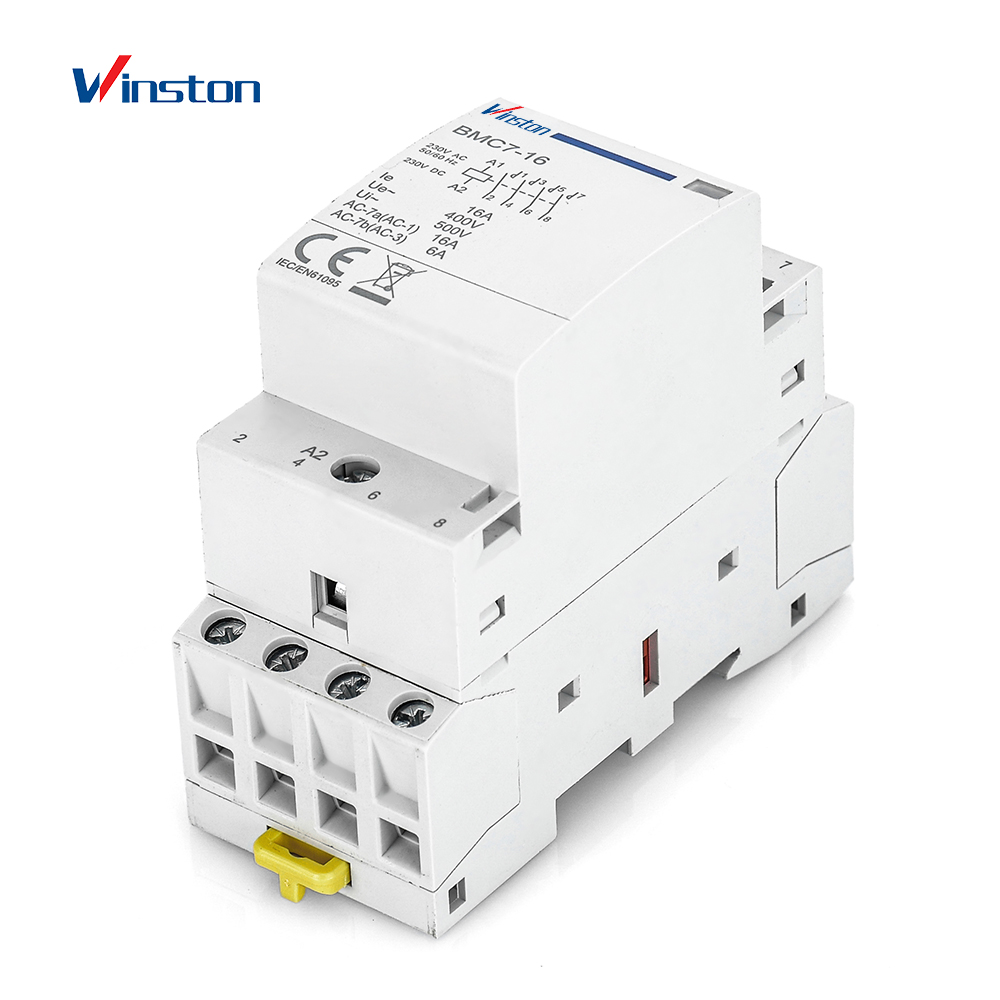

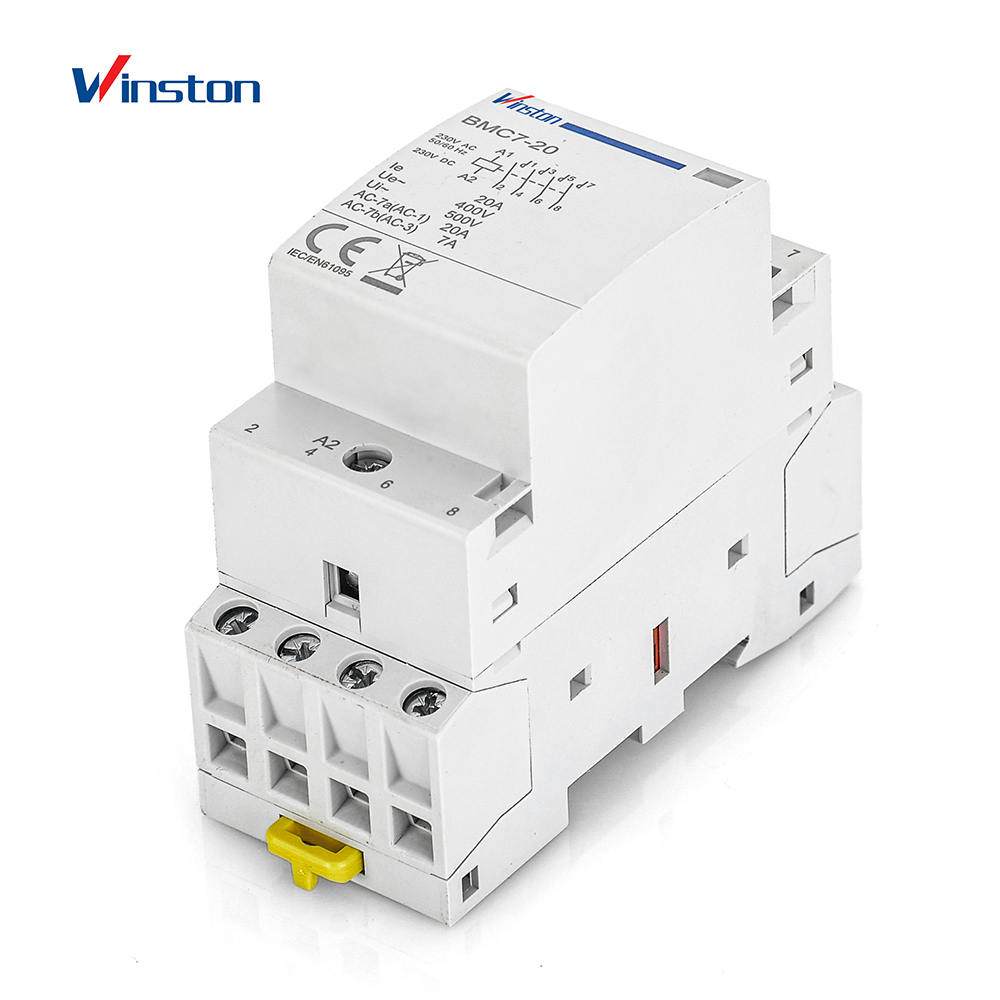

Winston BMC7 2P 4P 16A - 32A Din Rail Modular ac Contactor

Name: BMC7 2P 4P AC Contactor
Brand: Winston
SKU: 01688
Rating: 4.1 (894 reviews)

Products Description

The 16A-63A monopole contactor is an AC contactor with a width of only 18mm. The product uses M5 wiring screws with a maximum wiring capacity of 25mm2. The product uses hidden coil terminal design, with larger and safer electrical clearance

Higher current :

The product is only 18mm wide and has a maximum current of 63A

Greater wiring capacity :

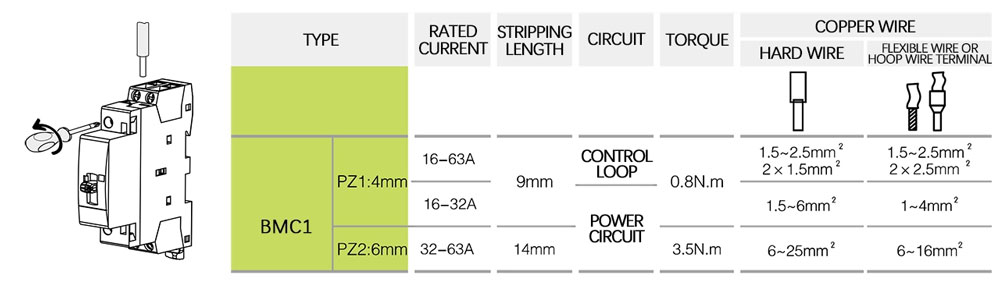

M5 cable screw, the maximum cable connection capacity is 25mm2

safer :

Hidden coil terminals for greater and safer electrical clearance

Two kinds of contacts :
The normally open and normally closed contacts are optional

参数1

Main circuit
Rated voltage（Ue）		250V AC
Frequency		50/60Hz
Mechanical life		1 million times
Electrical life		100，000 times
Maximum number of switching operations per day		100
Insulation voltage（Ui）		500 V AC
Pollution level		2
Rated impulse tolerance voltage（Uimp）		2.5kV(4kV @ 12/24/48VAC)
Protection grade (IEC 60529)	Contactor body	IP20
	Installed in the distribution box	IP40
Operating temperature		-5℃~+60℃
Storage temperature		-40℃~+70℃
Resistance to humidity and heat (IEC 60068.1)		Class 2 (95% relative humidity at 55℃)
ELSV(Ultra Low Safety Voltage) is compliant with 12/24/48VAC versions
Product control meets the requirements of SELV(safe ultra-low voltage)

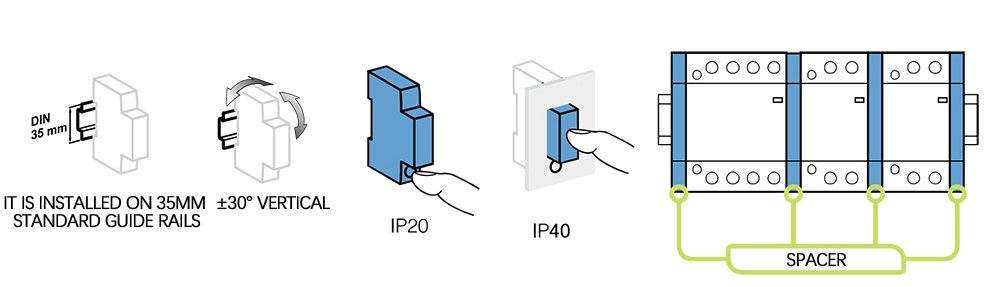

(1) When the contactor is installed in the distribution box, spacers must be assembled on both sides to facilitate heat dissipation.

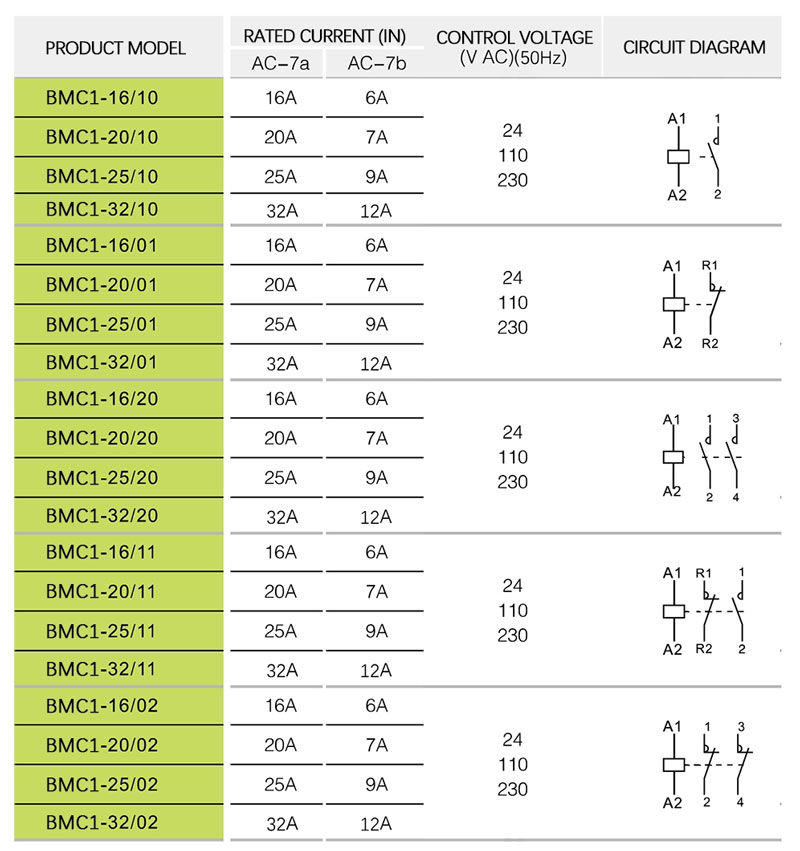

参数2

参数3

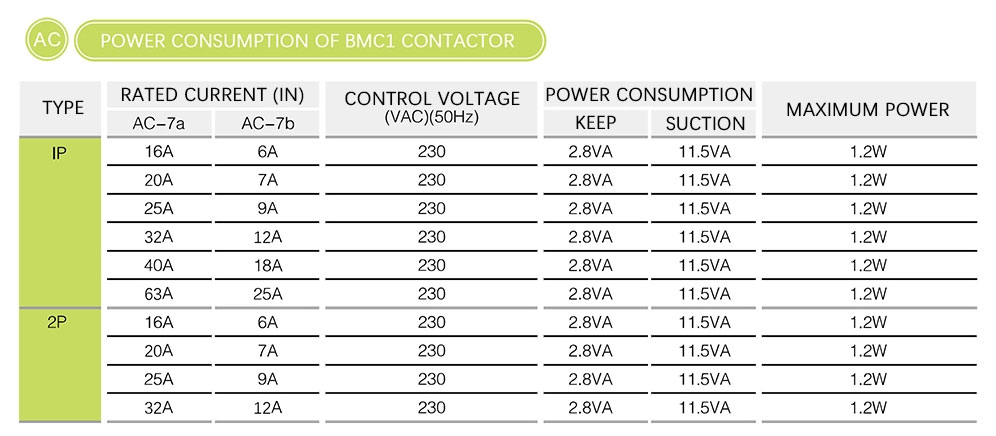

Product power consumption

参数4

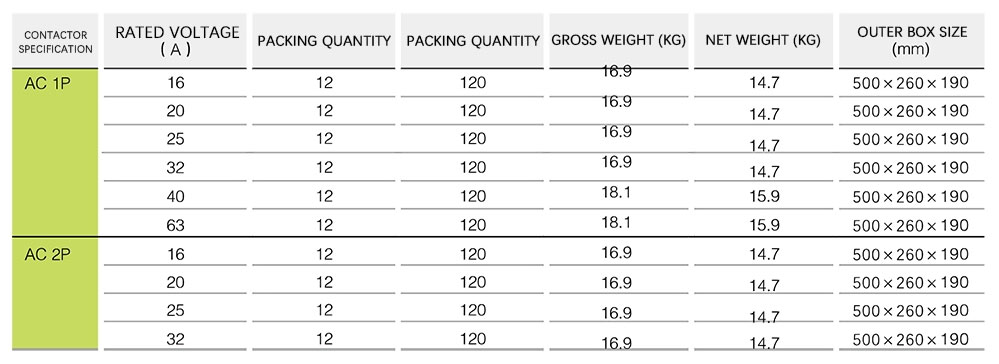

Product packaging
