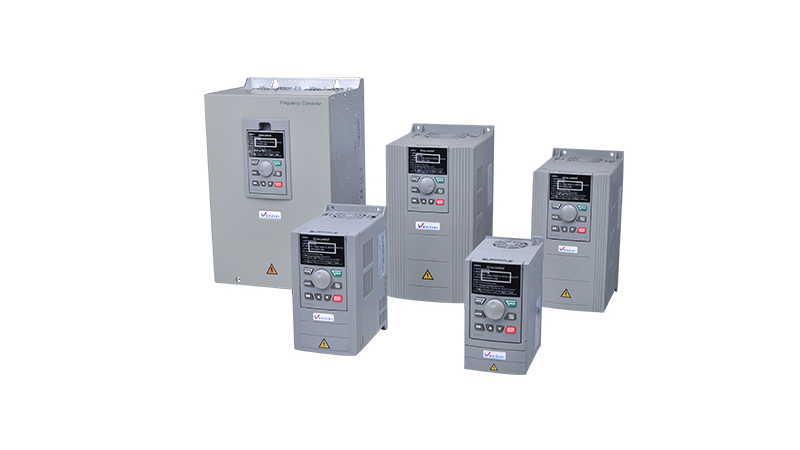

In our daily lives, we often take it for granted that appliances simply plug in and work. However, behind the scenes, a key technology often ensures this compatibility: the frequency converter. This device is fundamental to industrial automation, manufacturing, and even international trade. But what exactly is it? How does it work?
This article will provide a simple and accessible explanation of the principles behind frequency converters.
First, let's understand the issue. Most of the world uses alternating current (AC). Unlike direct current (DC), which flows in one direction, AC constantly changes direction. The speed at which it changes direction is called its frequency, measured in Hertz (Hz).
This is precisely the challenge. Different frequencies are standardized around the world. For example:
North America: Primarily 60 Hz
Europe, Asia, and Africa: Primarily 50 Hz
Why is this important? The design speed of many electric motors is directly related to the AC frequency. A motor designed for 60Hz operation will run about 20% slower on a 50Hz power supply, leading to performance degradation, overheating, and even failure. This is where a frequency converter (VFD) becomes crucial, especially one designed to convert 60Hz to 50Hz or vice versa.
The basic principle of a VFD is to receive incoming AC power, convert it to DC, and then synthesize a new AC signal with the desired frequency and voltage. This process is called "double conversion."
Let's walk through this process step by step:
Incoming AC power (assuming a 60Hz frequency) is fed into the inverter. The first stage, called the "rectifier," converts the AC power to a rough DC voltage. Think of it as smoothing the AC waveform to create a stable DC voltage.
Rough DC voltage still has some ripple and imperfections. It then passes through a set of capacitors and inductors (the DC bus), which act like a reservoir, smoothing it into a clean, stable DC voltage.
This is the most critical step. The clean DC power is now input into the "inverter" section. The inverter uses sophisticated electronic switches called IGBTs (insulated-gate bipolar transistors) to rapidly switch the DC power on and off in a specific pattern. By precisely controlling the timing and duration of these switches, it reconstructs a new AC waveform. This is the core of any AC drive—it gives engineers complete control, producing an output with the precise frequency (e.g., 50Hz) and voltage required by the device.
These three steps ensure a clean, stable, and precisely controlled output, unaffected by input power fluctuations.
Understanding how this works helps us understand why inverters are so important.
Operating Imported Machinery: A German-made machine (designed for 50Hz) can safely operate in a Canadian factory (with a 60Hz grid) using a 60Hz-to-50Hz inverter.
Motor Speed Control: By varying the output frequency, AC inverters control the speed of AC motors. This is a cornerstone of modern industrial automation and energy conservation, as operating the motor only at the required speed reduces power consumption.

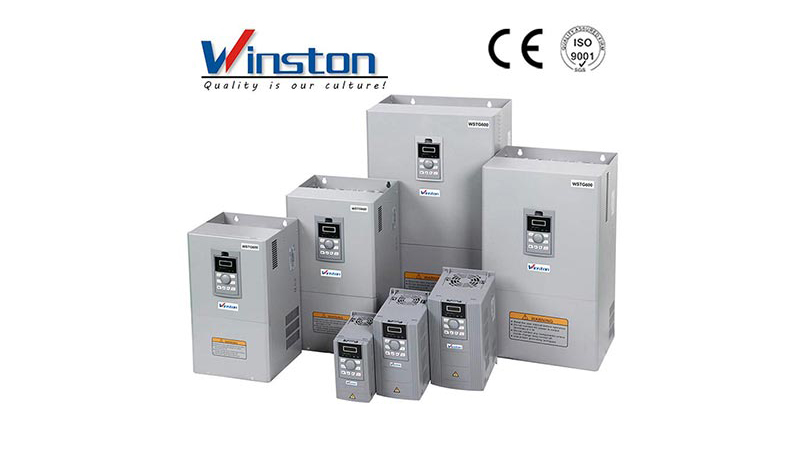

Harsh Environments: Not all applications are located in clean, air-conditioned rooms. In industries such as mining, shipping, wastewater treatment, and food processing, equipment is exposed to moisture, dust, and chemicals. To cope with these harsh environments, waterproof inverters are often used. These devices feature sealed enclosures (typically with an IP66 rating or higher) to prevent water and dust ingress, ensuring reliable and safe operation. The Winston WsTe600 series operates flawlessly in any challenging environment, ensuring safe equipment operation.
In summary, the principle of an inverter is simple: convert, clean, and rebuild. It converts existing AC power to DC, then uses that DC power to create a new, "custom" AC wave with the desired frequency and voltage.
Whether using a 60Hz to 50Hz drive to bridge the gap between power standards across continents, an AC drive to provide precise motor control in factories, or a rugged waterproof drive to ensure continuous operation in the harshest conditions, this technology is the silent enabler of our modern, connected industrial world. The flexibility and control it provides ensures machines around the world operate efficiently.
