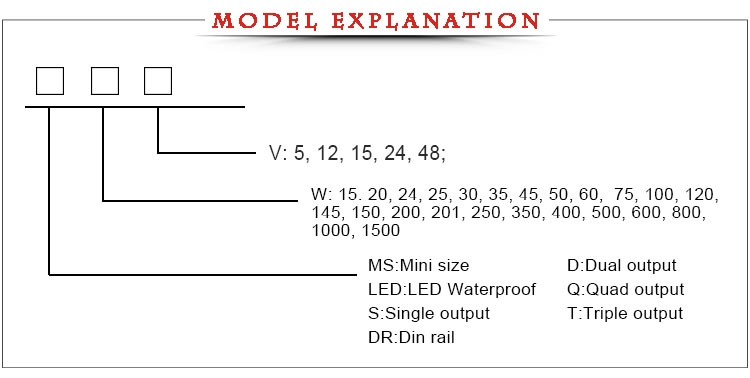

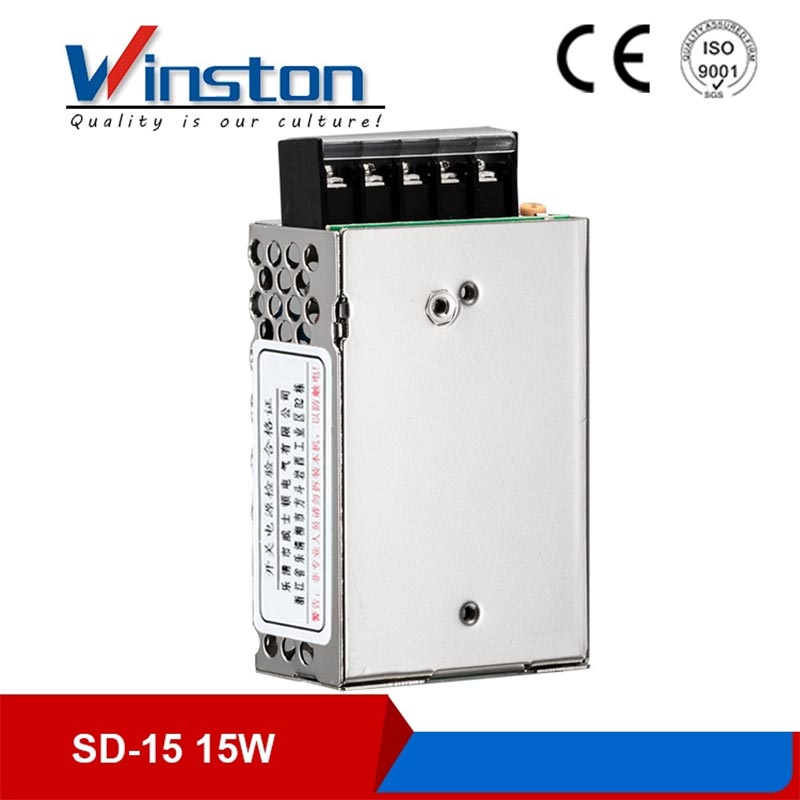

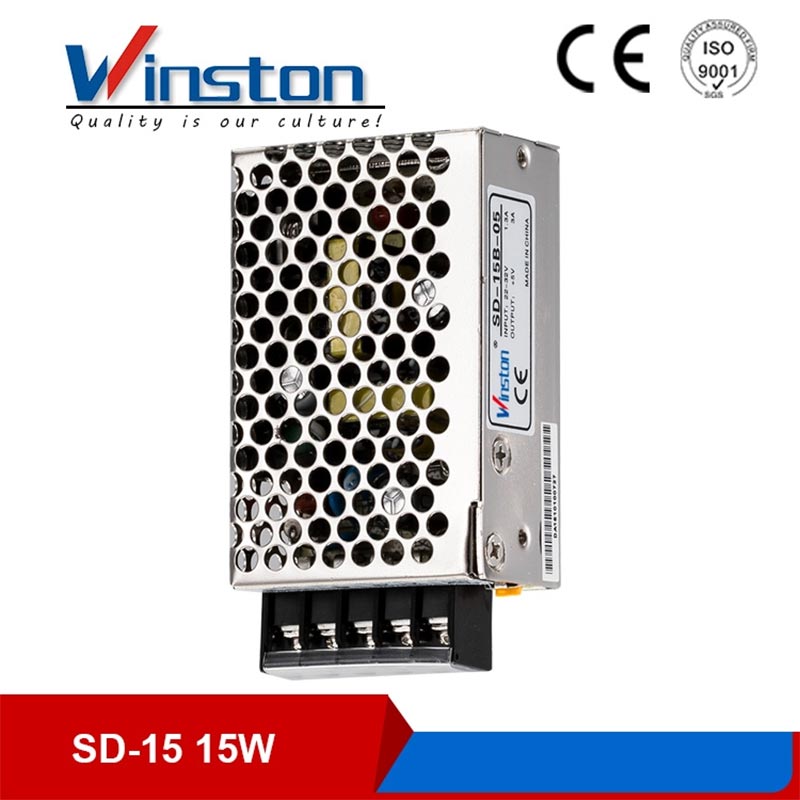

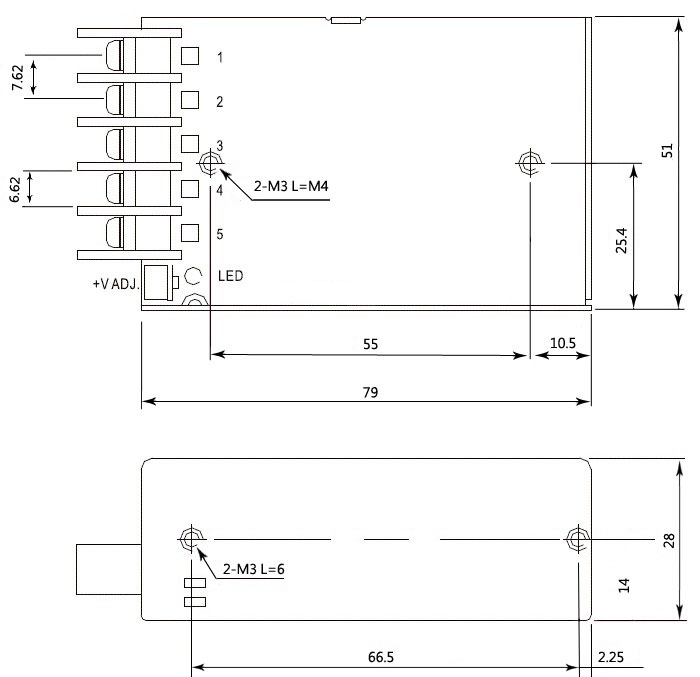

| Model | SD-15A-5 | SD-15B-5 | SD-15C-5 | SD-15A-12 | SD-15B-12 | SD-15C-12 | SD-15A-24 | SD-15B-24 | SD-15C-24 |
| DC Voltage | 5V | 12V | 24V | ||||||
| Rated Current | 3A | 1.25A | 0.625A | ||||||
| Current Range | 0 ~ 3A | 0 ~ 1.25A | 0 ~ 0.625A | ||||||
| Rated Power | 15W | 15W | 15W | ||||||
| Ripple & Noise | 100mVp-p | 120mVp-p | 150mVp-p | ||||||
| Voltage ADJ. Range | 4.75 - 5.5VDC | 10.8 - 13.2VDC | 21.6 - 26.4VDC | ||||||
| Voltage Tolerance | ± 2.0% | ± 1.0% | ± 1.0% | ||||||
| Line Regulation | ± 0.5% | ± 0.3% | ± 0.2% | ||||||
| Lpad Regulation | ± 0.5% | ± 0.3% | ± 0.2% | ||||||
| Efficiency | 68% | 76% | 75% | 72% | 76% | 79% | 70% | 77% | 78% |
| Setup,Rise,Hold Time | 2.5s, 25ms, --- 12VDC/24VDC/48VDC at full load | ||||||||
| Voltage Range | A: 9.2 -18VDC B: 18 - 36VDC C: 36-72VDC | ||||||||
| DC Current | 1.9A/12VDC | 0.9A/24VDC | 0.45A/48VDC | ||||||
| Overload | 105 ~ 160% rated output power | ||||||||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed |
|||||||||
| Over Voltage | 5.75 ~ 6.75V | 13.8 ~ 16.2V | 27.6 ~ 32.4V | ||||||
| Protection type : Shut down o/p voltage, clamping by zener diode | |||||||||
| Working Temp. | -10 ~ +60ºC (Refer to "Derating Curve") | ||||||||
| Working Humidity | 20 ~ 90% RH non-condensing | ||||||||
| Storage Temp.,Humidity | -20 ~ +85º C, 10 ~ 95% RH | ||||||||
| TEMP. Coefficient | ± 0.03%/ºC (0 ~ 50º C) | ||||||||
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||||
| Safety & EMC | |||||||||
| Withstand Voltage | I/P-O/P:2KVAC I/P-FG:1KVAC O/P-FG:0.5KVAC | ||||||||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDCI/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25ºC/ 70% RH | ||||||||
| EMC Emission | Compliance to EN55022 (CISPR22) | ||||||||
| EMC Immunity | Compliance to EN61000-4-2,3,4,6,8, EN55024, light industry level, criteria A | ||||||||
| Dimension | 99*97*36mm (L*W*H) | ||||||||
| Packing | 60pcs/11.8Kg | ||||||||
