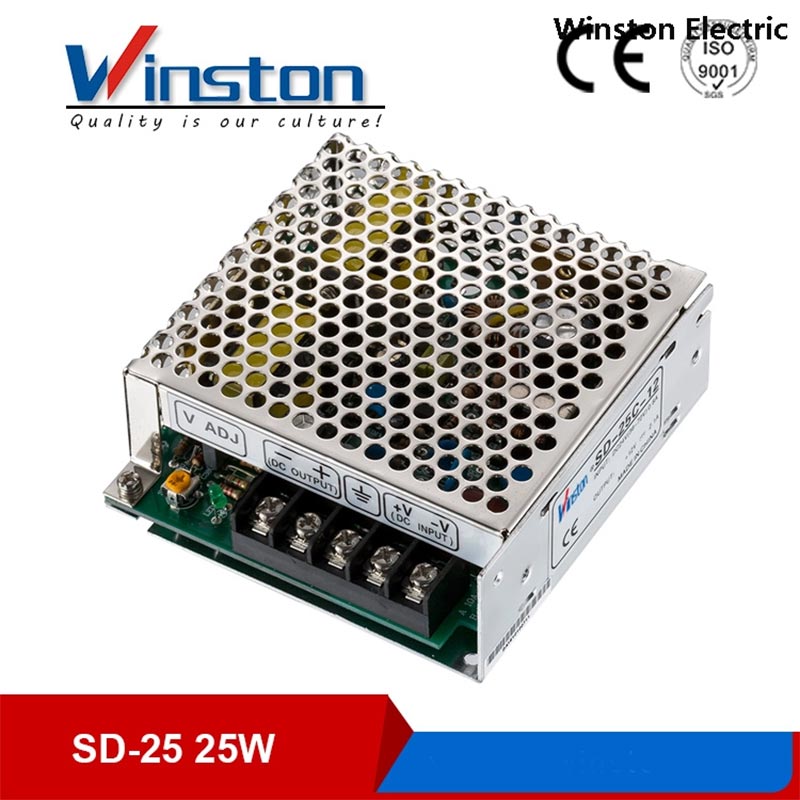

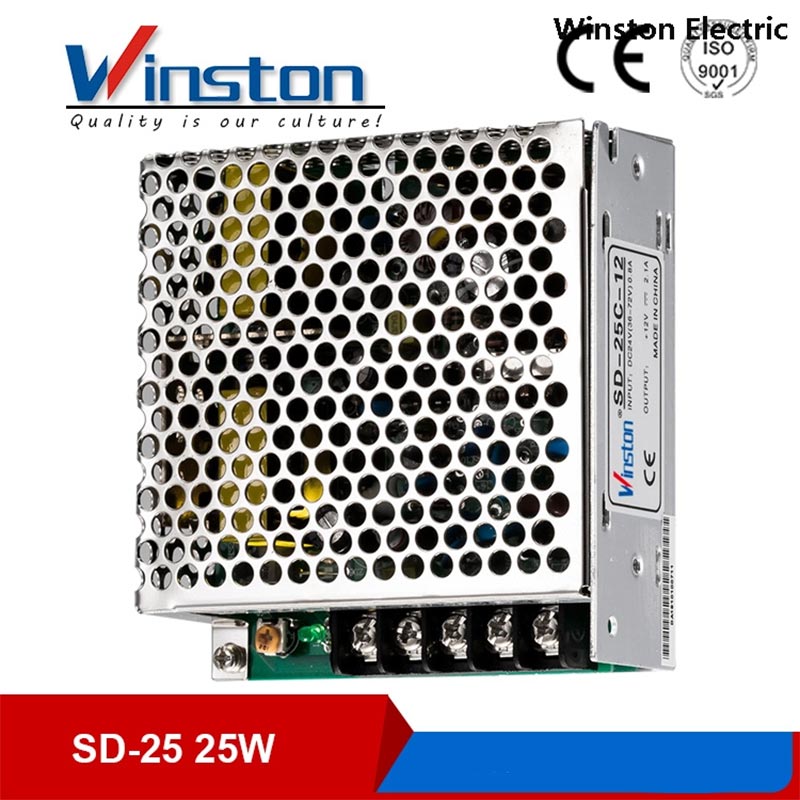

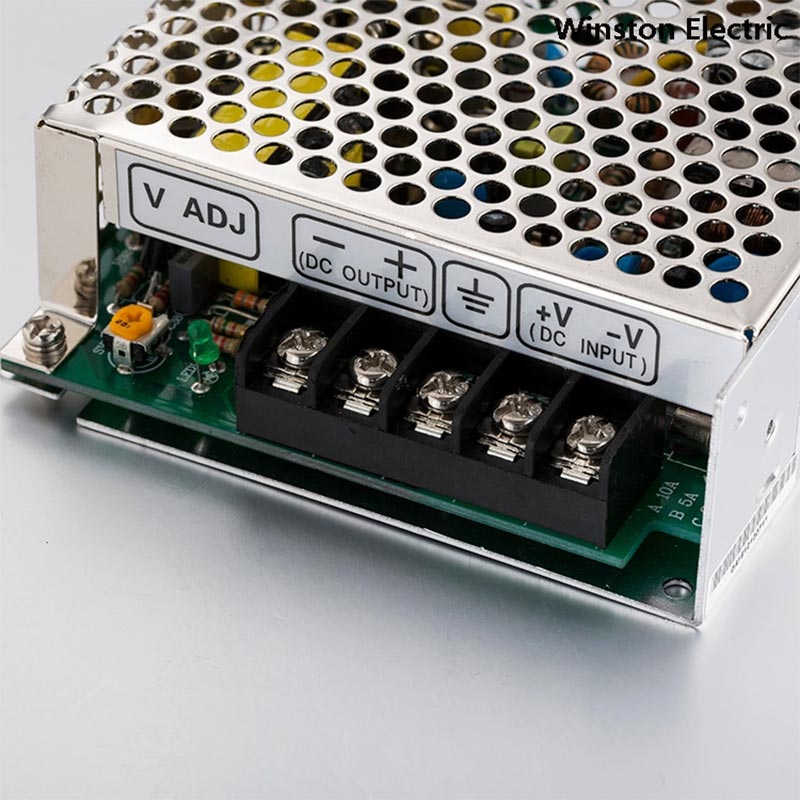

Wide input range
Protections: Short circuit / Overload / Over voltage
1500VAC I/O isolation
Built-in EMI filter, low ripple noise
100% full load burn-in test
Fixed switching frequency at 83KHz
Low cost High reliability
2 years warranty

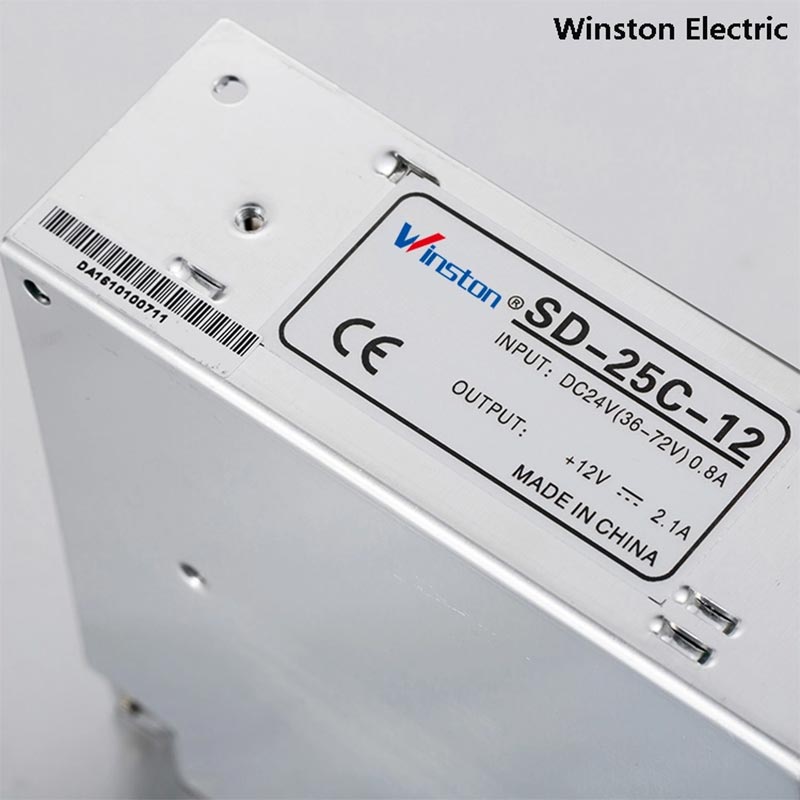

| OUTPUT | |||||||||
| Model | SD-25A-5 | SD-25B-5 | SD-25C-5 | SD-25A-12 | SD-25B-12 | SD-25C-12 | SD-25A-24 | SD-25B-24 | SD-25C-24 |
| DC Voltage | 5V | 12V | 24V | ||||||
| Rated Current | 5A | 2.1A | 1.1A | ||||||
| Current Range | 0 ~ 5A | 0 ~ 2.1A | 0 ~ 1.1A | ||||||
| Rated Power | 25W | 25.2W | 26.4W | ||||||
| Ripple & Noise | 100mVp-p | 120mVp-p | 150mVp-p | ||||||
| Voltage Adj. Range | 4.75~5.5VDC | 11-16VDC | 23-30VDC | ||||||
| Voltage Tolerance | ±2.0% | ±1.0% | ±1.0% | ||||||
| Line Regulation | ±0.5% | ±0.3% | ±0.2% | ||||||
| Load Regulation | ±0.5% | ±0.3% | ±0.2% | ||||||
| Setup, Rise, Hold Up Time | 2.5s, 50ms, ------ at full load | ||||||||
| INPUT | |||||||||
| Voltage Range | A: 9.2 ~18VDC B:19 ~ 36VDC C:36~72VDC | ||||||||
| Efficiency | 71% | 72% | 74% | 72% | 75% | 78% | 75% | 78% | 81% |
| DC Current | A:3.2A/12V | B:1.6A/24V | C:0.8A/48V | ||||||
| PROTECTION | |||||||||
| Over Load | 105 ~ 150% rated output power | ||||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||||
| Over Voltage | 5.75 ~ 6.75V/10% load | 16.8 ~ 20V/10% load | 31.5 ~ 37.5V/10% load | ||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||||
| ENVIRONMENT | |||||||||
| Working Temp. | -10 ~ +60℃ (Refer to “Derating Curve”) | ||||||||
| Working Humidity | 20 ~ 90% RH non-condensing | ||||||||
| Storage Temp., Humidity | -20 ~ +85℃, 10 ~ 95% RH | ||||||||
| Temp. Coefficient | ±0.03%/℃ (0 ~ 50℃) | ||||||||
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||||
| SAFETY & EMC | |||||||||
| Safety Standards | Design refer to LVD | ||||||||
| Withstand Voltage | I/P-O/P: 1.5KVAC I/P-FG:2.0KVAC O/P-FG: 0.5KVAC | ||||||||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH | ||||||||
| EMC Emission | Compliance to EN55022 (CISPR22) Class B | ||||||||
| EMC Immunity | Compliance to EN61000-4-2, 3, 4, 6, 8, EN55024, heavy industry level, criteria A | ||||||||
| OTHERS | |||||||||
| Dimension | 99*97*36mm (L*W*H) | ||||||||
| Weight | 0.38kg | ||||||||
| Packing | 45pcs/17.8kg/0.9CUFT | ||||||||
