Name: UB400-12GM-U-V1 Ultrasonic Sensor
Brand: Winston
SKU: 02016
Rating: 4.1 (1058 reviews)

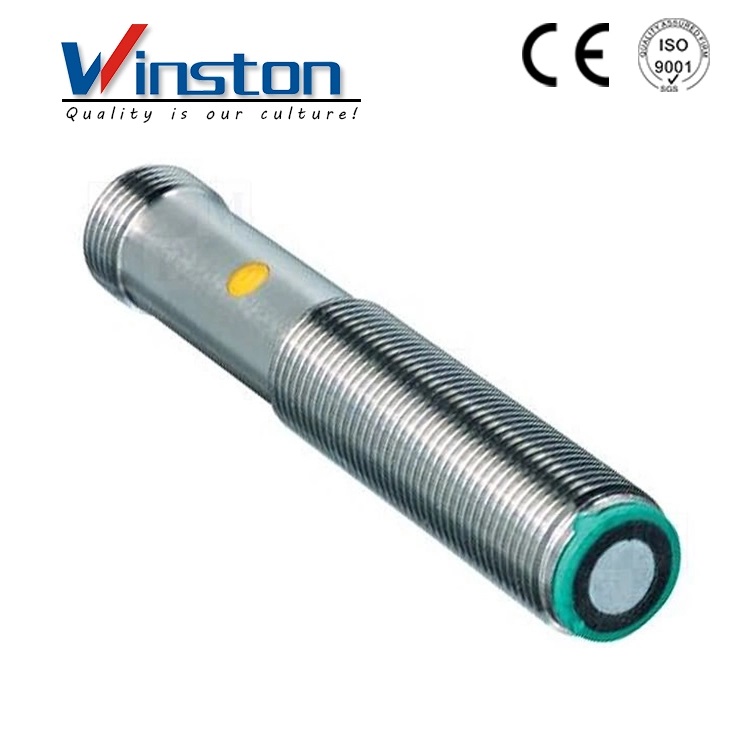

UB400-12GM-U-V1 Ultrasonic Sensor

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

Technical Parameters

UB400-12GM-U-V1

Technical data
Sensing distance				30…400mm
Adjustment range				50…400mm
Unusable area				0…30mm
Standard target plate				100mm×100mm
Transducer frequency				About 310kHz
Response delay				About 50ms
Indicators/Operating means
LED blue				Power on
LED yellow				indication of the switching state Flashing: program function object detected

LED red				permanently red: Error Red,flashing:program function, object not detected

Electrical specifications
Operating voltage UB				10…30VDC,ripple10%ss
No-load supply current				≤30mA
Output
Output type				1 analogue output 0…10V
Resolution				0.11mm at max.sensing range
Deviation of the characteristic curve				±1% of full-scale value
Repeat accuracy				±0.1% of full-scale value
Load impedance				>1k Ohm
Temperature influence				±1.5% of full-scale value
Mechanical specifications
Protection grade				IP67

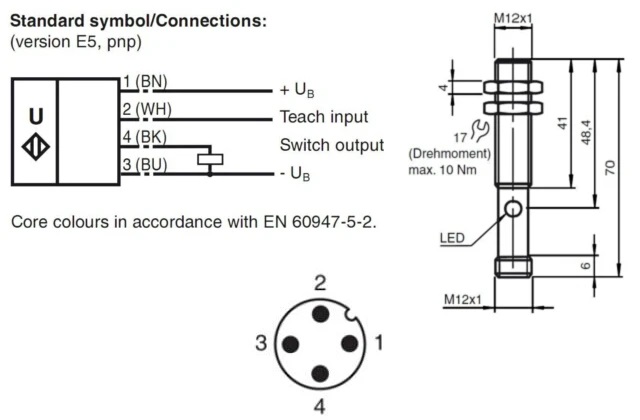

Connection				connector(M12×1),4-pin
Material Housing				brass,nickel-plated
Transducer				epoxy resin/hollow glass sphere mixture; foam polyurethane,cover PBT
