VD01 Voltage Tester

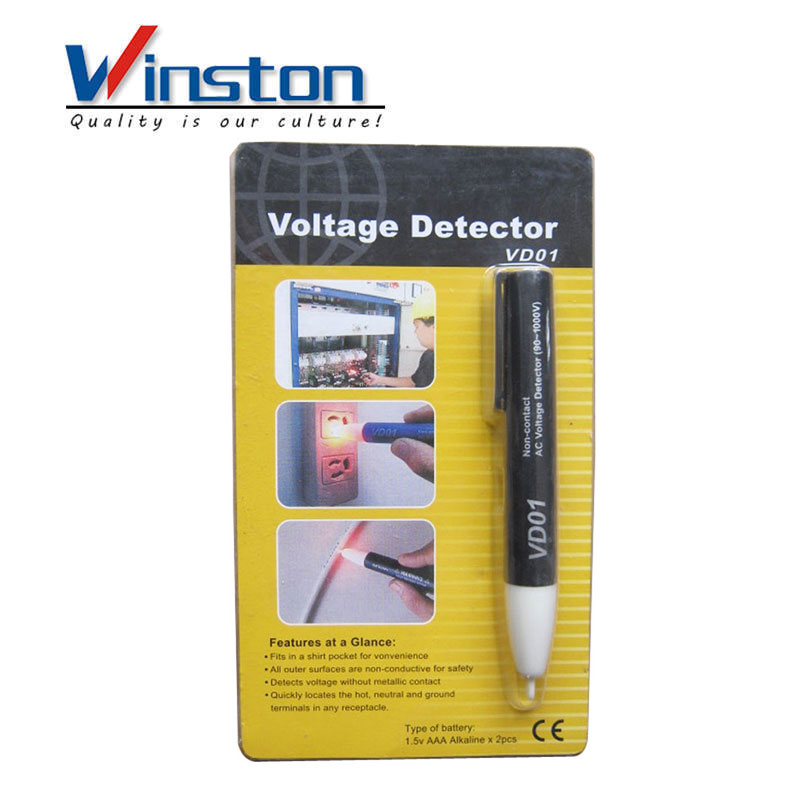

VD01 voltage tester

Characteristic

Safety design, no need to cut the lead sheath can measure whether is a live wire.

Technology features

Operating：                         90 V ac to 1000 V ac, CAT IV 1000 V rated
Bandwidth:                           50/60Hz
Normal Indicators:                Flashing LED indicate the presence of voltage
Operating Temperature:      -10 °C to 50 °C (-14 °F to 122 °F)
Storage Temperature:         -10 °C to 50 °C (-14 °F to 122 °F)
Operating Humidity：          0 % to 75 % (30 °C to 40 °C)
Storage Humidity：              0 % to 45 % (40 to 55 °C)

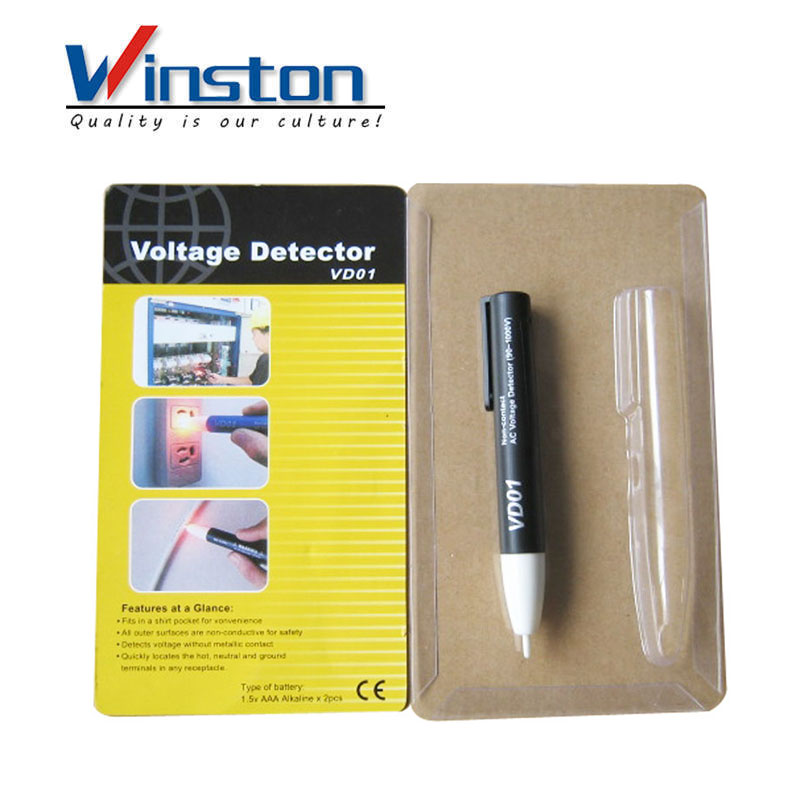

   Packing details:
   packed in single blister card

   Size of mater carton: 48.5 x 25.5 x 47cm

   Packing quantity ：100 pcs/ctn

   G.W.: 13 kgs   N.W.: 11 kgs

Powered by 2x AAA batteries (no included)
Product weight: 38 (no incuding battery)
Size:      150 x 109mm
Pollution: Degree 2
Weight: Around 49g
Voltage detection from 90 to 1000 V ac, suitable for a wide range of residential, commercial and industrial needs,Always on, using special low power circuitry to sustain battery life and ensure your voltage tester is always ready, Category IV – 1000 V overvoltage rated product for best in class user protection, Integrated clip design, optimized for pocket storage., A year warranty.

Operating principle Senses the steady state electrostatic field produced by ac voltage through insulation without requiring contact to the bare conductor. A red glow at the tip indicates the presence of voltage,
Safety Compliance Meets IEC 61010-1:2001, UL 61010-1 (2nd ed.), CAN/CSA-C22.2 No. 61010-1-04, and ISA-82.02.01 Pollution Degree 2 EMC Compliance    Meets IEC 61326-1:2006 )
