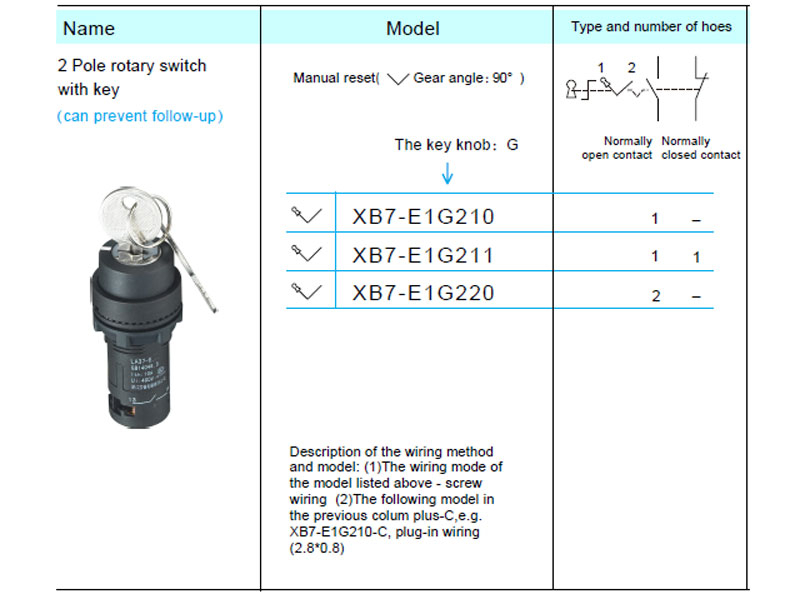

2 Pole Rotary Switch With Key Prevent Follow-up Push Button Switch 22mm

2 Pole rotary switch with key  prevent follow-up push button switch 22mm

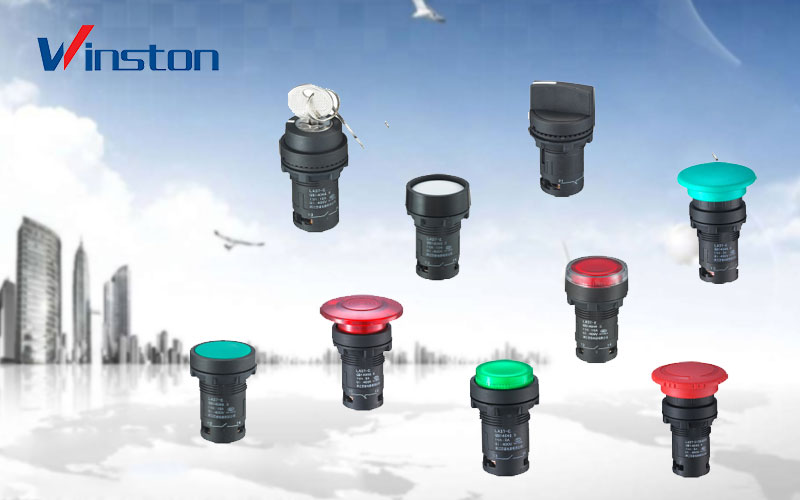

XB series button switch

1. The contacts are made of AgCdO15 material, which has strong on and break power and long life.

2. The led button uses LED light for low power consumption and long life.

3. Both the knob switch and the key knob switch have a function to prevent follow-up and prevent the body from following the handle.

4. Two wiring methods are available:

(1) screw wiring, (2) plug-in wiring.

• Screw wiring: simple and convenient.
• Plug-in wiring: high connection reliability, especially suitable for use in vibration more powerful places, such as: cars, lawn mowers, engineering machinery and so on.

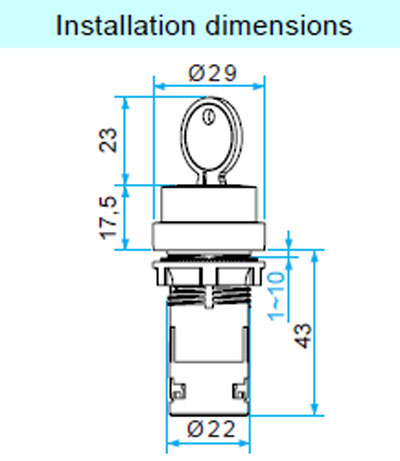

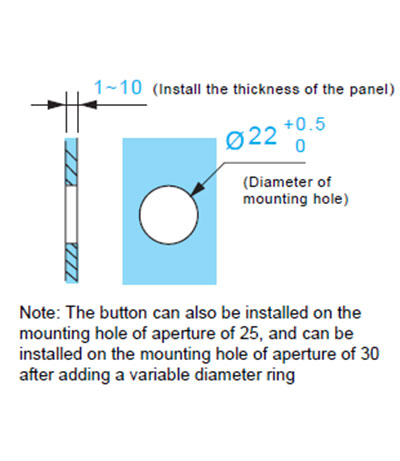

5. Can be installed on the thickness of 10mm mounting panel, is the best of its kind.

6. Integrated structural design, installation is very convenient, while avoiding the installation of the quality problems caused by the lack of installation.

7. The product's performance meets the requirements of the national standard GB14048.5 (IEC60947-5-1) and is CCC product certified.
