NVFS Automobile Relay

NVFS Automobile Relay
NVFS Automobile Relay

Quick Details

Voltage: 12V
Rated Current: 20A
Car Make: Universal
Place of Origin: Zhejiang, China (Mainland)
Brand Name: Winston
Model Number: NVFS
Warranty: 12 Months
Product name: automobile relay/auto
                         relay/automotive relay 12v 20a MVFS
Contact Material: AgSnO2 AgCdO
Dimensions: 32.6X25.2X21

Contact Data

Contact Arrangement

1A (SPSTNO)

Contact Materia

AgSnO2

Contact Rating(resistive)

15A, 30A/14VDC

Max.Switching Power

420W

Max.Switching Voltage

75VDC   Max.SwitchingCurrent:30A

Contact Resistance or Voltage drop



≤50mΩ   Item4.12ofIEC61810-7



Dimension

32.6X25.2X21

Operationlife



Electrical

2x105  Item4.30ofIEC61810-7

Mechanical

107  Item4.31ofIEC61810-7

Coil Parameter

Dash numbers

Coilvoltage

VDC

Coil resistance Ω±10%

Pickup voltage

VDC(max) 70% ofrated voltage)

Release voltage

VDC(min)

(10%ofrated voltage)

Coilpower consumption

W

Operate  Time

ms

Release Time

ms

Rated

Max

006-1800
012-1800
024-1800

6
12
24

7.8
15.6
31.2

20
80
320

3.9
7.8
15.6

1.2
2.4
4.8

1.8

≤ 7

≤ 5

CAUTION: 1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay .
                 2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.

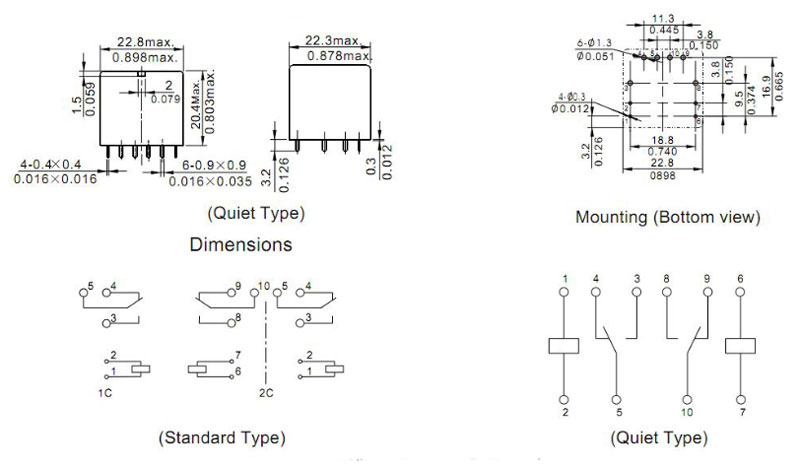

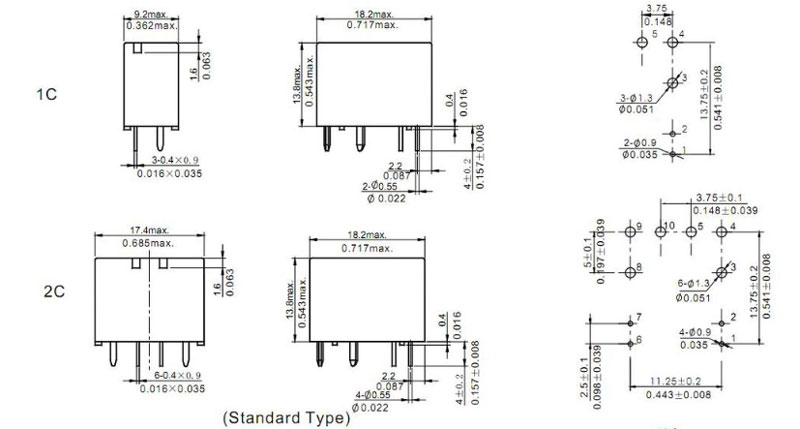

Outline dimension

NOTES 1).Dimensions are in millimeters.
            2).Inch equivalents are given for general information only.
