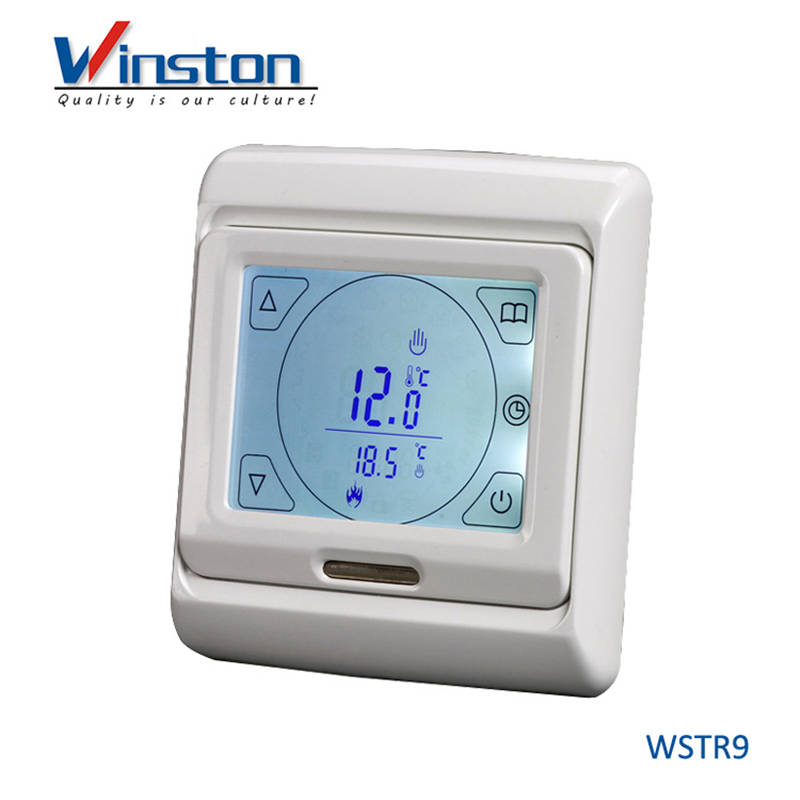

HVAC Control System Programming Thermostat WSTR9
Touch Screen Period Programming Thermostat Weekly circulation, it is possible to set 6 periods called events each day with corresponding pre-set temperatures, also you can select "period control mode" or "manual mode" according to your individual requirements. The thermostat is recommended for the control of electric heating devices or on/off valve actuator used in water-based heating systems.
Technical Parameter
|
Voltage |
230VAC,50/60Hz |
|
Power Consumption |
2VA |
|
Setting Range |
5ºC---90ºC |
|
Limitation Range |
5ºC--60ºC (factory setting 35ºC) |
|
Accuracy of temperature measurement |
0.5~10 Adjustable, factory setting±1ºC |
|
Ambient temperature |
-5~50ºC |
|
Protective housing |
IP20 |
|
Housing material |
anti-flammable PC |
|
Selection Table |
||
|
Model |
Current |
Application |
|
WSTR9713 |
3A |
For cintrol of electric actuator or electrothermal actuator |
|
WSTR9723 |
3A |
For cintrol of electric actuator or electrothermal actuator |
|
WSTR9716 |
16A |
For cintrol of electric actuator or electrothermal actuator, a potential-free output |
Product Description

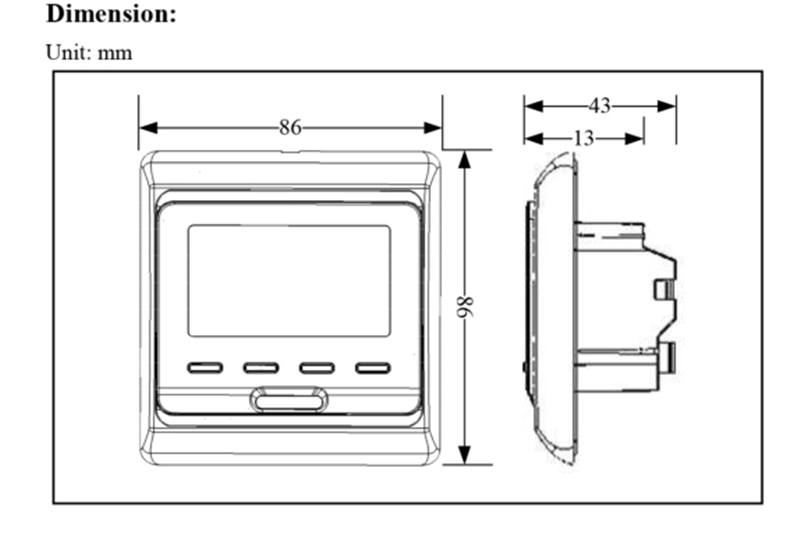

Dimension
