WST07 Touch screen floor heating thermostat

WST07 Touch screen floor heating thermostat
for floor heating,water system and electric heating
Load: 3A/16A/30A
TUV CE

Introduction

The WST07AH.Y thermostat is a type of thermostat with large, touchable LCD, which is fit for floor heating, and controlling the actuator for water system and electric heating devices. With our thermostat, you can enjoy a cosy and comfortable living environment.
The WST07AH.Y thermostat touch screen thermostats for heating also with modulating 0-10V and 2-10VDC both 85-250VAc and 24 VAC

Application

For the control of warm-water( floor) heating systems and direct electric heating systems used in Commercial buildings, Residential buildings, Light industrial buildings...
The WST07AH.Y thermostat equipped with extremely small junction box and simple installation, is suitable for wall box all over the world.

Basic function:

1.Work modes (Heat ,Auto or Vent)
2.Multi. periods programe (5+2/6+1/7)
3.Low temperature protection function
4.Time on and Time off
5.Surveys, display and set room temperature
6.Large, clear, backlit display. easy-to-see and read
7.Memory function:parameters are permanently held in memory and retained during power outages.
8.Guards against the rime function
9.Infrared remote-controlled function(option)
10.Anti-freezing protection

Technical data

Temperature range :0 -40 centigrade
Set temperature range:5-35 centigrade
Mounting: mounts directly onto wall or wall-box
Voltage:85-250VAC 50/60Hz 24VAC
Output signal: relay 8A/VOLT. 0-10V 2-10V (INCLUDE 24VDC 80mA)
POWER consumption:0.5W
Accuracy:0.5Celsius
Accuracy displayed:0.1Celsius
Relative humidity: <85% (23 centigrade)
Sensor type:NTC
Display: LCD + Green back lighting
Control mode:heating
Body material: Antiflaming PC
Remote function: YES(optional)
Certification:CE
Dimensions: 86mm X 86mm X 12mm (H/W/D)
Size of display:60mm X 45mm (H/W)
WEIGHT:175G/PCS
Inner box size:100(L)x100(W)X60(H)mm
Output Type: Y:2-10V ( INCLUDE 24VDC/80mA )

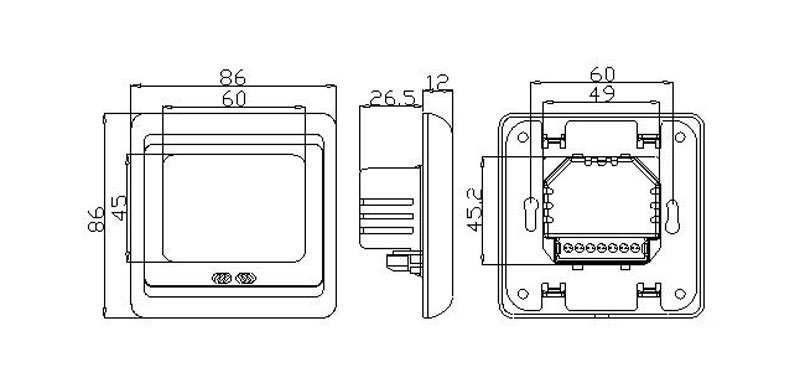

Dimensions                                                 unit:mm

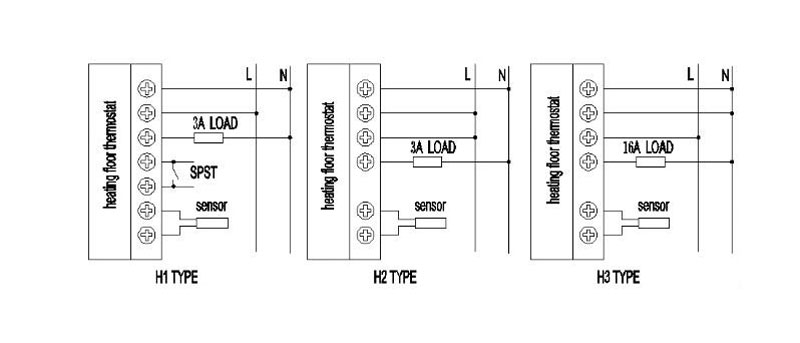

Wiring Diagram for Heating Thermostat
