WST-OCL Harmonic Filter Reactor 2000A 660V 50HZ Ac Output Reactor Produced

WST-OCL Harmonic Filter Reactor 2000A 660V 50HZ Ac Output Reactor Produced

Products Description

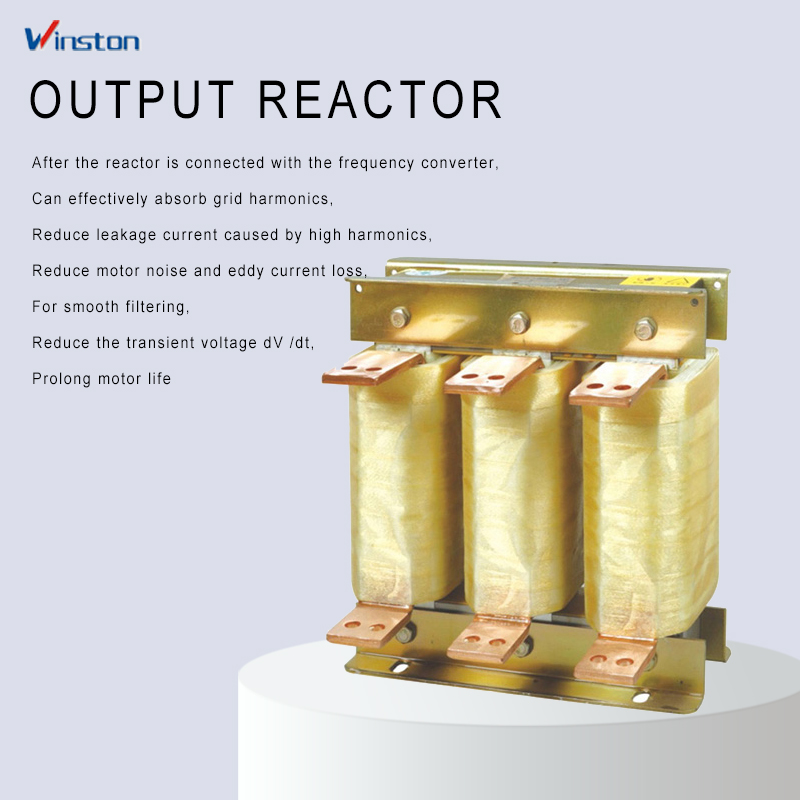

    The system is used as the output reactor of the inverter for the output side of the inverter,
which is connected in series with the inverter . When there are a large number of harmonic
sources such as rectifier and converter in the low-voltage power grid, the high order harmonics
produced by the system will seriously harm the safe operation of the main transformer and
other electrical equipment. After the reactor is connected with the inverter, it can effectively
absorb the grid harmonic wave, reduce the leakage current caused by the high order harmonic
wave, reduce the noise of the motor and eddy current loss, used for smooth filtering, reduce
the transient voltage DV/DT, prolong the life of the motor.

Specifications

1. Pressure drop: 1%-2%
2. Rated working voltage: φ380V/50Hz or 660V/50Hz
3. Rated operating current: 5A to 2000A@40℃
4. Electric strength: iron core winding 3000VAC10Ma/1min
5. Insulation resistance: 1000DC insulation resistance of iron core winding & GT; 100 m Ω
6. Reactor noise: less than 65dB(with the reactor horizontal distance of 1 meter test)
7. Protection class: IP00
8. Insulation grade: F grade or above
9. Product implementation standard: IEC289:1987 reactor
                                                                   Gb10229-88 reactor (EQVIEC289:1987)
                                                                   Jb9644-1999 Reactor for semiconductor electric drive

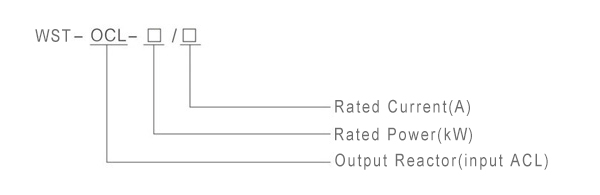

Model Explanation

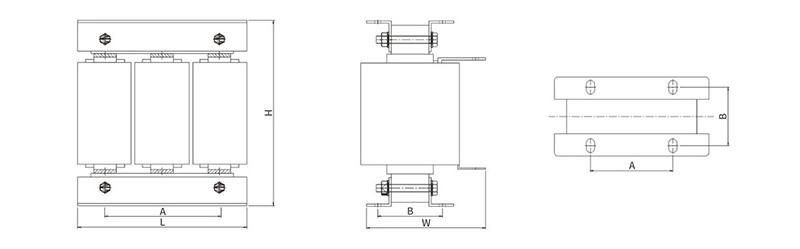

Dimension

Technical Parameters

Packaging & Shipping
