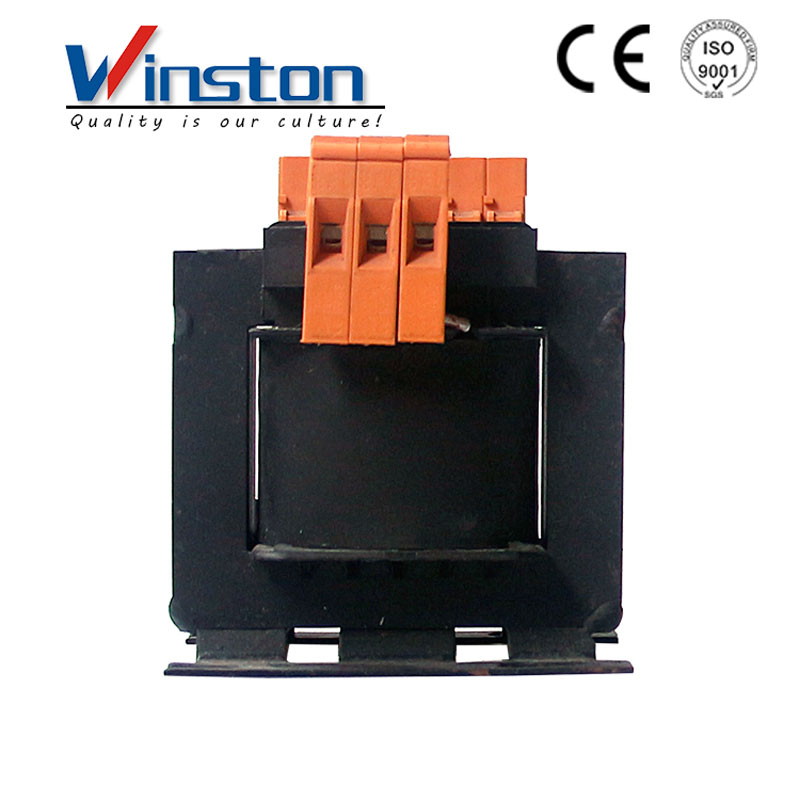

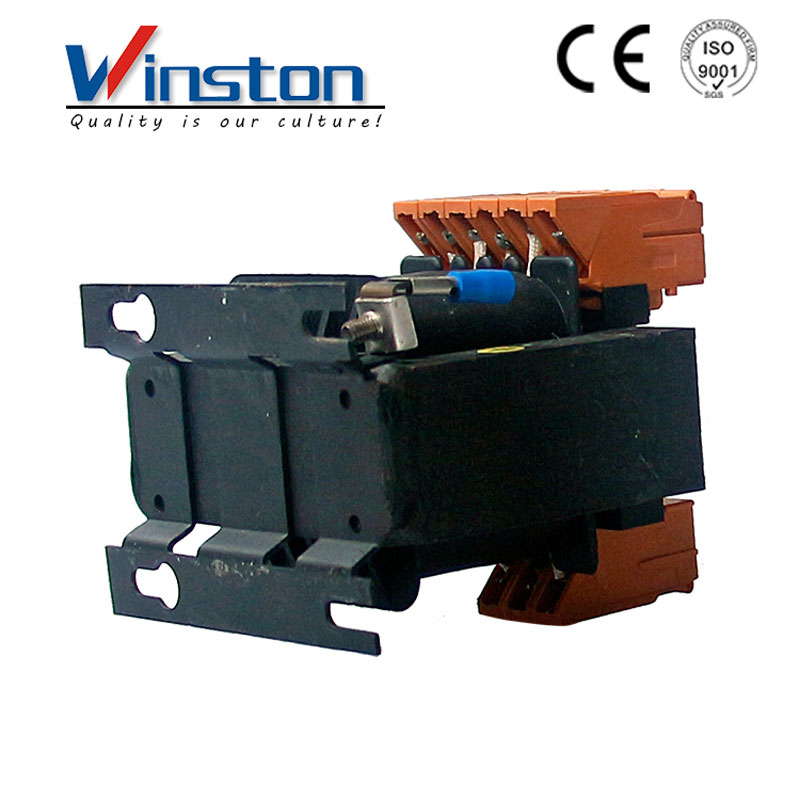

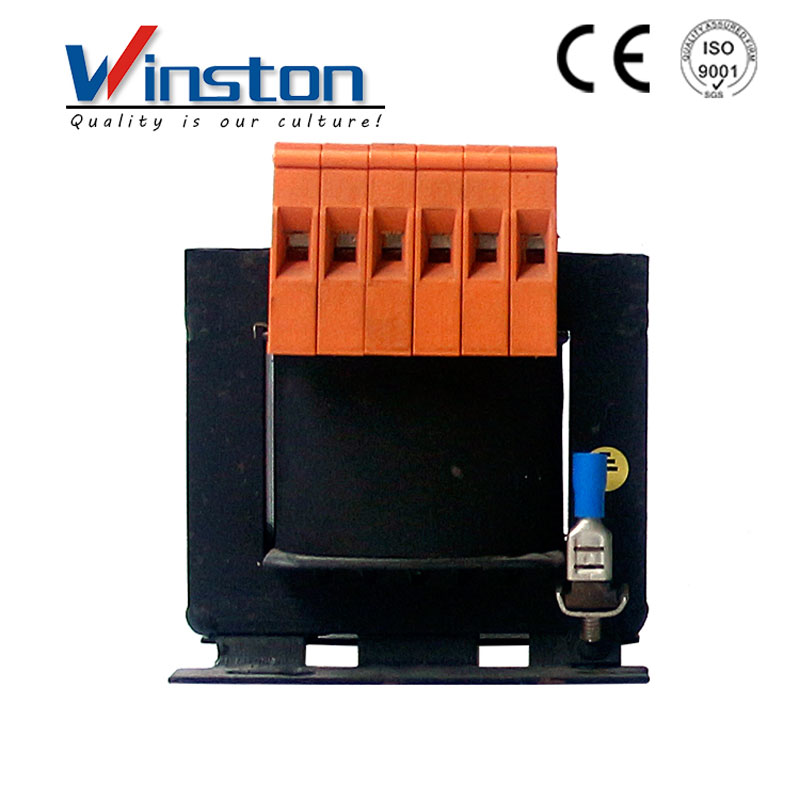

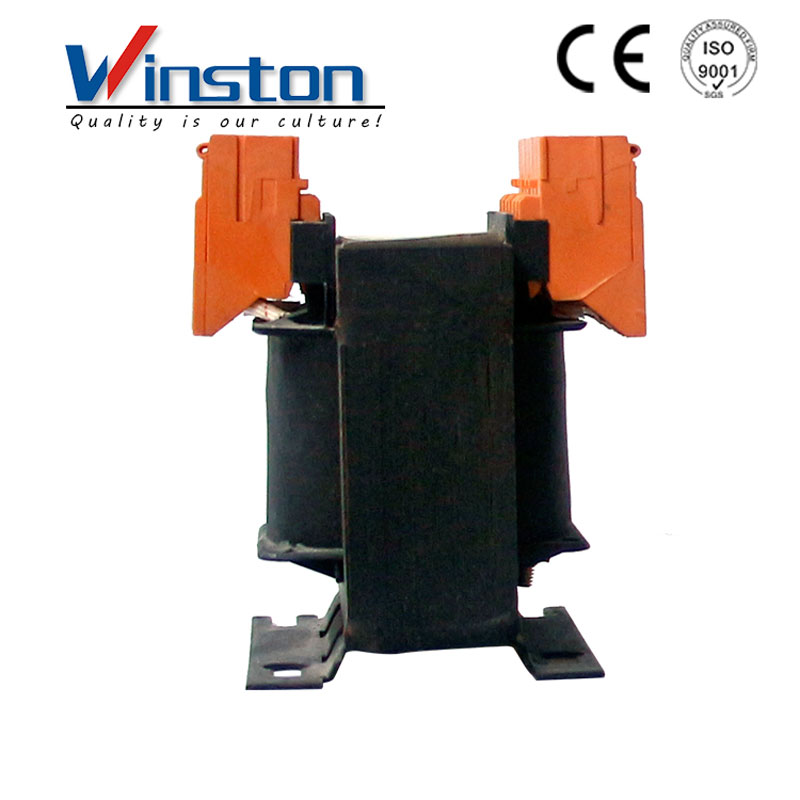

220V 40VA Single Phase Control Transformer (JBK5-40)
Product description
JBK5 transformers apply to be used as control power supply of mechanical equipments and electrical&electronic appliance,or as mains power supply of working light and signal light,in single-phase circuit of 50/60Hz,input voltage up to 500V,output voltage up to 250V.Standard capacity is up to 2500VA, customized capacity up to 5000VA.
Features:
Compact size
Less weight

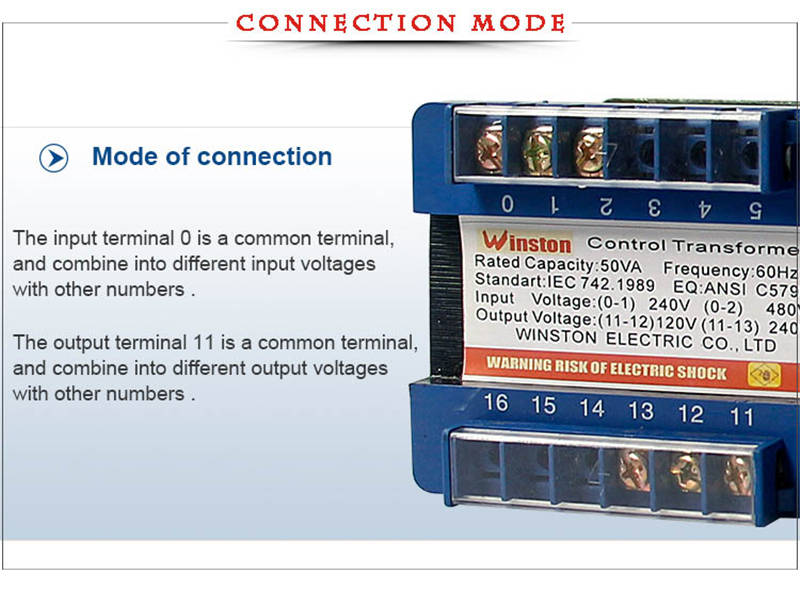

Easy wire connection
Wide application
Technical Parameters
|
Type |
Power |
Overall Size |
Installion size |
Mounting Hole |
|
(VA) |
(B*D*E) (MM) |
(A*C)(MM) |
(K*J) (MM) |
|
|
JBK5-40 |
40VA |
78*72*90 |
56*46 |
4.6 |
|
JBK5-63 |
63VA |
78*72*90 |
56*46 |
4.6 |
|
JBK5-100 |
100VA |
85*75*96 |
64*62 |
4.6 |
|
JBK5-160 |
160VA |
96*92*105 |
84*73.5 |
5.5 |
|
JBK5-250 |
250VA |
96*100*104 |
84*85 |
5.8 |
|
JBK5-300 |
300VA |
120*100*110 |
90*85 |
5.8 |
|
JBK5-400 |
400VA |
120*100*122 |
90*85 |
7 |
|
JBK5-500 |
500VA |
120*120*130 |
90*98 |
7 |
|
JBK5-630 |
630VA |
150*110*140 |
122*90 |
7 |
|
JBK5-800 |
800VA |
150*128*142 |
122*105 |
7 |
|
JBK5-1000a |
1000VA |
150*190*142 |
126*155 |
7 |
|
JBK5-1000b |
1000VA |
168*125*155 |
105*138 |
9 |
|
JBK5-1600a |
1600VA |
170*225*155 |
140*176 |
7 |
|
JBK5-1600b |
1600VA |
168*138*155 |
116*138 |
9 |
|
JBK5-2000 |
2000VA |
190*160*160 |
172*195 |
7 |
|
JBK5-2500 |
2500VA |
194*160*165 |
172*195 |
7 |

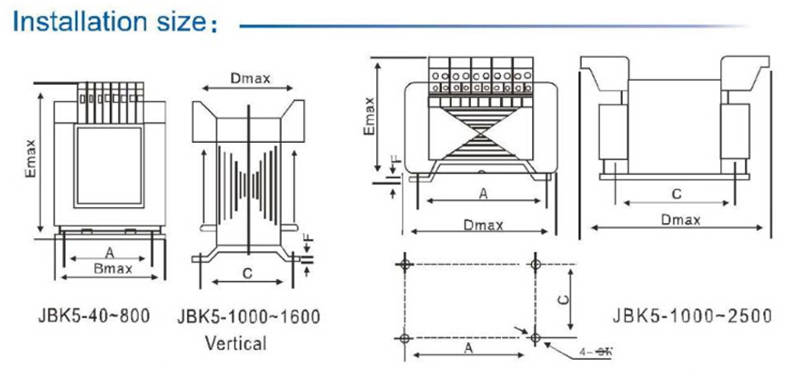

Overall dimensions
Packaging & Shipping
