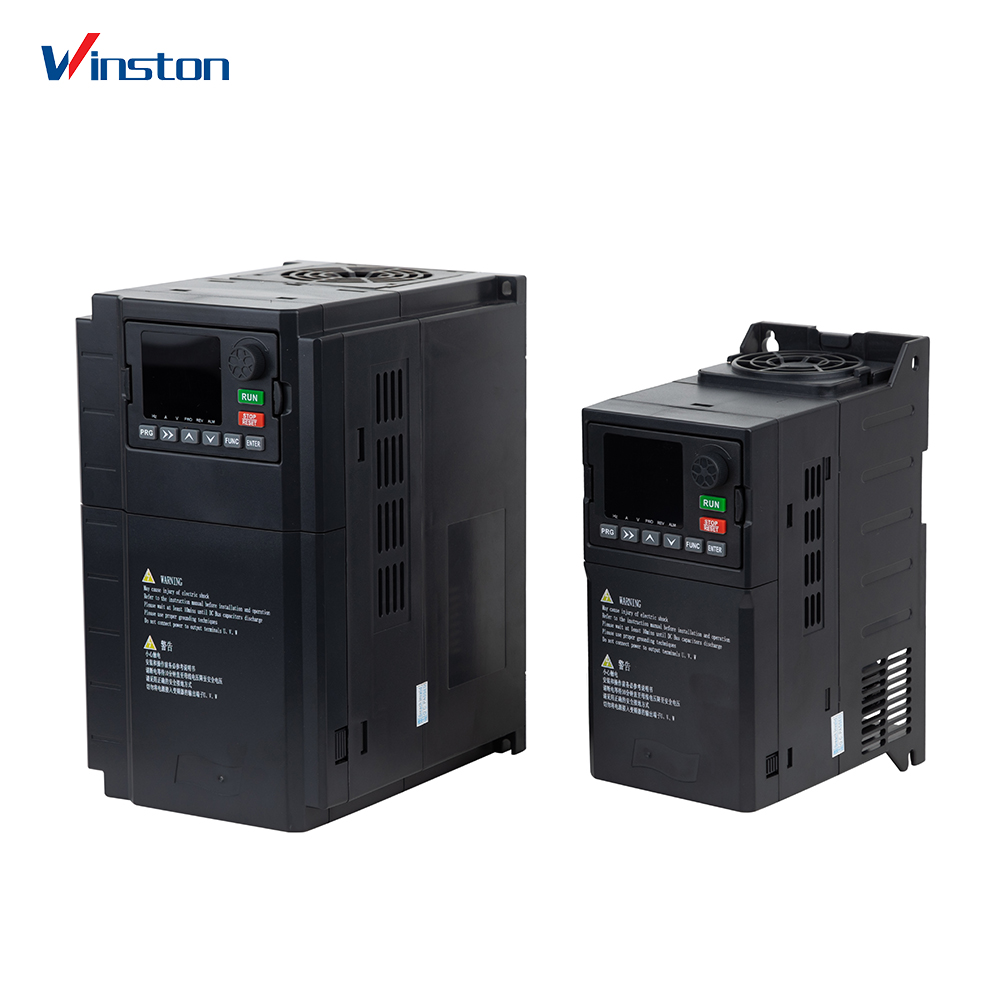

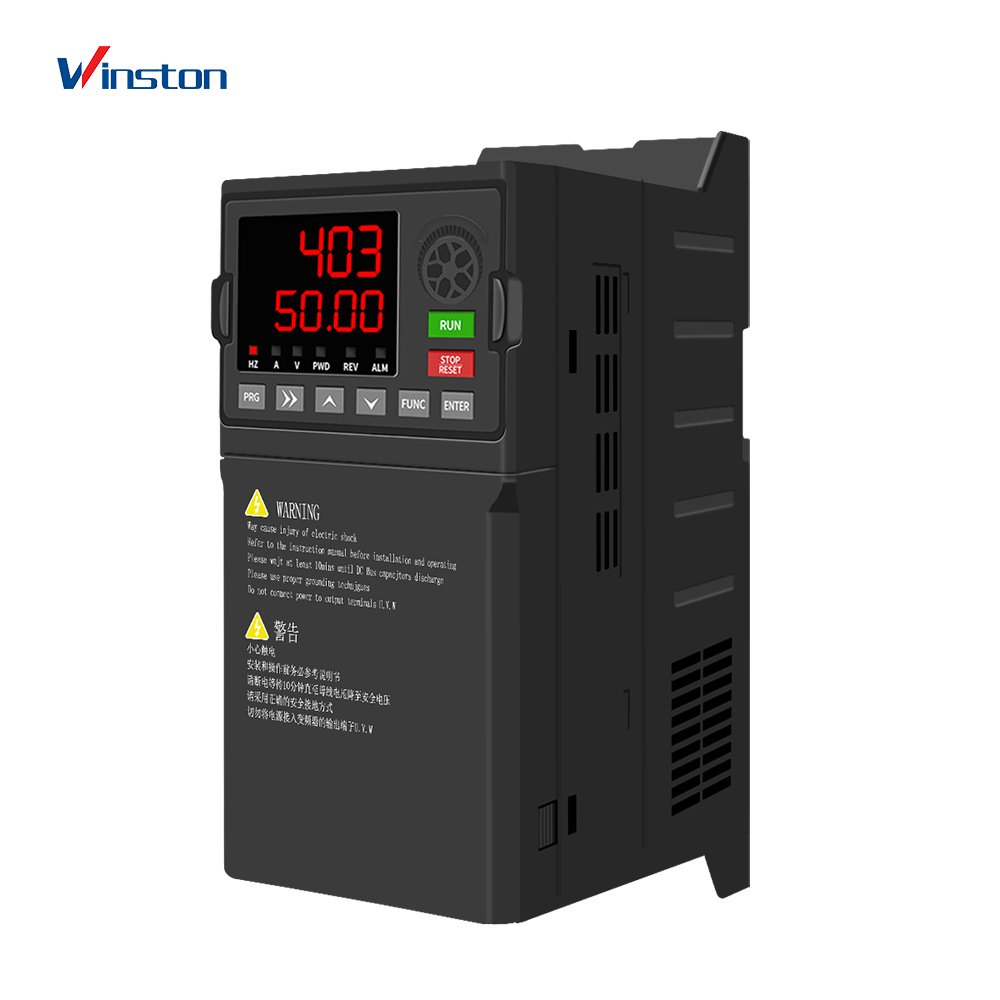

WST800(0.75-5.5KW) Good quality 0.75-5.5KW vfd water pump system dc to ac controller auto drive frequency inverter

1. integrated more macro function,such as SPWS mode,3 pump cycle,Numerical etc.

2. Carrier frequency 1.0-16kHz the carrier frequency is automatically adjusted based on the load features.

3. input frequency resolution: digital setting 0.01Hz,Analog setting: maximum frequency 0.025%.

4. Control mode: SVC mode ,V/F control mode

5. Startup torque: 150%

6. Speed range: 1:50

7. Speed stability accuracy: 1%

                                      P Type:105% 120% 1min 150% 1s

9. Torque boost: fixed boost,Customized boost 0.1%-30.0%

10. V/F curve: straight_line V/F curve,multi_point V/F curve,Square V/F curve

11. Ramp mode: straight_line ramp,S_curve ramp two groups of acceleration /deceleration time with the range of 0.00-300.0s(m)

12. DC braking: DC braking frequency:0.00Hz to maximum frequency ,braking time: 0.0-36.0s,braking action current value:0.0%-100.0%

13. JOG control: JOG frequency range: 0.00Hz to maximum frequency JOG acceleration/deceleration time 0.00-300.0s

14. Simple PLC,multi_speed running: it implements up to 16 speeds via the simple PLC function or combination of DI terminal states.

15. Built_in PID: it implements the closed_loop process control system easily.

16. Auto voltage regulation(AVR): it can keep constant of output voltage automatically when the mains voltage changes.

17. Over current stall control: the current is limited automatically during the running so as to avoid frequency tripping due to over current.

18. Rapid current limit: it decreases the over current faults to the minimum and ensures normal running of theAC drive.
