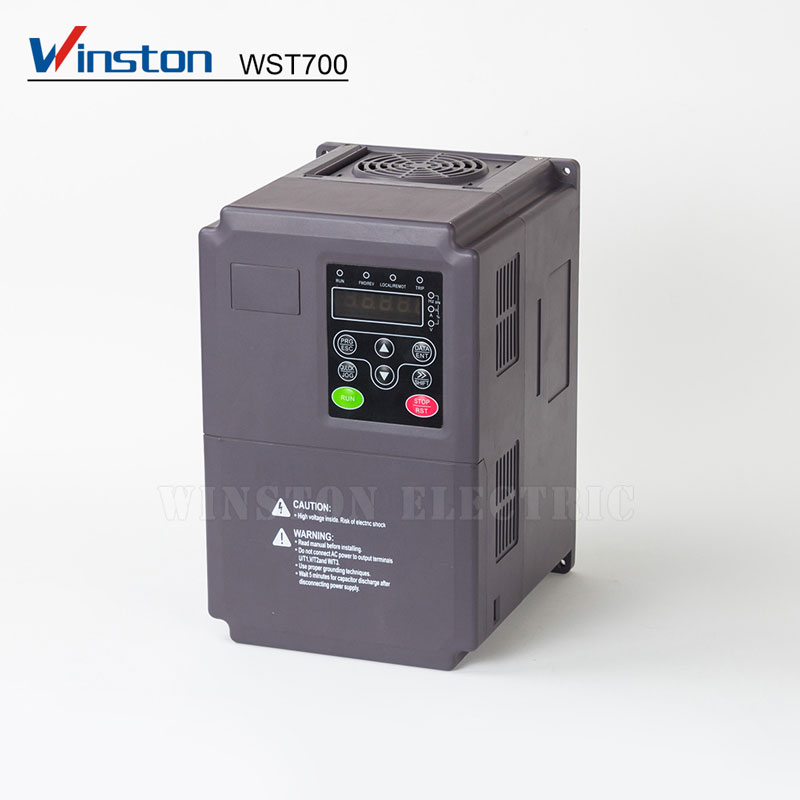

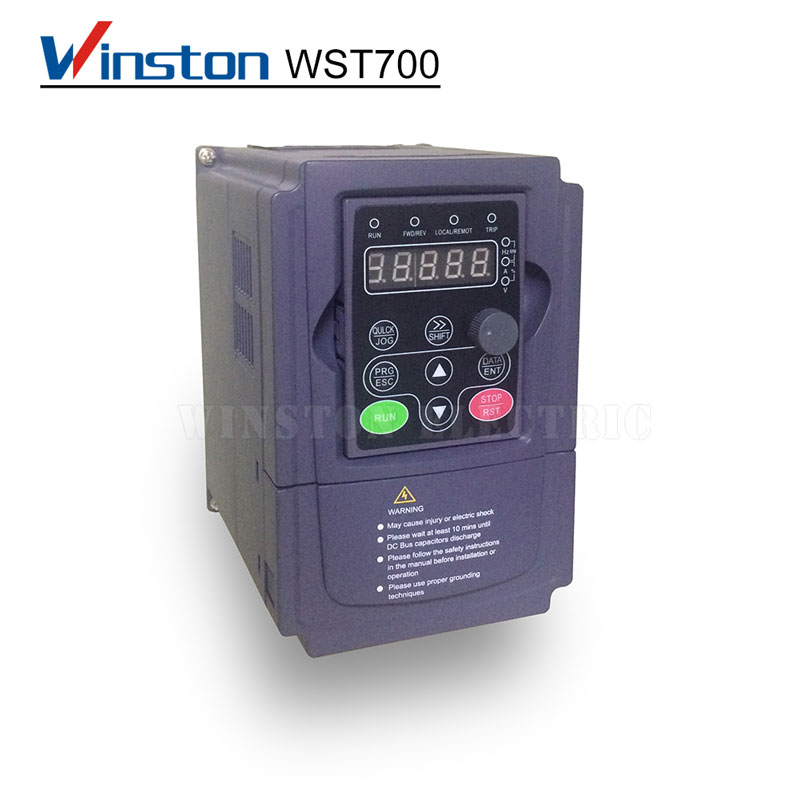

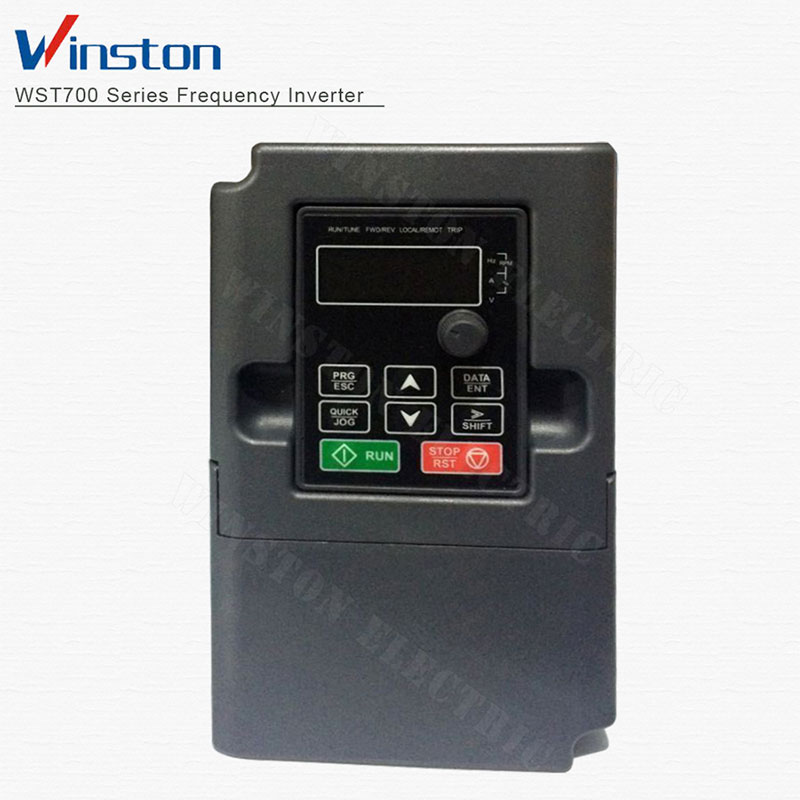

WST700 Series Frequency Inverter

WST700 Series Frequency Inverter
WST700 Series Frequency Inverter
WST700 Series Frequency Inverter
WST700 Series Frequency Inverter
WST700 Series Frequency Inverter

Input & Output

Input voltage range: 400/230V ±15%

Input frequency range: 47-63Hz

Output voltage range: 0~rated input voltage

Ouput freqnecy range: 0~400Hz



I/O Features

Programmable digital input: Provide 7 terminals which can support ON-OFF inputs, 1 terminal which can support hih speed pulse input and support PNP, NPN.

Programmable analog input: AI1 can accept input of -10~+10V, AI2 can accept input of 0~10V or 0~20mA.

Programmable open collector output: Provide 1 output terminal (open collector output or high speed pulse output).

Relay output: Provide 2 output terminals

Analog output: Provide 2 output terminal, whose output scope can be 0/4~20mA or 0~10V, as chosen.



Main control function

Control mode: V/F control, sensorless vector control (SVC).

Overload capacity: 60s with 150% of rated current, 10s with 180% of rated current.

Speed adjusting range: 1:100 (SVC)

Carrier frequency: 1kHz~15kHz.

Frequency reference source: keypad, analog input, HDI, serial communication, multi-stage speed, simple PLC and PID setting. The combination of multi-model and the switch between different model can be realized.

Detail

Technical data



Model No.

Input voltage

Rated power (kw)

Rated input current (A)

Rated output current (A)

Compatible motor

WST700

3-phase 230V ±15%

1.5

7.7

7

1.5

WST700

2.2

11.0

10

2.2

WST700

4.0

17.0

16

4.0

WST700-5R5G-2

5.5

21.0

20

5.5

WST700-7R5G-2

7.5

31.0

30

7.5

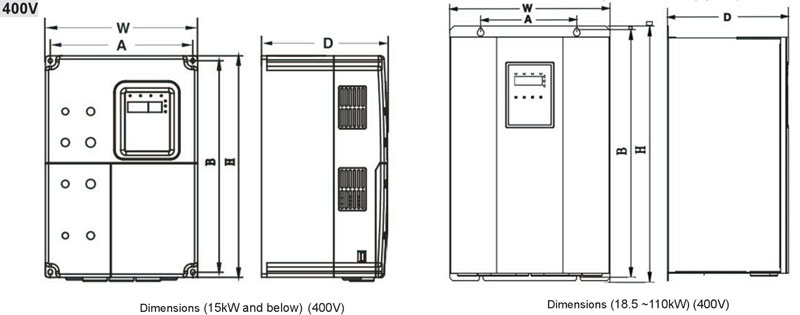

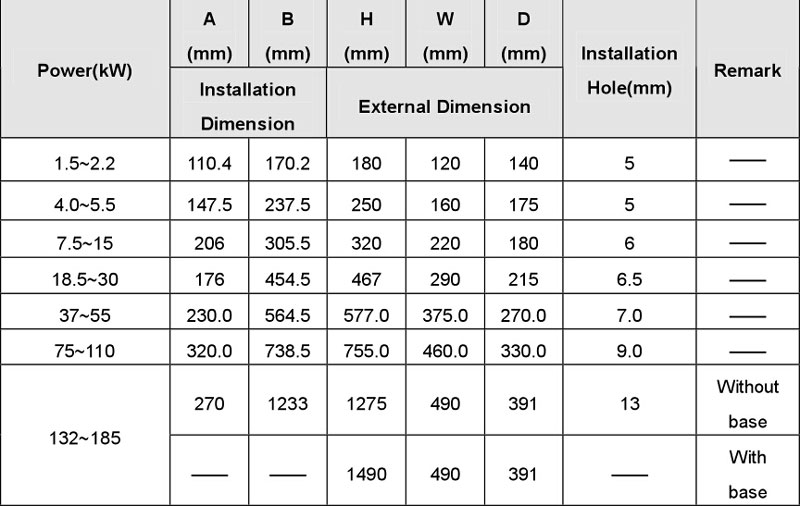

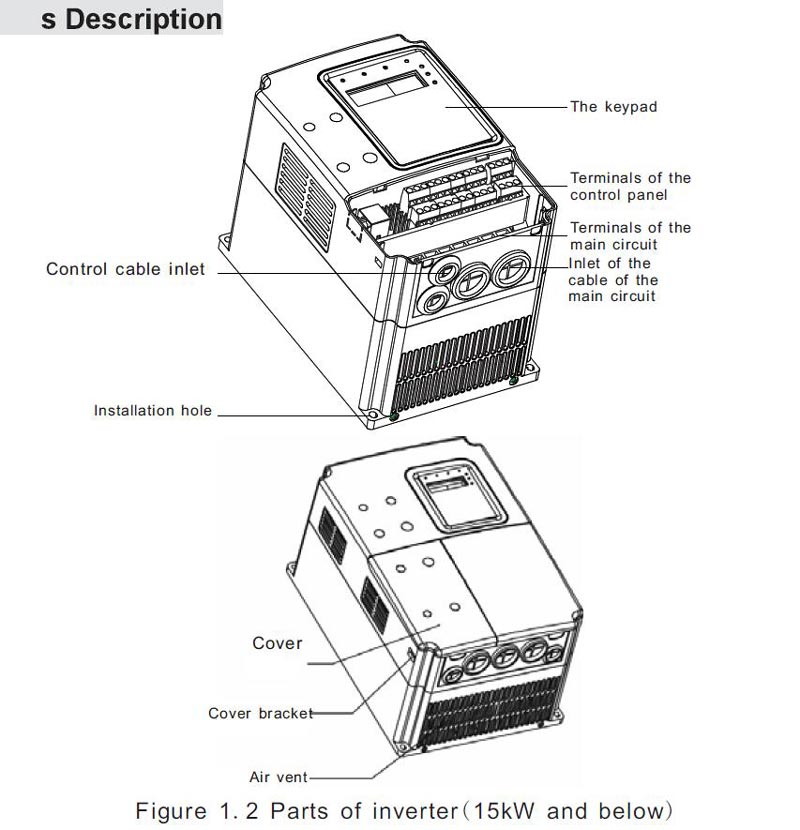

Dimension

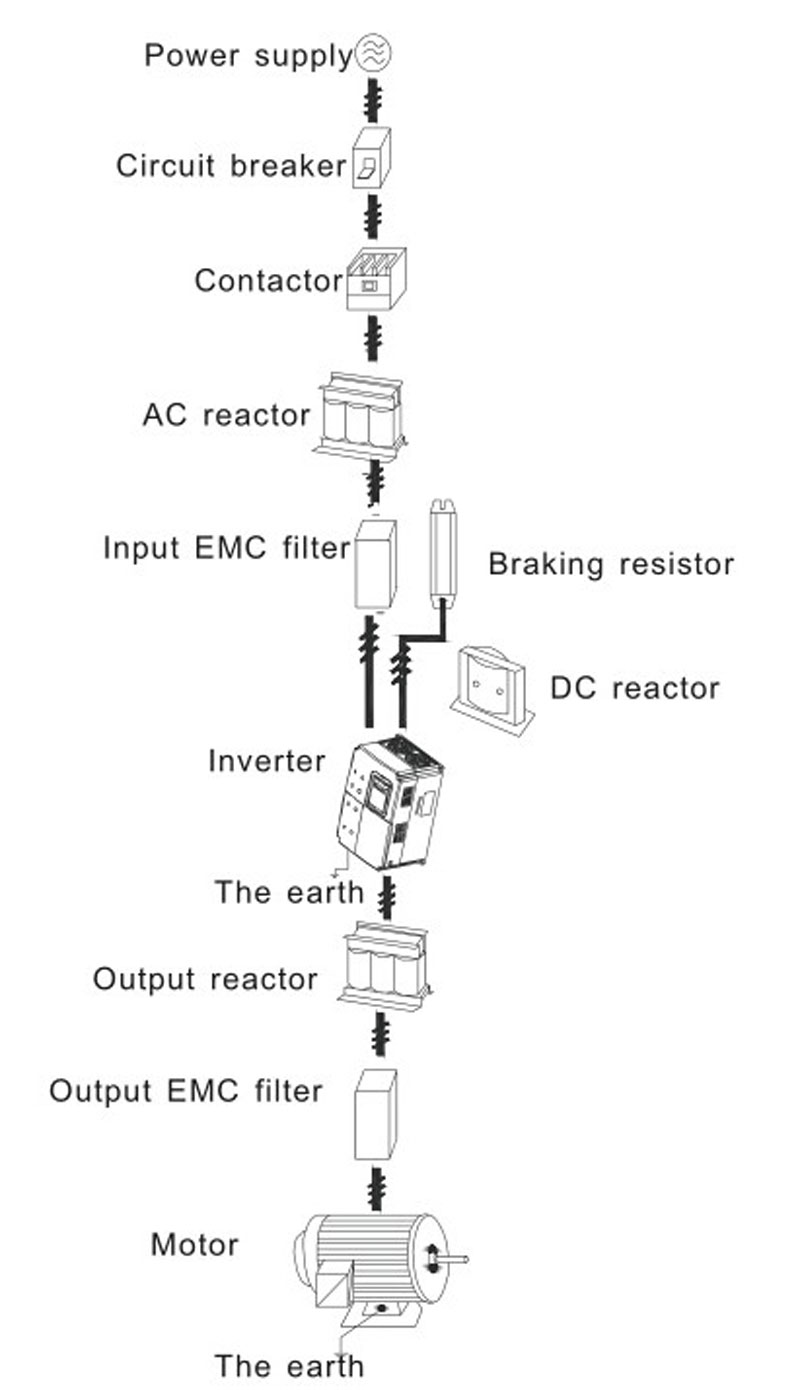

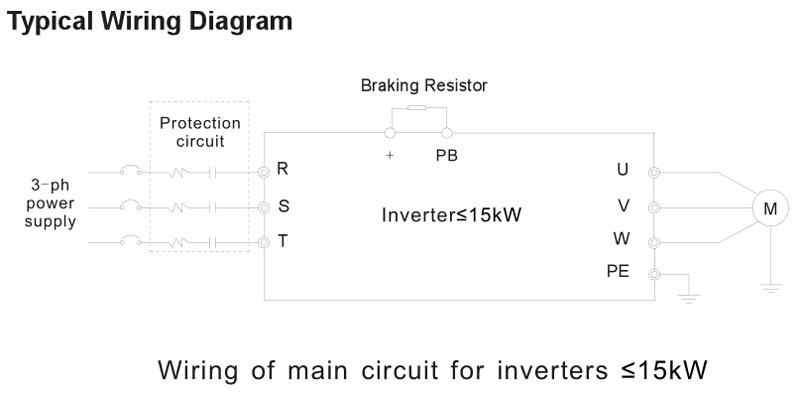

Connection of peripheral devices
