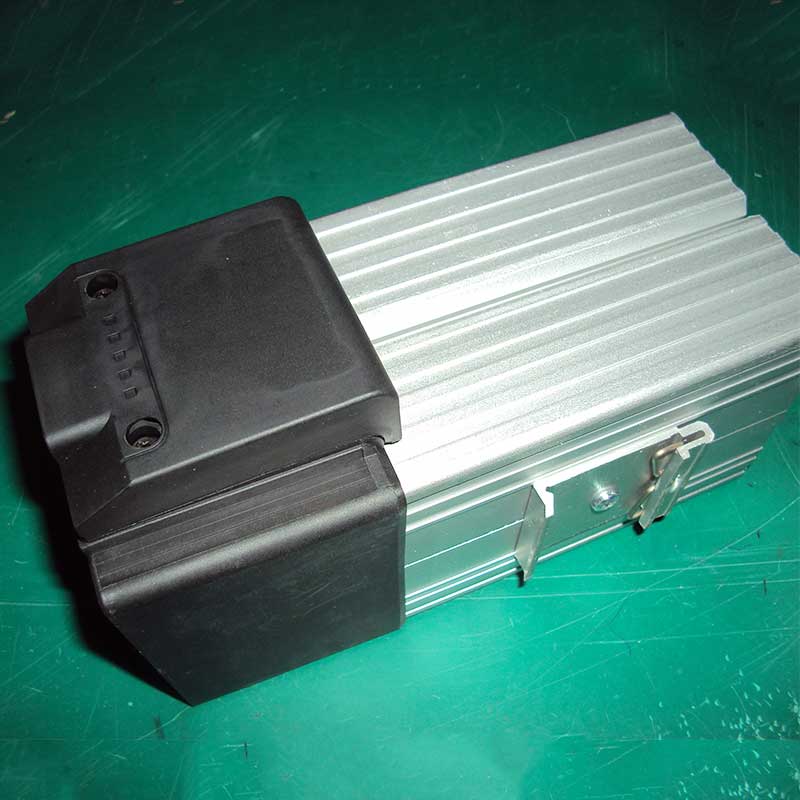

Fan Heater HGL 046 250W-400W
● Compact design
● Clip fixing
● Long service life
● Maintenance free
● Temperature safety cut-out
Compact fan heater prevents formation of condensation.
The integrated high performance axial fan provides forced air circulation and so guarantees an even temperature in enclosures.
Technical Data
|
Heating element |
Resistance heater |
|
Temperature safety cut-out |
To protect against overheating in case of fan failure, automatic reset |
|

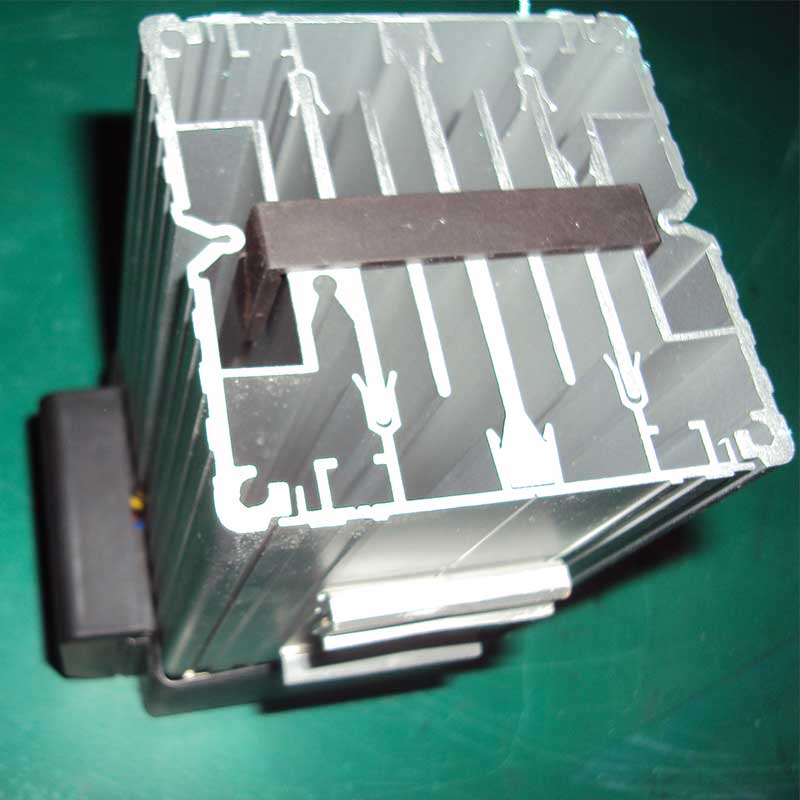

Heater body |
Anodised extruded aluminium profile |
|
Surface temperature |
Max. 75°C (400W) |
|

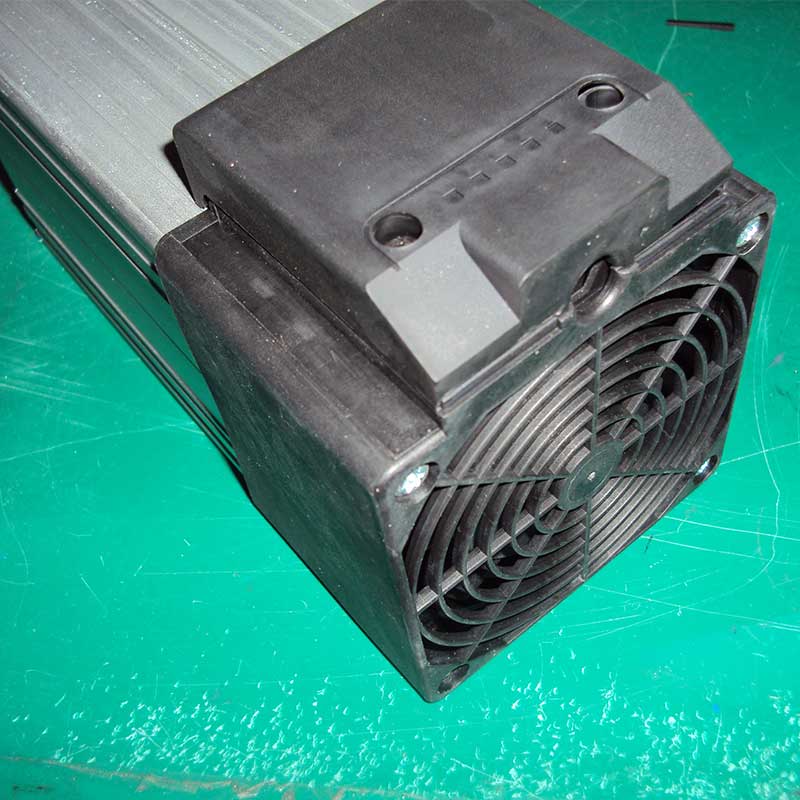

Axial fan, ball bearing |
Airflow, free flow |
|
|
AC: 45m³/h (50HZ) or 54m³/h (60Hz) |
|
|
DC: 54m³/h |
|
|
Service life 50 000h at 25°C (77°F) |
|
Connection |
Internal connection terminal 1.5mm² with strain relief, clamping torque 0.8Nm max. |
|
Connection casing |
Plastic according to UL94 V-0,black |
|
Mounting |
Clip for 35mm DIN rail, EN 60715 |
|
Fitting position |
Vertical airflow (air outlet up |
|
Operating/Storage temperature |
-45 to +70 °C (-49 to +158 °F) |
|
Operating / Storage humidity |
Max. 90 % RH (non-condensing) |
|
Protection type/Protection class |
IP20 / I (earthed) |

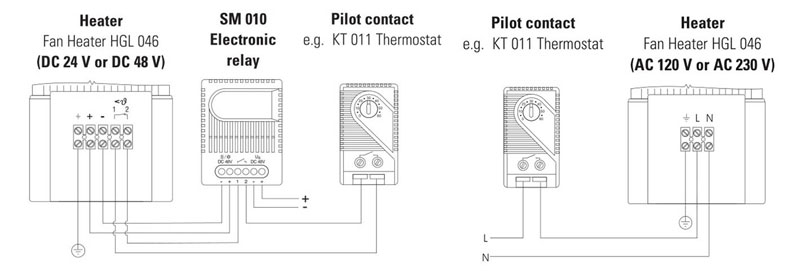

Note: In the case of 24VDC and 48VDC the fan heater has to be switched via a relay. For this purpose we recommend our electronic relay SM 010 (Art. No. 01000.0-00 and 01001.0-00).
|
Art. No. |
Operating voltage |
Heating capacity |
Pre-fuse T (time delay) |

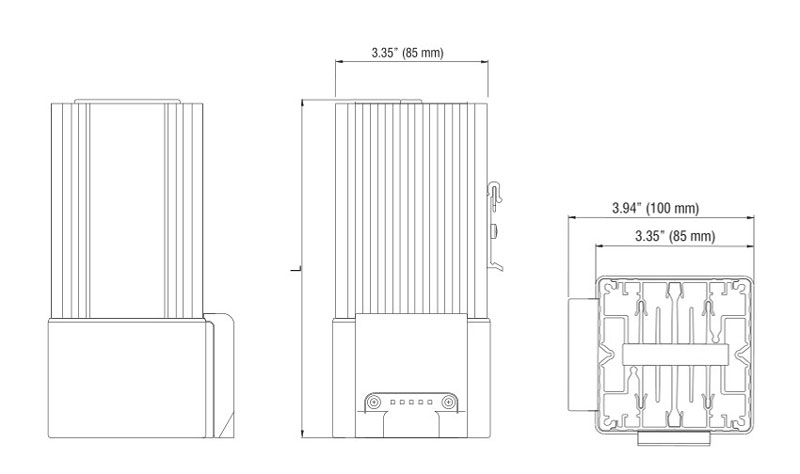

Length (L) |
Weight (approx.) |
Approvals |
|
04640.0-00 |
230VAC, 50/60Hz |
250W |
2A |
182mm |
1.1kg |
VDE + UL File No. E150057 |
|
04641.0-00 |
230VAC, 50/60Hz |
400W |
4A |
222mm |
1.4kg |
VDE + UL File No. E150057 |
|
04640.9-00 |
120VAC, 50/60Hz |
250W |
4A |
182mm |
1.1kg |
VDE + UL File No. E150057 |
|
04641.9-00 |
120VAC, 50/60Hz |
400W |
5A |
222mm |
1.4kg |
VDE + UL File No. E150057 |
|
04640.1-00 |
24VDC |
250W |
16A |
182mm |
1.1kg |
- |
|
04640.2-00 |
48VDC |
250W |
8A |
182mm |
1.1kg |
- |
|
04641.2-00 |
48VDC |
400W |
12,5A |
222mm |
1.4kg |
- |
