Touch-safe Heater CS 060 Series 50W-150W
● Low surgace temperature
● Quick mounting due to clip fixing
● Doble insulated(plastic)
● Wide ovltage range
● Small size
Touch-safe heater for the use in enclosures with electrical/electronical components.
The design of the heater supports the natural convection which results in a high air-current of warm air.
The surface temperatures on the accessible side surfaces of he housing are kept down as a result of the heater design.

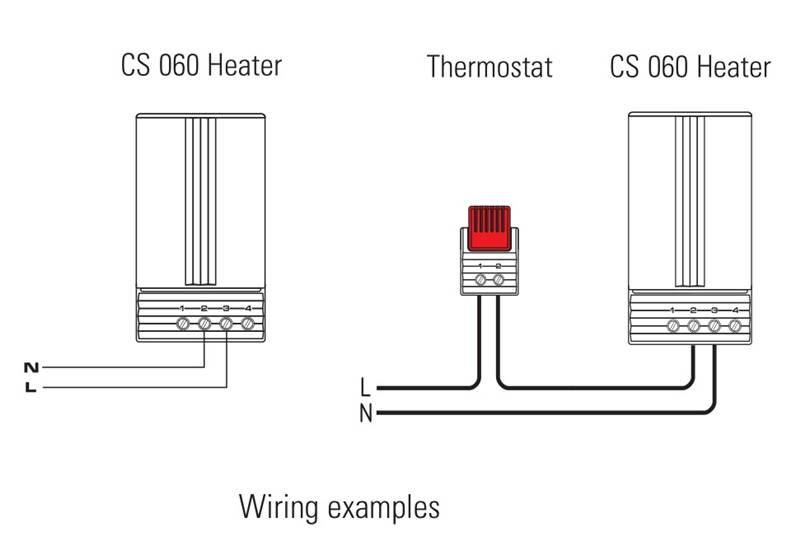

Our complete range of thermostats and hygrostats can directly be connected to the heater CS 060.
This heater is also avaiable in a version with plug-in thermostat requiring no additional wiring (CSF 060).
Both versions are designed for permanent operation.
|
Operating voltage |
120-240V AC/DC* (min. 110V, max. 265V) |
|

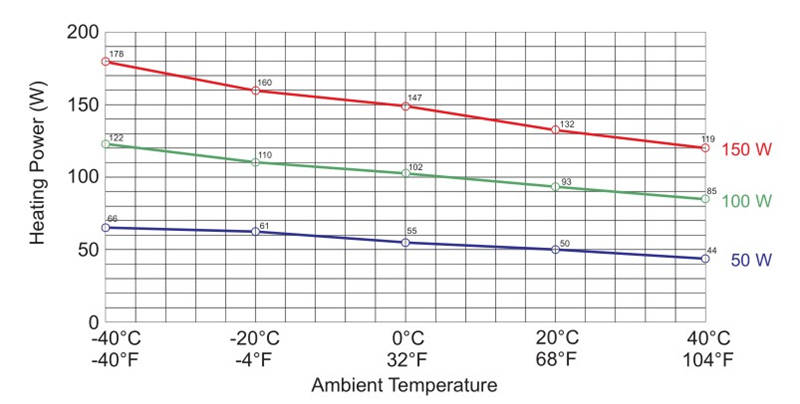

Heating capacity |
See table |
|
Heater element |
PTC resistor-temperature limiting |
|
Surface temperature |
<80 °C(176 °F),except upper protective grille |
|
Connection |
4-pole terminal 2.5mm2, torpue 0.8Nm max. |
|
Casing |
Plastic according to UL94-V-0, black |
|
Mounting |
Clip for 35mm DIN rail, EN 50022 |
|
Fitting position |
Vertical |
|
Operating/Storage temperature |
-45 to +70 °C (-49 to +158 °F) |
|
Protection type/Protection class |
IP20 / II (double insulated) |
|
Accessoires |
Mounting clips (see illustration), Art. No. 09008.0-01 |
|
Note |
Other voltages on request |
Operating with voltages below 140V AC/DC reduces heating performance by approx.10%
|
Art. No. |
Heating capacity |
Inrush current max. |
Air outlet temperature |

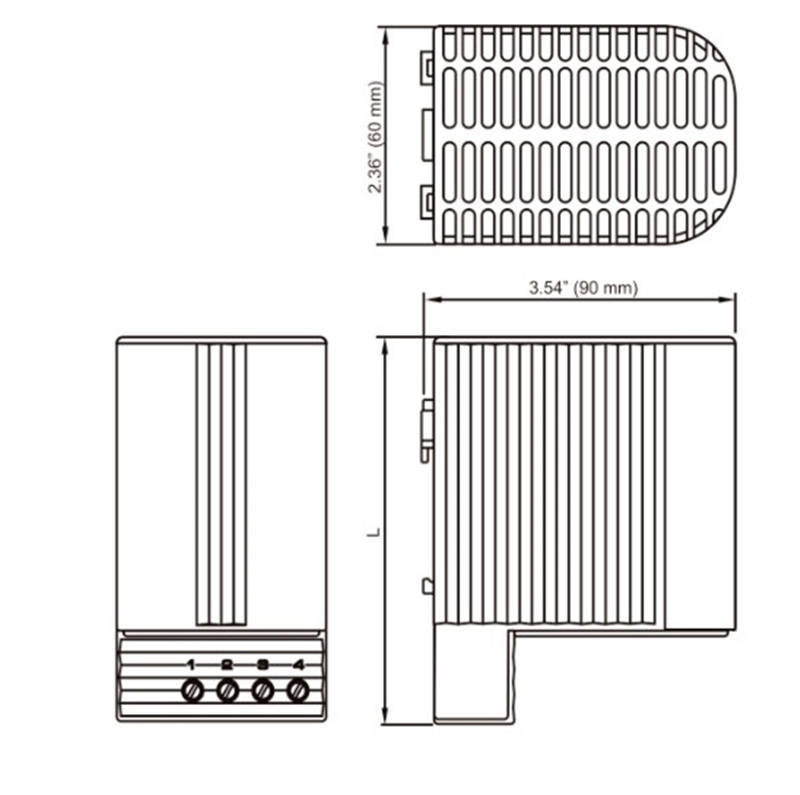

Dimensions |
Weight (approx.) |
|
06000.0-00 |
50W |
2.5A |
+86℃(186.8oF) |
110×60×90mm |
0.3kg |
|
06010.0-00 |
100W |
4.5A |
+120℃(248oF) |
110×60×90mm |
0.5kg |
|
06020.0-00 |
150W |
8A |
+145℃(293oF) |
150×60×90mm |
0.3kg |
