The heaters are used in enclosures where condensation is to be prevented or the temperature may not fall below a minimum value. In this way corrosion is avoided and an even temperature is ensured. The heaters are designed for permanent operation.
Technical Data
|
Operating voltage |
120 - 240V AC/DC¹ (min. 110V, max. 265V) |
|
Heating element |
PTC resistor - temperature limiting |
|
Surface temperature |
< +85°C (+185°F) (according to VDE 0100), |
|
|
except upper protective grille |
|
Connection |
2-pole terminal 2.5mm², torque 0.8Nm max. |
|
Casing |
plastic according to UL94 V-0, black |
|
Dimensions |
98 x 38 x 75mm |
|
Mounting |
clip for 35mm DIN rail, EN 60715 |
|
Fitting position |
vertical airflow (air outlet up, connection on bottom) |
|
Operating/Storage temperature |
-45°C to +70°C (-49°F to +158°F) |
|
Operating/Storage humidity |
max. 90% RH (non-condensing) |
|
Protection type/Protection class |
IP20 / II (double insulated) |
|
Approvals |
|
|
|
|
|
Note |
other voltages on request |
¹ Operating with voltages below 140V AC/DC reduces heating performance by approx 10%.
|
Art. No. |
Heating capacity² |
Inrush current max. |
Pre-fuse T (time-delay) |
Weight (approx.) |
|
06040.0-00 |
10W |
1.0A |
1A |
0.2kg |
|
06030.0-00 |
20W |
2.5A |
2A |
0.3kg |
² at +20°C (+68°F) ambient temperature

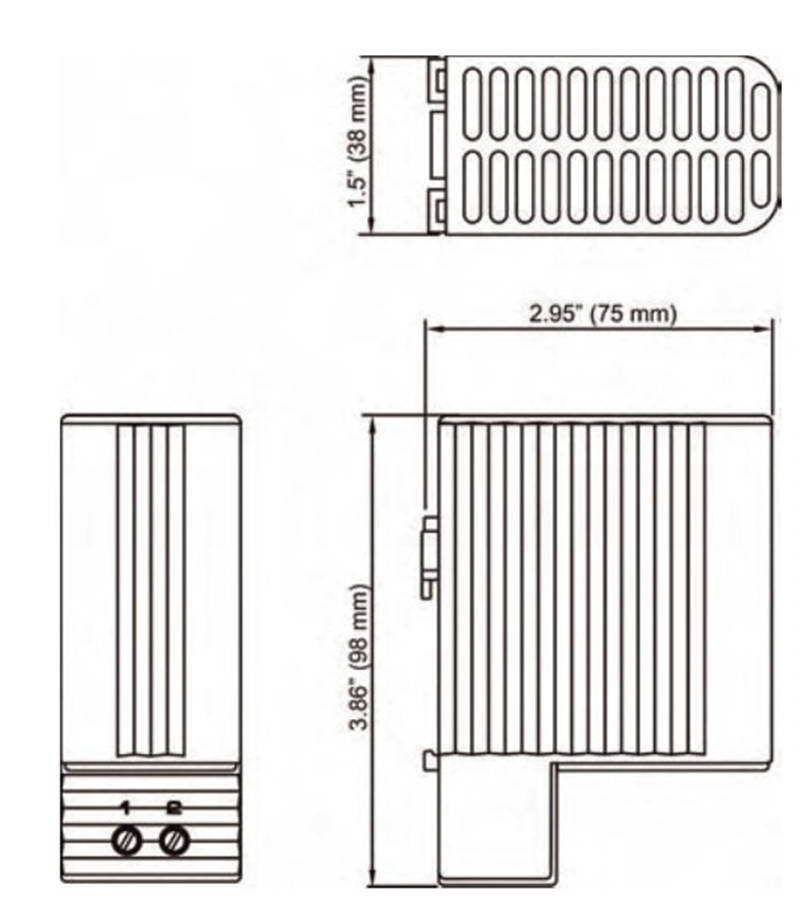

Technical drawing

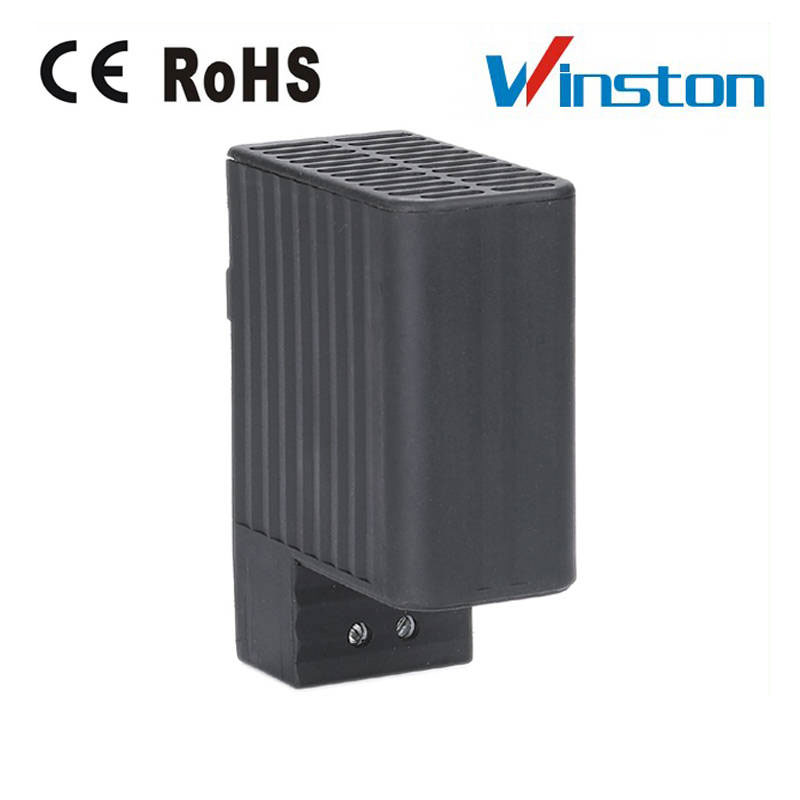

Touch-safe Small Heater CSK 060 Series (Semiconductor)
