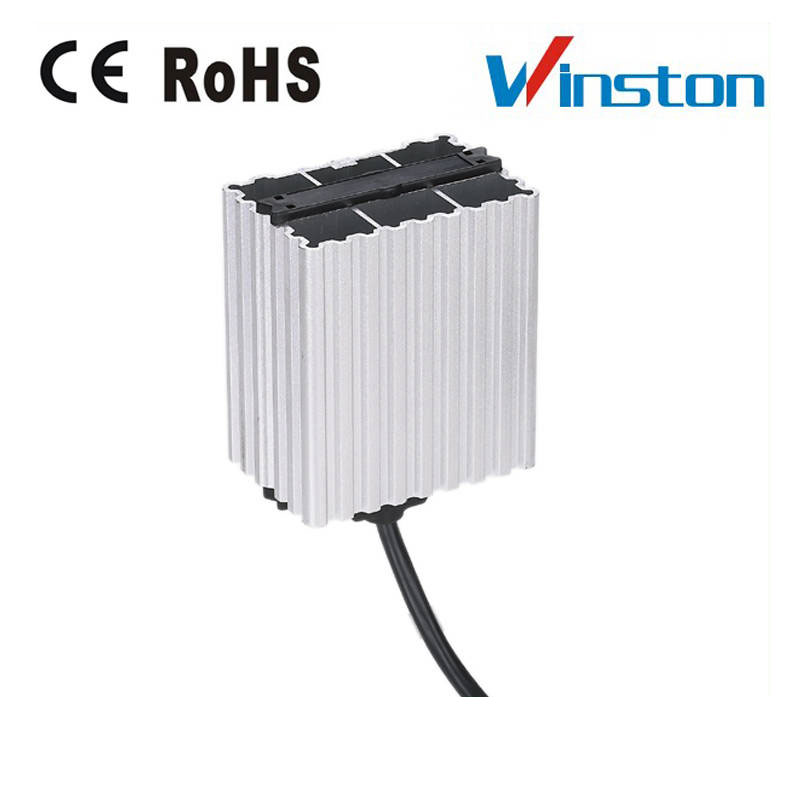

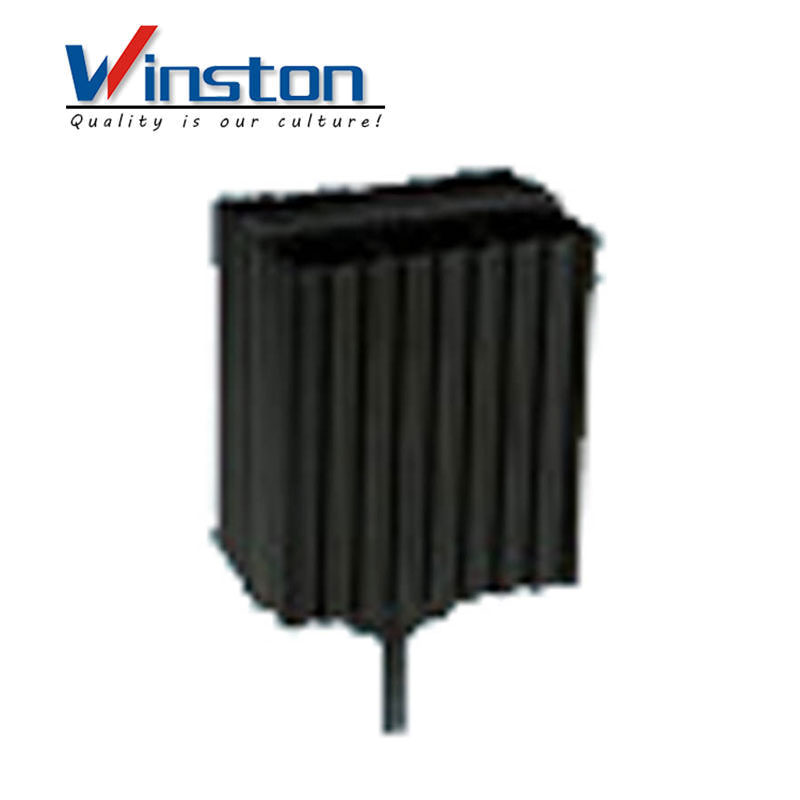

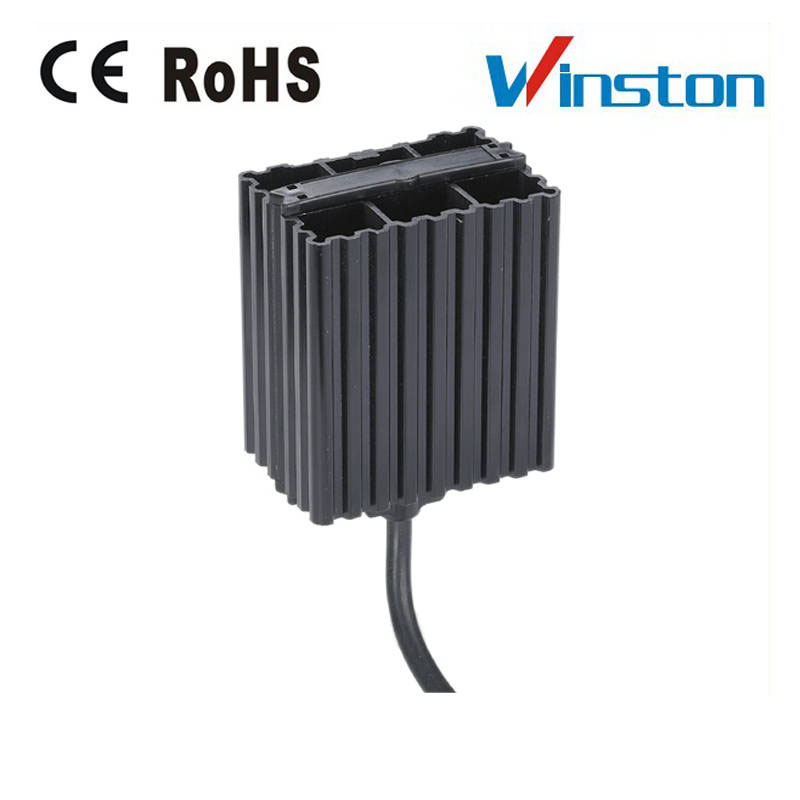

These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature may not fall below a minimum value. The aluminium profile heater body design has a chimney effect and distributes the heat evenly. The heaters are designed for permanent operation. Pressure clamb connectors save time and simplify installation.
Technical Data
|
Operating voltage |
120-240V AC/DC¹ (min. 110V, max. 265V) |
|
Heating element |
PTC resistor - temperature limiting |
|
Heater body |
extruded aluminium profile, anodised |
|
Connection |
3 pressure clamps for stranded wire 0.5-1.5mm² (with wire |
|
|
end ferrule) and rigid wire 0.5- 2.5mm² |
|
Connection casing |
plastic according to UL94 V-0, black |
|
Mounting |
clip for 35mm DIN rail, EN 60715 |
|
Fitting position |
vertical airflow (air outlet up, connection on bottom) |
|
Operating/Storage temperature |
-45 to +70°C (-49 to +158°F) |
|
Operating/Storage humidity |
max. 90% RH (non-condensing) |
|
Protection type/Protection class |
IP20 / I (earthed) |
|
Approvals |
|
|
Accessoires |
screw fixing, Art. No. 09024.0-00 (1 packing unit = 2 pieces) |
|
Note |
other voltages on request |
¹ Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.
|
Art. No. |
Heating capacity² |
Inrush current max. |
Pre-fuse T (time-delay) |
Length (L) |
Weight (approx.) |
|
14000.0-00 |
15W |
1.5A |
1A |
65mm |
0.3kg |
|
14001.0-00 |
30W |
3.0A |
2.5A |
65mm |
0.3kg |
|
14003.0-00 |
45W |
3.5A |
2.5A |
65mm |
0.3kg |
|
14005.0-00 |
60W |
2.5A |
2.5A |
140mm |
0.4kg |
|
14006.0-00 |
75W |
4.0A |
4A |
140mm |
0.5kg |
|
14007.0-00 |
100W |
4.5A |
4A |
140mm |
0.5kg |
|
14008.0-00 |
150W |
9.0A |
6.3A |
220mm |
0.7kg |
² at +20°C (+68°F) ambient temperature

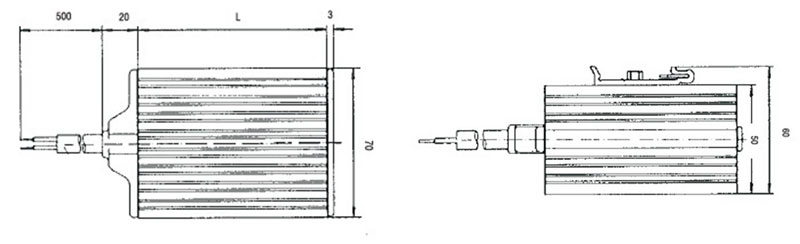

Technical drawing
