Application

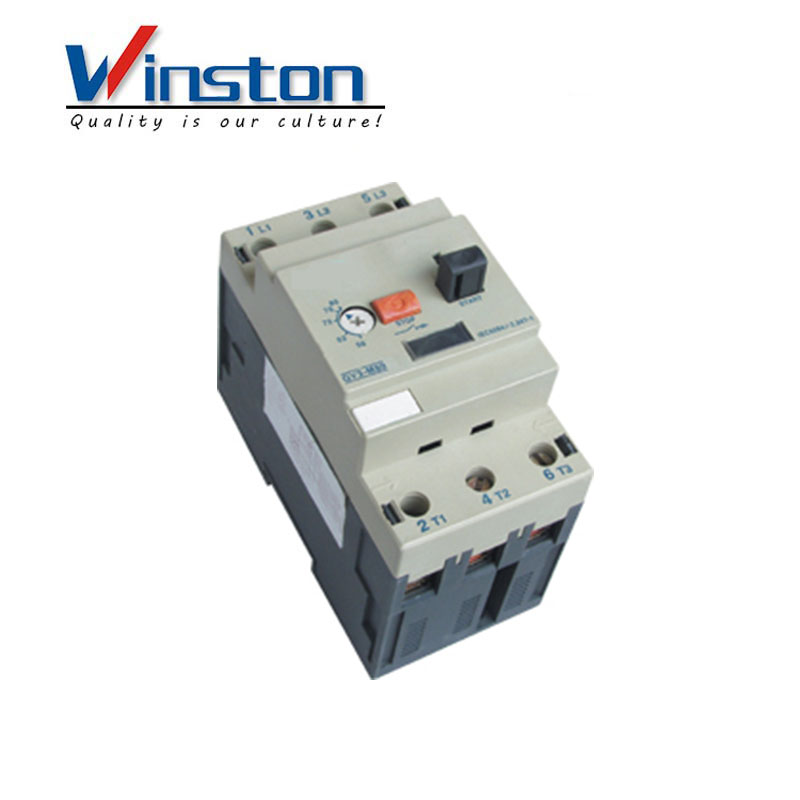

GV series motor protection circuit breakers are mainly used for the overload and short circuit protection of the motor in AC 50/60Hz, up to 660V, 0.1-80A power circuit, as a full-voltage starter to start and cut off the motor, under the AC3 load or for the overload and short circuit protection of the circuit and power equipment in the power distribution network.

Specifications

Type

Rated standard power of 3-phase motors 50/60Hz in category AC-3



Setting range
(A)

220V

380V

415V

440V

500V

660V

KW

KW

KW

KW

KW

KW

GV2-M01

--

--

--

--

--

--

0.1-0.16

GV2-M02

--

--

--

--

--

--

0.16-0.25

GV2-M03

--

--

--

--

--

--

0.25-0.4

GV2-M04

--

--

--

--

--

0.37

0.4-0.63

GV2-M05

--

--

--

0.37

0.37

0.55

0.63-1

GV2-M06

--

0.37

--

0.55

0.75

1.1

1-1.6

GV2-M07

0.37

0.75

0.75

1.1

1.1

1.5

1.6-2.5

GV2-M08

0.75

1.5

1.5

1.5

2.2

3

2.5-4

GV2-M10

1.1

2.2

2.2

3

3.7

4

4-6.3

GV2-M14

2.2

4.

4

4

5.5

7.5

6-10

GV2-M16

3

5.5

5.5

7.5

7.5

9

9-14

GV2-M20

4

7.5

9

9

9.

11

13-18

GV2-M21

5.5

11

11

11

11

15

17-23

GV2-M22

5.5

11

11

11

15

18.5

20-25

GV2-M32

7.5

15

15

15

18.5

26

24-32

GV3-M06

--

0.37

--

0.55

0.75

1.1

1-1.6

GV3-M07

0.37

0.75

1.1

1.1

1.1

1.5

1.6-2.5

GV3-M08

0.75

1.5

1.5

1.5

2.2

3

2.5-4

GV3-M10

1.1

2.2

2.2

3

3.7

4

4-6

GV3-M14

2.2

4

4

4

5.5

7.5

6-10

GV3-M20

4

7.5

7.5

7.5

10

11

10-16

GV3-M25

5.5

11

11

11

15

18.5

16-25

GV3-M40

11

18.5

22

22

25

33

25-40

GV3-M63

15

30

33

33

40

55

40-63

GV3-M80

22

40

45

45

55

63

56-80
