WST-1000 Series Mechanical thermostat

WST-1000 Series Mechanical thermostat

Summary

WST-1000 Series of thermostats are usually used on the commerical,industrial and civil constructions,which can control the fan coil of air-conditioning,water valve and wind valveect.It can make the temperature balance in the setting range in the location,and all switches are manual switch.Very simple to Manipulate.

Characteristics

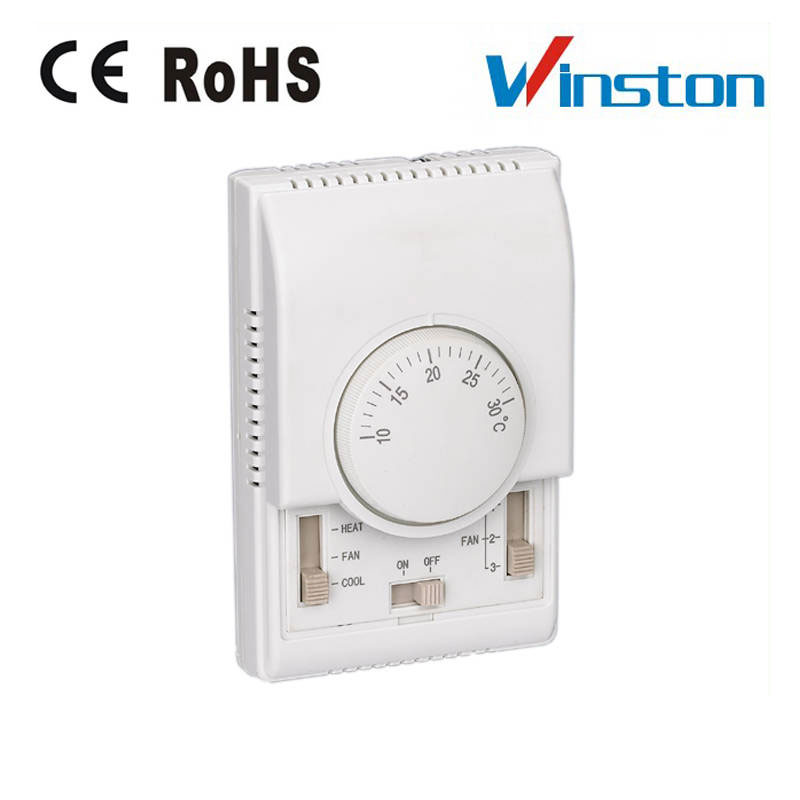

Dialing button for setting the temperature:The place the finger points to is the current temperature value.
ON/OFF Switch for systim:Press ON/OFF Key to turn on/off the thermostat.
Working mode switch:Press HEATCOOL Key to switch the heating/Cooling mode.
Fan speed key:L-M-H,that is Low speed-Middle speed-High speed,Wind value controller does not have this function.
Function Spec.

Technical Parameters

Temperature controlling range:10~30℃
Working voltage:230VAC± 10%,50/60HZ
Current load:<3A (Resistant load)
Sensing element:Box with the gas.
Temperature different:≤ 1℃  (at the 25℃ )
Storing environment:Temperature:-20~55℃ ,relative humidity:RH<92%
Surface material:ABS engineering plastic,manual switch is Off-white,the rest is ivory-White.

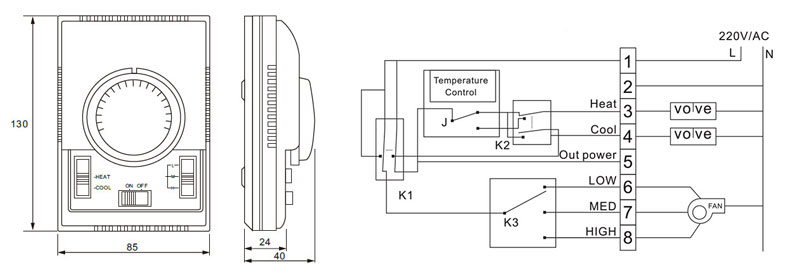

External dimension:85*130*40mm(W*H*D)
Installation:Standard 86 installin g box
