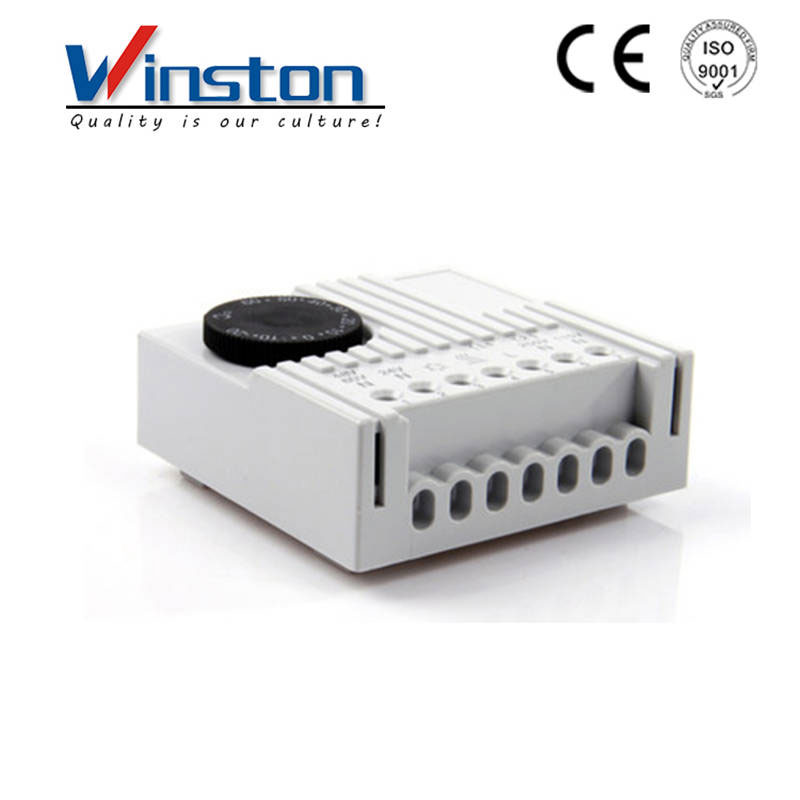

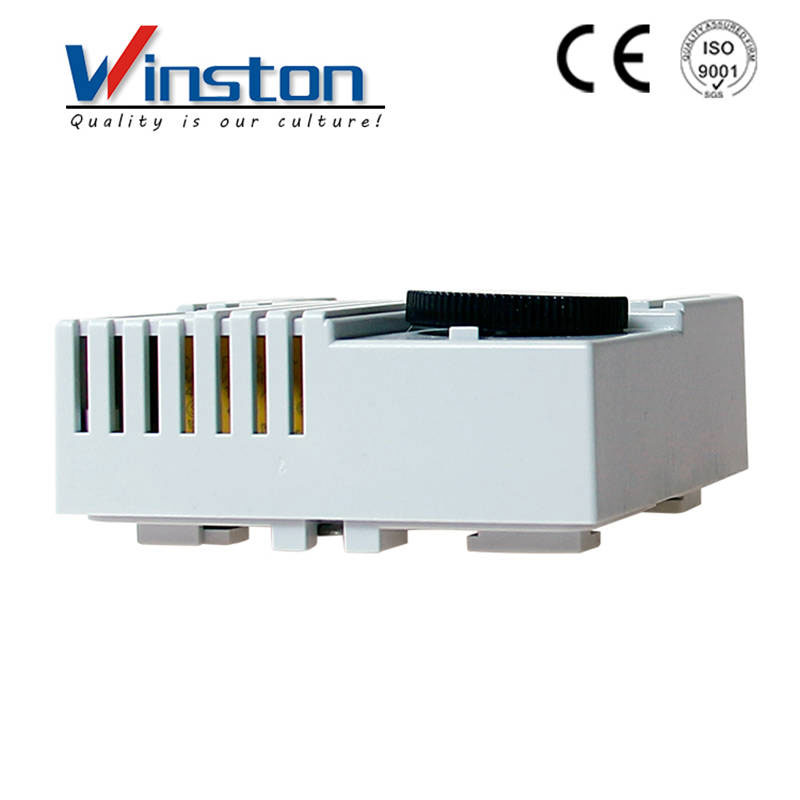

WST-8000 Series Mechanical Thermostat
Inner temperature controller for switchgear cabinet
Especially used for controlling fan filter,heater and heat exchange,also could be monitoring the electric cabinetinner temperature when working as signal arouser.
Parameter clarification
Makebimetal sensor as heat sensitivity set to feedback of heat.
Contact point scheme:single switchover contact point as instant switch component.
Allowed load of contact point
KL5-3(Heating)
AC10(4)A
DC=30W
KL5-4(Cooling)
AC5(4)DA
DC=30W
(D)=sensitivity load at cos Φ=0.6
Adjusting range:+5~+60
Weight:105g appr
Size:70*70*33.5mm
Switch discrepancy:1K 0.8K

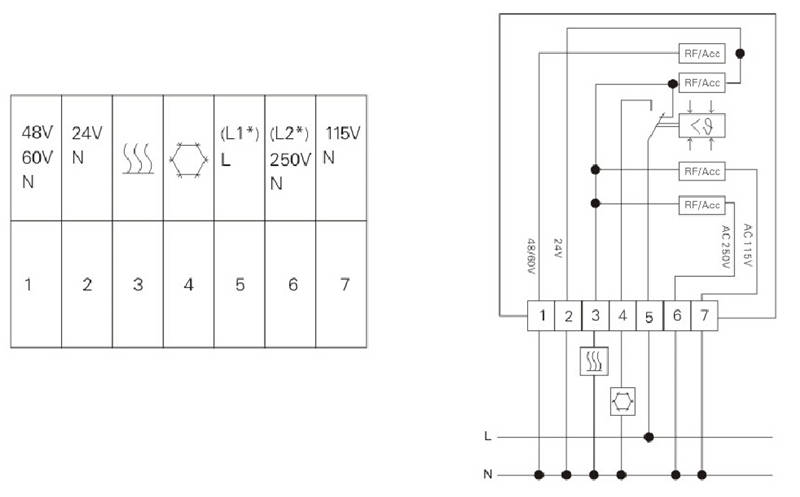

Voltage scope is wide,any type could be used from 24V to 230V

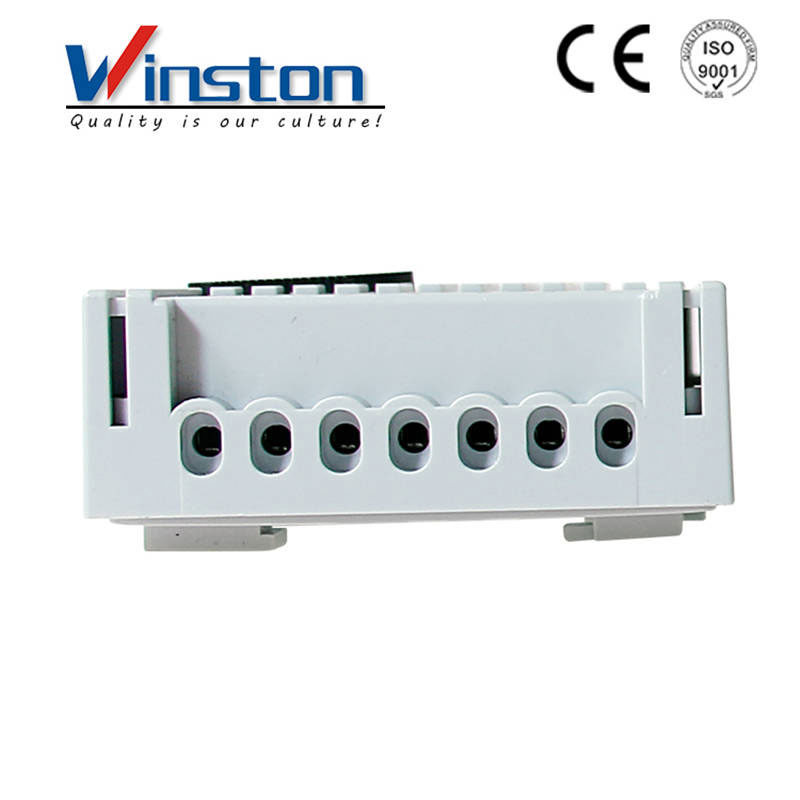

Time-saving connection,terminal block could be installed with screw from outside.

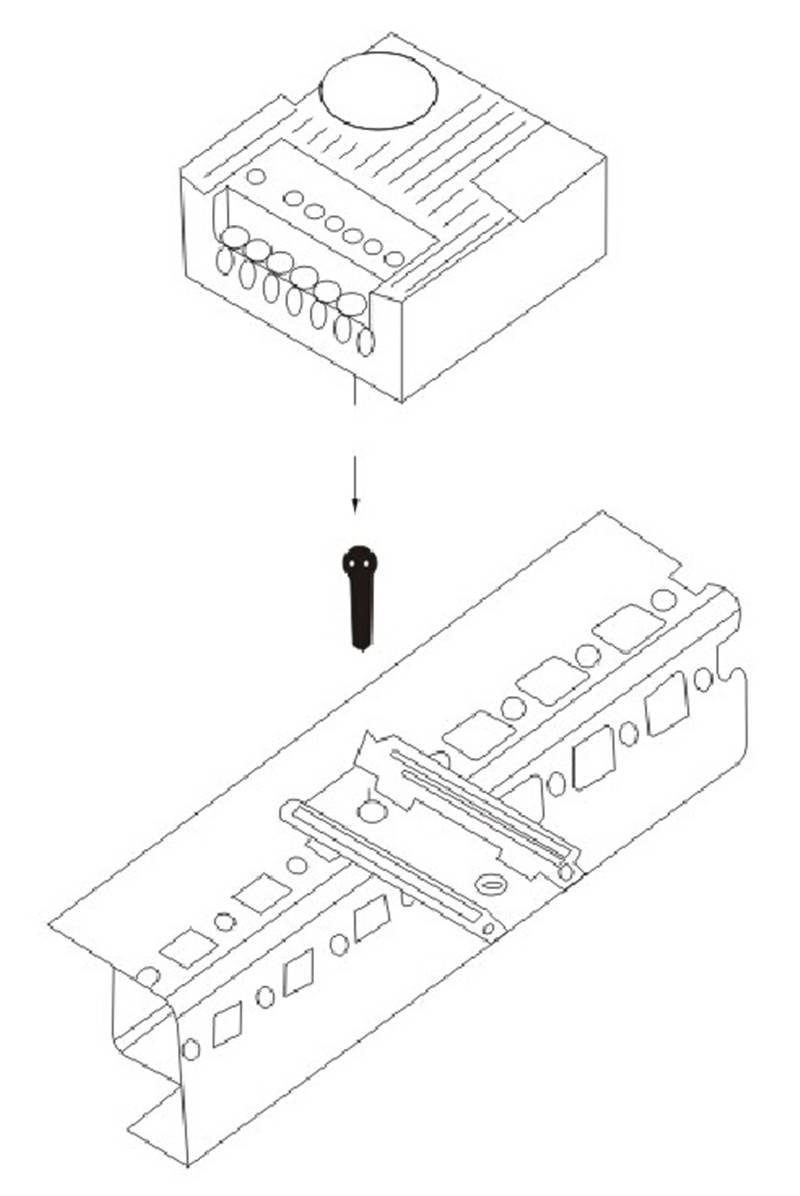

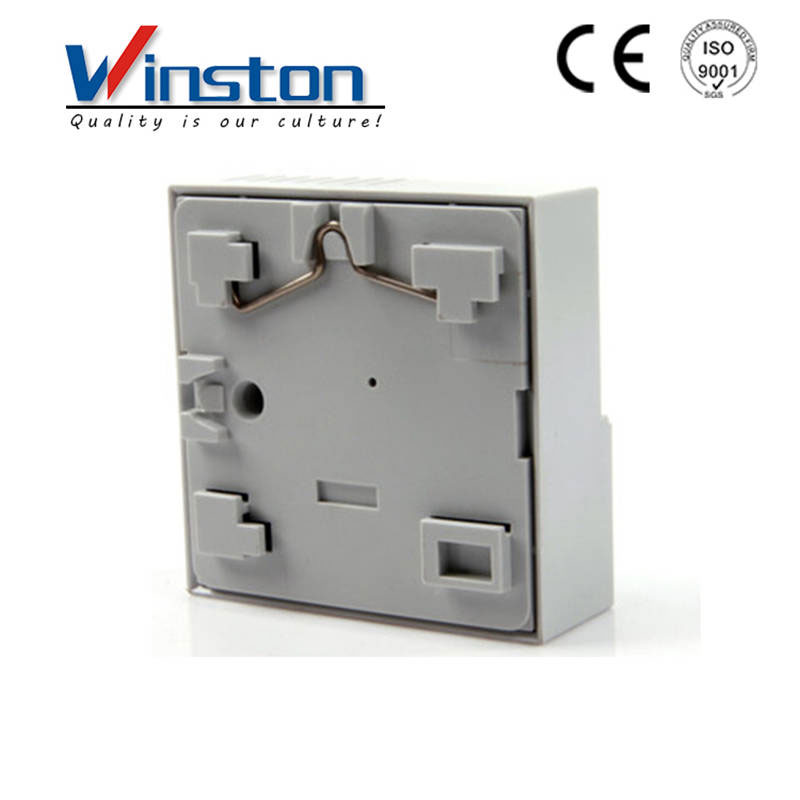

Easy installation,could be installed to 35mm din rail vertically or horizontally,according to EN50 022,it could be clipped to NS/35-ES Cabinet profile with its accessory adapter.
