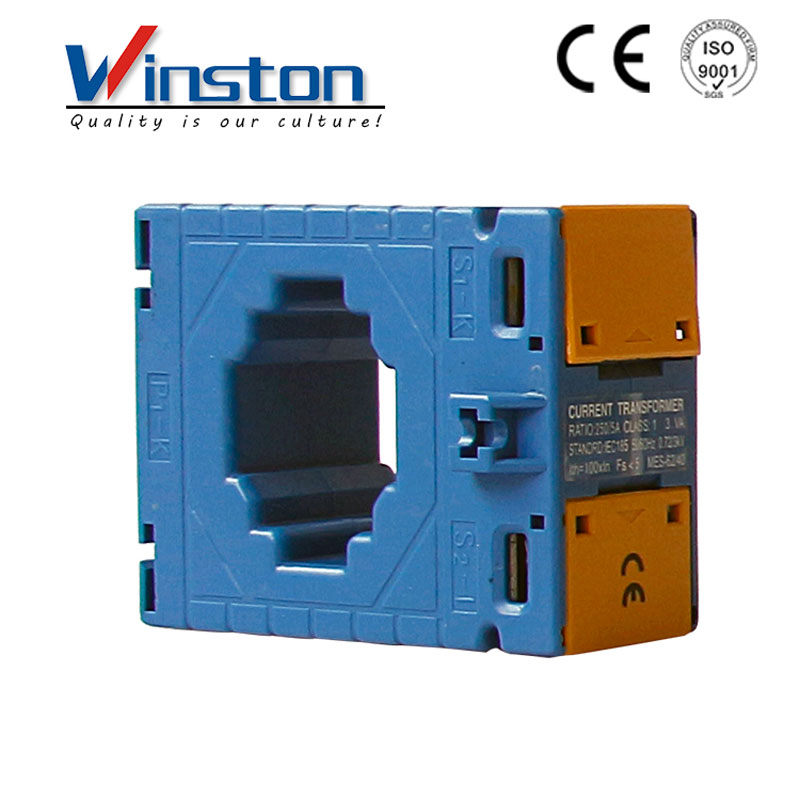

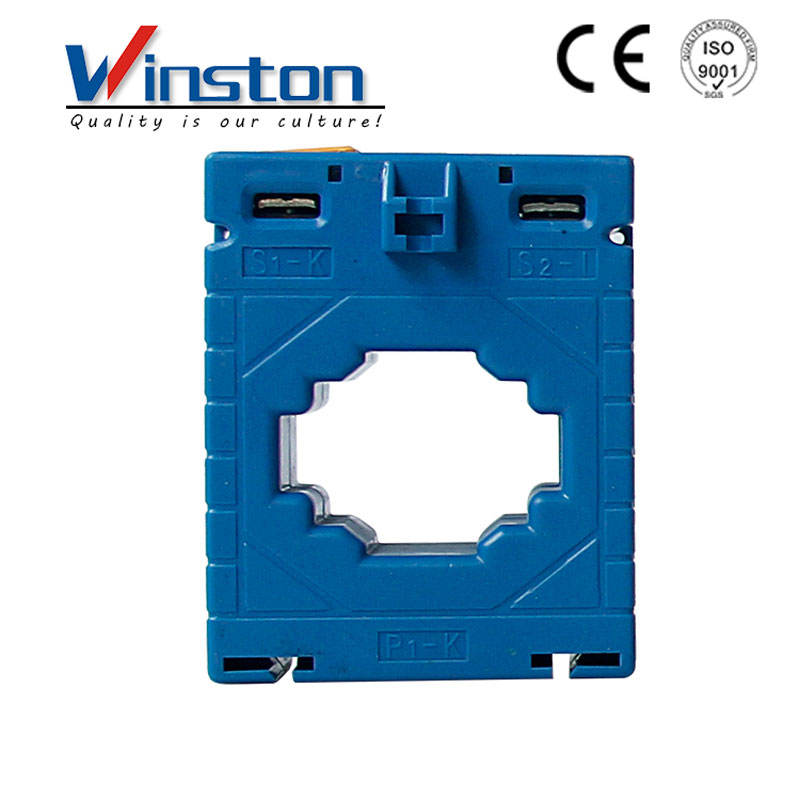

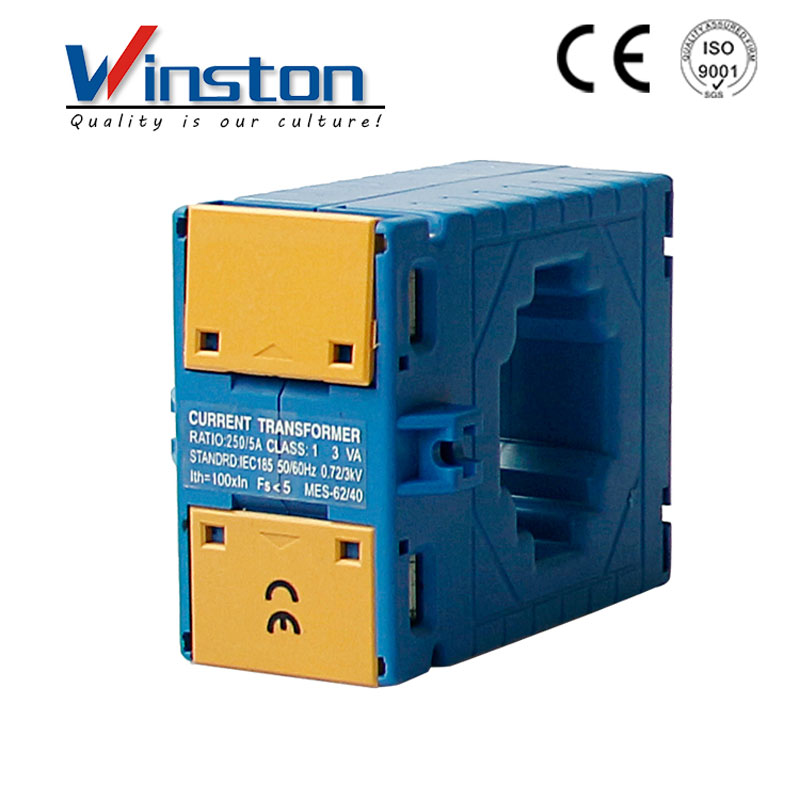

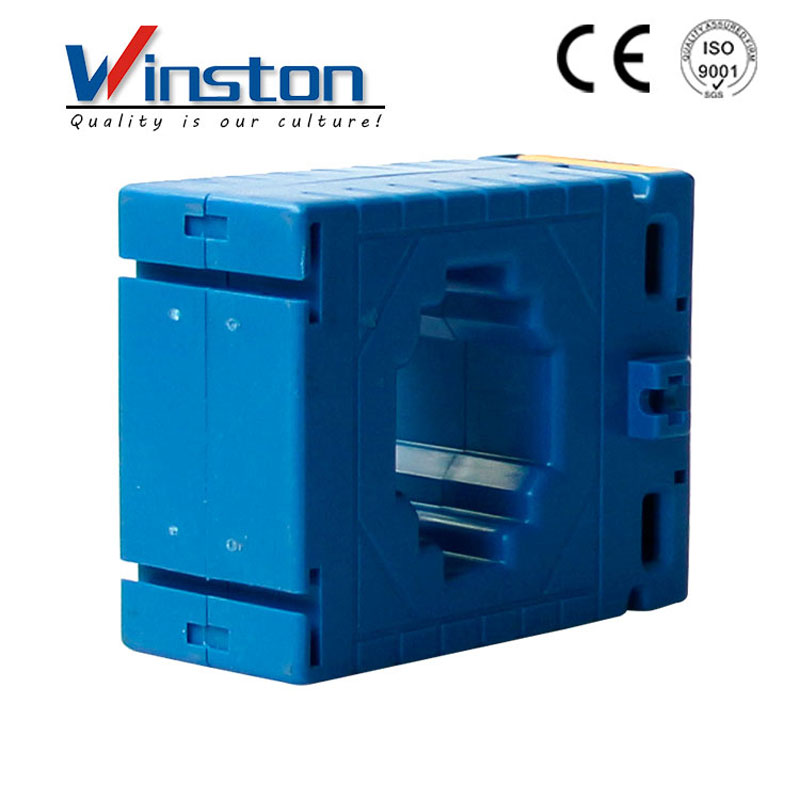

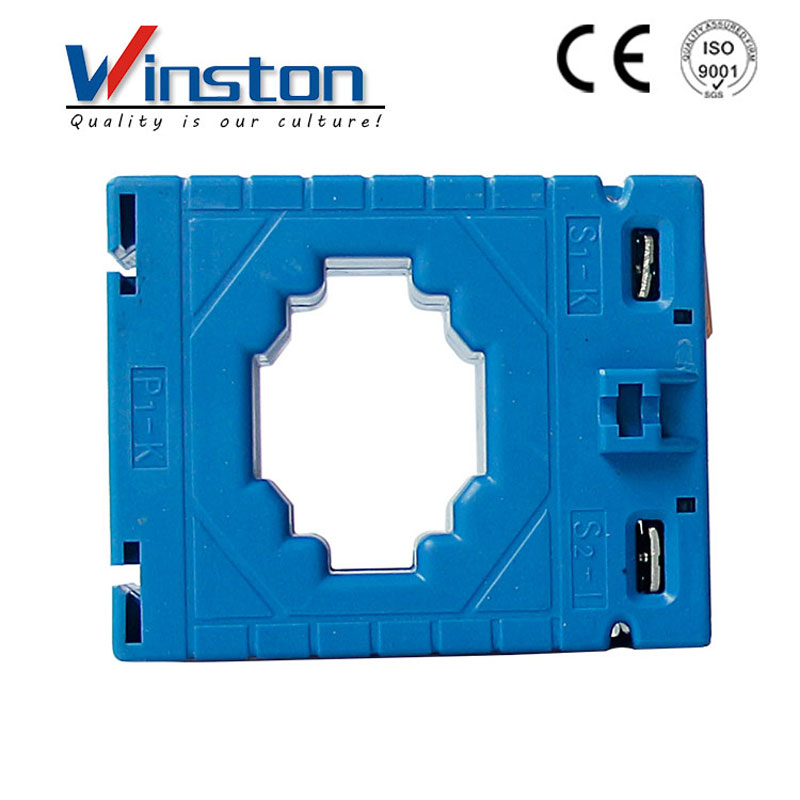

Mes-62/B Series 5A~150/5A Built-in Hinged Terminal Cover Current Transformer
Mes-62/B Series 5A~150/5A Built-in Hinged Terminal Cover Current Transformer
Mes-62/B Series 5A~150/5A Built-in Hinged Terminal Cover Current Transformer
Mes-62/B Series 5A~150/5A Built-in Hinged Terminal Cover Current Transformer
Mes-62/B Series 5A~150/5A Built-in Hinged Terminal Cover Current Transformer
Mes-62/B Series 5A~150/5A Built-in Hinged Terminal Cover Current Transformer
Mes-62/B Series 5A~150/5A Built-in Hinged Terminal Cover Current Transformer

Feature

Three installation methods: Panel / Busbar/ Din Rail
Built-in hinged Terminal Cover
Primary current :up to 3000A
Second Current: 5A or 1A

Specifications:

Rated frequency

50Hz/60Hz

Rated test voltage

3kv AC (1min)

Rated short-time thermal current (lth)

60in

Rated dynamic current (ldyn)

2.5lth

Rated voltage (Um)

0.72kv AC

Continuous overload (ld)

1.2In

Operating temperature

-10°C~50°C

Housing self-extinguishing class

VO

Safety factor

FS 5

Secondary current

5A / 1A

 MES-145/100 Series Model:

Type

Ration Current (A)

Rated power (VA)

Class: 0.5

Class: 1.0

MES-145/100

800/5

15

25

MES-145/100

1000/5

15

25

MES-145/100

1200/5

15

25

MES-145/100

1250/5

15

25

MES-145/100

1500/5

15

25

MES-145/100

1600/5

15

2.5

MES-145/100

2000/5

15

25

MES-145/100

2500/5

15

25

MES-145/100

3000/5

15

25

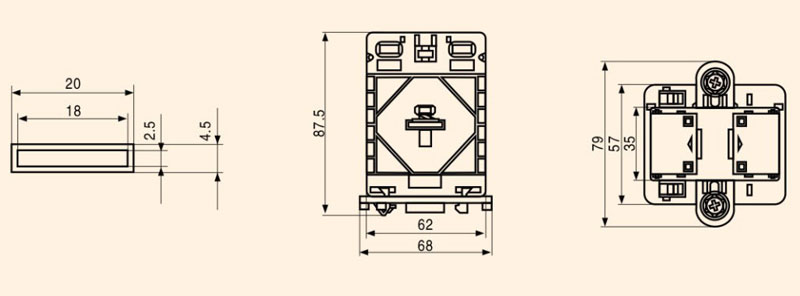

Dimension:

Packing&Shipping:
