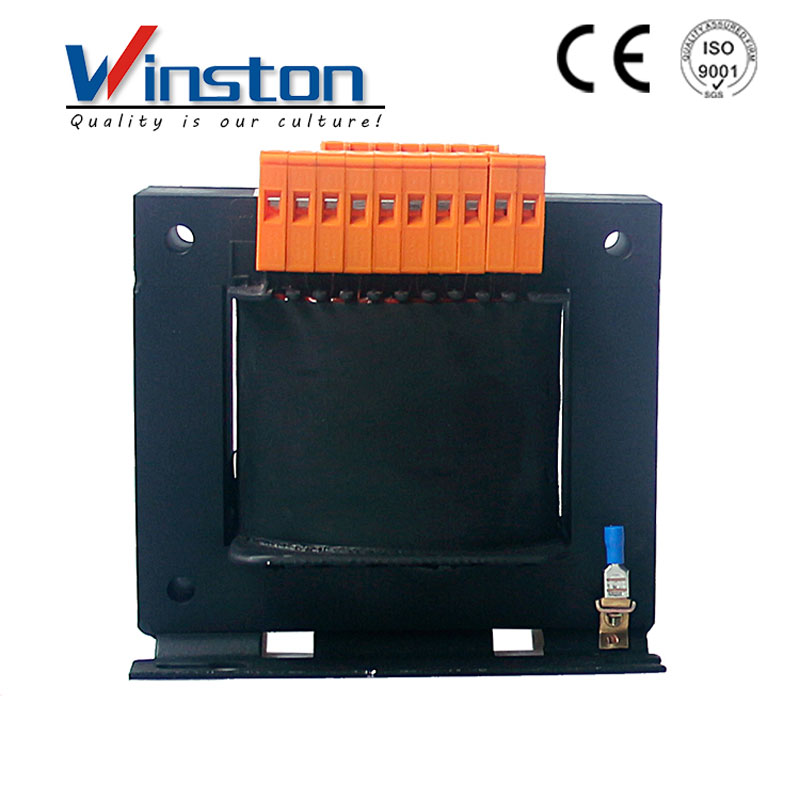

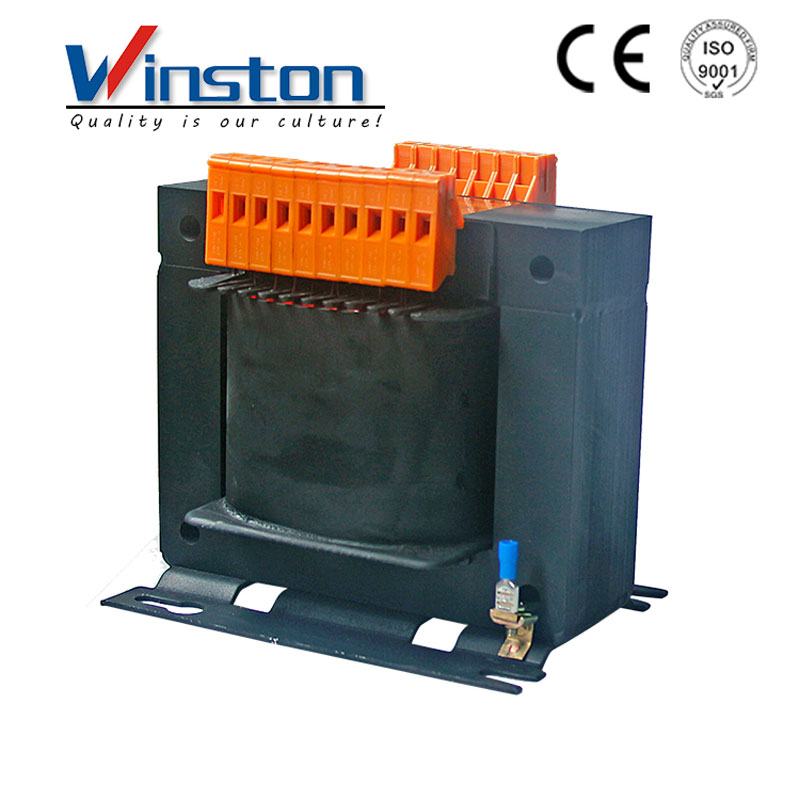

Name: Winston 1000VA Control Transformer Power Transformer Electric Transformer JBK5-1000
Brand: Winston
SKU: 00475
Rating: 4.1 (288 reviews)

Category List

> Selected Products

Winston 1000VA control transformer power transformer electric transformer JBK5-1000

JBK5 transformers apply to be used as control power supply of mechanical equipments and electrical & electronic appliance,or as mains power supply of working light and signal light,in single-phase circuit of 50/60Hz,input voltage up to 500V,output voltage up to 250V.Standard capacity is up to 2500VA,customized capacity up to 5000VA.

Technical Parameter

Type	Power (VA)	Input Voltage (V)	Output Voltage (V)	Overall Size (BDE) (MM)	Installion size (A*C)(MM)	Mounting Hole (K*J)(MM)
JBK5-40	40VA	12V 24V 36V 48V 110V 127V 220V	12V 24V 36V 48V 110V 127V 220V	78x72x90	56x46	4.6
JBK5-63	63VA			78x72x90	56x46	4.6
JBK5-100	100VA			85x75x96	64x62	4.6
JBK5-160	160VA			96x92x105	84x73.5	5.5
JBK5-250	250VA			96x100x104	84x85	5.8
JBK5-300	300VA			120x100x110	90x85	5.8
JBK5-400	400VA			120x100x122	90x85	7
JBK5-500	500VA			120x120x130	90x98	7
JBK5-630	630VA			150x110x140	122x90	7
JBK5-800	800VA			150x128x142	122x105	7
JBK5-1000a	1000VA			150x190x142	126x155	7
JBK5-1000b	1000VA			168x125x155	105x138	9
JBK5-1600a	1600VA			170x225x155	140x176	7
JBK5-1600b	1600VA			168x138x155	116x138	9
JBK5-2000	2000VA			190x160x160	172x195	7
JBK5-2500	2500VA			194x160x165	172x195	7
