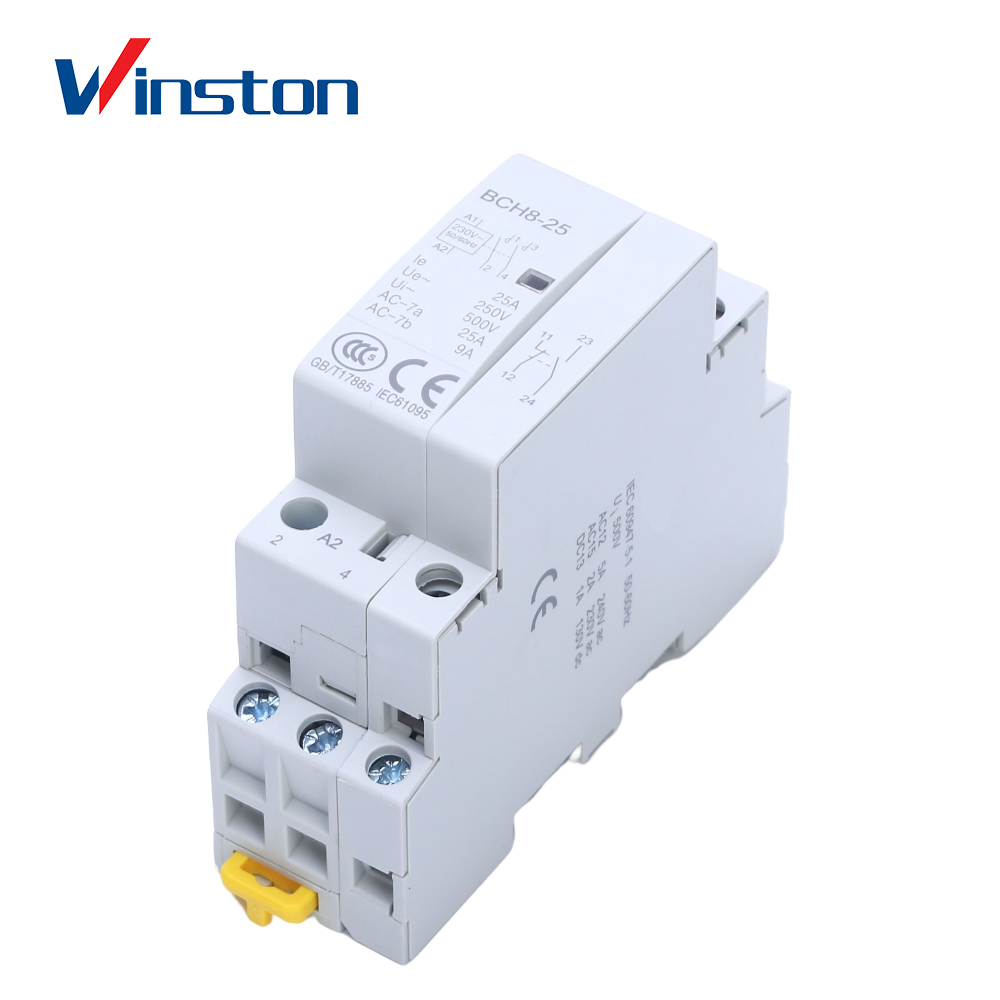

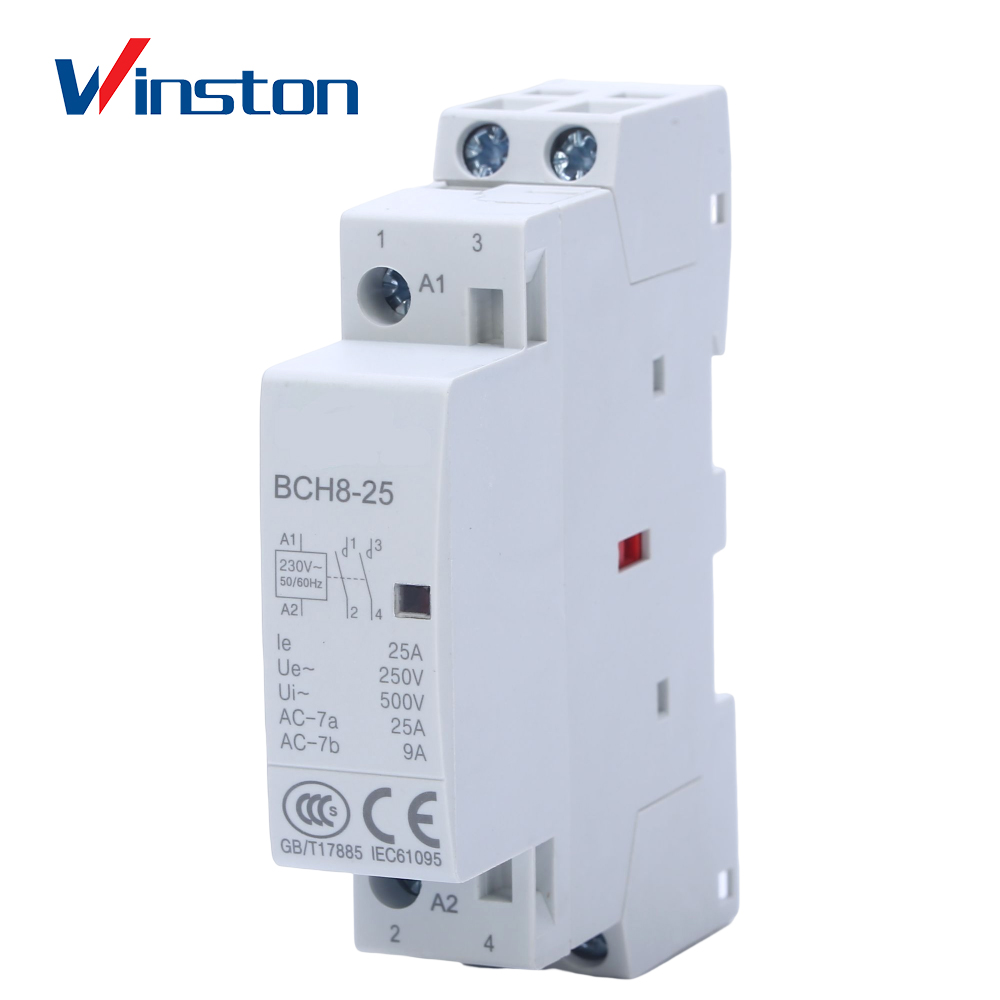

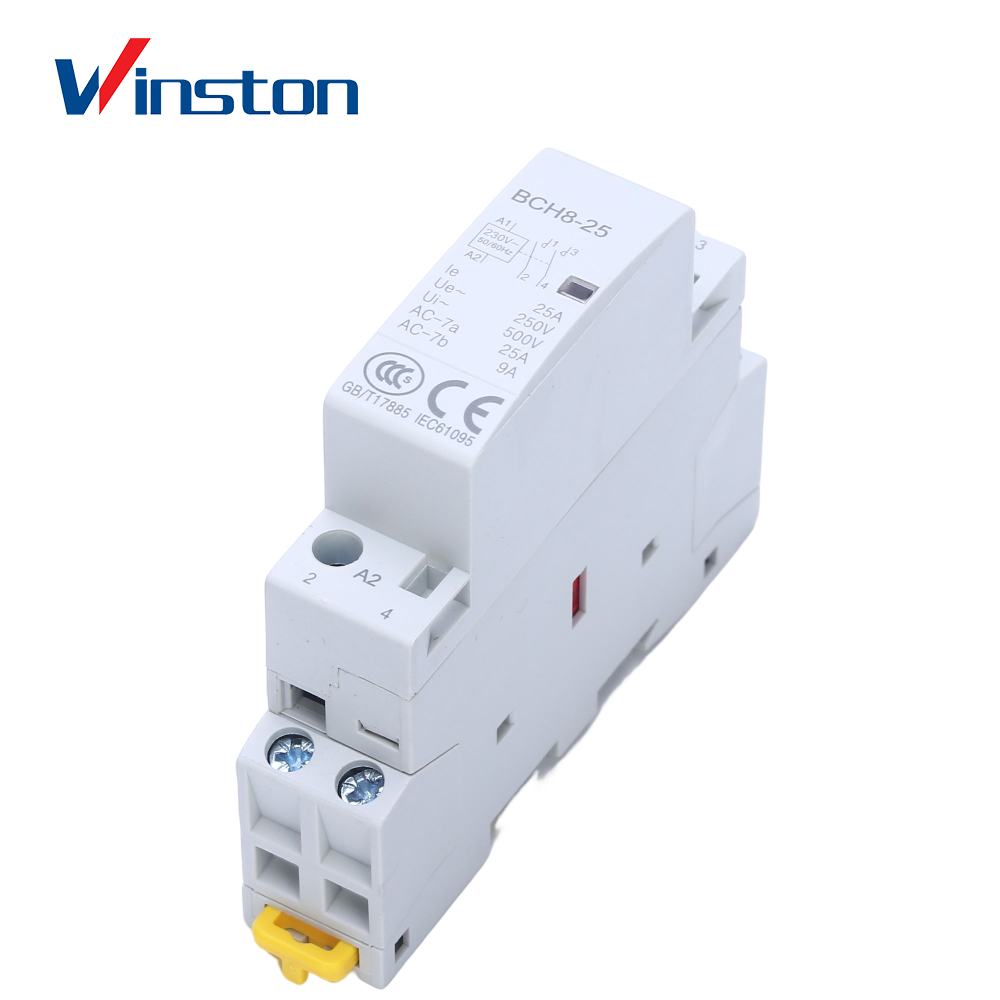

BCH8-25 2P Electric Household Ac Contactor Din Rail Mini Modular Contactor

Name: BCH8-25 Electric Household Ac Contactor Din Rail Mini Modular Contactor
Brand: Winston
SKU: 01628
Rating: 4.1 (864 reviews)

Products Description

BCH8 series contactor (hereinafter referred to as contactor) is mainly suitable for AC 50Hz(or 60Hz), rated working voltage to 400V rated working current to 125A circuit, Controlling low and micro-inductive loads of household appliances and similar uses; It can also be used to control the load of household motors, and the control power should be reduced accordingly.
The products are used in homes, hotels, apartments and other places to achieve automation function, applied in the mass production of household electrical products.
The contactor complies with GB/T 17885, GB/T14048.4, IEC/EN 61095, IEC/EN 60947-4-1 standards
Accessories comply with GB/T 14048.5 and IEC/EN 60947-5-1 standards

Features

Ultra wide voltage DC contactor
Current: 16A-32A
DC10-24V ultra wide voltage
18mm, more energy saving, smaller size, more silent patent new products
Multiple use categories
It can be used in AC-1, AC-3, AC-7a, AC-7b, etc

Model Explanation

model

Technical parameter

参数1

Specifications

Main circuit
Rated voltage（Ue）	1P，2P	250V AC
	3P，4P	400V AC
Frequency		50/60Hz
Mechanical life		1 million times
Electrical life		100，000 times
Maximum number of switching operations per day		100
Insulation voltage（Ui）		500 V AC
Pollution level		2
Rated impulse tolerance voltage（Uimp）		2.5kV(4kV @ 12/24/48VAC)
Protection grade (IEC 60529)	Contactor body	IP20
	Installed in the distribution box	IP40
Operating temperature		-5℃~+60℃
Storage temperature		-40℃~+70℃
Resistance to humidity and heat (IEC 60068.1)		Class 2 (95% relative humidity at 55℃)
ELSV(Ultra Low Safety Voltage) is compliant with 12/24/48VAC versions
Product control meets the requirements of SELV(safe ultra-low voltage)
(1) When the contactor is installed in the distribution box, spacers must be assembled on both sides to facilitate heat dissipation.
