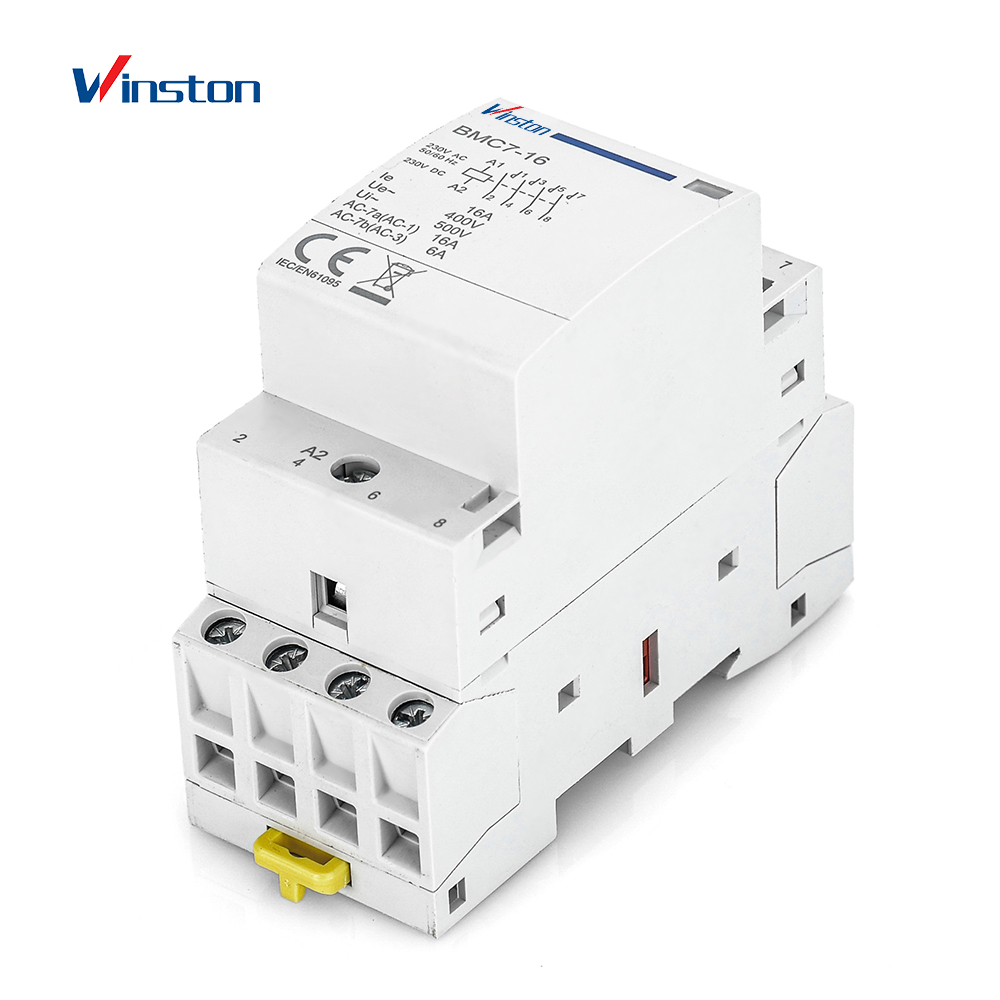

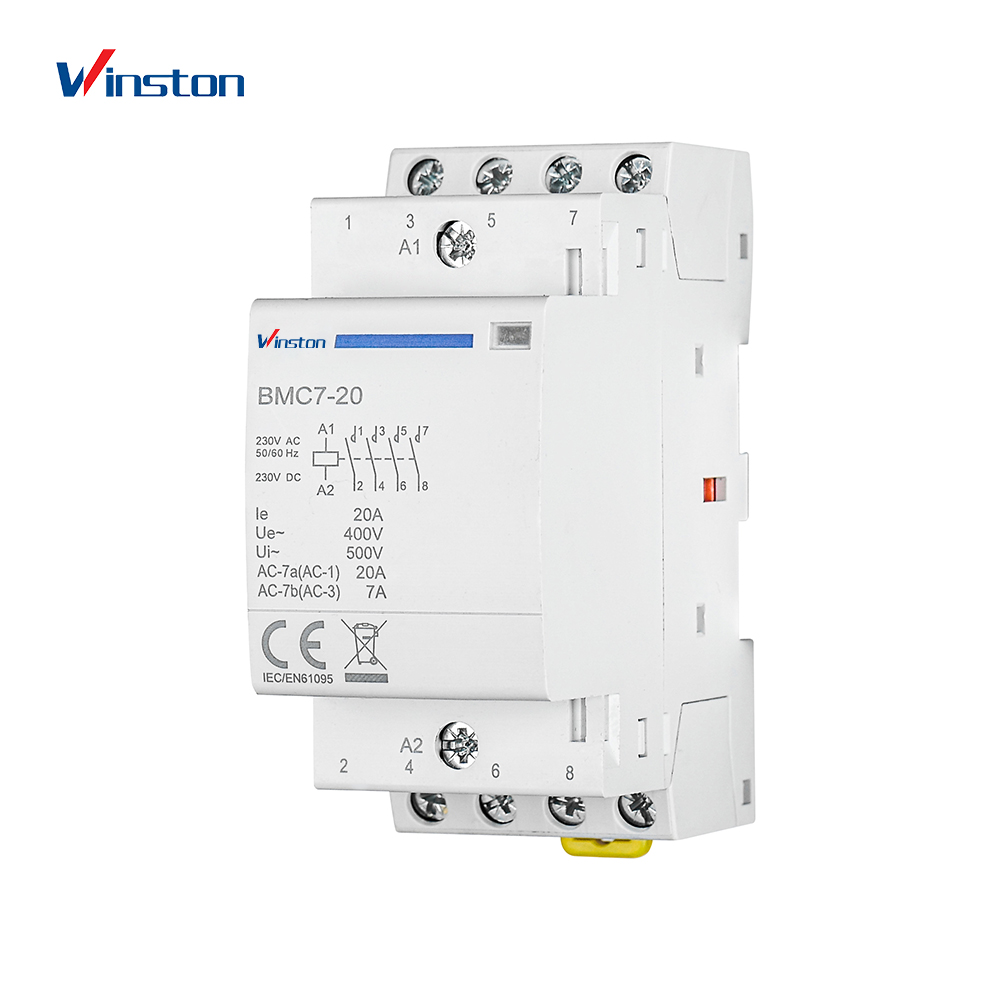

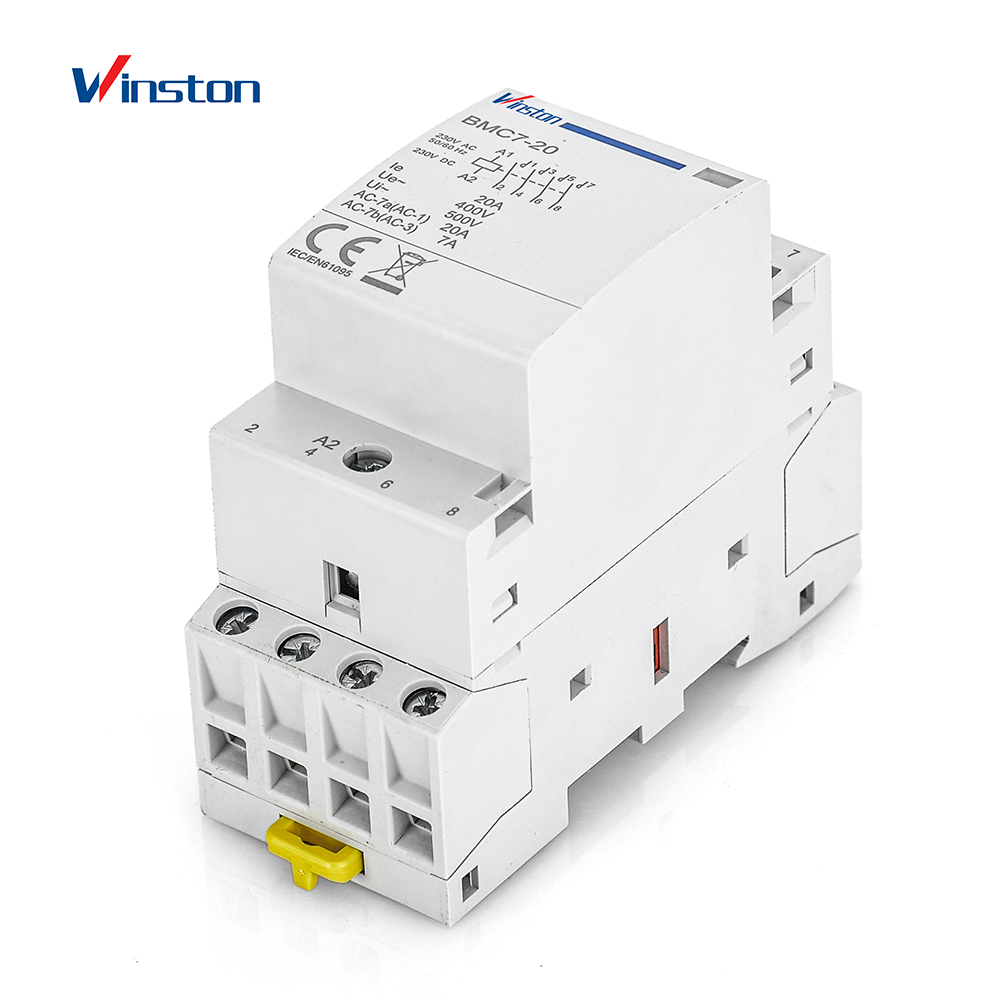

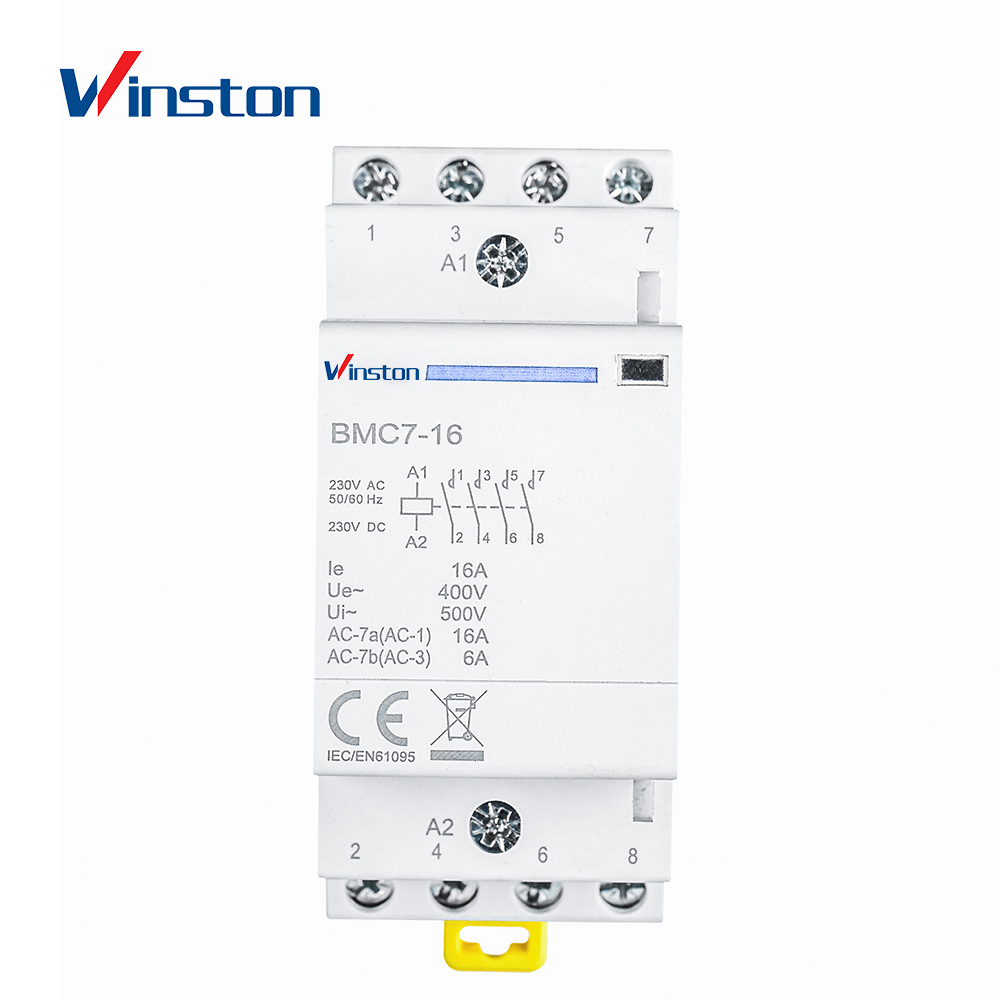

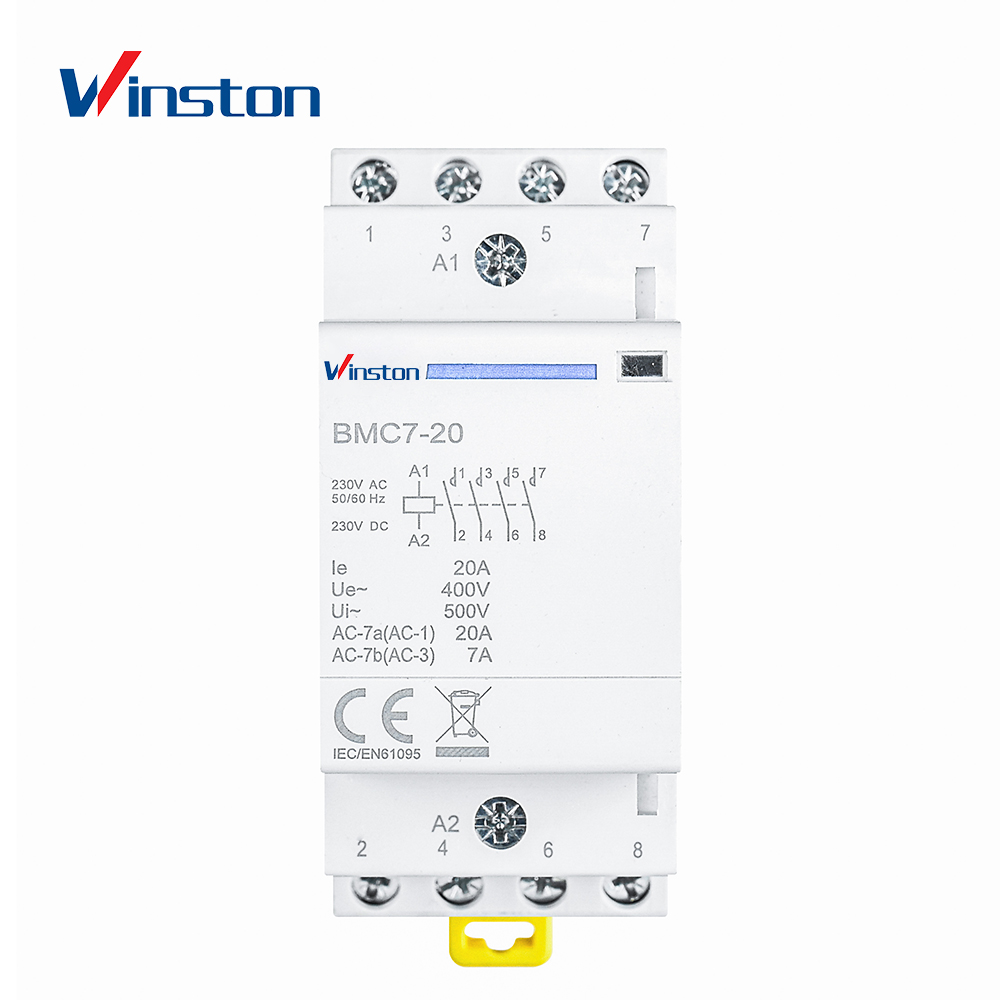

Winston BMC7 2P 4P 16A - 32A Din Rail Modular ac Contactor

Winston BMC7 2P 4P 16A - 32A Din Rail Modular ac Contactor
Winston BMC7 2P 4P 16A - 32A Din Rail Modular ac Contactor
Winston BMC7 2P 4P 16A - 32A Din Rail Modular ac Contactor
Winston BMC7 2P 4P 16A - 32A Din Rail Modular ac Contactor
Winston BMC7 2P 4P 16A - 32A Din Rail Modular ac Contactor
Winston BMC7 2P 4P 16A - 32A Din Rail Modular ac Contactor
Winston BMC7 2P 4P 16A - 32A Din Rail Modular ac Contactor

Winston BMC7 2P 4P 16A - 32A Din Rail Modular ac Contactor



Products Description





    The 16A-63A monopole contactor is an AC contactor with a width of only 18mm. The product uses M5 wiring screws with a maximum wiring capacity of 25mm2. The product uses hidden coil terminal design, with larger and safer electrical clearance



Higher current :

The product is only 18mm wide and has a maximum current of 63A


Greater wiring capacity :
M5 cable screw, the maximum cable connection capacity is 25mm2


safer :

Hidden coil terminals for greater and safer electrical clearance


Two kinds of contacts :
The normally open and normally closed contacts are optional



Model Explanation

型号



Technical parameter

参数1

Specifications



Main circuit



Rated voltage(Ue)

250V AC

Frequency

50/60Hz

Mechanical life

1 million times

Electrical life

100,000 times

Maximum number of switching operations per day

100

Insulation voltage(Ui)

500 V AC

Pollution level

2

Rated impulse tolerance voltage(Uimp)

2.5kV(4kV @ 12/24/48VAC)

Protection grade (IEC 60529)

Contactor body

IP20

Installed in the distribution box

IP40

Operating temperature

-5℃~+60℃

Storage temperature

-40℃~+70℃

Resistance to humidity and heat (IEC 60068.1)

Class 2 (95% relative humidity at 55℃)

ELSV(Ultra Low Safety Voltage) is compliant with 12/24/48VAC versions

Product control meets the requirements of SELV(safe ultra-low voltage)

(1) When the contactor is installed in the distribution box, spacers must be assembled on both sides to facilitate heat dissipation.

参数2

Wiring diagram

参数3





Dimension

尺寸



Product power consumption

参数4

Product packaging

装箱
