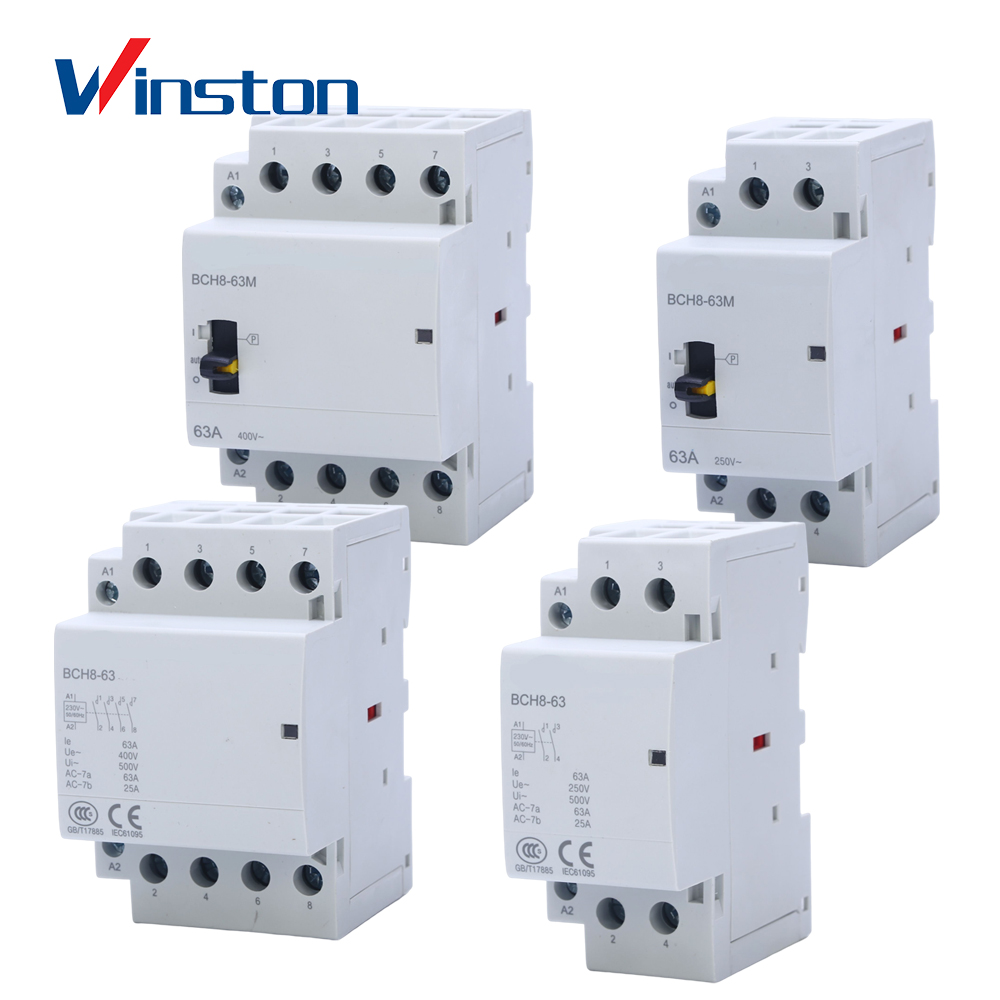

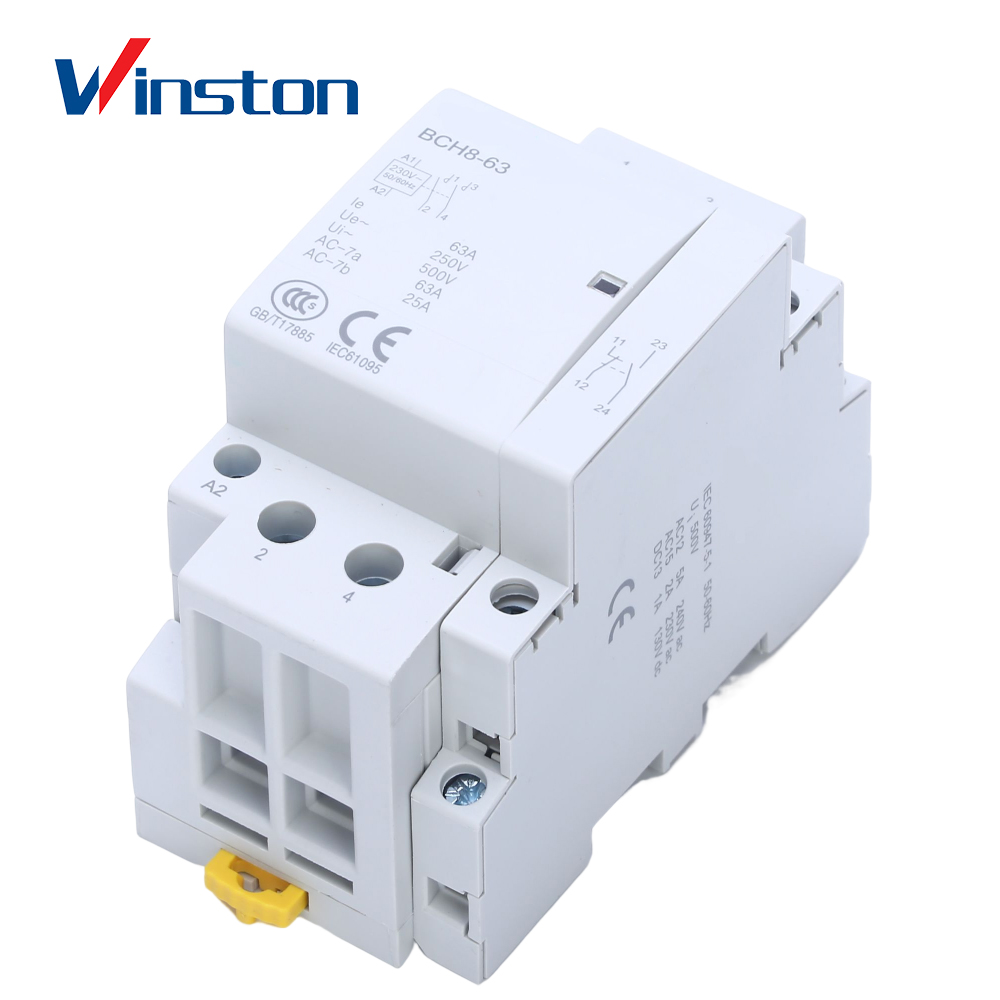

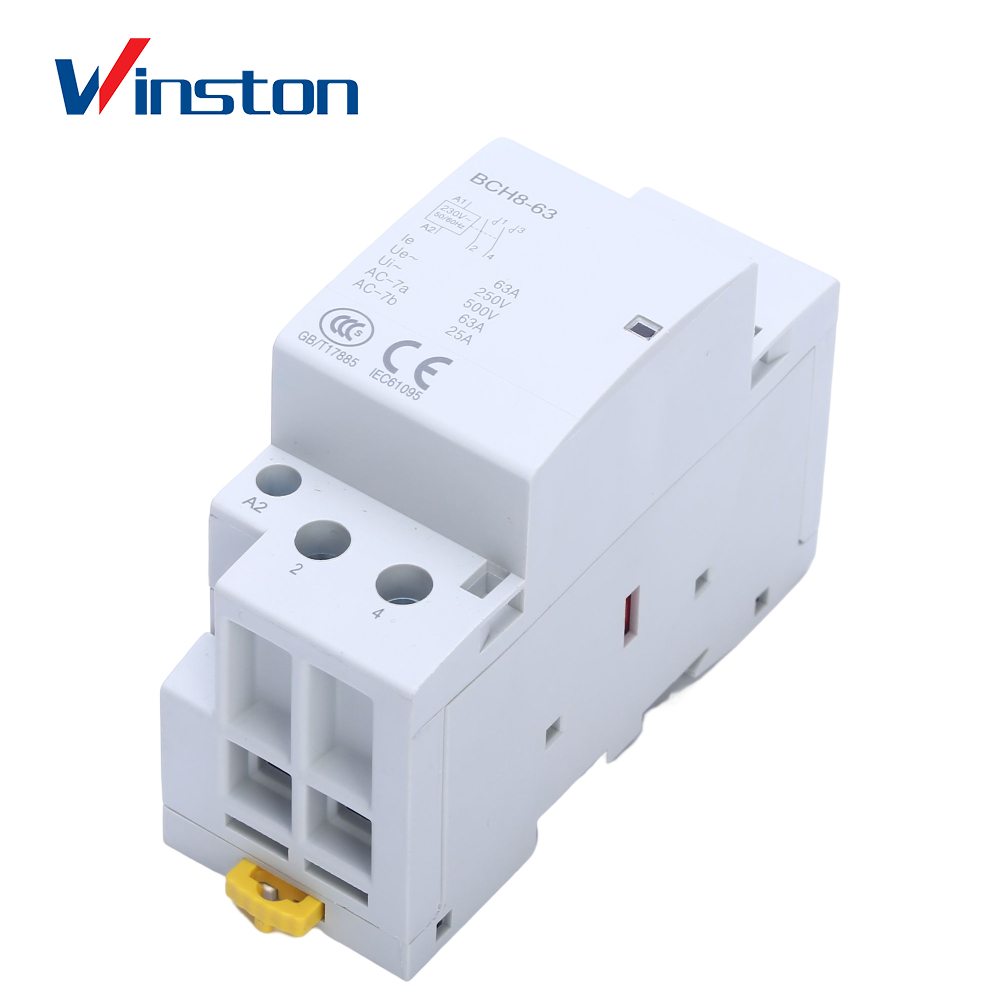

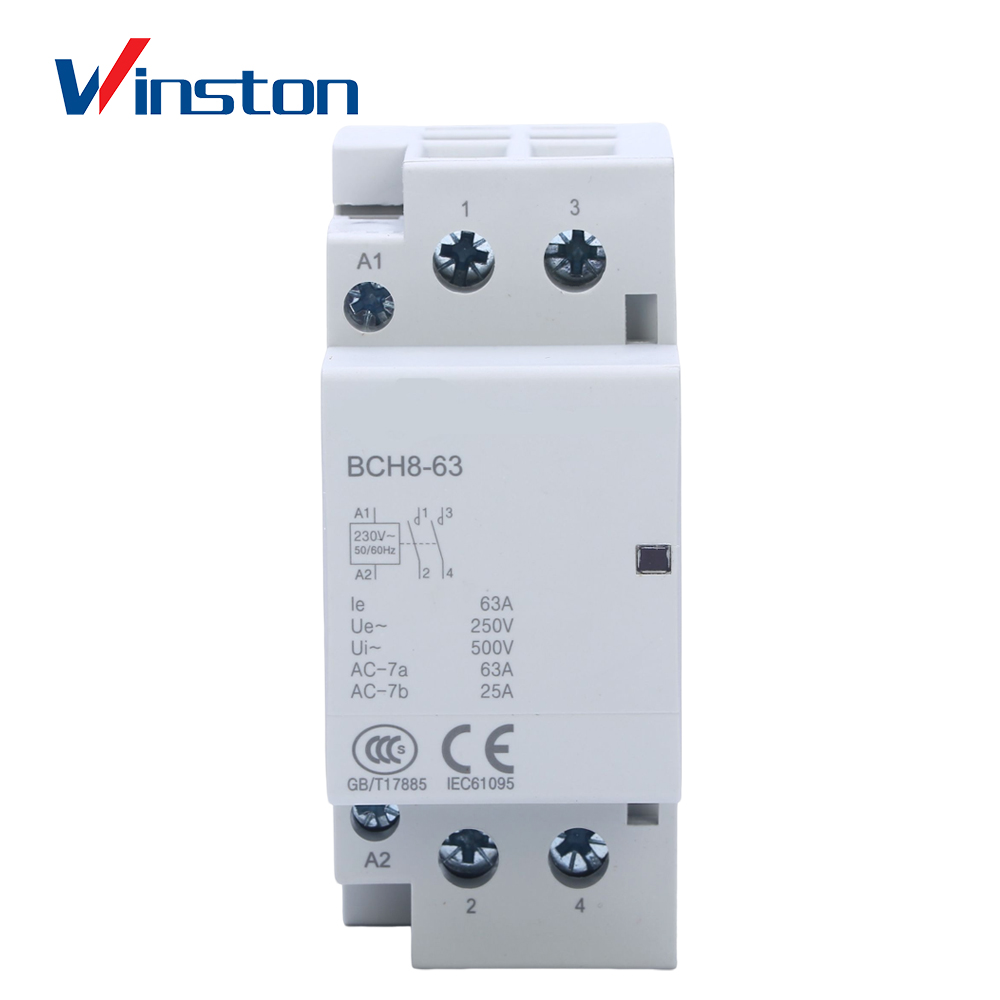

BCH8-63 2P 4P 63A home hotel Ac Contactor Din Rail Mini Modular Contactor

BCH8-63 2P 4P 63A home hotel Ac Contactor Din Rail Mini Modular Contactor
BCH8-63 2P 4P 63A home hotel Ac Contactor Din Rail Mini Modular Contactor
BCH8-63 2P 4P 63A home hotel Ac Contactor Din Rail Mini Modular Contactor
BCH8-63 2P 4P 63A home hotel Ac Contactor Din Rail Mini Modular Contactor
BCH8-63 2P 4P 63A home hotel Ac Contactor Din Rail Mini Modular Contactor
BCH8-63 2P 4P 63A home hotel Ac Contactor Din Rail Mini Modular Contactor
BCH8-63 2P 4P 63A home hotel Ac Contactor Din Rail Mini Modular Contactor

BCH8-63 2P 4P 63A home hotel Ac Contactor Din Rail Mini Modular Contactor



Products Description



    BCH8 series contactor (hereinafter referred to as contactor) is mainly suitable for AC 50Hz(or 60Hz), rated working voltage to 400V rated working current to 125A circuit, Controlling low and micro-inductive loads of household appliances and similar uses; It can also be used to control the load of household motors, and the control power should be reduced accordingly.
    The products are used in homes, hotels, apartments and other places to achieve automation function, applied in the mass production of household electrical products.
    The contactor complies with GB/T 17885, GB/T14048.4, IEC/EN 61095, IEC/EN 60947-4-1 standards
    Accessories comply with GB/T 14048.5 and IEC/EN 60947-5-1 standards



Features

Ultra wide voltage DC contactor
Current: 16A-32A
DC10-24V ultra wide voltage
18mm, more energy saving, smaller size, more silent patent new products
Multiple use categories
It can be used in AC-1, AC-3, AC-7a, AC-7b, etc



Model Explanation

model

Technical parameter

参数1

Specifications

Main circuit



Rated voltage(Ue)

1P,2P

250V AC



3P,4P

400V AC

Frequency

50/60Hz

Mechanical life

1 million times

Electrical life

100,000 times

Maximum number of switching operations per day

100

Insulation voltage(Ui)

500 V AC

Pollution level

2

Rated impulse tolerance voltage(Uimp)

2.5kV(4kV @ 12/24/48VAC)

Protection grade (IEC 60529)

Contactor body

IP20

Installed in the distribution box

IP40

Operating temperature

-5℃~+60℃

Storage temperature

-40℃~+70℃

Resistance to humidity and heat (IEC 60068.1)

Class 2 (95% relative humidity at 55℃)

ELSV(Ultra Low Safety Voltage) is compliant with 12/24/48VAC versions

Product control meets the requirements of SELV(safe ultra-low voltage)

(1) When the contactor is installed in the distribution box, spacers must be assembled on both sides to facilitate heat dissipation.

参数3



Wiring diagram

参数2





Dimension

尺寸
