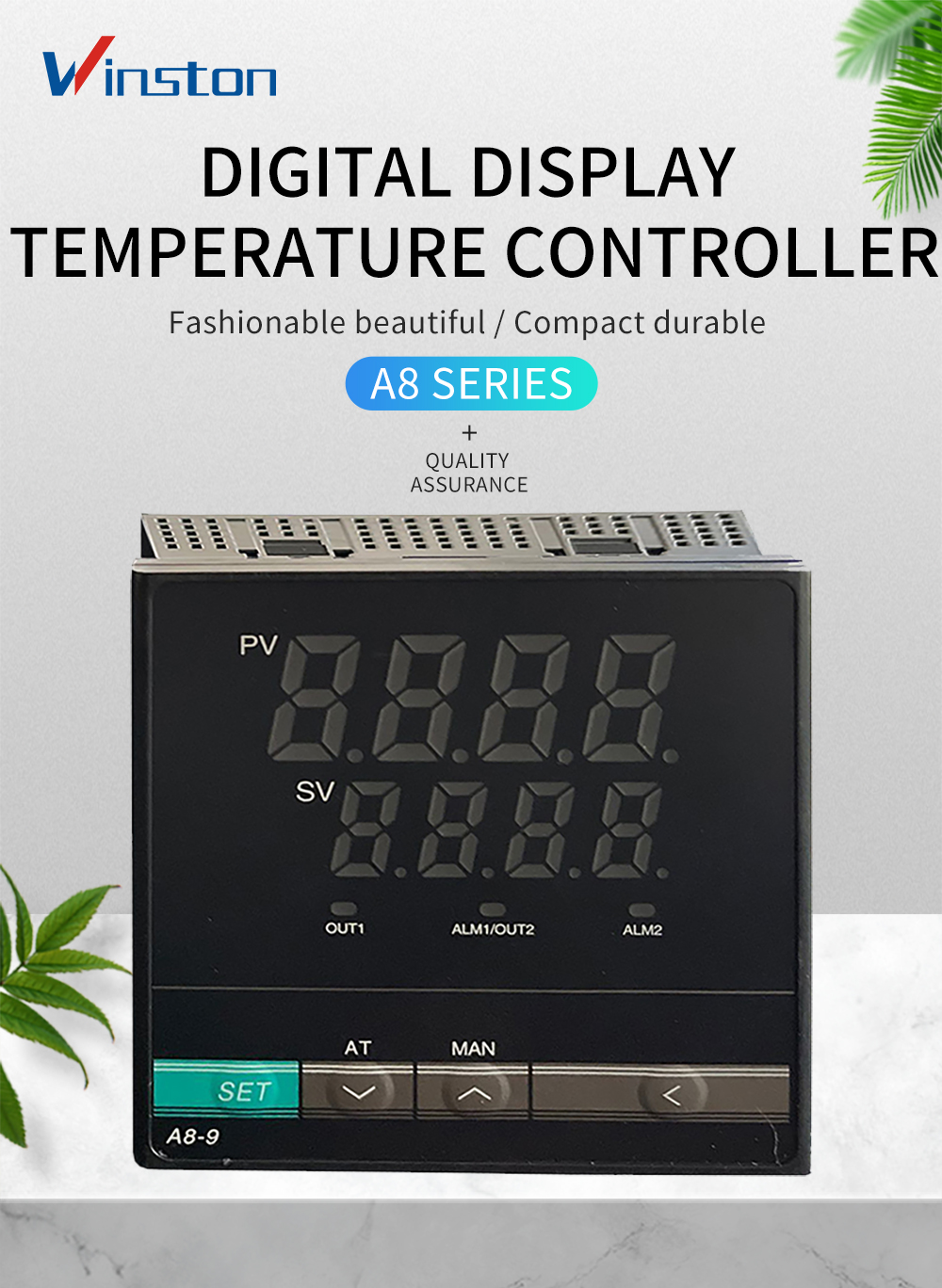

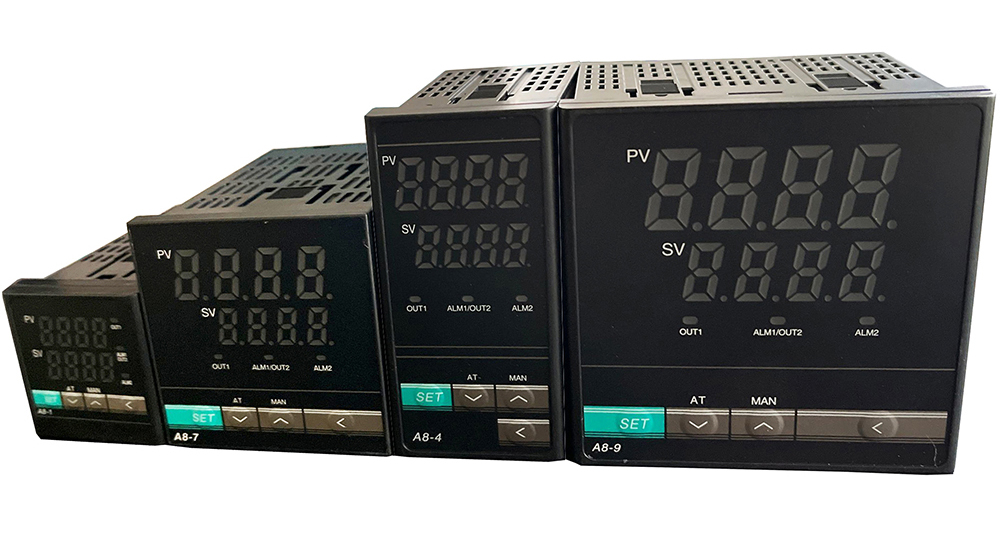

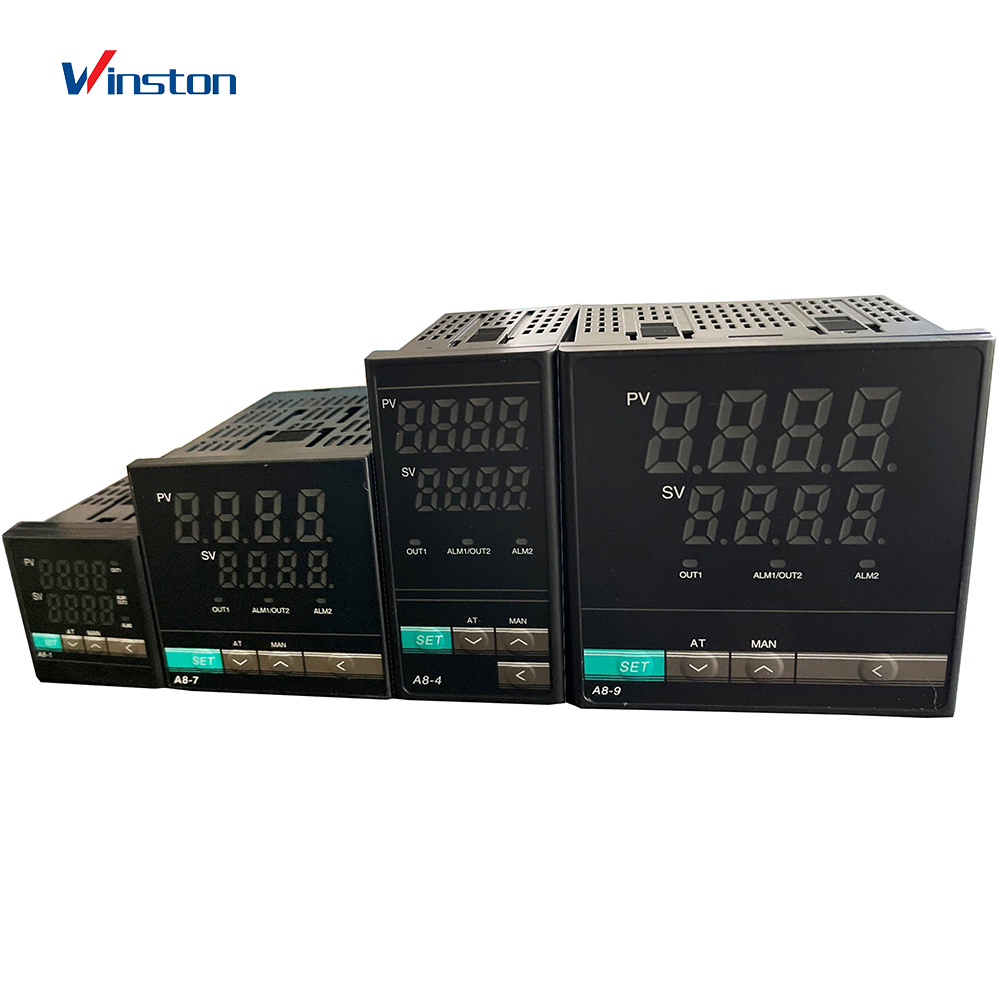

Winston wholesale A8-9 digital pid temperature controllers with timer

Winston wholesale A8-9 digital pid temperature controllers with timer


Products Description

1. Thermal resistance or thermocouple input and measuring range both can be set freely.

2. Softwareadjust zero and full scale,temperature measuring of cold-end alone, amplifier constant-zero, display accuracy is better than 0.5%FS.

3. The method of fuzzy theory combine with the traditional PID makes the temperature be controlled quickly and smoothly.

4. The method of advanced PID parameter self-tuning saves a third time as compared with ordinary instrument.

5. The output signal is optional: relay output,DC30V driver solid state relay, 3A current.

6. Alarm output: two circuit user-defined alarm output.

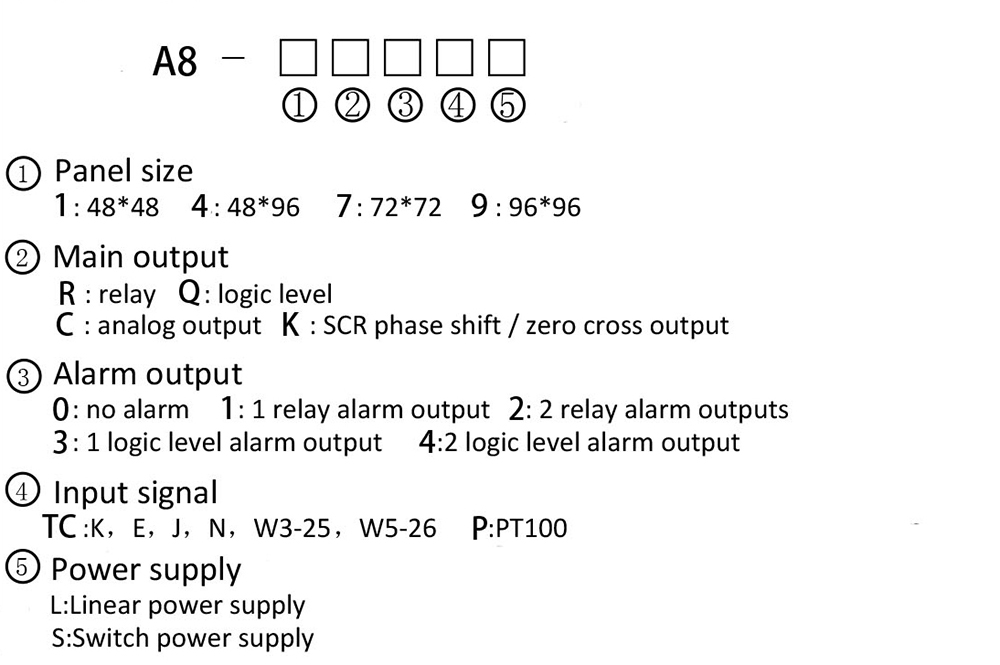

Model Explanation


Rated voltage
180V-240V AC , 50HZ
Power comsumption
Working environment
Ambient temperature: 0℃~50℃
Relative humidity: 35%~85% (no condensation)
Storage temperature
-25℃-65℃ (Avoid ice or dew)
1℃, 0.1℃ (adjustable)
Wiring method
Memory protection
Non-volatile memory
Installation environment
Installation type II, pollution grade 2 (IEC61010-1)
Relay output
Relay contacts AC220V/DC30V, 3A
Logic level output
ON:DC12V; OFF: below DC0.5V: Max current: 30mA, Load resistance≥1K.

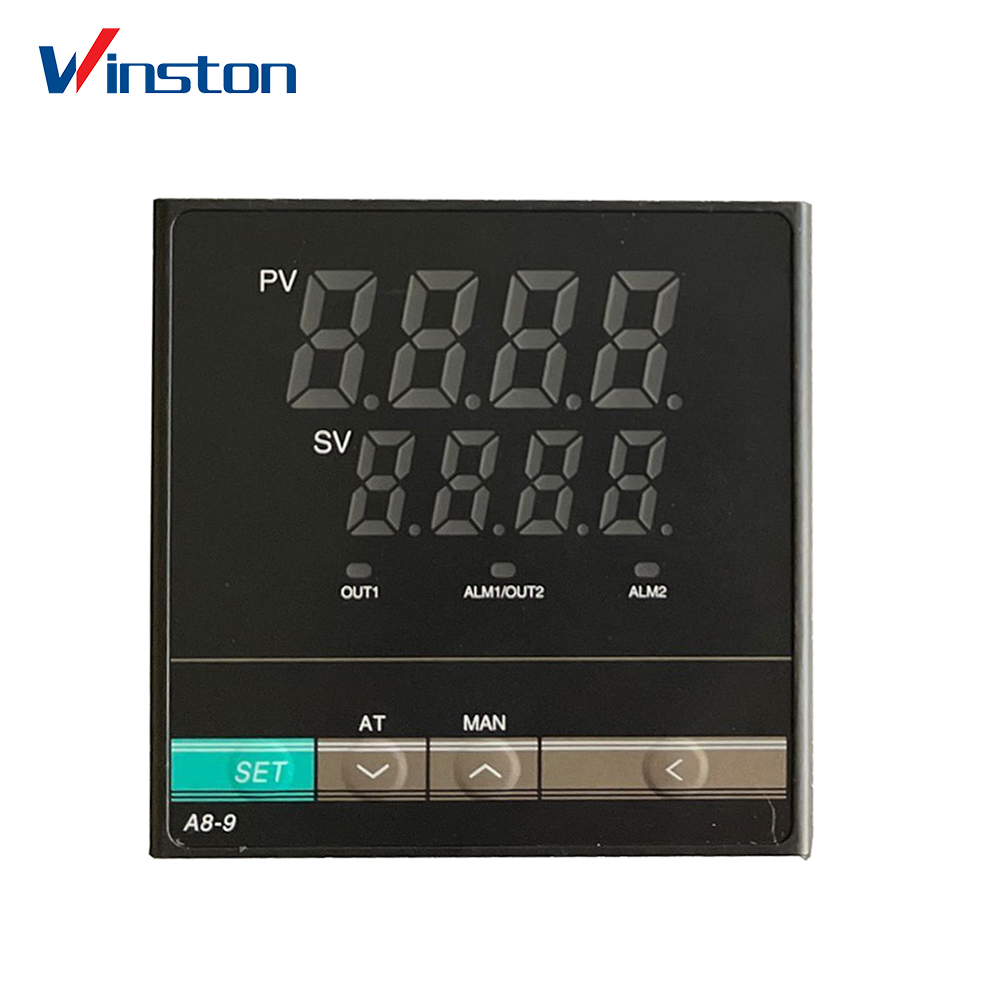

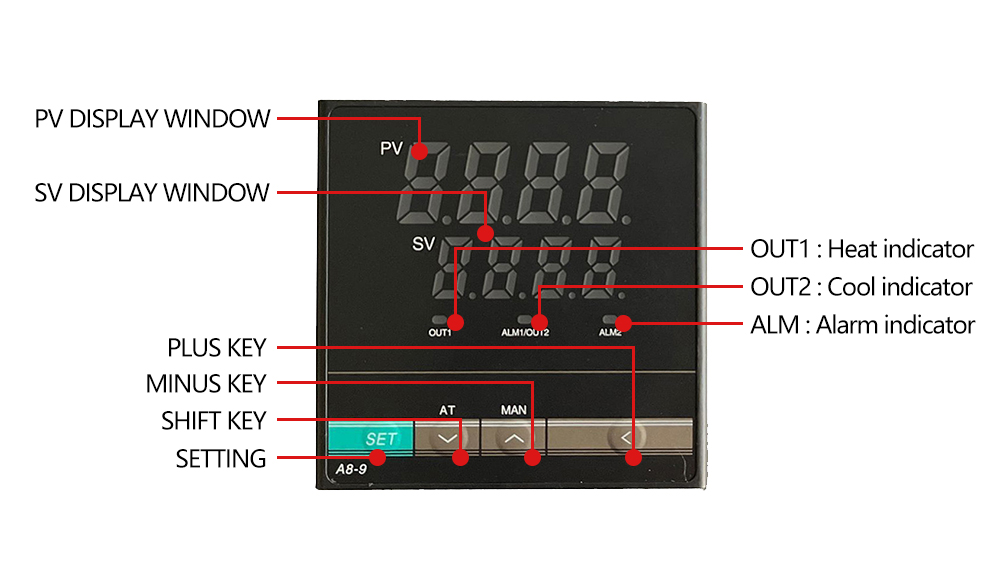

Control panel

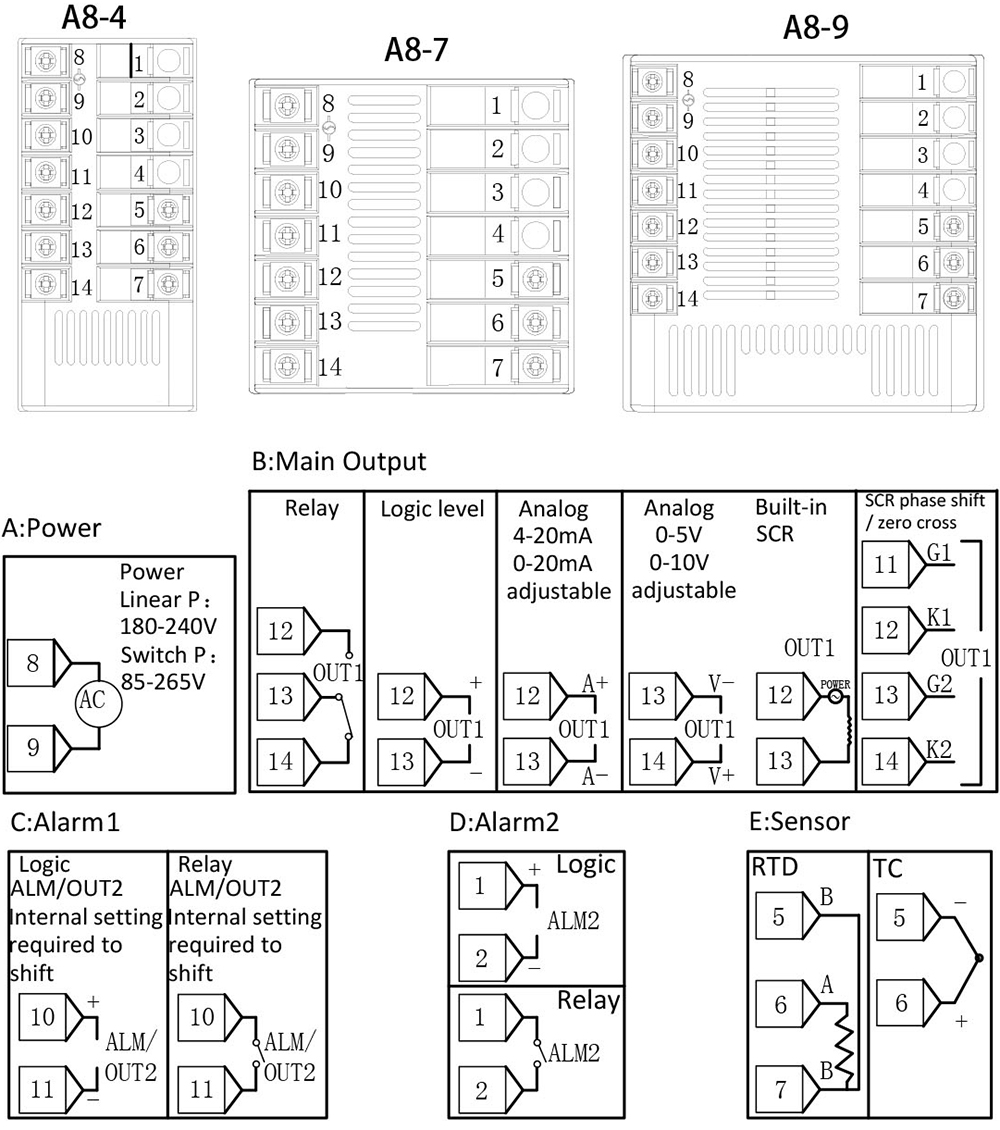

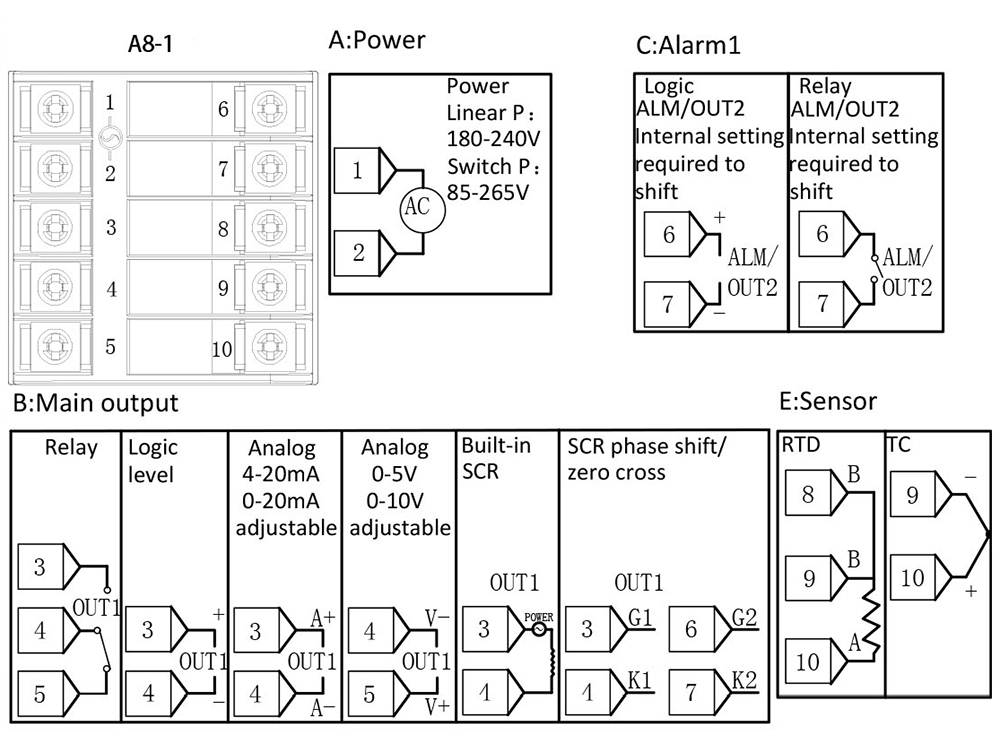

Wiring diagram

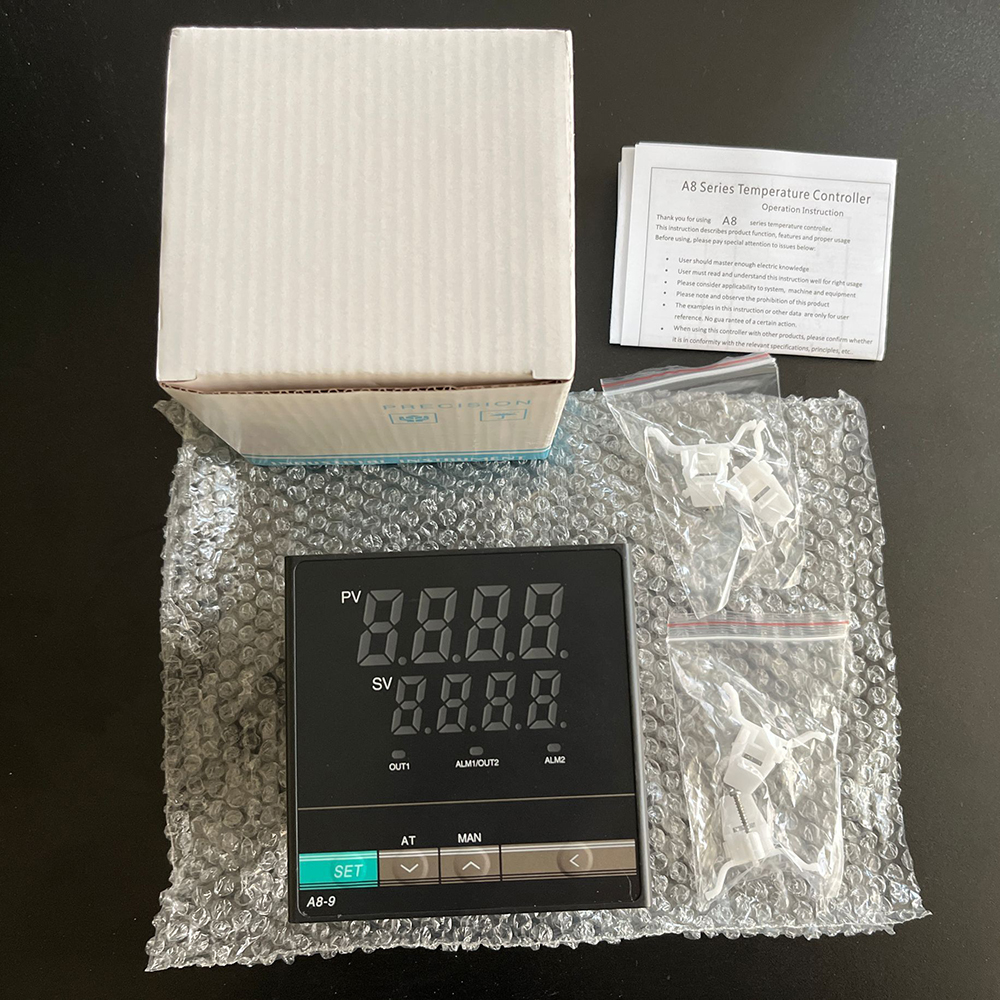

Packaging & Shipping
