Pressure Compensation Device DA 084

Pressure Compensation Device DA 084
Pressure Compensation Device DA 084

Pressure Compensation Device DA 084

  • High degree of protection
  • Easy to insta
  1. It has become more and more important to provide a protected enclosure environment for valuable and crucial electrical and electronic components.
  2. In a tightly closed enclosure. pressure differentials can occur during extreme temperatu re variations. such as day/night operation.
  3. When this occurs,the risk of dust and humidity being absorbed into the control panel increases dramatically.
  4. The specially designed pressure compensation plug DA 084 permits a controlled change in pressure.
  5. It can be installed easily in any enclosure.Because of the pressure compensation plug's high degree of protection(IP45), the protection type of the enclosure will not be affected.

Technical Data


PG 29 thread with union nut, torque 10 Nm max.


plastic according to UL94 V-0

Air Interface

Approx. 7 cm2

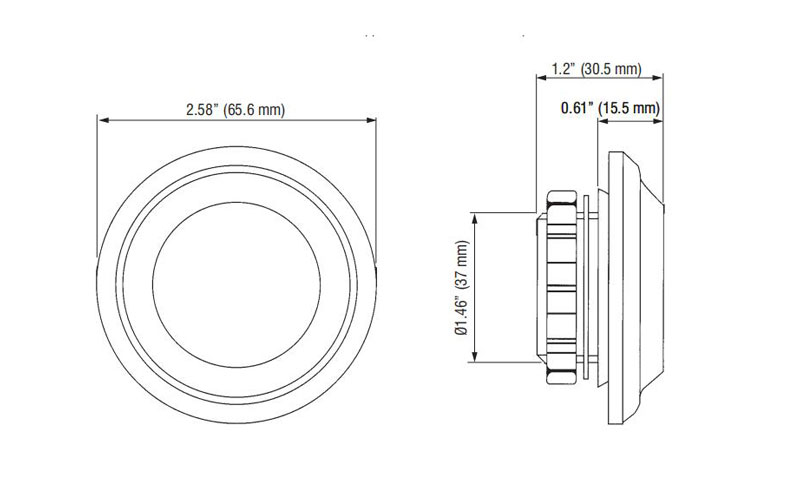

Ø 65.5 x 30.5 mm

Fitting position


Operating / Storage temperature

-45 to +700℃ (-49 to 158°F)


Make cut-out 37Ø+1 mm in enclosure wall and mount pressure compensation device with nut.Please make sure that the sealing gasket is put in place on the outer side panel of the enclosure.For optimal pressure compensation we recommend to use two devices on opposite sides towards the top of the enclosure.
