Name: S-15 15W Single Output Switching Power Supply
Brand: Winston
SKU: 01999
Rating: 4.1 (1050 reviews)

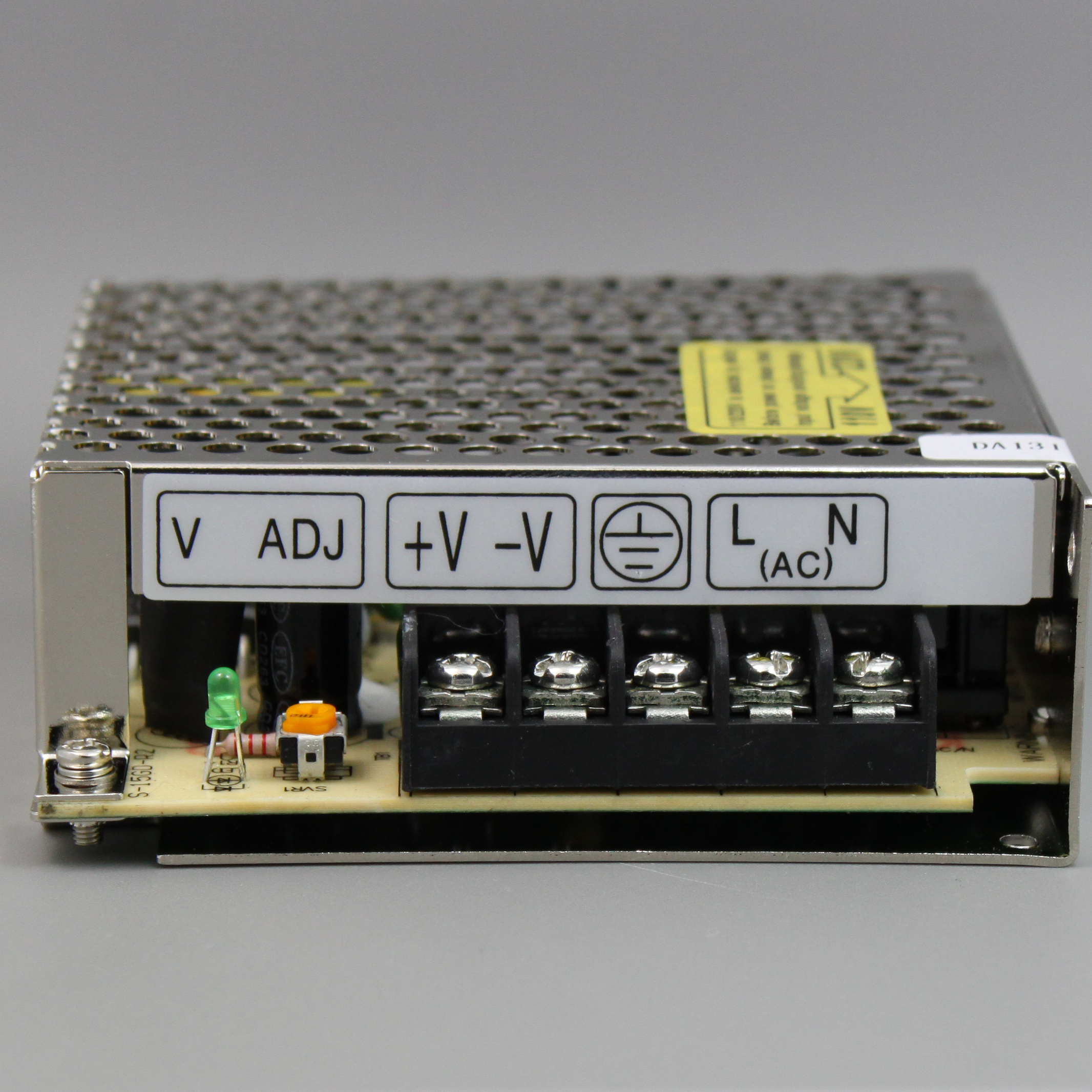

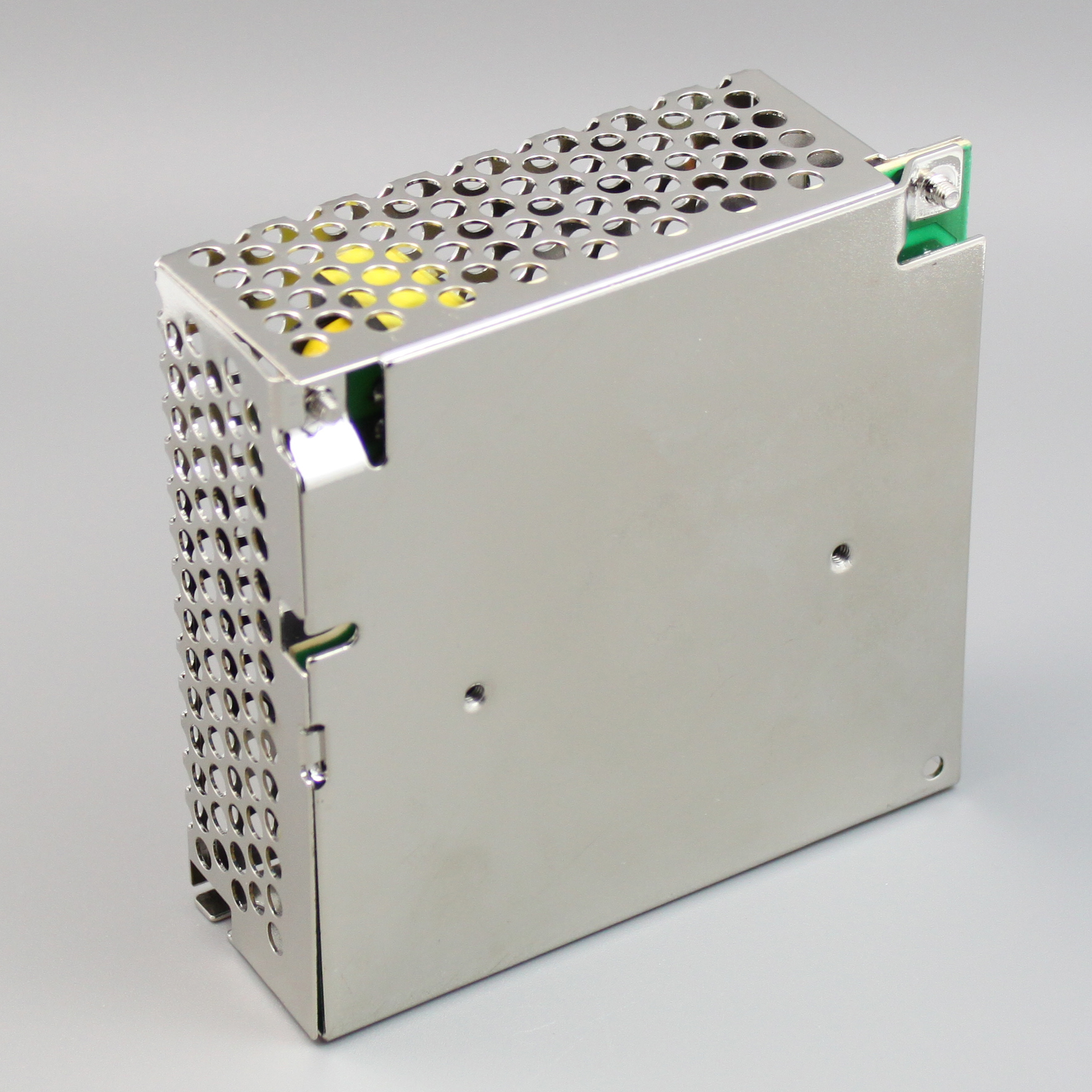

S-15 15W Single Output Switching Power Supply

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

OUTPUT
Model	S-15-5	S-15-12	S-15-24
DC Voltage	5V	12V	24V
Rated Current	3A	1.3A	0.7A
Current Range	0-3A	0-1.3A	0-0.7A
Rated Power	15W	15.6W	16.8W
Ripple & Noise	50mVp-p	50mVp-p	100mVp-p
Voltage Adj. Range	-5%,+10%	±10%	±10%
Voltage Tolerance	±2%	±1%	±1%
Setup, Rise, Hold Up Time	200ms,100ms,30ms at full load

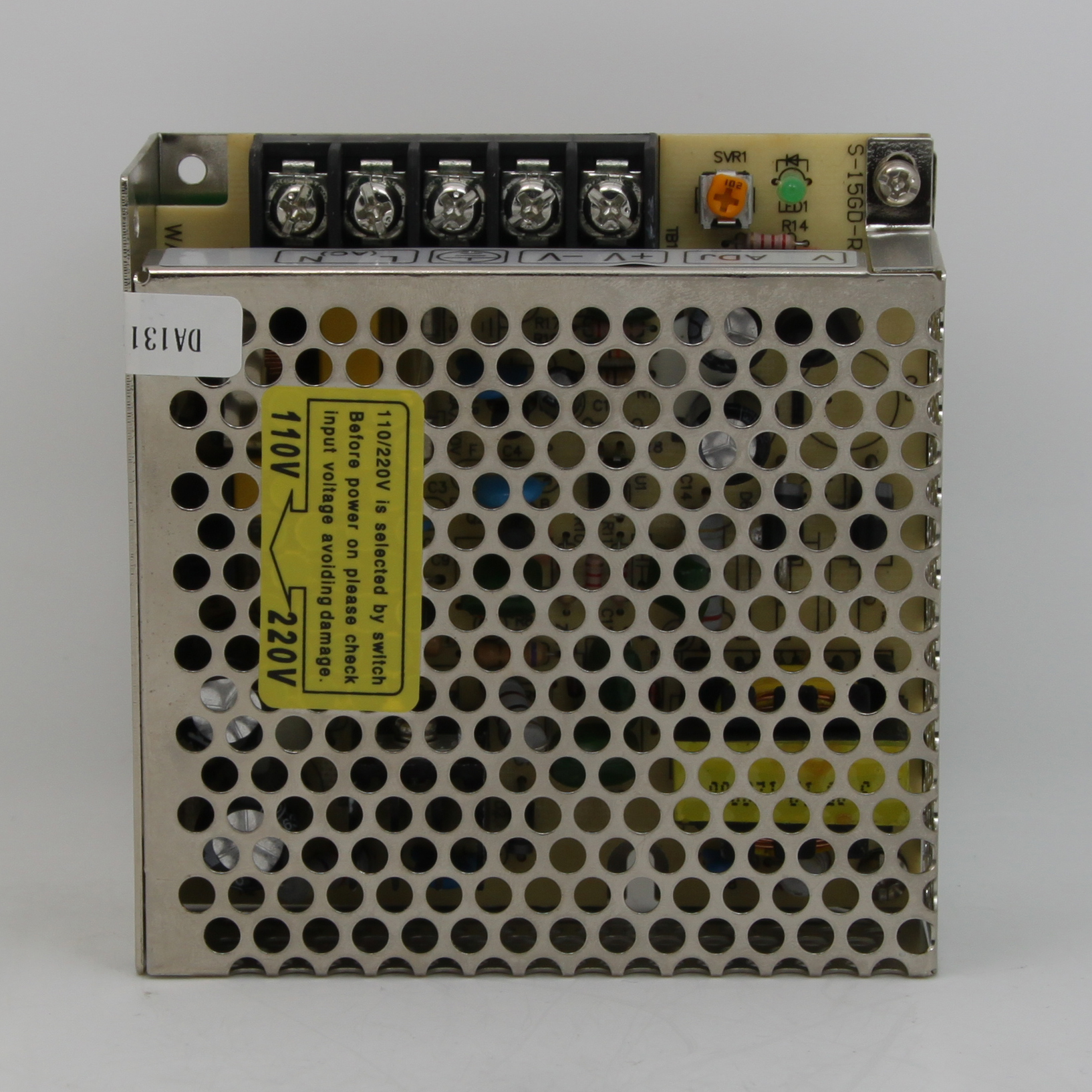

Voltage Range	85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC
AC Current	0.5A/115V 0.25A/230V
Efficiency	65%	68%	72%
Inrush Current	Cold start 15A/115VAC 30A/230VAC
Leakage Current	<0.5mA/240VAC
PROTECTION
Over Load	110%~160%
	Protection type: Fold back current limiting, recovers automatically after fault condition is removed
ENVIRONMENT
Working Temp., Humidity	-10℃~+60℃; 20%~90 %RH
Storage Temp., Humidity	-20℃~+85℃; 10%~95 %RH
Vibration	10~500Hz, 2G 10min./1cycl, period for 60 min, each along X, Y, Z, axes
SAFETY
Withstand Voltage	I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
STANDARD
Safety Standard	Design refer to UL1012
EMC Standard	Design refer to FCC Part15 J Conduction Class B
OTHERS

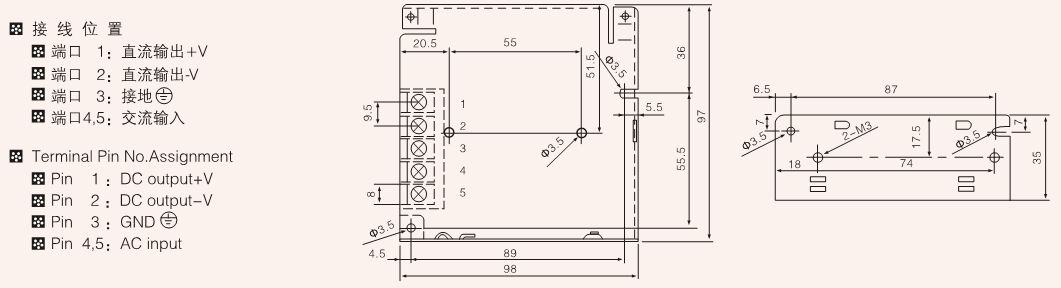

Dimension	999736mm(LWH)
Weight	0.31Kg
Packing	45pcs/15Kg/0.9CUFT
NOTE
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation
