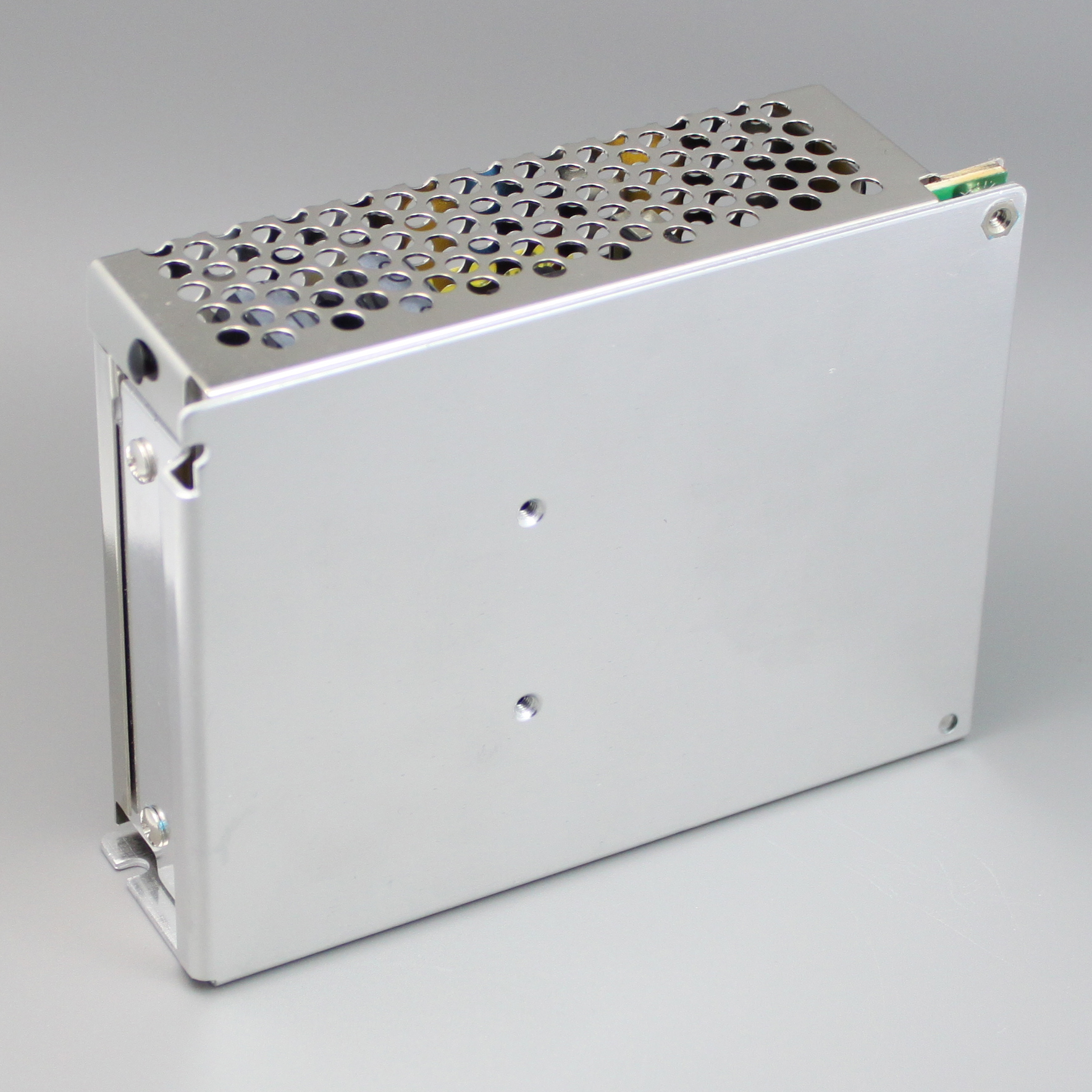

Name: S-35 35W Single Output Switching Power Supply
Brand: Winston
SKU: 02000
Rating: 4.1 (1050 reviews)

S-35 35W Single Output Switching Power Supply

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

OUTPUT
Model	S-35-5	S-35-9	S-35-12	S-35-15	S-35-24
DC Voltage	5V	9V	12V	15V	24V
Rated Current	7A	3.6A	3A	2.4A	1.5A
Current Range	0-7A	0-3.6A	0-3A	0-2.4A	0-1.5A
Rated Power	35W	32.4W	36W	36W	36W
Ripple & Noise	75mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p

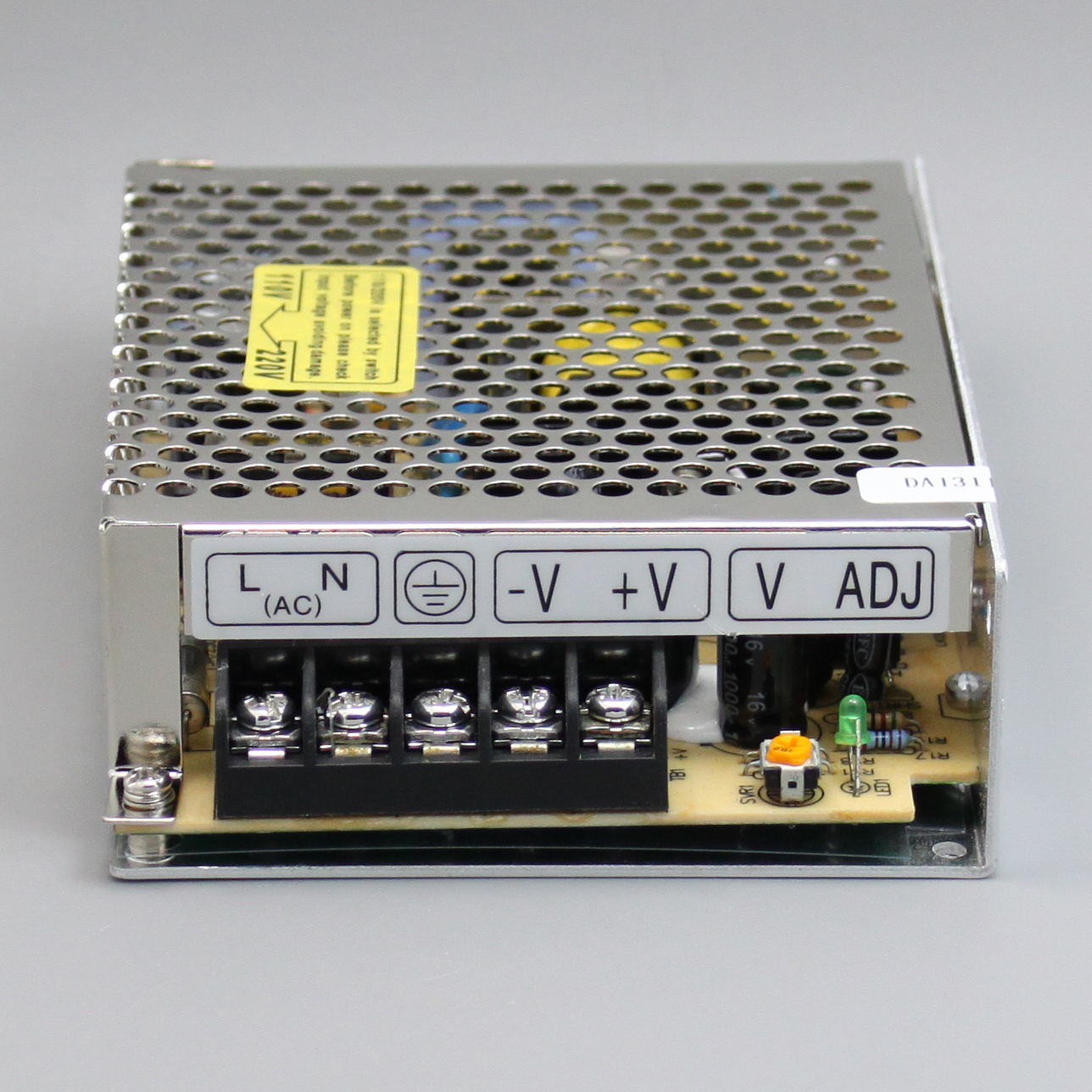

Voltage Adj. Range	-5%,+10%	±10%	±10%	±10%	±10%
Voltage Tolerance	±2%	±1%	±1%	±1%	±1%
Setup, Rise, Hold Up Time	200ms,100ms,30ms at full load

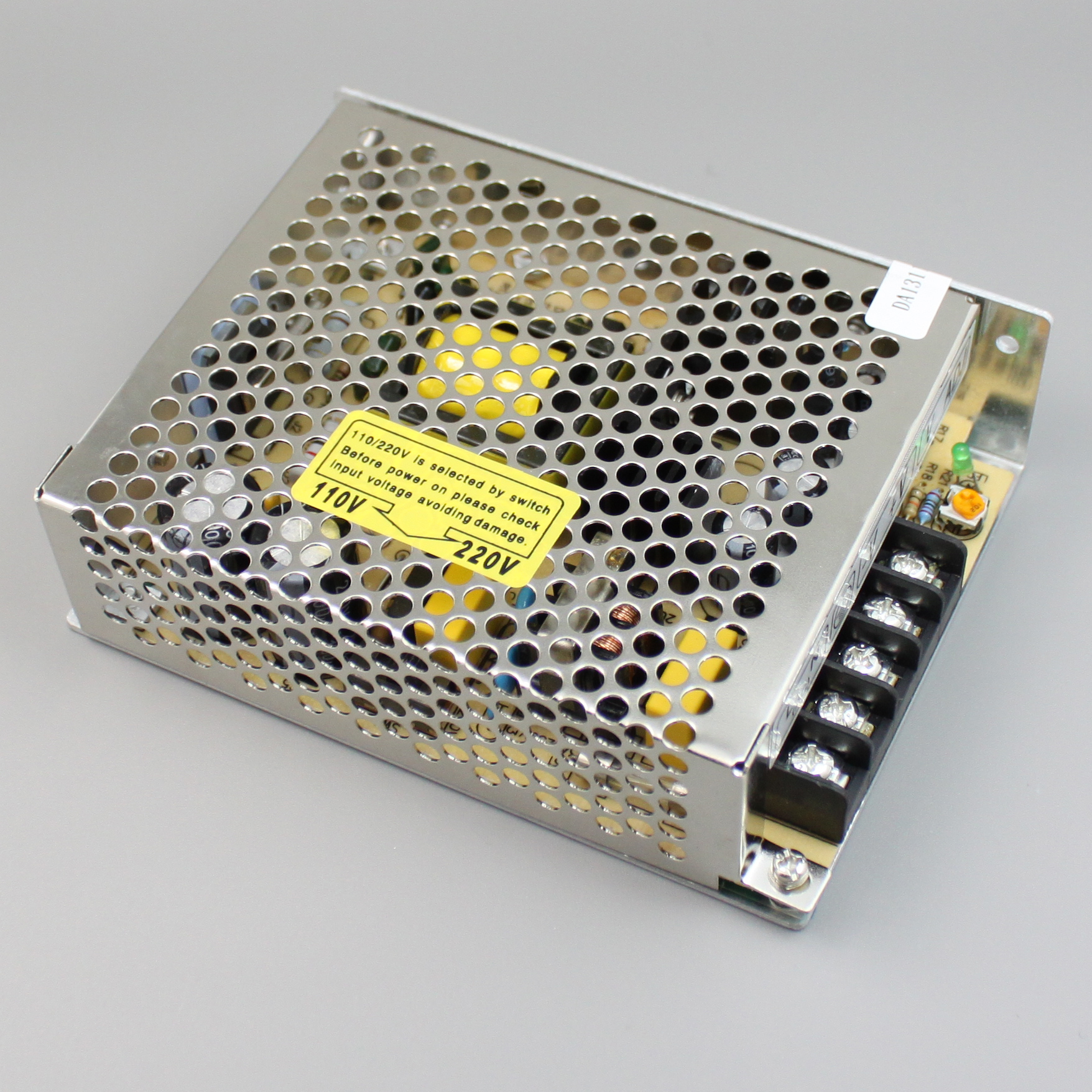

Voltage Range	85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC
AC Current	0.8A/115V 0.45A/230V
Efficiency	70%	72%	76%	78%	78%
Inrush Current	Cold start 18A/115V 36A/230V
Leakage Current	<2mA/240VAC
Over Load	110%~150%
Over Load	Protection type: Fold back current limiting, recovers automatically after fault condition is removed
Working Temp., Humidity	-10℃~+60℃; 20%~90%RH
Storage Temp., Humidity	-20℃~+85℃; 10%~95%RH
Vibration	10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
Withstand Voltage	I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
Safety Standard	Design refer to UL1012
EMC Standard	Design refer to FCC Part15 J Conduction Class B

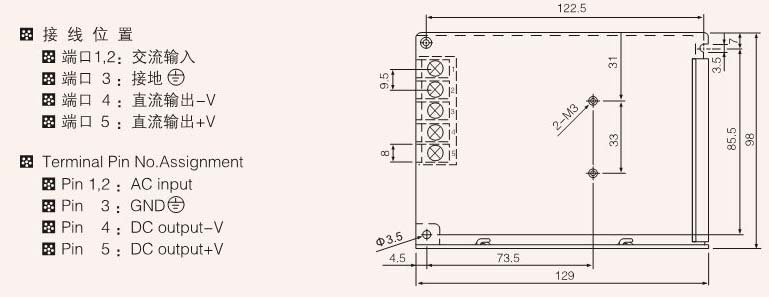

Dimension	1299838mm (LWH)
Weight	0.41Kg
Packing	30pcs/13.4Kg/0.86CUFT
NOTE
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation
