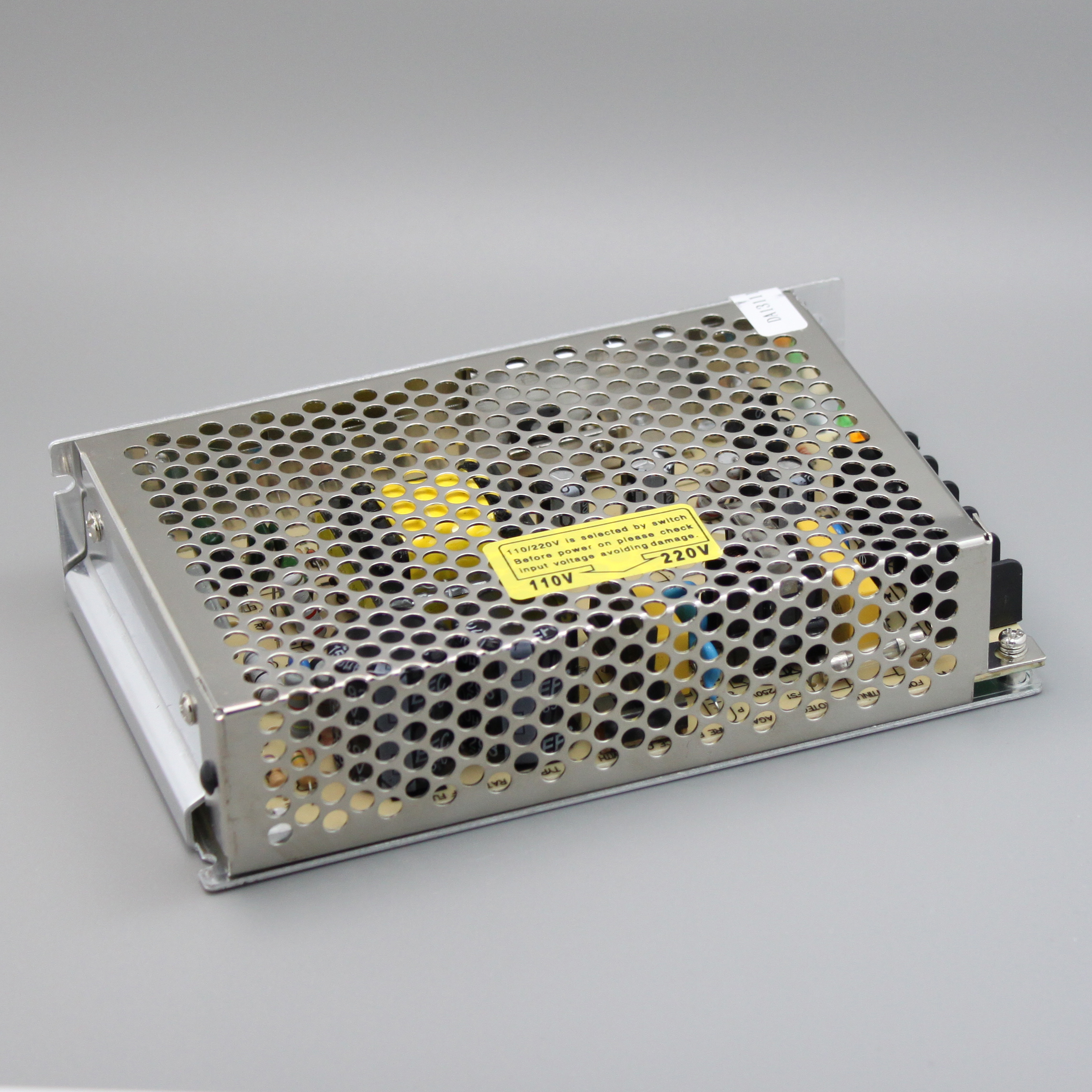

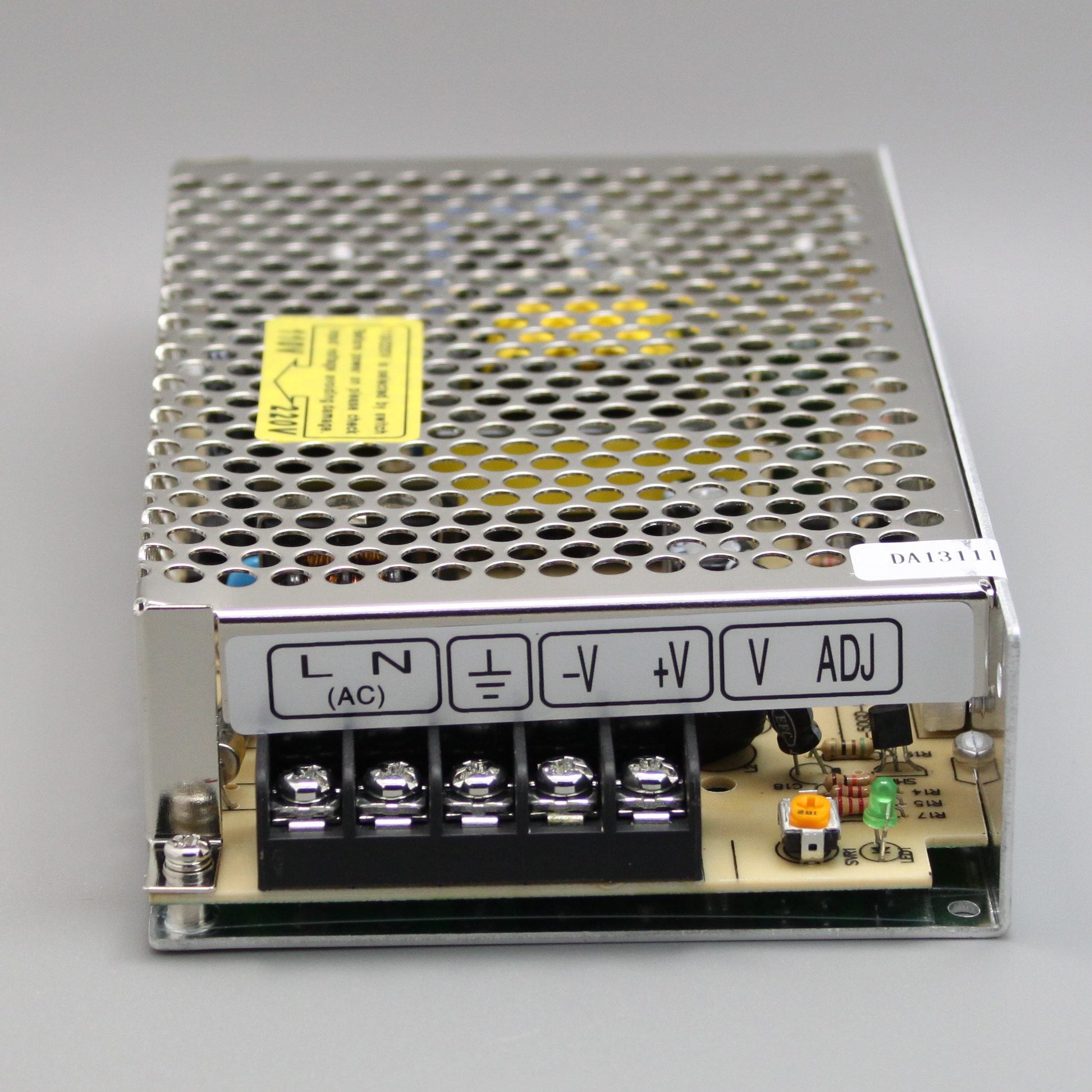

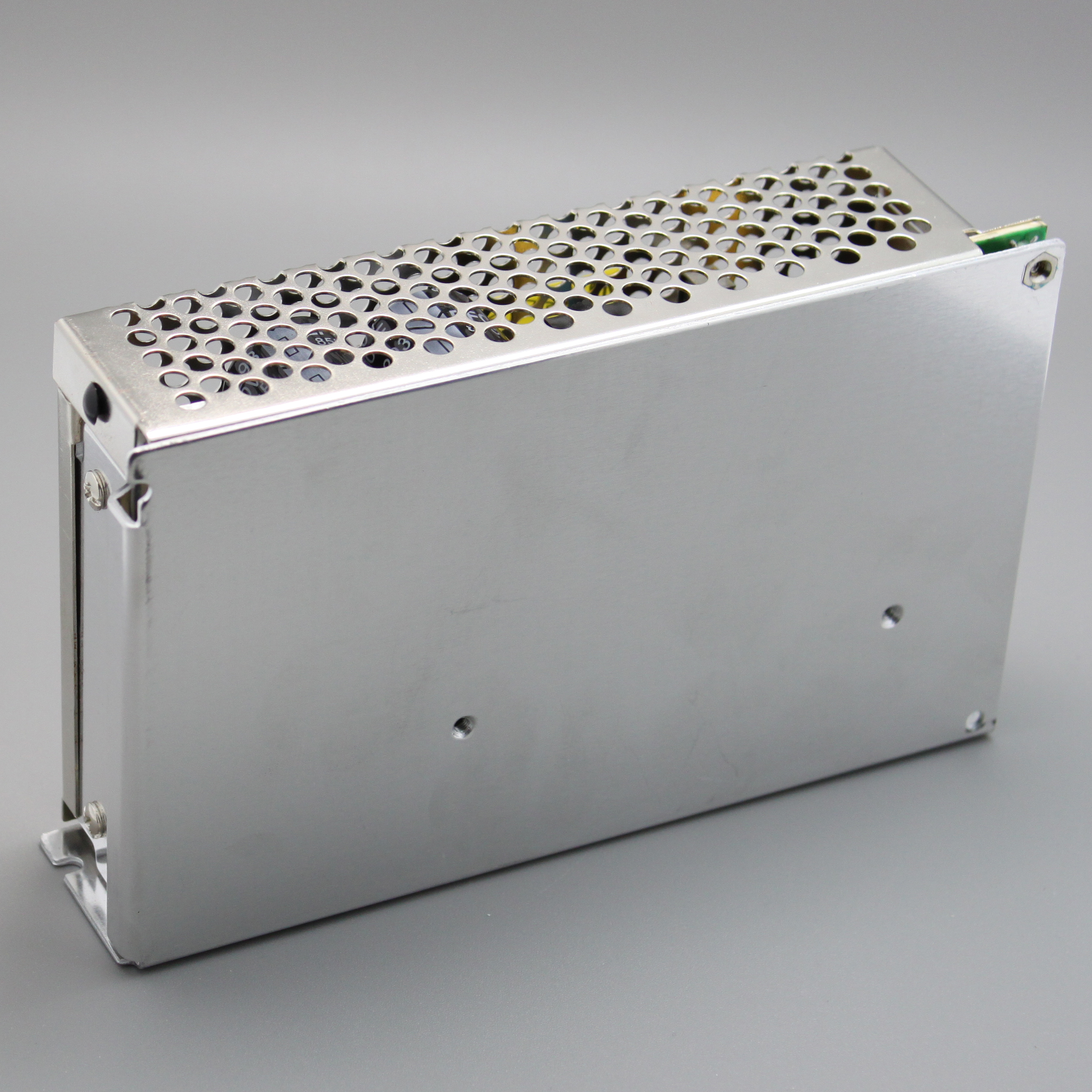

Name: S-50 50w ac/dc 5V 12V 15V 24V Led Switching Power Supply
Brand: Winston
SKU: 01967
Rating: 4.9 (1034 reviews)

S-50 50w ac/dc 5V 12V 15V 24V Led Switching Power Supply

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

Model Specification	S-50-5	S-50-12	S-50-15	S-50-24
DC output voltage	5V	12V	15V	24V
Output voltage error (Note2)	±2%	±1%	±1%	±1%
Rated output current	10A	4.2A	3.4A	2.1A
Output current rage	0-10A	0-4.2A	0-3.4A	0-2.1A
Wave and noise(Note3)	75mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet stability(Note4)	±0.5%	±0.5%	±0.5%	±0.5%
Load stability(Note5)	±1%	±0.5%	±0.5%	±0.5%
DC output power	50W	50.4W	50.4W	50.4W
Efficiency	71%	78%	78%	78/%
Adjustable range for DC voltage	±10,-5%	±10%	±10%	±10%
AC input voltage range	85~132VAC/170~264VACselected by switch
Input current	1.3A/115V 0.65A/230V
AC impulse current	Cold-start current 18A/115V 36A/230V
Leakage current	<0.5mA/240VAC

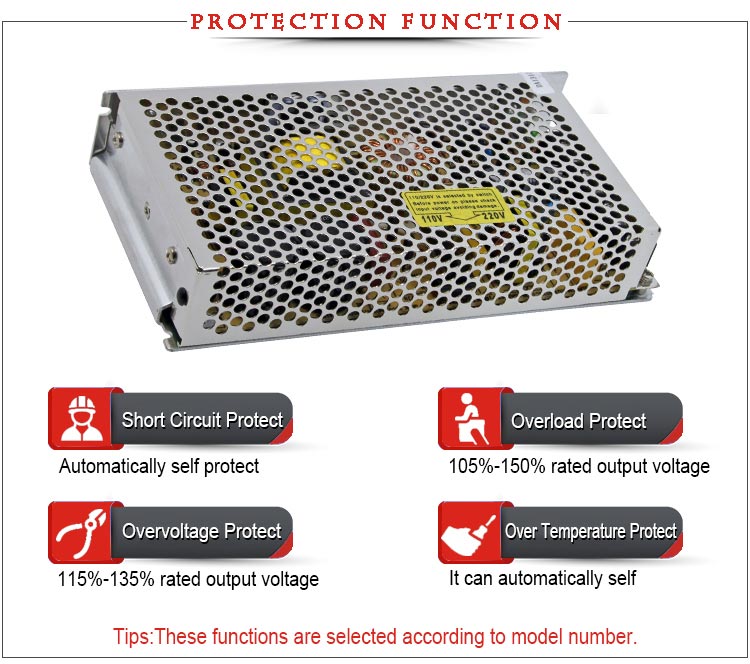

Overload protection	105%~150%Type,protection type:Hiccup mode;Recovers automatically after fault condition is removed.
Over-voltage protection	Shunt down O/P voltage,Recovers automatically after fault condition is removed.
Temperature coefficient	±0.03%°C(0~50°C)
Setup rise hold up time	200ms,100ms,30ms
Withstand voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
Working temperature and humidity	-10°C~+60°C,20%~90%RH
Store temperature and humidity	-20°C~+85°C,10%~95RH
Packing	343224cm/30pcs/15Kg
