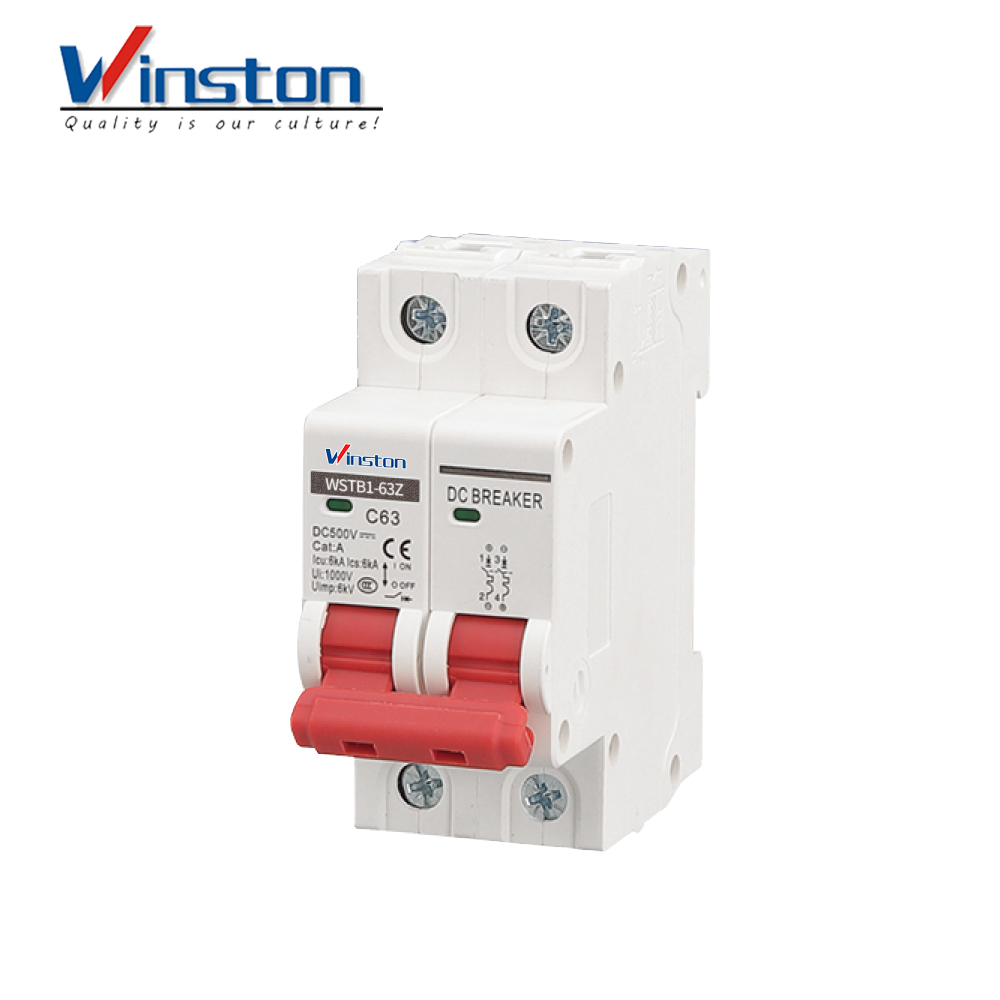

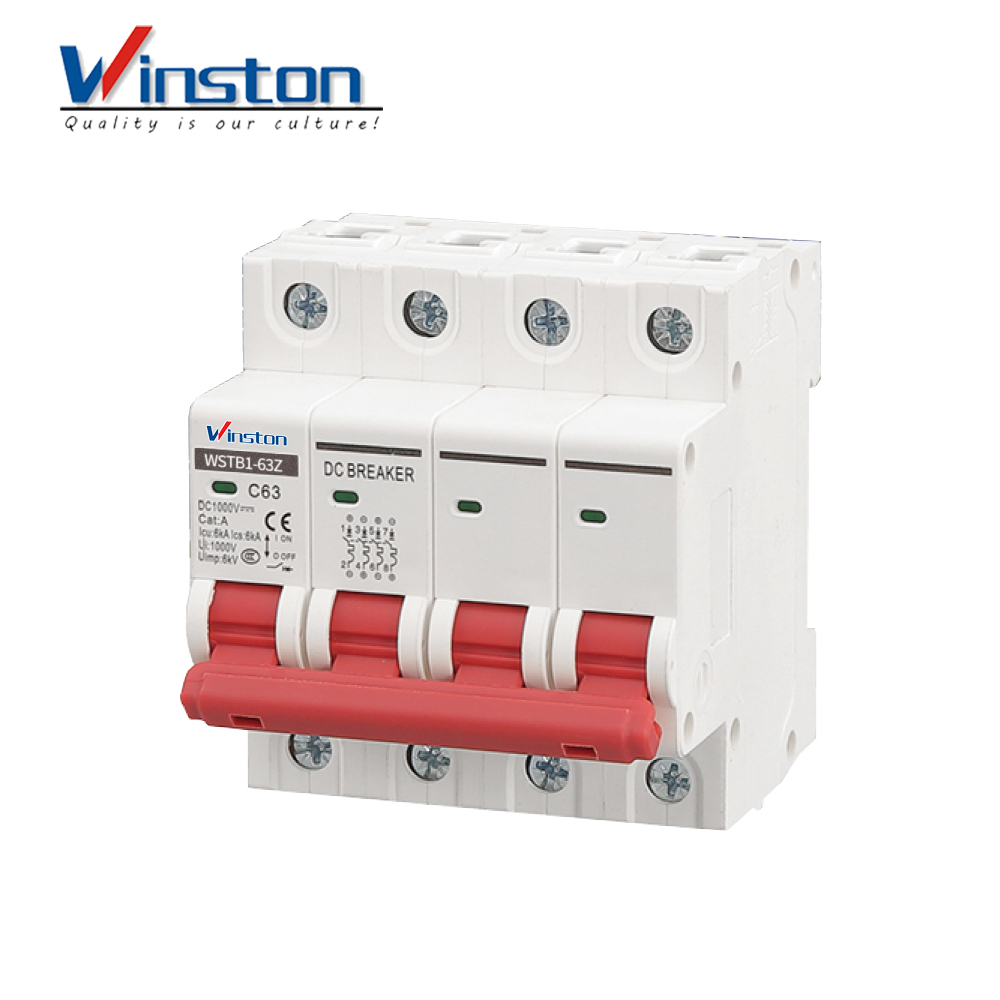

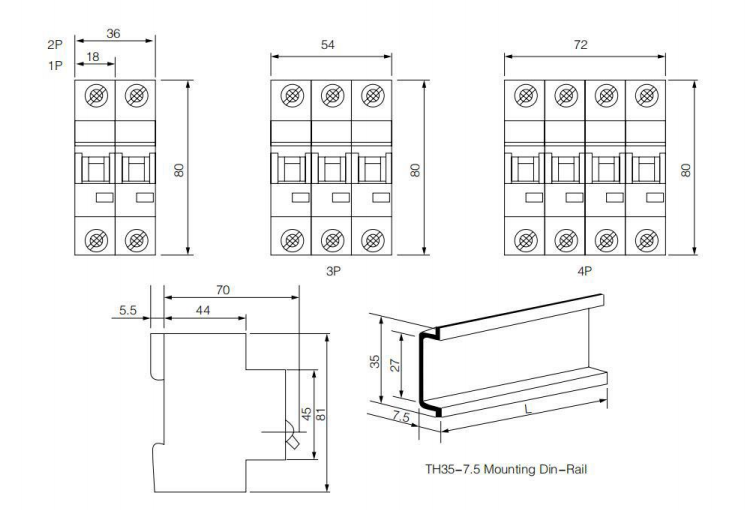

WSTB1-63Z 10-63A DC MCB Breaker

Direct Current (DC) Circuit Breakers are crucial components in electrical systems designed to protect personnel safety, prevent equipment damage, fire risks, and power outages due to faults. Here is an introduction to DC circuit breakers:

1. Function of DC Circuit Breakers
   The primary function of DC circuit breakers is to protect electrical systems from the effects of faults. When faults such as overloads or short circuits are detected, the circuit breaker can interrupt the current, thus protecting people from electric shock and preventing equipment damage and fire hazards.

2. Working Principle of DC Circuit Breakers
   The working principle of a DC circuit breaker includes the following steps:
   - Fault Detection: The circuit breaker detects fault conditions in the electrical system, such as overloads or short circuits.
   - Mechanism Activation: Upon detecting a fault, the circuit breaker activates a mechanism that triggers the release of stored potential energy.
   - Contact Separation: This energy causes the two main contacts of the circuit breaker—the fixed contact and the moving contact—to separate.
   - Arc Formation: The separation of the contacts creates a highly conductive and ionized plasma known as an arc.
   - Arc Extinguishing: The circuit breaker uses various methods to extinguish or suppress the arc, such as cooling, compression, or replacing the ionized medium with fresh gas.
   - Current Interruption: This process interrupts the flow of current, preventing damage caused by fault conditions.
   - Reset: Once the fault is cleared, the circuit breaker can be manually or automatically reset, allowing current to flow again.
   - Re-establishment of Contacts: Resetting the circuit breaker reconnects the fixed and moving contacts, re-establishing the flow of current in the circuit.

3. Applications of DC Circuit Breakers
   DC circuit breakers are used in a variety of applications, including:
   - Photovoltaic Systems: In grid-connected photovoltaic systems, DC circuit breakers are used to ensure complete isolation between the photovoltaic array and the public power grid.
   - Electric Traction: DC circuit breakers are used in electric traction applications, such as trolleybuses, trams, and subways in urban transportation, as well as for power in vehicle auxiliary circuits.
   - Industrial Systems: DC circuit breakers are also used in industrial systems, such as drives or conversion units.

4. Safety Standards
   The design and manufacture of DC circuit breakers must comply with specific safety standards to ensure their reliability and safety under various conditions. These standards include the ability to withstand high rated or fault power and safely extinguish arcs during operation.

DC circuit breakers are an essential component for ensuring the safety and reliability of DC electrical systems, and their design and application must consider the specific needs and conditions of the system.
