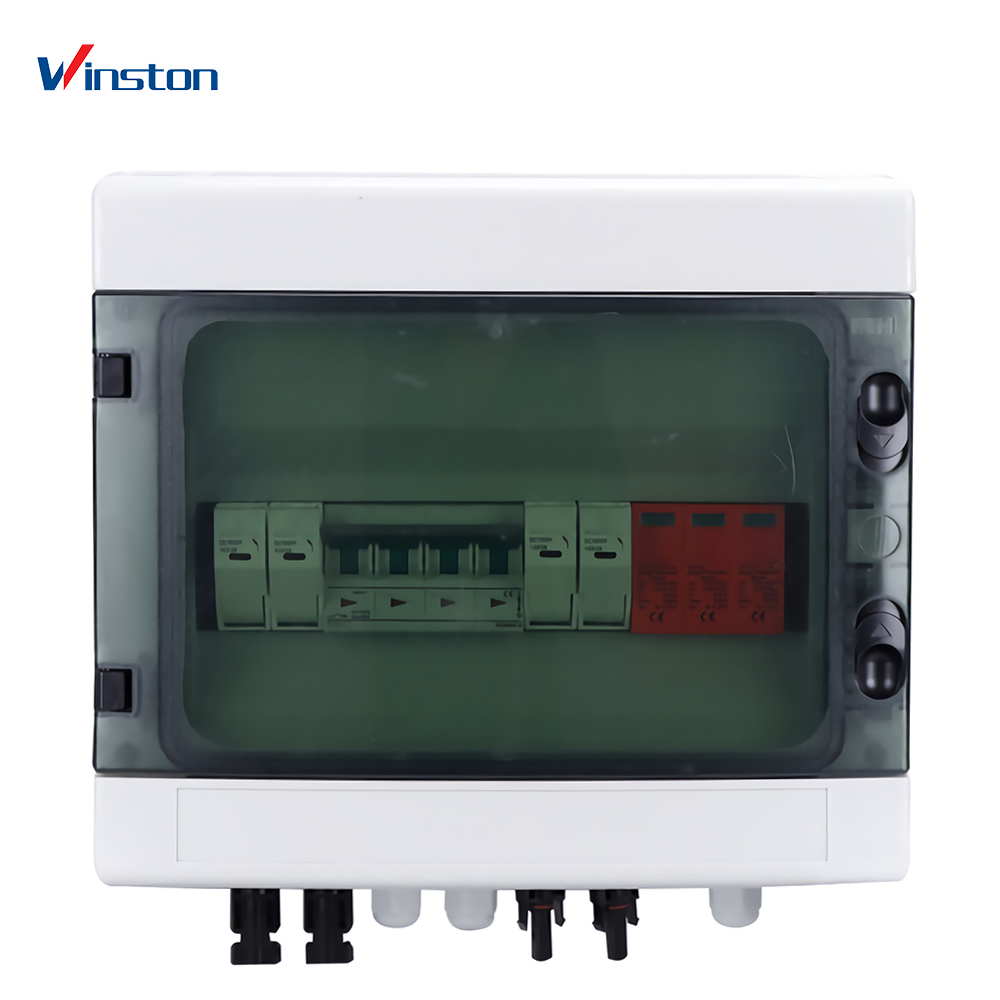

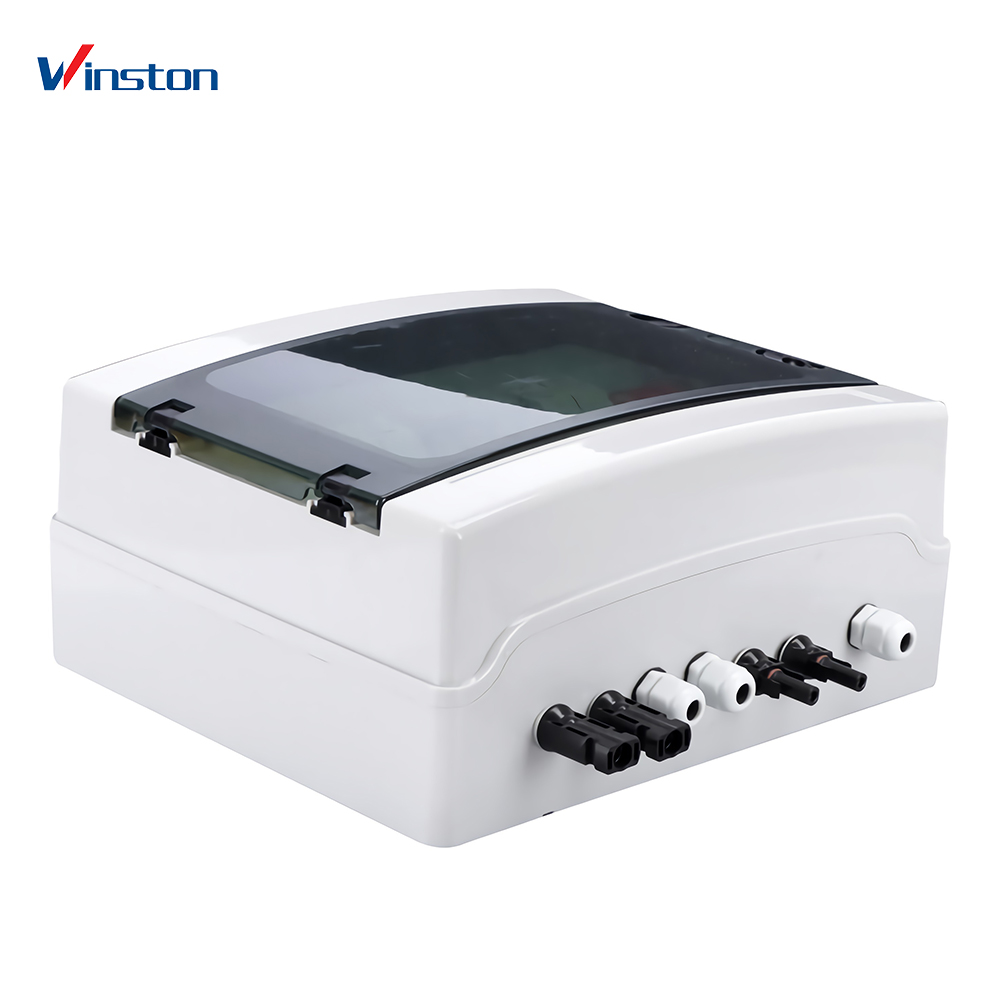

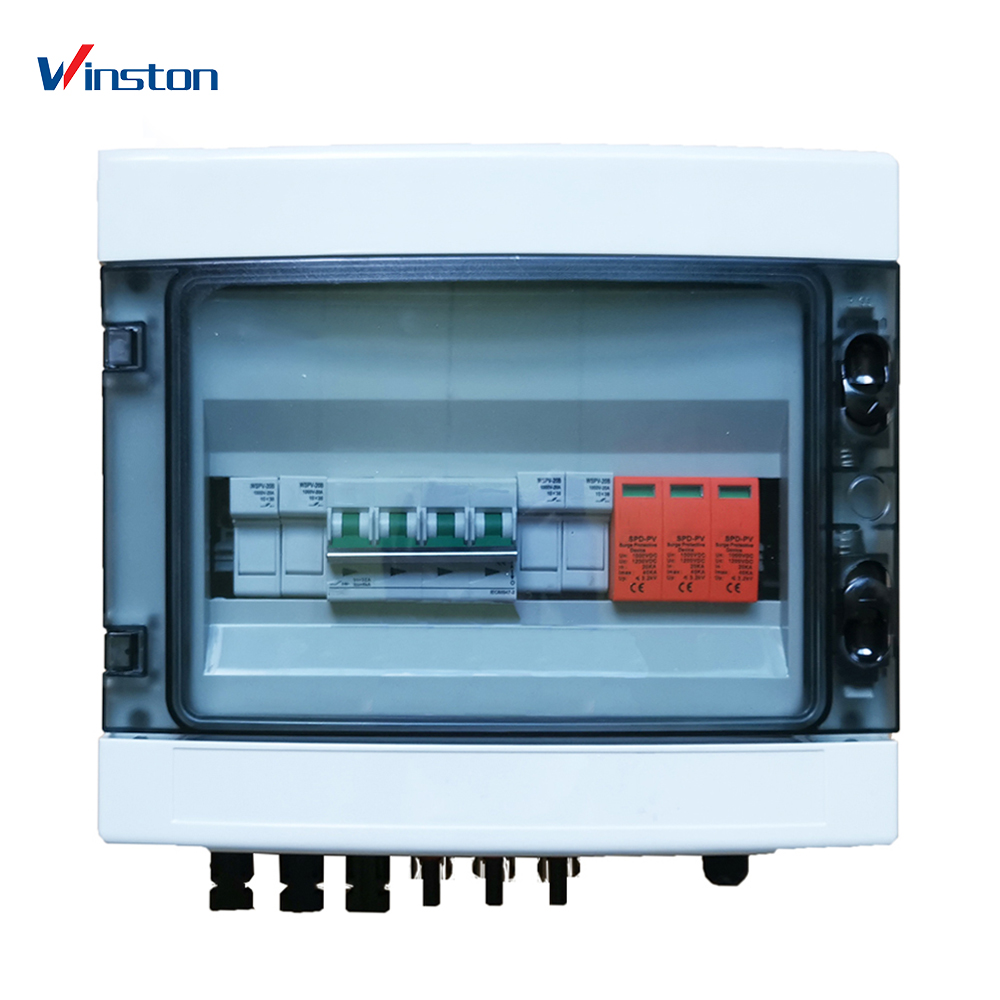

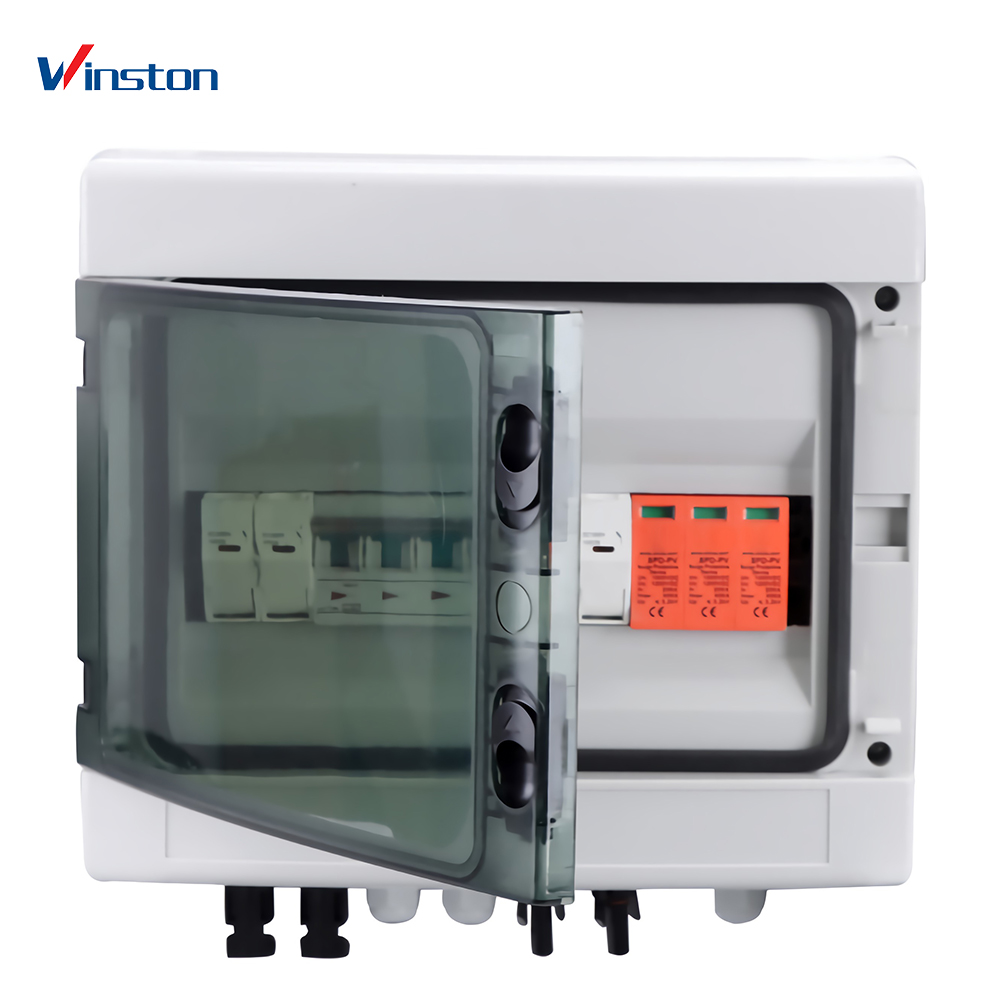

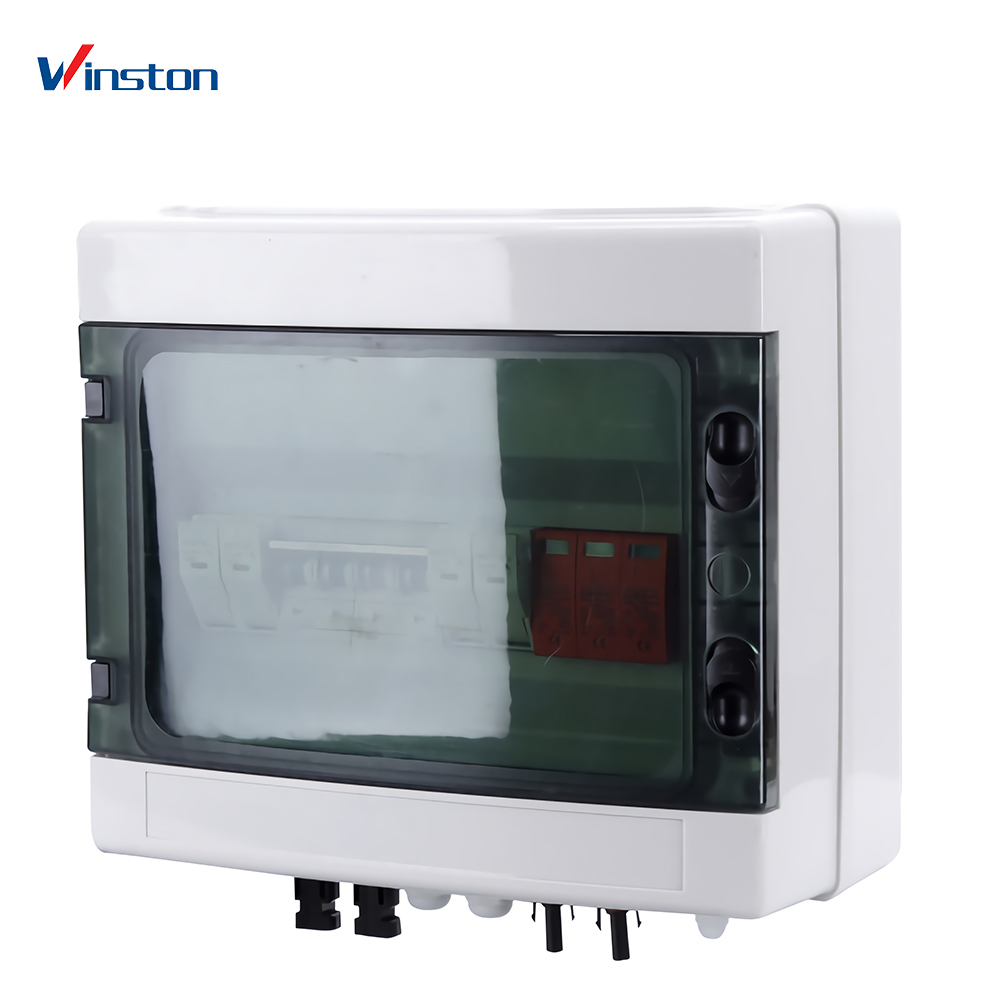

Products Description
(1) meet the requirements of outdoor installation, protection class IP65, with anti-UV, anti-acid, anti-alkali, moisture, mildew,rodent control and other functions;
(2) access 16-way PV array, each with 15A, 1000Vdc fuse (replaceable other grades);
(3) Equipped with special high-voltage lightning protection device, lightning protection function with cathode and anode ;
(4) Positive, negative string into the fuse;
(5) Use quadruple PV dedicated circuit breaker with positive and negative in series;
|
Name |
WST 2/1 |
|
|
Electric parameter |
||
|
System maximum dc voltage |
550 |
1000 |
|
Maximum input current for each string |
15A |
|
|
Maximum input strings |
2 |
|
|
Maximum output switch current |
20A/32A |
|
|
Number of inverter MPPT |
1 |
|
|
Number of Output strings |
1 |
|
|
Lightning protection |
||
|
Category of test |
II grade protection |
|
|
Nominal discharge current |
20kA |
|
|
Maximum discharge current |
40kA |
|
|
Voltage protection level |
2.8kV |
3.8kV |
|
Maximum continuous operating voltage Uc |
630V |
1050V |
|
Poles |
2P |
3P |
|
Structure characteristic |
Plug-push module |
|
|
System |
||
|
Protection grade |
IP65 |
|
|
Output switch |
DC isolation switch(standard)/DC circuit breaker(optional) |
|
|
SMC4 Waterproof Connectors |
Standard |
|
|
PV dc fuse |
Standard |
|
|
PV surge protector |
Standard |
|
|
Monitoring module |
Optional |
|
|
Preventing diode |
Optional |
|
|
Box material |
PVC |
|
|
Installation method |
Wall mounting type |
|
|
Operating Temperature |
25°C~+55°C |
|
|
Elevation of temperature |
2km |
|
|
Permissible relative humidity |
0-95%,no condensation |
|
|
Mechanical parameter |
||
|
Width*High*Depth |
300*260*140 |
|
