Description

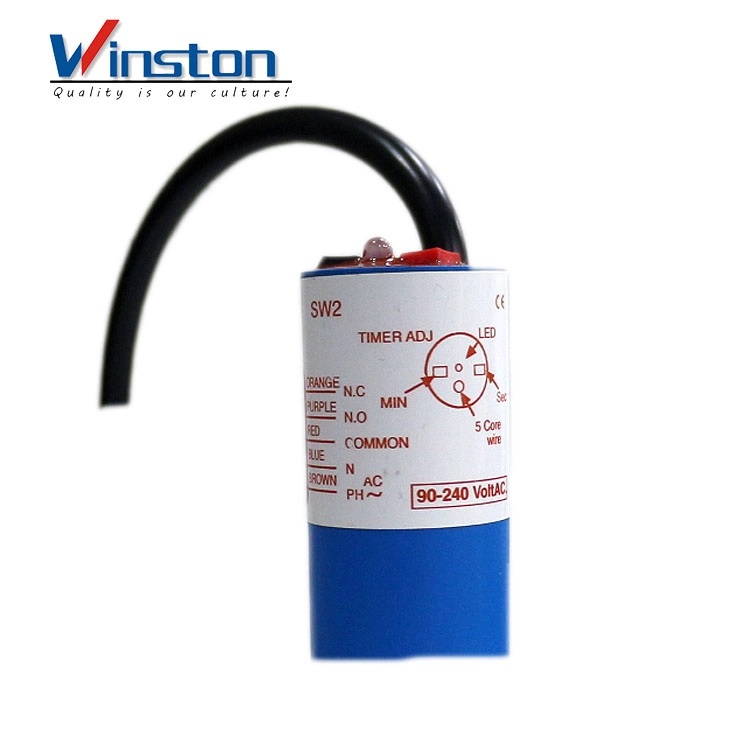

The SW-2 proximity sensor is an electronically controlled switch activated by most materials. The use of electronic rather than mechanical switches ensures reliability, particularly as the electronics are completely sealed, which gives maximum protection against humidity, dust, and the like.



Product Details

New Proximity Switch SW-2 feeding Sensor for broiling feeding line

Power : 90VAC-240VAC

Frequency : 45-65Hz

Consumption : 1VA

Maximum voltage relay switch : 220/240 VAC

Relay maximum power : 5A at cos phi = 1

2A at cos phi = 0.8

0.35A at cos phi = 0.4

Activate distance : According raw material 0-15mm

Delay time : 0-2 hours

Protection grade : IP67

Operating temperature of the surrounding : -20 - 75 centigrade

Storage temperature of the surrounding : -30 - 85 centigrade

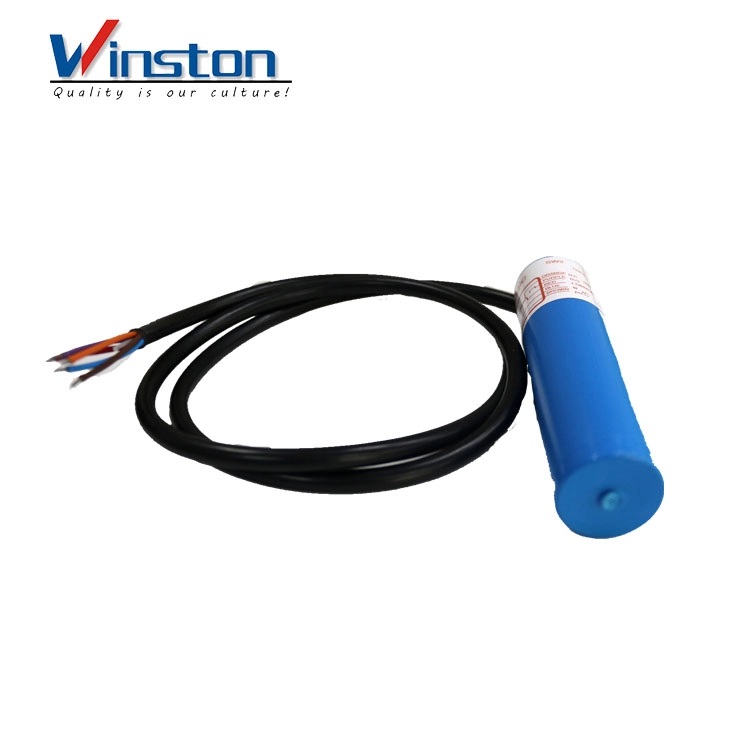

Cable : 5 pcs 1m length cable, 2 colors LED display

Weight : 280g

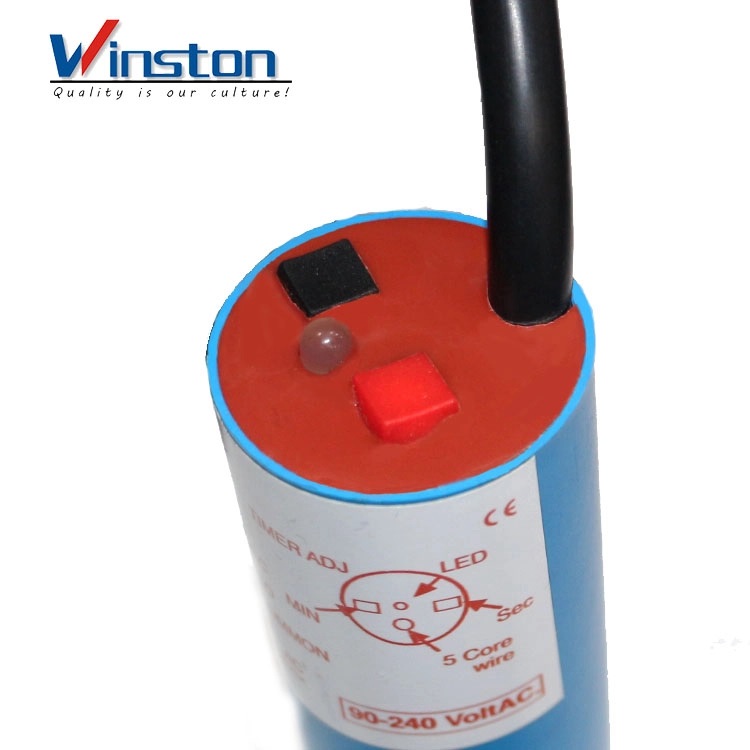

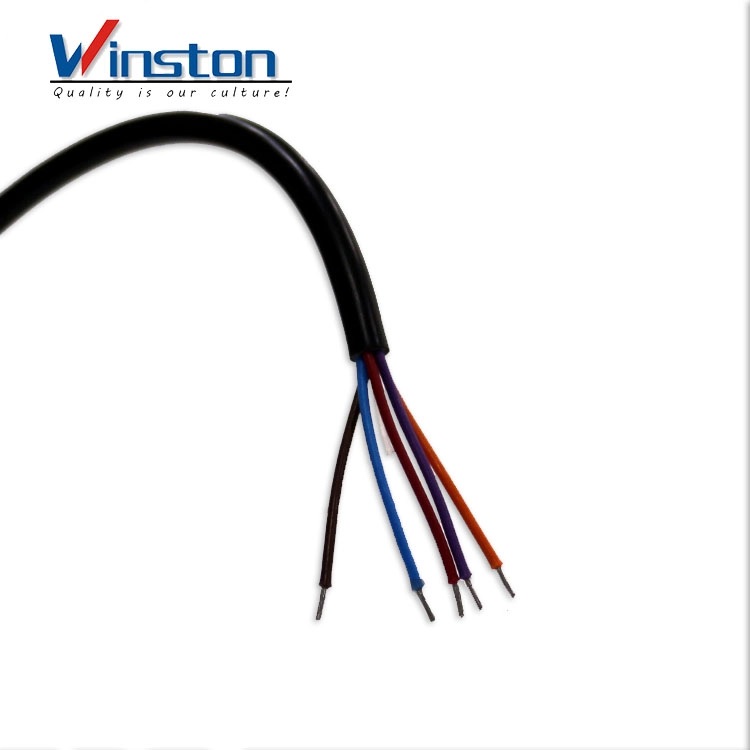

The SW-2 is designed with a built-in microprocessor, which gives the unit unparalleled performance in sensitivity, time delay accuracy, ease of setup and a wide range of working temperatures. Equipped with a built-in changeover contact, it can stop the motor as feed reaches the sensor or start the motor when there is a lack of feed. The time delay is set by two pushbuttons with a delay ranging from 1 sec. to 2 hours, in 10-second increments. Connections are made via a 5-core cable directly to the power supply and to the motor overload relay, alternatively to the motor itself (220V AC, max. 1 HP).

Product Advantages

  • The SW2 feed sensor can replace any mechanical feed micro switch in the hopper, silo and last feeder.

  • The SW2 feed sensor microprocessor gives the unit unparalleled performance in sensitivity, time delay accuracy, ease of setup and a wide range of working temperatures.

  • Two colored led indicator lights display the current status.

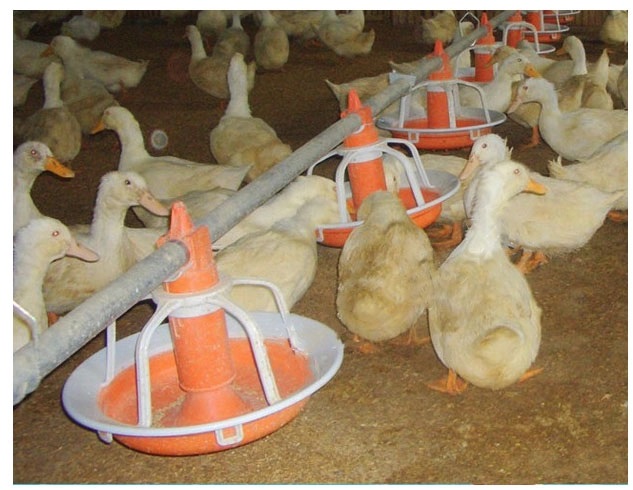

Livestock feeding systems for poultry or pigs

The sw2 sensors efficiently control the fodder and seed supply. The sensors detect feed levels in the storage tank and in the feeding line, they control the start and stop of the feeding line, ensuring uniform, simultaneous and precise dosing and providing equal and comfortable access of feed for all birds or pigs.
