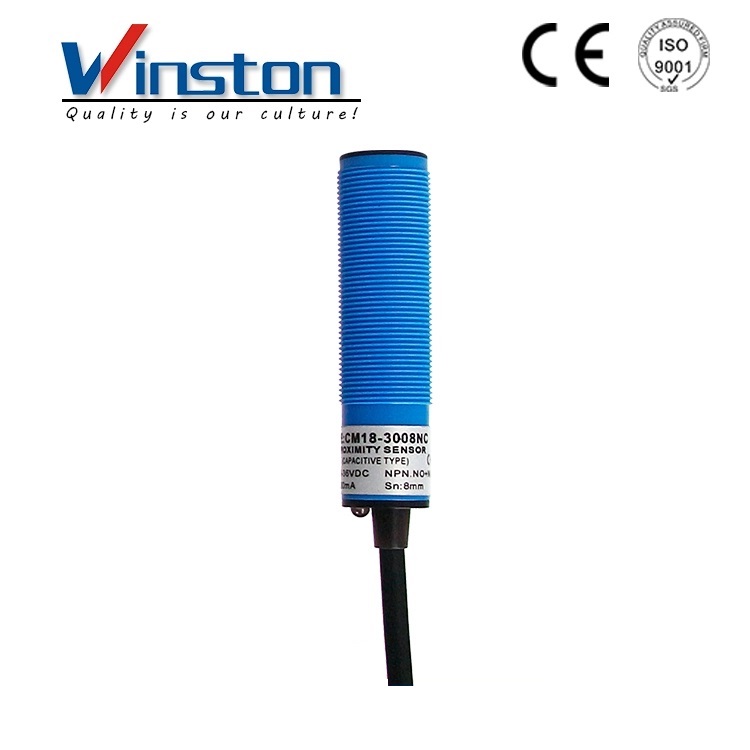

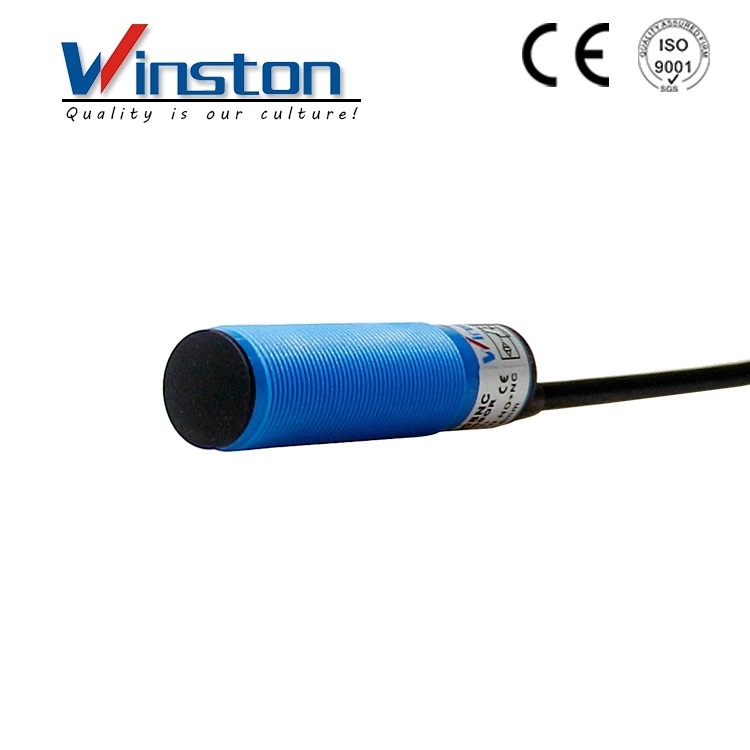

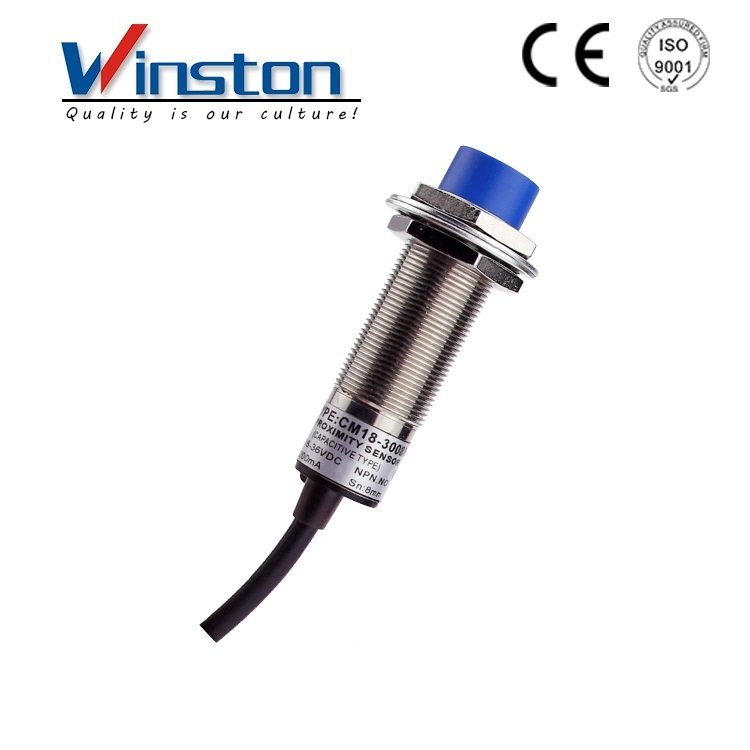

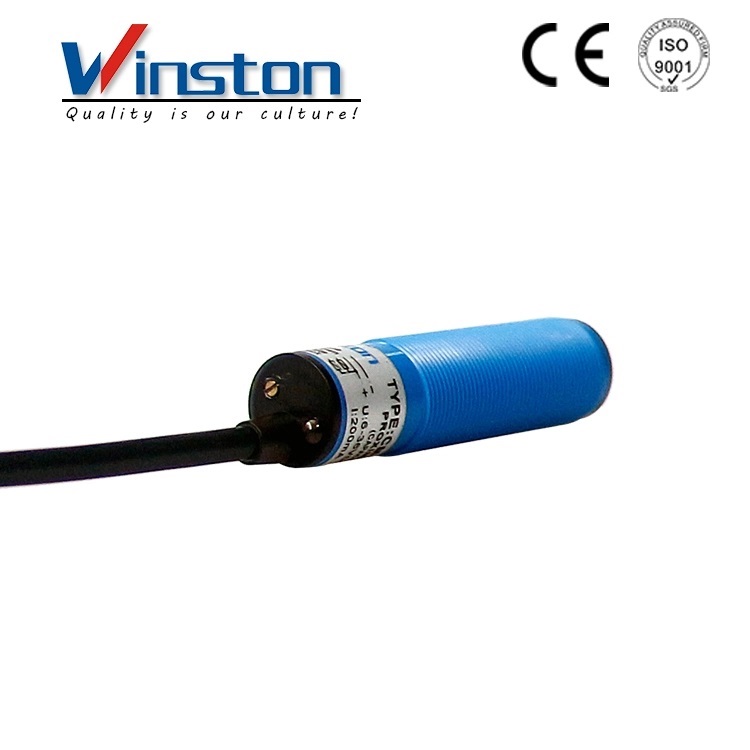

CM18 Capacitive Proximity Sensor Switch

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

Technical Data

Compact volume
Wide voltage range
Long service life
Diversified exterior structures
high precision of repeated location
Good performance of anti-interference.
Dust proof,vibration proof,waterproof and Oil-proof.

Flush	Detection distance			0-5mm
	DC10-30V	NPN	NO	CM18-3005NA
			NC	CM18-3005NB
			NO+NC	CM18-3005NC
		PNP	NO	CM18-3005PA
			NC	CM18-3005PB
			NO+NC	CM18-3005PC
	AC90～250V	two wire system	NO	CM18-3005LA
			NC	CM18-3005LB
		SCR Control label silicon	NO	CM18-2005A
			NC	CM18-2005B

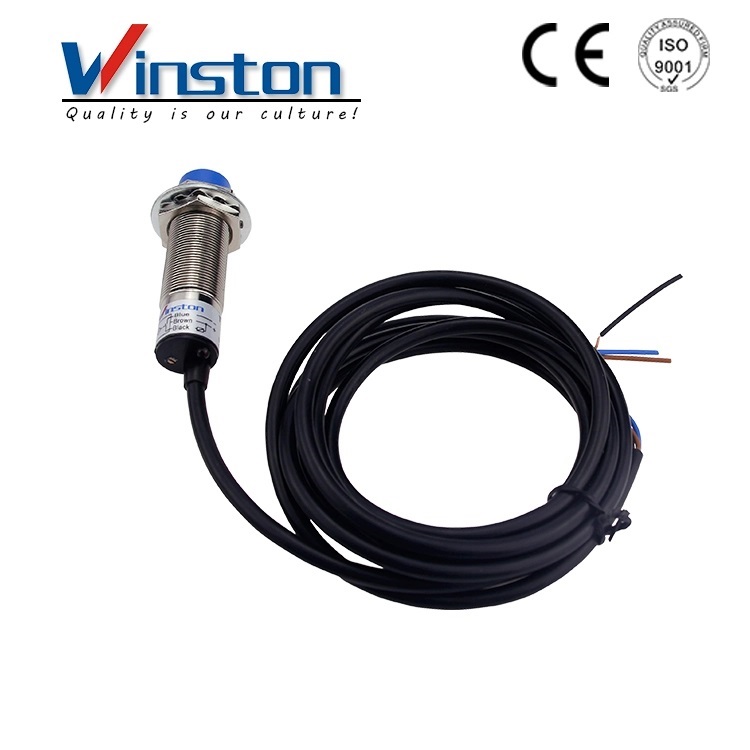

Non-flush	Detection distance			0-8mm
	DC10-30V	NPN	NO	CM18-3008NA
			NC	CM18-3008NB
			NO+NC	CM18-3008NC
		PNP	NO	CM18-3008PA
			NC	CM18-3008PB
			NO+NC	CM18-3008PC
	AC90～250V	two wire system	NO	CM18-3008LA
			NC	CM18-3008LB
		SCR Control label silicon	NO	CM18-2008A
			NC	CM18-2008B
Control output		DC		200mA
		SCR/Relay		300mA
Output voltage drop DC/AC				DC<3V AC<10V
Consumption current				DC<15mA AC<10mA
Detected object				Conductor and Directric Body
Repeated precision				0.05
DC/AC Response frequency				200Hz/25Hz
Working environment temperature				–25℃～75℃
Insulation resistance				50MΩ
Shell material				Metal/ABS Resin
Protection grade				IEC standard IP65/IP67
Altemative model at home and abroad				LJC24A3-...
