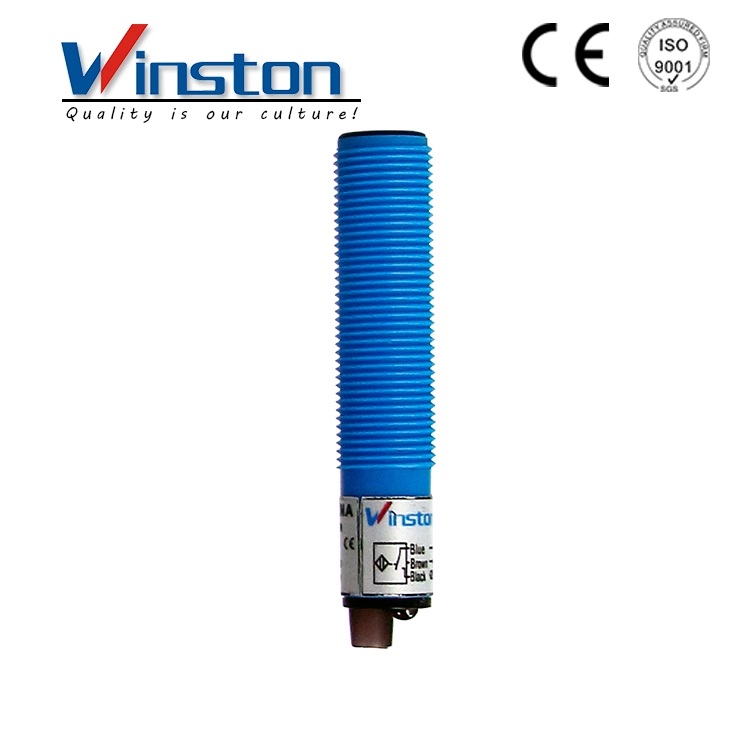

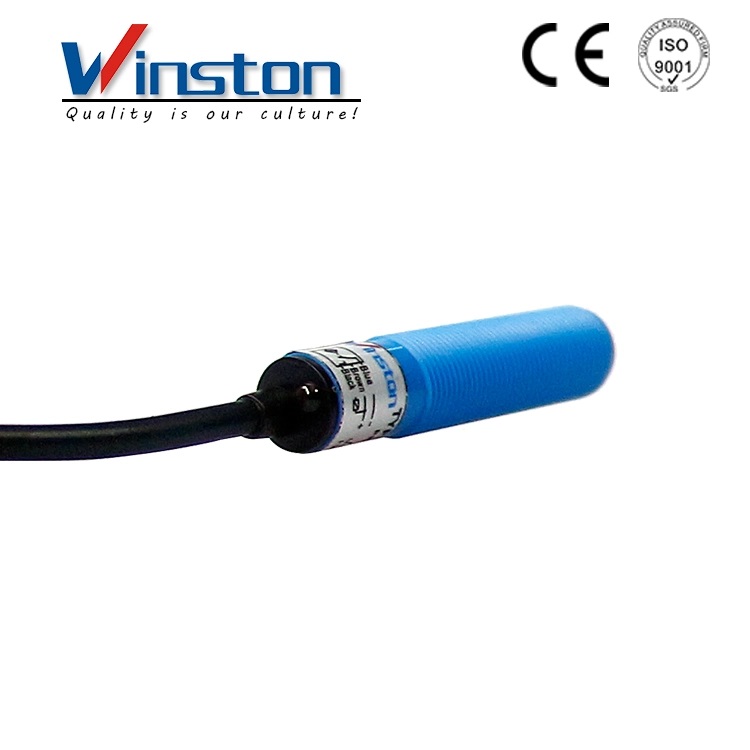

CM12 Capacitive Proximity Sensor Switch

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

Technical Data

Compact volume
Wide voltage range
Long service life
Diversified exterior structures
high precision of repeated location
Good performance of anti-interference.
Dust proof,vibration proof,waterproof and Oil-proof.

Flush	Detection distance			0-2mm

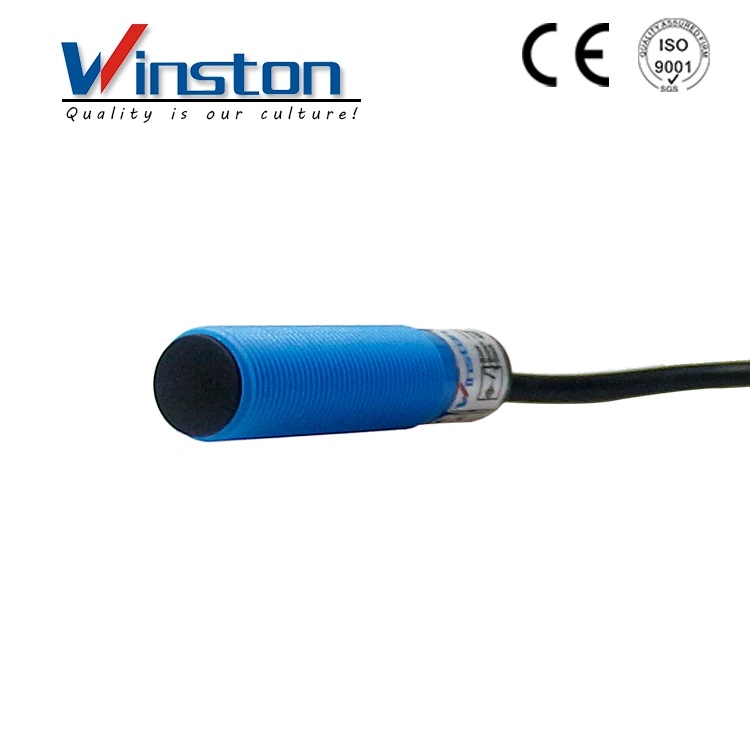

	DC10-30V	NPN	NO	CM12-3002NA
			NC	CM12-3002NB
			NO+NC	CM12-3002NC
		PNP	NO	CM12-3002PA
			NC	CM12-3002PB
			NO+NC	CM12-3002PC
	AC90～250V	two wire system	NO	CM12-3002LA
			NC	CM12-3002LB
		SCR Control label silicon	NO	CM12-2002A
			NC	CM12-2002B
			NO+NC	CM12-2002C
Non-flush	Detection distance			0-4mm
	DC10-30V	NPN	NO	CM12-3004NA
			NC	CM12-3004NB
			NO+NC	CM12-3004NC
		PNP	NO	CM12-3004PA
			NC	CM12-3004PB
			NO+NC	CM12-3004PC
	AC90～250V	two wire system	NO	CM12-3004LA
			NC	CM12-3004LB
		SCR Control label silicon	NO	CM12-3004A
			NC	CM12-3004B
			NO+NC	CM12-3004C
Control output		DC		200mA
		SCR/Relay		300mA
Output voltage drop DC/AC				DC<3V AC<10V
Consumption current				DC<15mA AC<10mA
Detected object				Conductor and Directric Body
Repeated precision				0.05
DC/AC Response frequency				200Hz/25Hz
Working environment temperature				–25℃～75℃
Insulation resistance				50MΩ

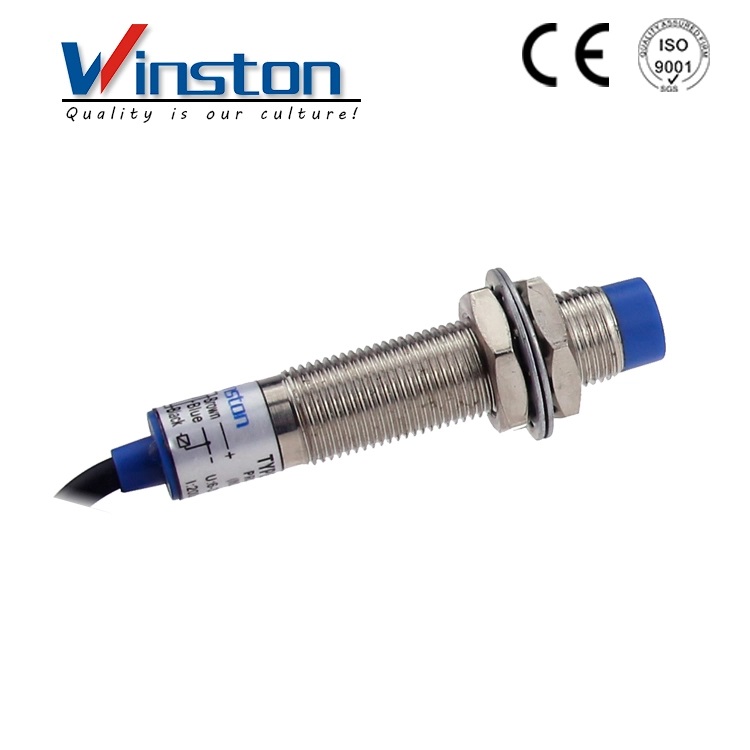

Shell material				Metal/Plastic
Protection grade				IEC standard IP65
Altemative model at home and abroad
