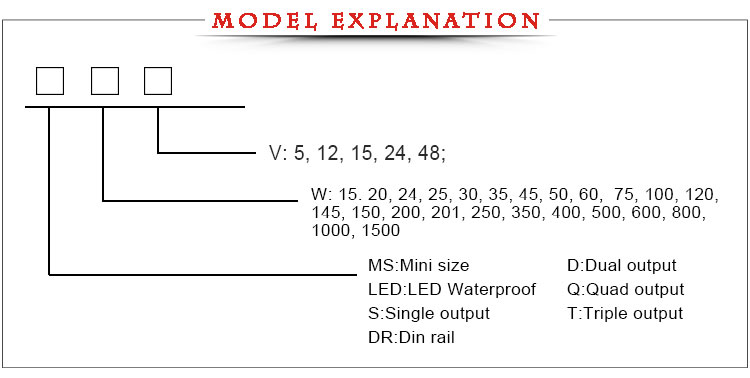

| MODEL | SE-600-5 | SE-600-12 | SE-600-24 | SE-600-48 |
| DC VOLTAGE | 5V | 12V | 24V | 48V |
| CURRENT RANGE | 0 ~ 100A | 0 ~ 50A | 0 ~ 25A | 0 ~ 12.5A |
| EFFICIENCY | 78% | 83% | 87% | 88% |
| WAVE & NOISE | 100mVp-p | 100mVp-p | 120mVp-p | 150mVp-p |
| ADJUSTABLE RANGE FOR DC VOLTAGE | ±10% | ±10% | ±10% | ±10% |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| LOAD REGULATION | ±1% | ±0.5% | ±0.5% | ±0.5% |
| SETUP, RISE HOLD UP TIME | 100ms, 50ms,16ms/230VAC at full load | |||
| VOLTAGE RANGE | 90 ~ 132VAC/180-264VAC by switch 254 ~ 370VDC | |||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| IMPACT CURRENT | Cold start current 25A/115VAC 50A/230VAC | |||
| WORKING TEMP. | -10 ~ +50ºC | |||
| OVERLOAD PROTECTION | 105%-150% cut off the output , automatic recovery | |||
| OVER VOLTAGE PROTECTION | 105%-150% shunt down O/P voltage,re-power on to recover | |||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:500VDC/100M Ohms | |||

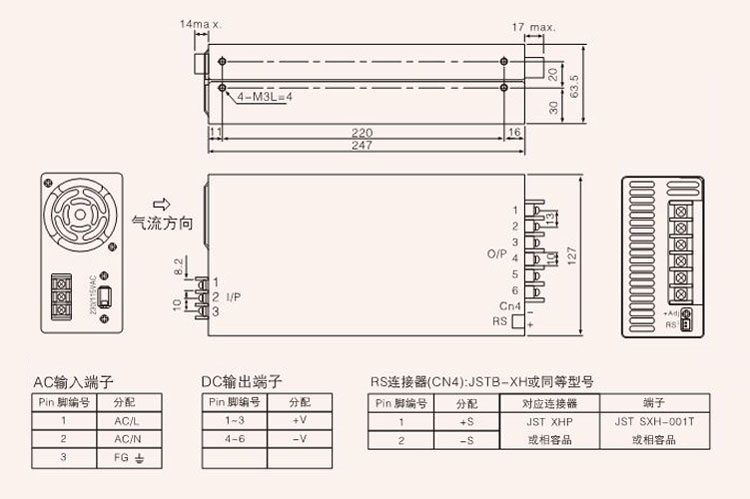

| DIMENSION | 247*127*63.5mm (L*W*H) | |||
| WERIGHT | 2.17kg | |||
| PACKING | 37.5*31*25.5cm/6pcs/13.5Kg | |||
| 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25oCof ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 0% to 100% rated load. 6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still me |
||||
