Name: SCN-800 800W AC DC Single Output Power Supply
Brand: Winston
SKU: 01833
Rating: 4.1 (967 reviews)

SCN-800 800W AC DC Single Output Power Supply

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

OUTPUT
MODEL	SCN-800-12	SCN-800-15	SCN-800-24	SCN-800-30
DC Voltage	12V	15V	24V	30V
Rated Current	66A	54A	33A	26.7A
Current Range	0-66A	0-54A	0-33A	0-26.7A
Rated Power	800W	800W	800W	800W
Ripple & Noise	150mVp-p	150mVp-p	240mVp-p	300mVp-p
Voltage Adj. Range	±5%; Can adjust from 40%~100% output voltage by external control 2-5V
Voltage Tolerance	±1%	±1%	±1%	±1%
Setup,Rise,Hold Up Time	800ms, 50ms, 16ms at full load
INPUT
Voltage Range	90~130VAC/180~260VACselected by switch47~63Hz; 260~370VDC
AC Current	13A/115VAC8.0A/230VAC
Efficiency	80%	81%	85%	86%
Inrush Current	60A/230V
Leakage Current	3.5mA/240VAC
PROTECTION
Over Load	110%~135%
	Protection: Protection: Current limiting, delay shut down o/p voltage, re-power on to recover
Over Voltage	110%~135%
	Protection type: Shut down o/p voltage, re-power on to recover
Over Temp	TSW1 (Power transistor) When temp. >100℃, shut down o/p voltage, re-power on to recover
ENVIRONMENT
Working Temp., Humidity	-10℃~+65℃; 20%~90%RH
Storage Temp., Humidity	-20℃~+85℃; 10%~95%RH
Vibration	10~200Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY
Withstand Voltage	I/P-O/P, I/P-FG:1500VAC
Isolation Resistance	I/P-O/P, I/P-FG, >100M Ohms / 500VDC
STANDARD
Safety Standard	Design refer to UL1950,CSA22.2,IEC60950
EMC Standard	Design refer to FCC Part 15 Class A
OTHERS

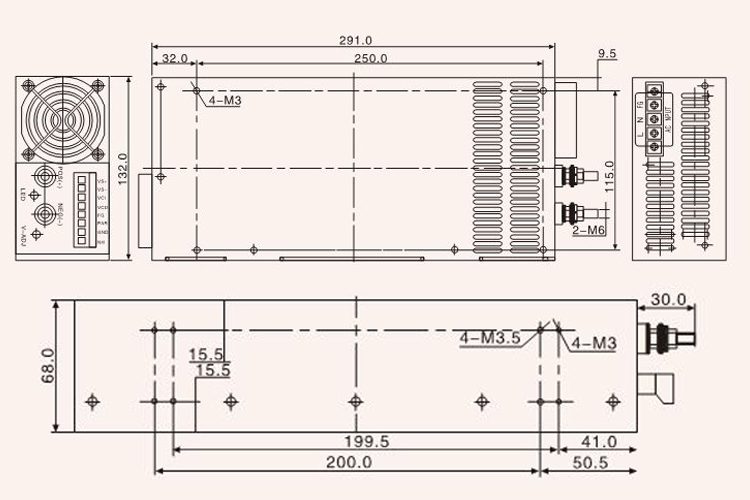

Dimension	29113268mm(LWH)
Weight	2.57Kg
Packing	6pcs/15.42kg/CARTON
NOTE
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
