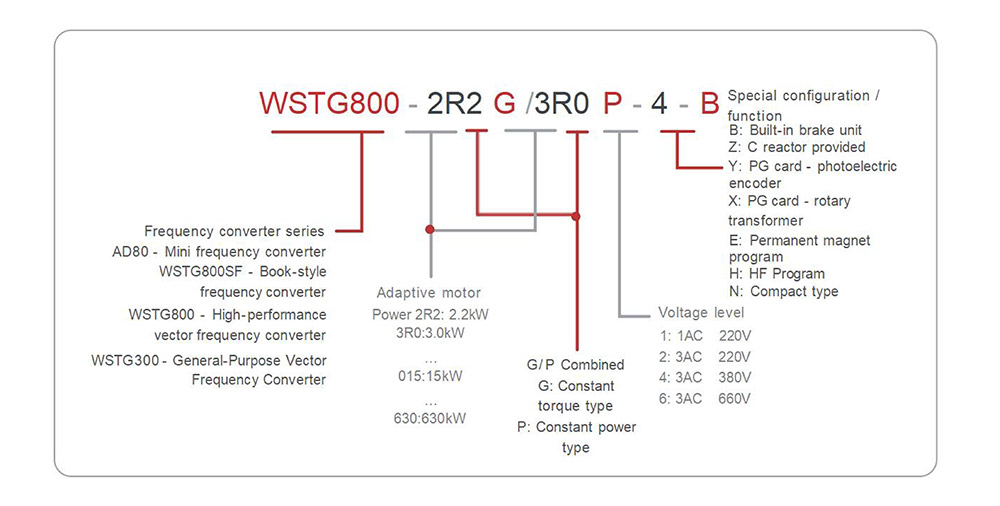

WSTG760 Permanent Magnet HF Frequency Converter

Max. frequency

Vector control: 0.00~1500.00Hz        V/f control: 0.00~650.00Hz

Carrier frequency

0.8kHz~16kHz, which can automatically be adjusted according to load characteristics

Input frequency resolution

Analog setting: max. frequency x 0.025%

Control mode

Open-loop vector control (SVC) Closed-loop vector control (FVC) V/f control

Starting torque

G-type: 0.25Hz/150%(SVC),0Hz/180%(FVC)C)

Speed regulation range

1:200 (SVC)       1:1000(FVC)

Steady speed accuracy

±0.5%(SV C)            +0.02%(FVC)

Torque control accuracy

±5%(SV C)(above 5Hz)      +3%(FVC)

Overload capacity

G-type: 150% rated current for 60s

Torque boost

Automatic torque boost, manual torque boost 0.1%~30.0%

V/f curve

Four methods: linear, multi-point, complete V/f separation; incomplete V/f separation

V/f separation

2 methods: complete separation, partial separation

Acceleration /deceleration curves

Four acceleration / deceleration times; Acceleration /deceleration time range:
0.0s~6500.0s

DC braking

Braking time: 0.0s 36.0s

Braking action current: 0.0%100.0%

Inching control

Inching acceleration/deceleration time:0.0s ~6500.0s

Simple PLC, multi-speed operation

Up to 16-speed operation through built-in PLC or control terminals

Built-in PiD

Easy to achieve process control and closed-loop control systems

Automatic voltage regulation (AVR)

The output voltage can be kept constant automatically when the grid voltage changes

Overvoltage / overcurrent stall control

The current / voltage can be limited automatically during operation to prevent frequent overcurrent / overvoltage tripping

Quick current limiting function

Overcurrent faults can be minimized to ensure the normal operation of frequency converters
