CP Series current transformer

CP Series current transformer

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote
CP Series current transformer

CP Series current transformer

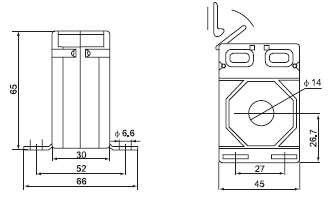

 Outline Drawing Of CP45/14



 ·Secondary Current: 5A
 ·Frequency: 50-60Hz
 ·Rated Votlage: 720V
 ·Security Factor: FS-5
 ·High Voltage Test: 4KVeff,50Hz,1Min
 ·Weight: 200-250gr



       Rated Current(A)
       Primary/Secondary
       30/5A
       40/5A
       50/5A        60/5A        75/5A
       80/5A
       100/5A
       Accuracy Class        3        1.0        1.0        1.0        1.0
       Rated Burden(VA)        1        1.5        2.5        2.5        2.5

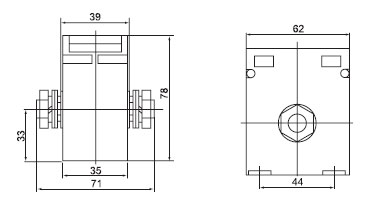

 Outline Drawing Of CP62/WS







       Model        Rated Current
       (VA)
       Rated Burden
       (VA)
       Accuracy Class        Rated Voltage(V)        Rated Frequency
       (Hz)
       CP62/WS        5/5A-80/5A        5VA        0.5        720        50/60
       5/0.5A-5/5A        1-5VA        0.5        720        50/60

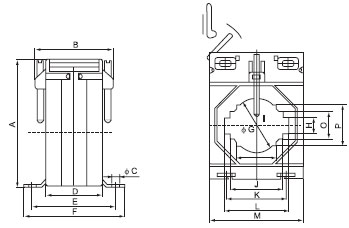

 CP62/30-CP104/80 Technical date:

 ·Secondary Current: 5A
 ·Frequency: 50-60Hz
 ·Rated Votlage: 720V
 ·Security Factor: FS-5
 ·High Voltage Test: 4KVeff,50Hz,1Min
 ·Weight: 200-250gr







       Model        A        B        C        D        E        F        G        H        I        J        K        L        M        O        P
       CP62/20        78        36        6.6        36        55        71                                                21
       CP62/30        78        47        6.6        35        55        71        30.5        11        11        26        44        31        62        21        26
       CP62/40        78        47        6.6        35        55        71        31        11        16        31        44        41        62        21        26
       CP74/40        98        61        6.6        45        67        81        33        12        11        31        47        41        74        21        31
       CP74/50        98        61        6.6        45        67        81        41        12        31        41        47        51        74        21        31
       CP86/60        110        56        6.6        40        62        76        51        12        21        51        68        61        86        31        44
       CP104/80        126        56        6.6        40        62        76        65        12        31        61        68        81        104        31        56





       Model        Rated Current(VA)        Rated Burden(VA)        Accuracy Class        Rated Voltage(V)        Rated Frequency(Hz)
       CP62/20        30/5A-80/5A        1.5~2.5        3.0~0.5        720        50/60
       CP62/30        50/5A-300/5A        1.5~5        1.0~0.5        720        50/60
       CP62/40        200/5A-600/5A        5~10        1.0~0.5        720        50/60
       CP74/40        150/5A-800/5A        2.5~20        1.0~0.5        720        50/60
       CP74/50        250/5A-1000/5A        5~20        1.0~0.5        720        50/60
       CP86/60        250/5A-1200/5A        5~30        1.0~0.5        720        50/60
       CP104/80        6020/5A-2000/5A        5~45        1.0~0.5        720        50/60
       CP145/100        1000/5A-3200/5A        5~50        1.0~0.5        720        50/60

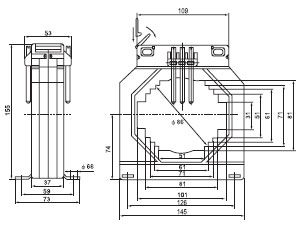

 Outline Drawing Of CP145/100

 ·Rated Current (A)
 ·Primary / Secondary Current: 1000/5A-3200/5A
 ·Rated Burden: 15VA-60VA
 ·Accuracy Class: 1.0-0.2
 ·Operating Frequency: 50-60Hz
