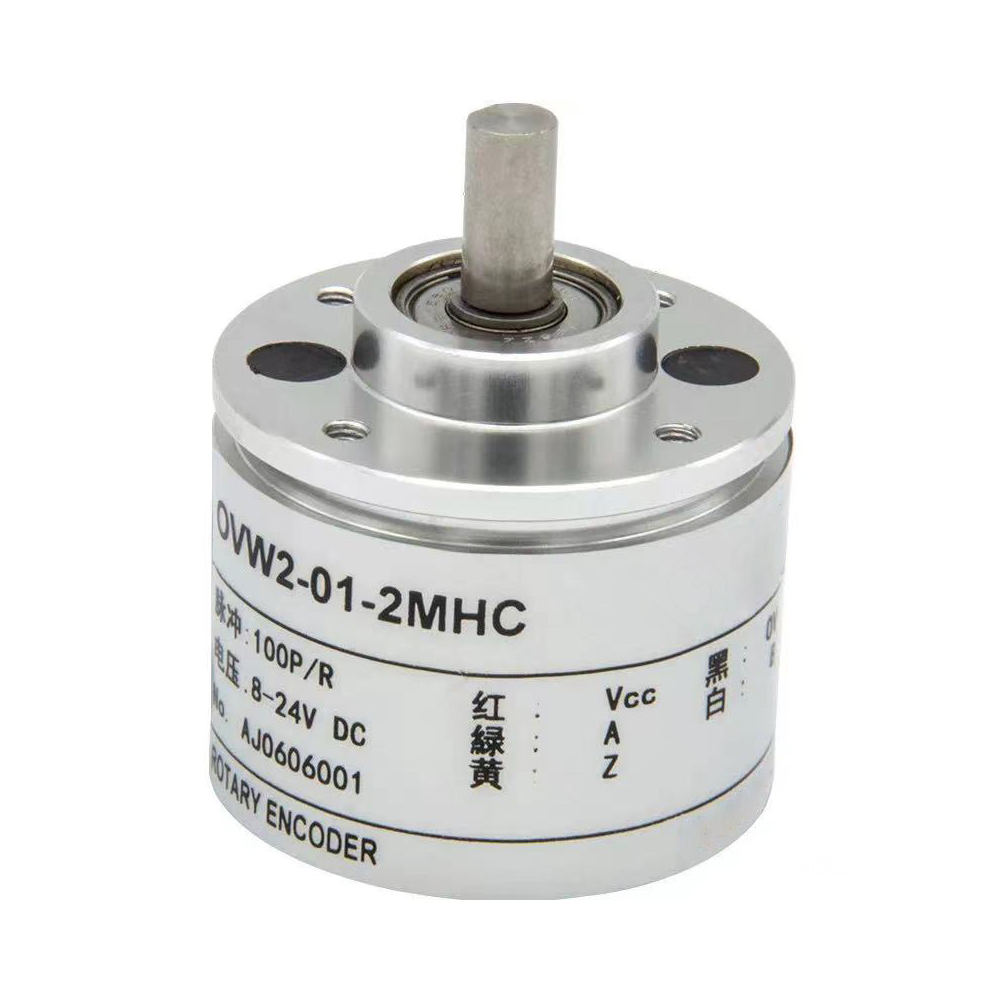

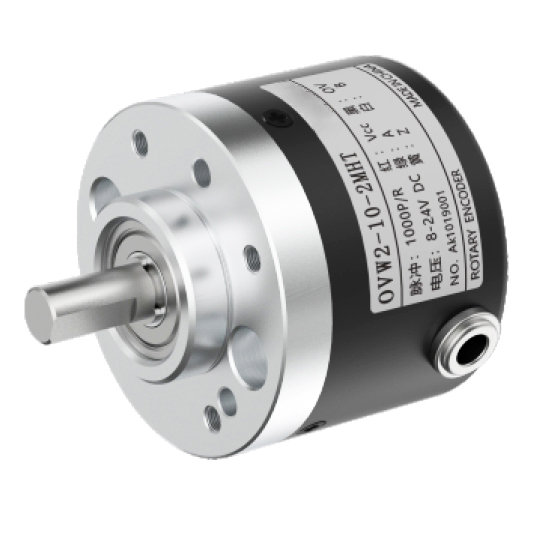

Products Description
Widely used in automatic control, automatic measurement, as the angle and speed sensors.

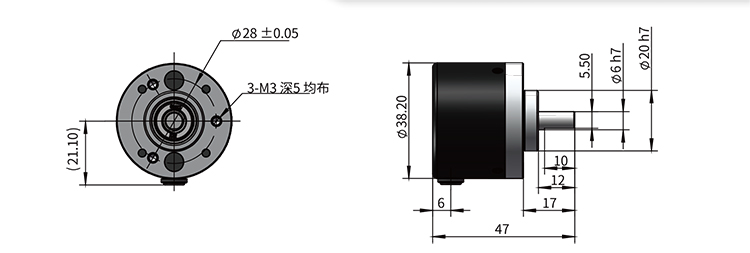

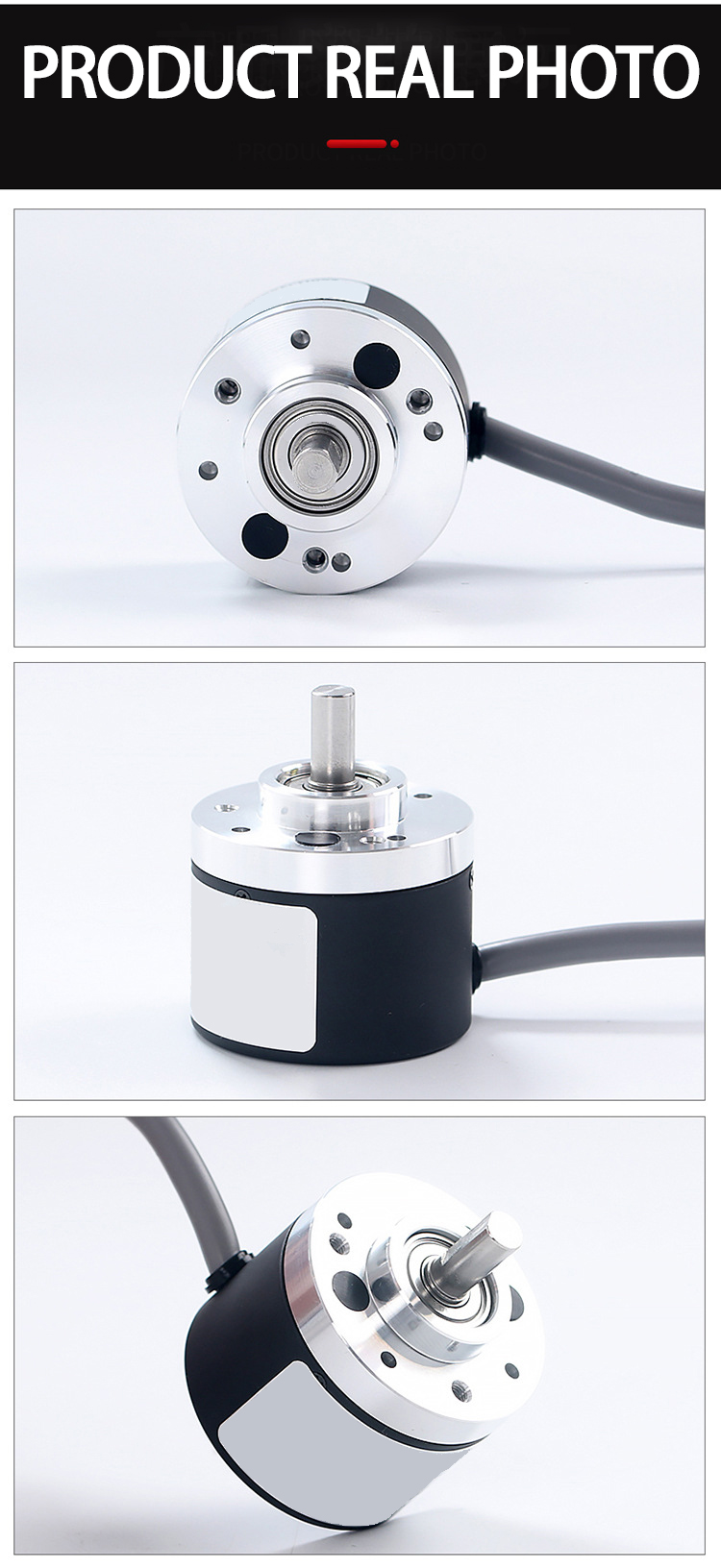

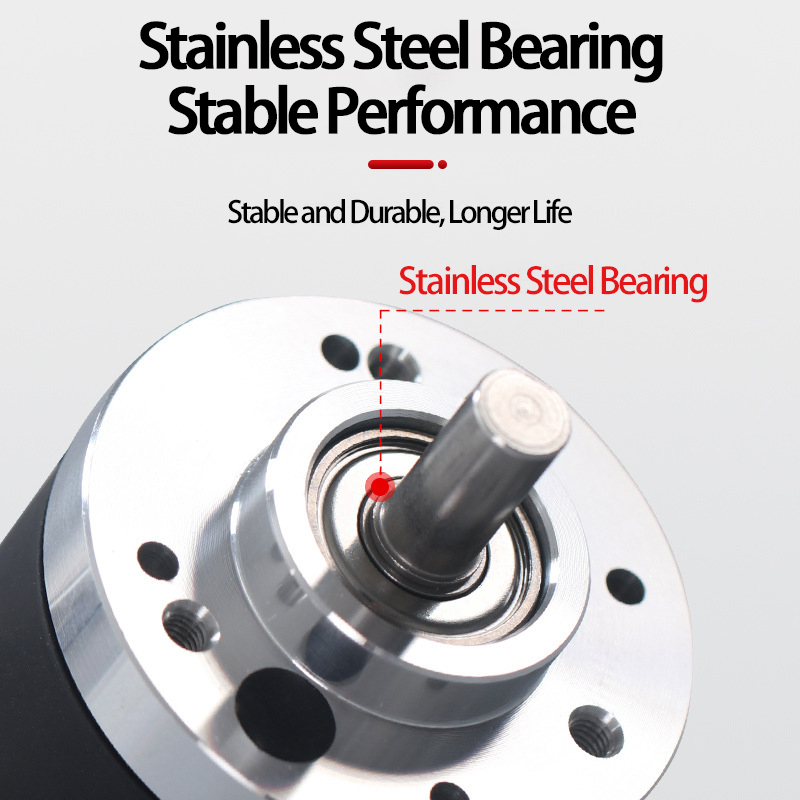

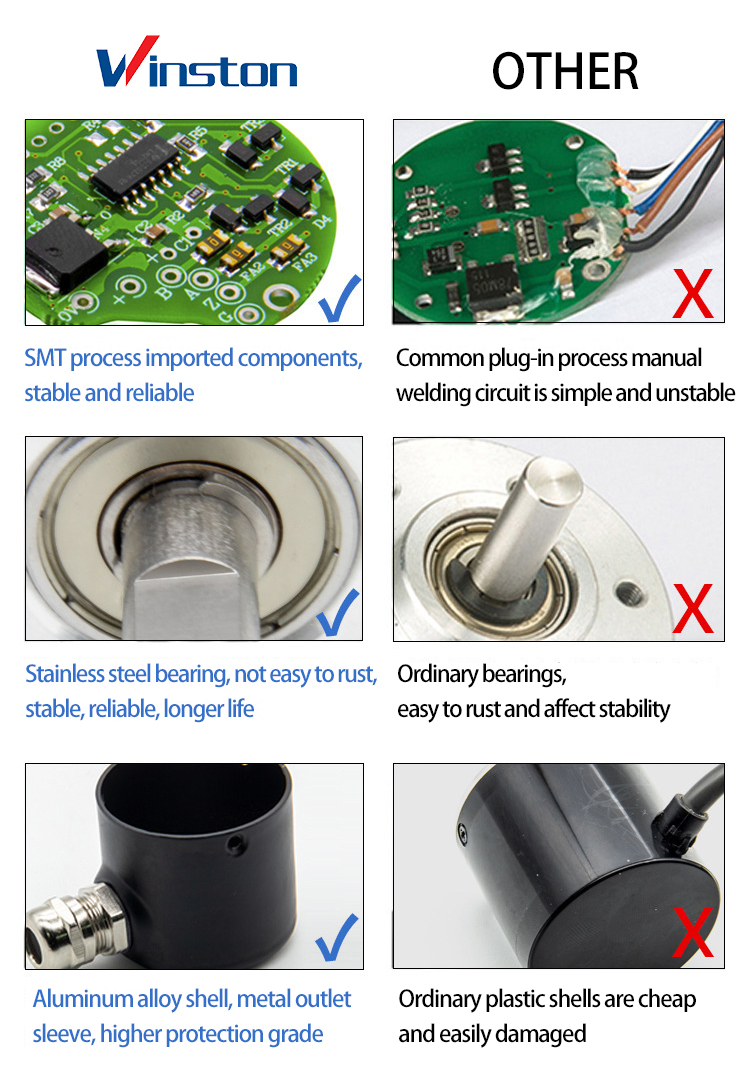

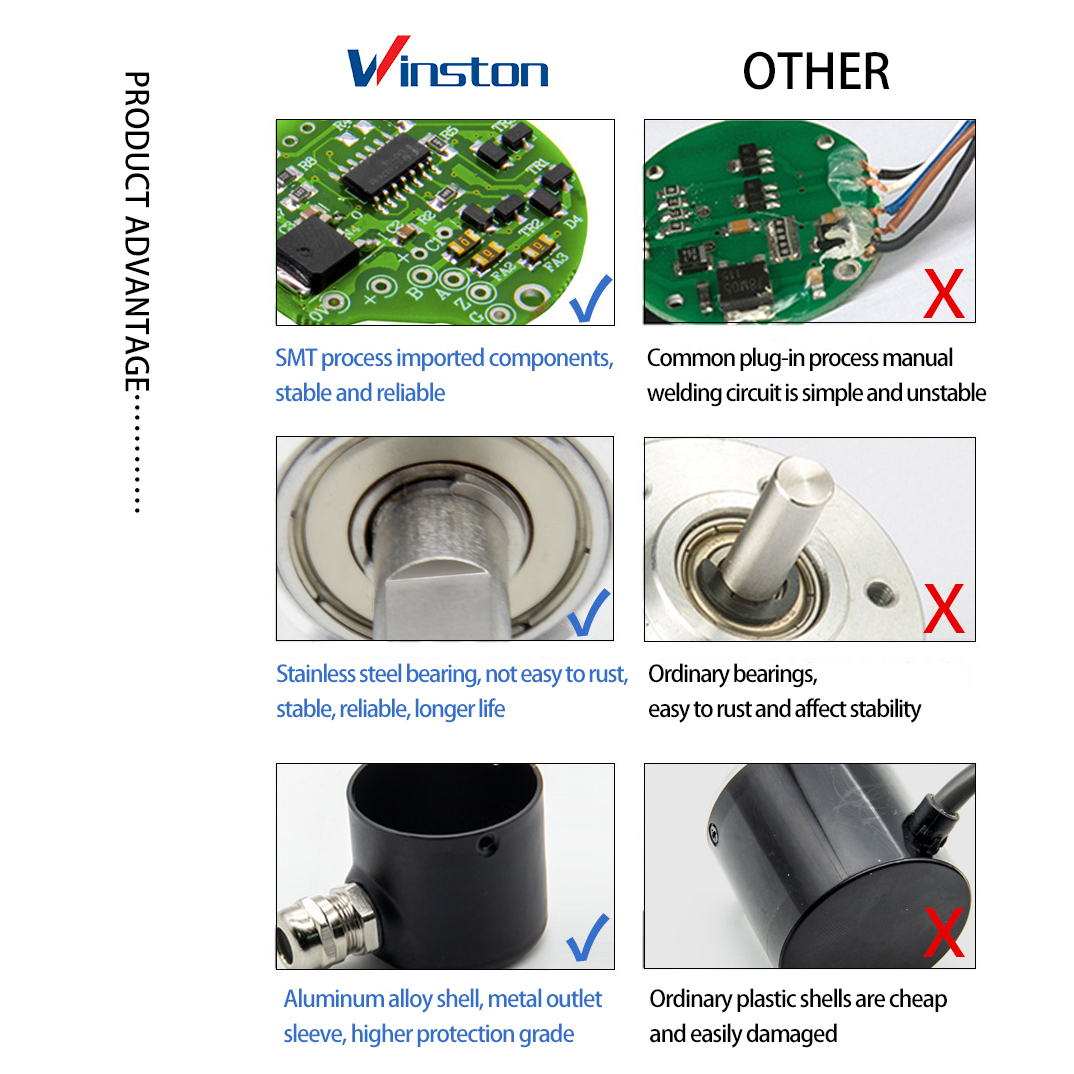

Good reliability,long life, anti-jamming performance. Stainless steel shaft has a higher stability
and protection.Metal shell is more solid andanti-impact. Bearing load heavy, anti-oil and water.
|
Electrical parameters |
Mechanical parameters |
||
|
Resolution |
10-3600P/R |
Start the moment |
2 x10^-3N - m (+ 25 ° C) |
|
Power supply voltage |
DC5V-24V,DC5V |
Allowable shaft load |
9.8N axial and 9.8N radial |
|
Output voltage VH |
≥3.5.≥Vcc-2.5 V |
The moment of inertia |
4x10^-7 Kg㎡ |
|
Output voltage VL |
≤0.5V ≤1.0 V |
The largest number of revolutions |
5000r/min |
|
Current consumption |
≤100mA |
Working temperature |
-20℃~+70℃ |
|

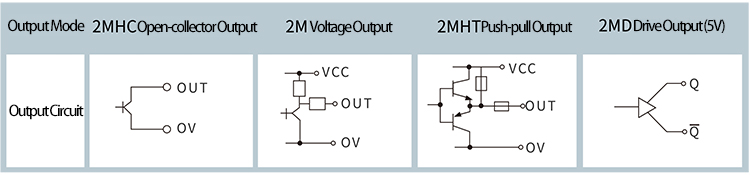

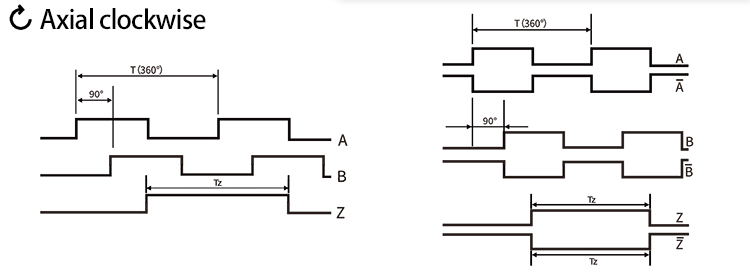

The output phase |
A, B, Z, A, B, Z |
Storage temperature |
-20℃~+80℃ |
|
Response frequency |
0-100kHz |
Protection grade |
IP65 |
|
Rise/fall time |
24V ＜1us
5V driver ≤0.1 us |
Shock resistant |
50M /S^2 (10~200Hz X,Y,Z 3 directions 2 hours each) |
|
Impact resistant |
980m/s^2 |
||
|
Signal |
VCC |
OV |
SIG A |
SIGA |
SIG B |
SIGB |
SIGZ |
SIGZ |
N.C |
|
Cable color |
Red |
Black |
Green |
Blue |
White |
Grey |
Yellow |
Orange |
Bronze |
