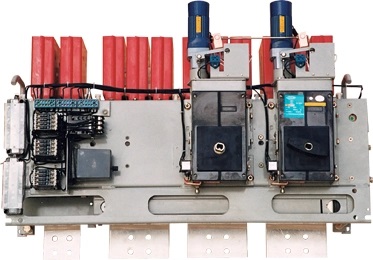

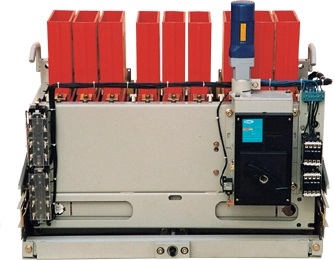

DW17 Universal Circuit Breaker

Name: DW17 Universal Circuit Breaker
Brand: Winston
SKU: 02469
Rating: 4.1 (1285 reviews)

Advantage

> Clean production environment

> Full automatic testing with various tests

> Standardized production process with trained workers

> Low failure ratio and 24-month warranty

> Strong R&D and engineering support

Request a Quote

Description
Technical Data Sheet

Application:

DW17 series low voltage universal circuit breakers are suitable for the distribution circuits with AC 50/60Hz, voltage 380V & 660V,
current up to 5000A, used as distributing electric energy and protecting circuit and electrical equipment against the overload,
voltage drops and short circuit. It also can be used as unfrequent changeover of circuit under normal conditions. The circuit breaker
less than 1250A can be used as protecting motor against overload short circuit in circuit with AC 50/60Hz voltage 380V & used as
unfrequent starting motor under normal conditions.

Model	Rated Current (A)	Rated Breaking Ability				Rated Making Ability (kA)		Rated Short Time Tolerance Current(kA)	Short Time Tolerance Current (kA)	All Breaking Time (ms)	Mechanical Life (times)	Electrical Life (times)
		(KA/cos?)		T=L R=15ms
		380V~	660V~	220V~	440V~	380V~	660V~
DW17-630	630	50/0.25		40	30	105		30	50	30	20000 10000	1000
DW17-800	800
DW17-1000	1000							50
DW17-1250	1250
DW17-1600	1600
DW17-1605	1900
DW17-2000	2000	80/0.2		60		180		80	80	30	10000	500
DW17-2500	2500
DW17-2505	2900
DW17-3200	3200
DW17-3205	3900
DW17-4000	4000	100/0.2	80/0.2	80		220	180	100	100	40	3000	150
DW17-4005	5000

Note: Pls make sure fixed type or drawer type for circuit breaker when order is to be placed. Available mode of operation: right
hand direct operation, face hand direct operation, face hand rapid operation, motor rapid operation or motor prestored energy
operation with exoevgy.
